1. Introduktion
Thank you for choosing the NWIASS Model 301 52-inch 3-blade indoor/outdoor ceiling fan. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan. Please read it thoroughly before beginning installation and retain it for future reference.
This ceiling fan features a powerful yet quiet DC motor, solid wood blades, and dual control modes (remote and wall switch). It is designed for both indoor and outdoor use, offering reversible functionality for year-round comfort and energy efficiency.
The NWIASS Model 301 52-inch 3-blade indoor/outdoor ceiling fan.
2. Sikkerhedsoplysninger
Please observe the following safety precautions to reduce the risk of fire, electric shock, or personal injury:
- Læs alle instruktioner og sikkerhedsoplysninger, før du installerer din nye ventilator.
- Al ledningsføring skal være i overensstemmelse med nationale og lokale el-forskrifter. Hvis du ikke er bekendt med ledningsføring, skal du kontakte en kvalificeret elektriker.
- Ensure the installation site allows the fan blades to rotate without obstruction. A minimum clearance of 7 feet (2.13 meters) from the floor to the blade trailing edge is recommended.
- Monteringsstrukturen skal kunne bære ventilatorens vægt (ca. 6.8 kg).
- Turn off power at the circuit breaker or fuse box before beginning installation to prevent electrical shock.
- Bøj ikke knivholderne under montering, afbalancering eller rengøring.
- Indfør ikke fremmedlegemer mellem roterende ventilatorblade.
- Denne ventilator er velegnet til damp locations, making it ideal for covered outdoor areas like patios and porches.
3. Pakkens indhold
Bekræft, at alle komponenterne nedenfor er inkluderet i din pakke:
- 3 x Solid wood fan blades
- 3 x Down rods (5", 10", 24")
- 1 x Matte black DC motor assembly
- 1 x Set of remote control and receiver
- 1 x engelsk brugermanual (dette dokument)
- 1 x baldakin
- 1 x Pack of screws and mounting hardware
4. Installation
Follow these steps for proper installation. For visual guidance, an installation video may be available from the manufacturer.
- Forbered til installation: Turn off power at the main circuit breaker. Ensure the mounting location is structurally sound and can support the fan's weight.
- Monter monteringsbeslag: Fastgør monteringsbeslaget til loftssamledåsen med de medfølgende skruer. Sørg for, at det er ordentligt fastgjort.
- Saml nedstangen: Choose the appropriate down rod (5", 10", or 24") for your ceiling height. Insert the down rod through the canopy and connect it to the motor assembly.
- Ledningsføring: Carefully connect the fan's electrical wires to the household wiring according to the wiring diagram in the detailed manual. Ensure all connections are secure.
- Monter motorenheden: Løft ventilatorenheden op, og hæng den på monteringsbeslaget.
- Installer klinger: Attach the three solid wood fan blades to the motor hub using the provided screws. Ensure they are securely fastened.
- Sikker baldakin: Skub baldakinen op til loftet og fastgør den til monteringsbeslaget, så ledningsforbindelserne dækkes.
This fan is compatible with sloped ceilings up to 30 degrees. The hanging system ensures proper balance.

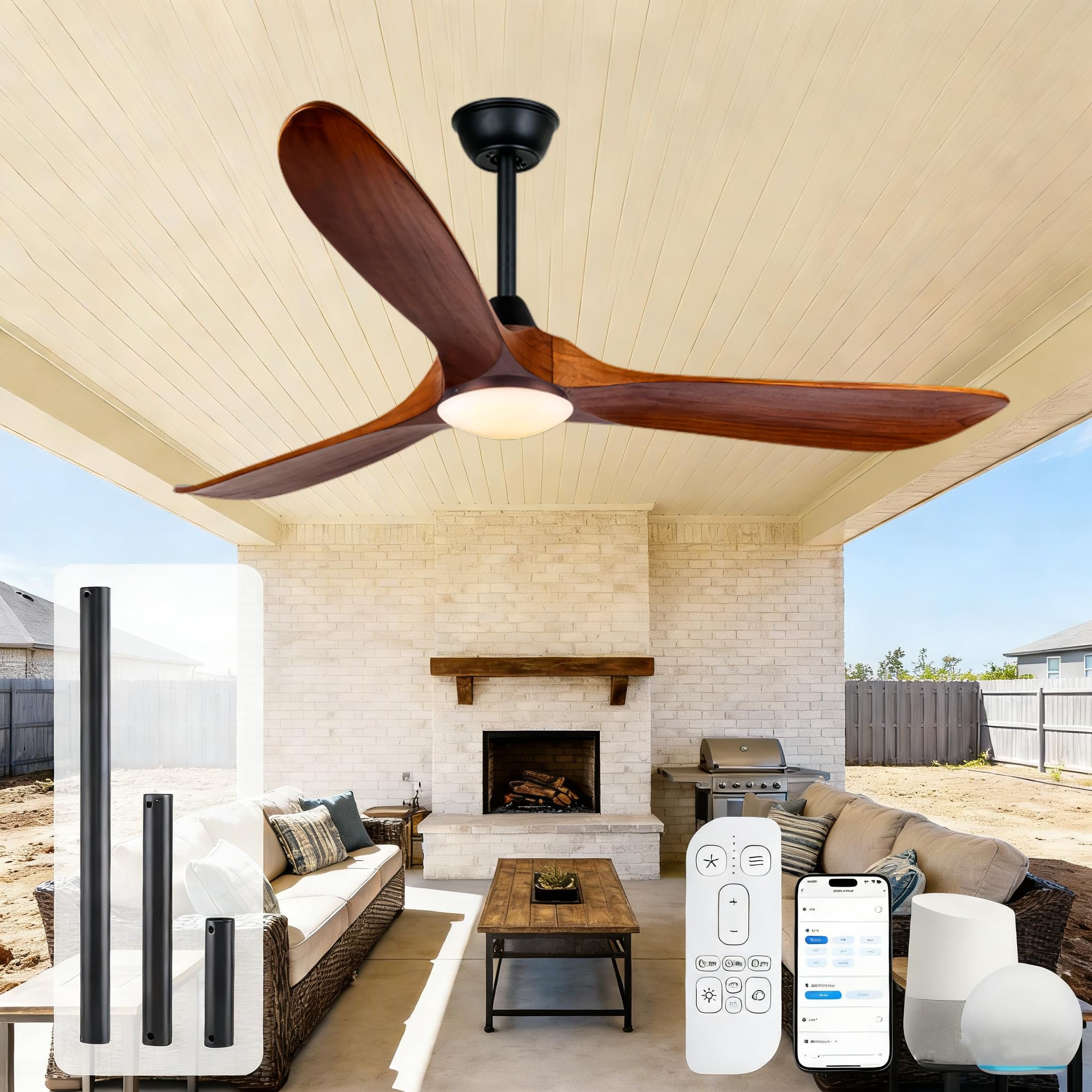

Included downrods and control options for the NWIASS ceiling fan.
5. Betjening
Your NWIASS ceiling fan can be controlled via the included handheld remote or a compatible wall switch. It also supports smart home integration with Google Assistant, Amazon Alexa, and Tuya for voice control.
Fjernbetjeningsfunktioner:
- Tænd/sluk: Tænder eller slukker for blæseren.
- Blæserhastighed: Select from 6 variable wind speeds to adjust airflow.
- Timing funktion: Indstil ventilatoren til at slukke automatisk efter 1, 2, 4 eller 8 timer.
- Naturlig vindtilstand: Simulates a gentle, natural breeze by varying fan speed.
- Vendbar funktion (sommer-/vintertilstand): Change the direction of blade rotation.
Summer and Winter Modes:
Den reversible DC-motor muliggør brug året rundt:
- Summer (Downdraft Mode): Bladene roterer mod uret og presser kølig luft nedad for at skabe en forfriskende brise.
- Winter (Updraft Mode): Blades rotate clockwise, drawing cool air up towards the ceiling and circulating warm air downwards, helping to distribute heat more evenly.
Summer Downdraft Mode and Winter Updraft Mode.
Control your fan using the remote, wall switch, or smart home voice commands.
Energy Efficiency and Quiet Operation:
The DC motor in your NWIASS fan is highly energy-efficient, consuming significantly less power than traditional AC motors. It operates at a noise level of less than 30 dB, ensuring a quiet environment.

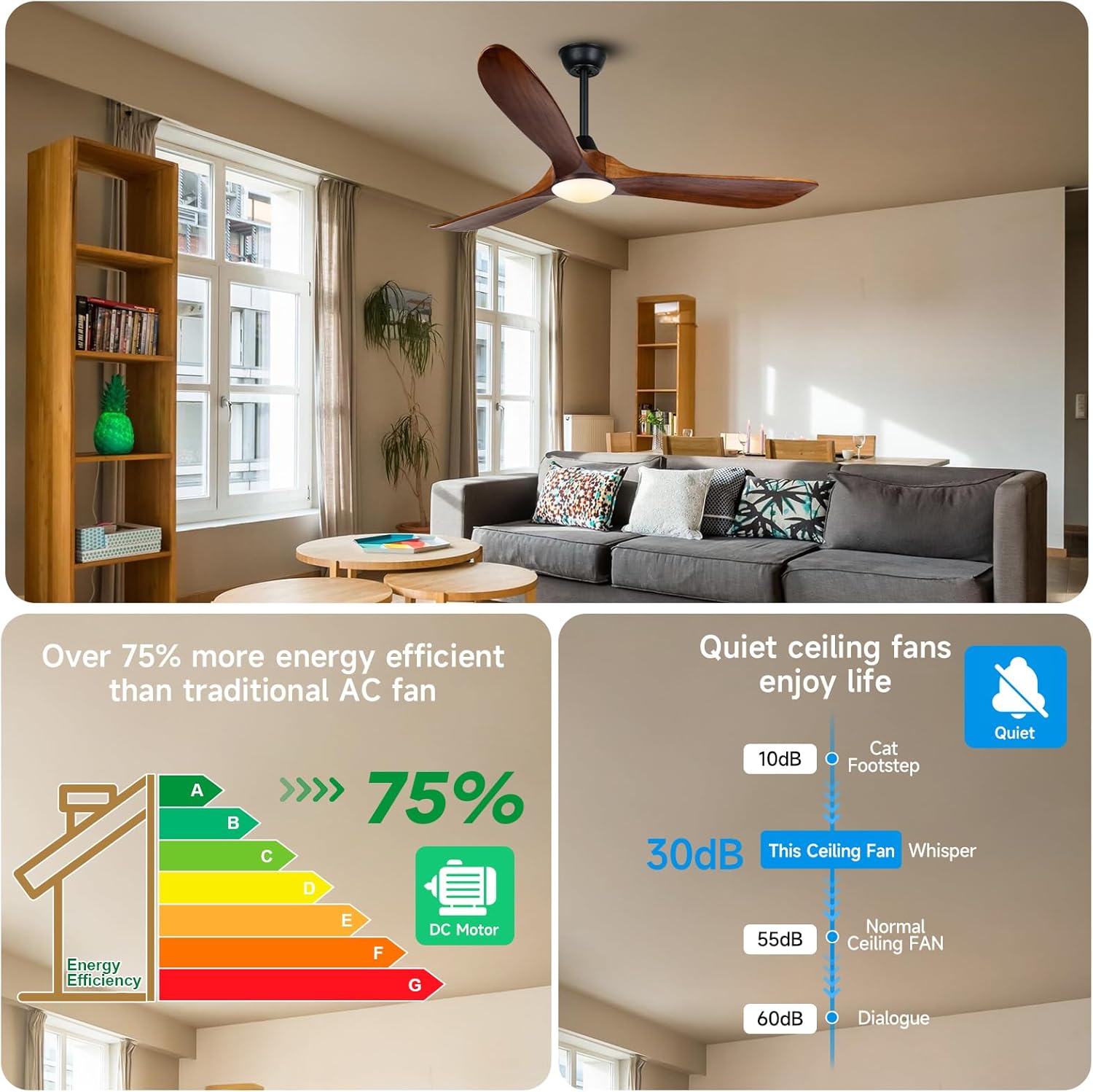

Energy efficiency and quiet operation of the NWIASS ceiling fan.
The silent brushless motor ensures a peaceful environment.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for din loftsventilator.
- Rensning: To clean the fan, wipe the solid wood blades and motor housing with a soft, damp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler, der kan beskadige overfladen.
- Inspektion: Periodically check all connections and screws to ensure they are secure. Tighten any loose screws.
- Ingen smøring nødvendig: The DC motor is permanently lubricated and does not require oiling.
7. Fejlfinding
If you encounter issues with your NWIASS ceiling fan, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ventilator starter ikke | No power supply; Loose wiring; Remote not paired | Verify all power sources are functioning properly (circuit breaker, wall switch). Check all wiring connections. Pair the remote control with the receiver: Press and hold the button in the upper left corner of the remote for approximately 5 seconds until you hear a beep sound, indicating successful pairing. |
| Ventilatoren larmer for meget | Loose screws; Unbalanced blades | Ensure all motor housing and blade attachment screws are tight. Check for any obstructions. |
| Blæseren slingrer | Loose blades; Improper mounting; Unbalanced blades | Ensure all blade screws are tight. Verify the mounting bracket is securely fastened to the ceiling. Check for any bent blades. |
If you experience issues not covered here, please contact NWIASS customer service for assistance.
8. Specifikationer
Detailed specifications for the NWIASS Model 301 ceiling fan:
| Feature | Specifikation |
|---|---|
| Mærke | NWIASS |
| Modelnavn | 301 |
| Elektrisk ventilator design | Loft Fan |
| Farve | Sort guld |
| Produktmål (D x B x H) | 20"D x 15"W x 10"H (approximate, without blades) |
| Varens vægt | 15 pund (omtrentlig) |
| Strømkilde | DC motor |
| Voltage | 120 volt |
| Wattage | 22 watt |
| Antal blade | 3 |
| Bladmateriale | Solid Wood Fan Blade |
| Luftmængde kapacitet | 6210 kubikfod pr. minut (CFM) |
| Støjniveau | 30 decibel (dB) |
| Antal hastigheder | 6 |
| Kontrolmetode | Remote Control, Wall Switch, Smart Home (Google Assistant, Amazon Alexa, Tuya) |
| Monteringstype | Downrod Mount (5", 10", 24" included) |
| Sloped Ceiling Compatibility | Yes, less than 30 degrees |
| Indendørs udendørs brug | Outdoor (damp rated) and Indoor |
| Særlige funktioner | Reversible DC motor, 1/2/4/8 hour timer, Natural wind mode |
| Certificeringer | CE, CETL, ETL, FCC, RoHS |
The NWIASS fan features a DC motor and solid wood blades.
9. Officielle produktvideoer
Watch these official videos for additional information and visual guidance:
NWIASS 3 Blade Solid Wood Ceiling Fan Overview
Denne video giver en overview of the NWIASS 3-blade solid wood ceiling fan, highlighting its features and design.
NWIASS Ceiling Fan Brand Introduction
Learn more about the NWIASS brand and its commitment to quality ceiling fans.
Customer Showcase: NWIASS Ceiling Fan in Use
See the NWIASS ceiling fan in a real-world setting, demonstrating its aesthetic and functional qualities.
10. Garanti og support
NWIASS is committed to customer satisfaction and provides comprehensive support for its products.
- Livstids motorgaranti: The DC motor of your NWIASS ceiling fan is covered by a lifetime warranty.
- 30-dages pengene-tilbage-garanti: Enjoy peace of mind with a 30-day money-back guarantee.
- Kundeservice: NWIASS offers 24/7 customer service. If you need any help during use or installation, or if there are any damaged parts, please contact the seller NWIASS on your order page for assistance or a free replacement.
