Vortopt UR02 Countertop Reverse Osmosis System

Indledning

Thank you for choosing the Vortopt UR02 Countertop Reverse Osmosis System. This advanced water dispenser provides purified water through a 4-stage filtration process, offering both hot and cold water options without requiring any complex installation. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new system. Please read it thoroughly before use and retain it for future reference.

Sikkerhedsinstruktioner

• Ensure the unit is placed on a stable, level surface away from direct sunlight and heat sources.
• Apparatet, netledningen eller stikket må ikke nedsænkes i vand eller andre væsker.
• Keep out of reach of children. Use the child safety lock feature when dispensing hot water.
• Only use potable tap water with this system. Do not use water from unknown sources.
• Tag stikket ud af enheden, før du rengør eller udfører vedligeholdelse.
• Brug ikke apparatet med en beskadiget ledning eller et beskadiget stik, eller hvis apparatet ikke fungerer korrekt eller er blevet beskadiget på nogen måde.
• Sørg for korrekt ventilation omkring enheden.

Produkt overview

The Vortopt UR02 system consists of the main body, a multi-stage filter system, a removable water tank, a water tank handle, and an intelligent display panel.

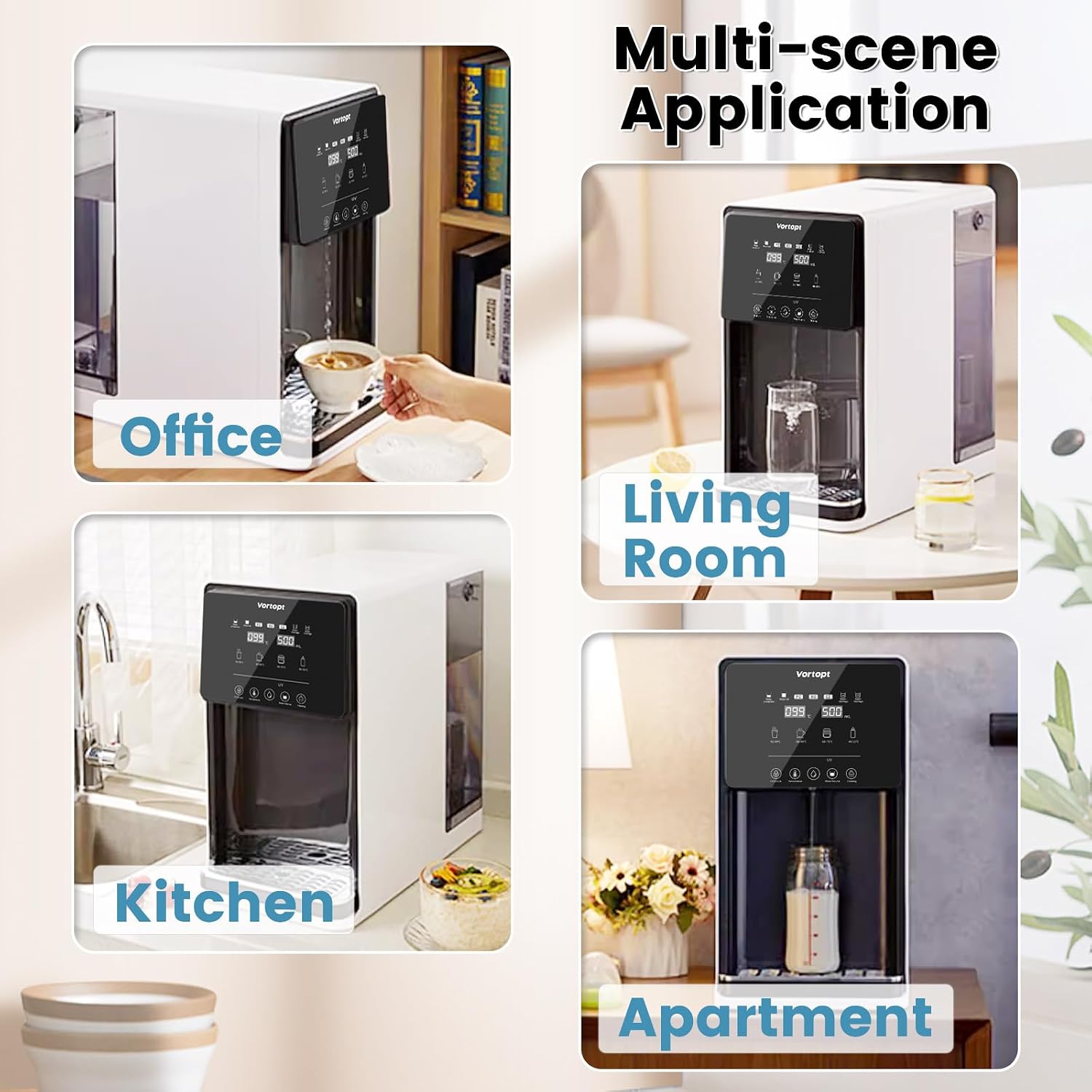

Image: The Vortopt UR02 Countertop Reverse Osmosis System, showing its sleek design and integrated dispenser.

Image: A comparison highlighting the ease of installation and smart features of the Vortopt Countertop RO system versus traditional under-sink RO systems.

Image: Close-up of the Vortopt UR02's smart touch display screen, showing filter indicators, temperature settings, and water volume options.

Nøglefunktioner:

• Avanceret 4-Stage RO Filtration: Effectively removes 99.99% of impurities with 0.0001 µm filtration precision.
• Intelligent Screen: Monitors filter life, provides replacement notifications, and allows selection of water quantity and temperature.
• Ingen installation nødvendig: Ready to use out of the box, no plumbing or drilling needed.
• Vandbesparende teknologi: Achieves a 7:1 pure to wastewater ratio, significantly more efficient than traditional under-sink RO systems.
• Stor kapacitet: Features a 7-liter water tank, reducing the frequency of refills.
• Flere temperaturindstillinger: Dispenses water at various temperatures for different needs (e.g., hot tea, warm milk).

Opsætning

1. Udpakning: Carefully remove the system from its packaging. Inspect for any damage.
2. Placering: Place the unit on a flat, stable, and dry surface. Ensure there is adequate space around the unit for ventilation.
3. Indledende rengøring: Before first use, remove the water tank and wash it with mild soap and water. Rinse thoroughly. Wipe down the exterior of the unit with a damp klæde.
4. Filterinstallation: The filters are typically pre-installed. If not, refer to the filter replacement section for instructions on how to install the PC, RO, and C2 filters.
5. Fyld vandtank: Fill the 7-liter water tank with potable tap water. Ensure the tank is properly seated in the unit.
6. Strømtilslutning: Plug the power cord into a grounded electrical outlet. The intelligent display panel will illuminate.
7. First Flush: For the first use, dispense at least two full tanks of water to flush the system and filters. Discard this water. This ensures optimal filter performance and removes any manufacturing residues.

Image: The 7-liter large capacity water tank of the Vortopt UR02, being removed from the unit for filling or cleaning.

Betjeningsvejledning

Intelligent Display Panel:

The touch-sensitive display panel allows you to control various functions of the system.

• Indikatorer for filterlevetid: Icons for PC, RO, and C2 filters show their remaining lifespan. Replace filters when indicated.
• Water Temperature Selection: Choose from several preset temperatures (e.g., 25-35°C for room temperature, 40-55°C for warm, 60-70°C for hot, 80-90°C for very hot, 92-99°C for near boiling).
• Valg af vandvolumen: Select the desired volume of water to dispense.
• Børnelås: Activate the child lock for hot water dispensing to prevent accidental burns.
• Rengøringsfunktion: Initiate a self-cleaning cycle for the internal system.

Image: The Vortopt UR02 display showing five different water temperature modes, ranging from room temperature to near boiling, for various uses.

Dispensering af vand:

1. Place a cup or container on the drip tray.
2. Select your desired water temperature and volume using the touch screen.
3. For hot water, ensure the child lock is disengaged (if active) and press the dispense button.
4. The system will automatically dispense the selected volume of water.

Opretholdelse

Filterudskiftning:

The intelligent display will notify you when filters need replacement. For optimal performance, replace filters as recommended.

• PC Filter: Pre-Carbon filter. (Søg efter B0CDC27R1S for replacement).
• RO-filter: Reverse Osmosis membrane filter. (Søg efter B0CDBZP3KH for replacement).
• C2 Filter: Post-Carbon filter. (Søg efter B0CDC2HHHW for replacement).

Sådan udskiftes et filter:

1. Tag enheden ud af stikkontakten.
2. Find filterrummet.
3. Drej det gamle filter mod uret for at fjerne det.
4. Sæt det nye filter i, og drej det med uret, indtil det sidder fast.
5. Plug the unit back in. Reset the filter life indicator on the display panel if prompted.
6. Flush the new filter by dispensing water for a few minutes as per the initial setup instructions.

Rengøring af enheden:

• Ydre: Tør ydersiden af ​​med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Vandtank: Regularly remove and clean the water tank with mild soap and water. Rinse thoroughly to prevent soap residue.
• Drypbakke: Tøm og rengør drypbakken regelmæssigt.
• Indvendig rengøring: Utilize the "Cleaning Function" on the intelligent display panel as needed.

Fejlfinding

Specifikationer

• Modelnummer: UR02-US
• Fabrikant: Vortopt
• Dimensioner (L x B x H): 50.8 x 50.8 x 76.2 cm (20 x 20 x 30 tommer)
• Vægt: 8.75 kg (19.29 lbs)
• Materiale: Acrylonitril Butadien Styren (ABS)
• Strømkilde: El-ledning
• Særlige funktioner: Reduces TDS, Hot & Cold Water Dispensing, 4-Stage RO Filtration
• Inkluderede komponenter: Body, Filters, Water Tank, Water Tank Handle, Display Panel
• Vandtankkapacitet: 7 liter
• Filtration Precision: 0.0001 µm
• Pure to Wastewater Ratio: 7:1

Garanti og support

For warranty information or technical support, please contact Vortopt customer service. Refer to the product packaging or the official Vortopt website for contact details. Please have your model number (UR02-US) and purchase date available when contacting support.

Vigtig bemærkning: The availability of replacement parts and filters is crucial for the long-term use of your product. While the product description provides ASINs for replacement filters (B0CDC27R1S for PC, B0CDBZP3KH for RO, B0CDC2HHHW for C2), some customer reviews indicate potential difficulties in sourcing these. Please verify filter availability with the manufacturer or authorized retailers before purchase or when planning replacements.
