Avision FB25 Flatbed Scanner Instruction Manual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your Avision FB25 Flatbed Scanner. The FB25 is a high-resolution A4 color flatbed scanner designed for efficient document and ID card scanning. It features a 1200dpi Contact Image Sensor (CIS) and USB 2.0 connectivity, making it suitable for various scanning tasks. Please read this manual thoroughly before using the scanner to ensure proper operation and to maximize its performance.

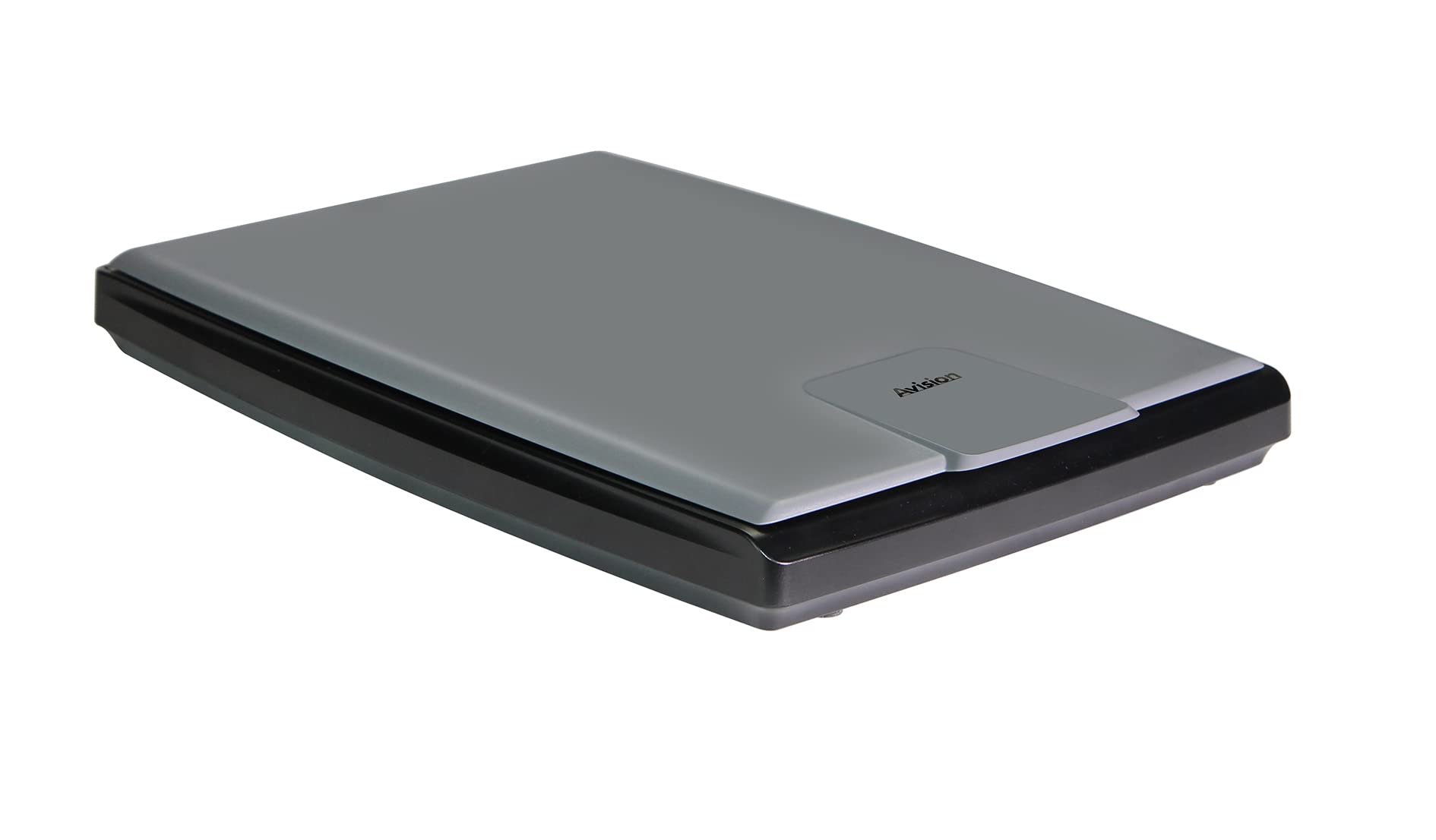

Billede 1.1: Top-down view of the Avision FB25 Flatbed Scanner. The scanner features a dark gray base with a lighter gray lid, displaying the 'Avision' logo prominently on the lid's front section.

2. Sikkerhedsoplysninger

• Do not expose the scanner to water or moisture.
• Do not attempt to disassemble or modify the scanner. Refer all servicing to qualified personnel.
• Brug kun den strømadapter, der følger med scanneren.
• Place the scanner on a stable, level surface to prevent damage from falling.
• Hold scanneren væk fra direkte sollys og varmekilder.
• Sørg for tilstrækkelig ventilation omkring scanneren for at forhindre overophedning.

3. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• Avision FB25 Flatbed Scanner Unit
• USB 2.0-kabel
• Strømadapter
• Hurtig startvejledning
• Software CD (or download instructions for TWAIN Driver and PaperPort SE14)

4. Produktet er slutview

The Avision FB25 is a compact flatbed scanner. Its design includes a scanning bed for documents up to A4 size, a hinged lid, and a power/data interface.

Image 4.1: The Avision FB25 Flatbed Scanner shown with its approximate dimensions: 16.77 inches in length, 13.65 inches in width, and 3.12 inches in height.

4.1 Foran View

The front of the scanner typically features the Avision logo on the lid. There are no physical buttons on the front.

4.2 bag View

The rear panel houses the power input port and the USB 2.0 port for connecting to your computer.

4.3 Scanning Bed

The flat glass surface where documents are placed for scanning. Ensure this surface is clean before each use.

5. Opsætning

5.1 Hardwareforbindelse

1. Placer scanneren på en stabil, flad overflade.
2. Connect the power adapter to the scanner's power input port and then plug it into an electrical outlet.
3. Connect one end of the USB 2.0 cable to the scanner's USB port and the other end to an available USB port on your computer.
4. Power on the scanner (if it has a power button; otherwise, it powers on automatically when connected).

5.2 Softwareinstallation

The Avision FB25 requires driver software for proper operation. It supports Windows XP, Vista, 7, 8, 10, and 11.

1. Insert the provided Software CD into your computer's CD/DVD drive. If your computer does not have a CD/DVD drive, download the latest drivers and software (TWAIN Driver and PaperPort SE14) from the official Avision support webwebsted.
2. Follow the on-screen instructions to install the TWAIN driver. The TWAIN driver allows the scanner to communicate with various scanning applications.
3. Install PaperPort SE14, the bundled document management software. This software provides an intuitive interface for scanning, organizing, and sharing documents.
4. Restart your computer after the installation is complete to ensure all drivers are properly loaded.

6. Betjeningsvejledning

6.1 Placing Documents

1. Løft scannerlåget.
2. Place the document face-down on the scanning glass, aligning it with the corner guide (usually top-left).
3. Gently close the scanner lid. Ensure the document lies flat against the glass.

6.2 Using the TWAIN Driver

The TWAIN driver allows you to scan directly from TWAIN-compliant applications (e.g., Adobe Photoshop, Microsoft Paint, or other document management software).

1. Open your preferred TWAIN-compliant application.
2. Naviger til 'File' menu and select 'Import' or 'Acquire Image'.
3. Choose the Avision FB25 scanner from the list of available devices.
4. The TWAIN driver interface will appear, allowing you to adjust scanning settings such as resolution (up to 1200dpi), color mode (color, grayscale, black & white), and scan area.
5. Click 'Scan' to initiate the scanning process. The FB25 can scan an A4 color page at 300 dpi in approximately 1.5 seconds.
6. The scanned image will appear in your application.

6.3 Using PaperPort SE14

PaperPort SE14 provides a user-friendly environment for scanning and managing your documents.

1. Launch PaperPort SE14 from your desktop or Start menu.
2. In the PaperPort interface, locate the 'Scan' button or option.
3. Select the Avision FB25 as your scanner.
4. Adjust scanning settings as needed (e.g., resolution, color, document type).
5. Click 'Scan' to begin. The scanned document will appear in your PaperPort workspace.
6. You can then save the document in various formats including BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR, XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, and HTML.

7. Vedligeholdelse

7.1 Rengøring af scannerglaspladen

Dust or smudges on the scanner glass can affect scan quality.

• Sluk scanneren, og tag strømadapteren ud.
• Åbn scannerlåget.
• Gently wipe the glass surface with a soft, lint-free cloth damprengøres med et mildt glasrensemiddel. Spray ikke rengøringsmiddel direkte på glasset.
• Wipe dry with another clean, dry cloth.
• Close the lid and reconnect power.

7.2 Generel pleje

• Keep the scanner covered when not in use to prevent dust accumulation.
• Avoid placing heavy objects on the scanner lid.

8. Fejlfinding

If you encounter issues with your Avision FB25 scanner, refer to the following common problems and solutions:

9. Specifikationer

Key technical specifications for the Avision FB25 Flatbed Scanner:

• Scannertype: Document, ID Card Flatbed
• Optisk sensorteknologi: CIS (Contact Image Sensor)
• Lyskildetype: LED
• Optisk opløsning: 1200 dpi
• Farvedybde: 48-bit input, 24-bit output
• Grayscale Depth: 16-bit input, 8-bit output
• Scan Size (Max): A4 (216 x 297 mm)
• Scanningshastighed: Approximately 1.5 seconds per A4 color page at 300 dpi (3.5 seconds including return)
• Forbindelse: USB 2.0
• Produktmål (D x B x H): 16.93" x 13.78" x 3.15" (430 mm x 350 mm x 80 mm)
• Standard arkkapacitet: 1 (flatbed)
• Minimum systemkrav: Windows XP, Vista, 7, 8, 10, 11
• Medfølgende software: TWAIN Driver, PaperPort SE14
• Understøttet File Formater: BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF, Multi-TIFF, TIFF, RTF, TXT, OCR, XPS, DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML

10. Garanti og support

10.1 Producentens garanti

The Avision FB25 Flatbed Scanner comes with a 1 års producentgaranti. This warranty covers defects in materials and workmanship under normal use during the warranty period. Please retain your proof of purchase for warranty claims.

10.2 Teknisk support

For technical assistance, driver updates, or further troubleshooting not covered in this manual, please visit the official Avision support website or contact their customer service department. Contact information can typically be found on the Avision webwebstedet eller i den hurtigstartvejledning, der følger med dit produkt.
