FEELON 52" RGB LED Light Bar and 4" Flood LED Pods Instruction Manual

1. Introduktion

Thank you for choosing the FEELON 52" RGB LED Light Bar and 4" Flood LED Pods. This product is designed to provide enhanced illumination and customizable lighting effects for various off-road and vehicle applications. This manual provides detailed instructions for proper installation, operation, and maintenance to ensure optimal performance and longevity of your lighting system.

Figure 1: FEELON 52" RGB LED Light Bar and 4" Flood LED Pods Kit.

2. Pakkens indhold

Kontroller venligst, at alle nedenstående varer er inkluderet i din pakke. Hvis der mangler eller er beskadigede komponenter, bedes du kontakte kundesupport.

• 1 x 52-inch 300W RGB LED Light Bar
• 2 x 4-inch 18W RGB LED Pods Fog Lights with Chasing RGB Halo Strip
• 1 x vippekontakt
• 1 x Control Wiring Harness
• Necessary Mounting Brackets and Hardware

3. Specifikationer

Se tabellen nedenfor for detaljerede produktspecifikationer.

Figur 2: Produktmål.

4. Sikkerhedsoplysninger

Læs og forstå alle sikkerhedsinstruktioner før installation og betjening. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller alvorlig personskade.

• Always disconnect power before installing or servicing the lights.
• Ensure proper wiring and connections to prevent short circuits.
• Do not look directly into the light source when illuminated, as it may cause eye damage.
• Hold børn væk fra produktet under installation og drift.
• Ensure the mounting location is secure and can support the weight of the lights.
• Kontakt en professionel, hvis du er usikker på nogen del af installationsprocessen.

5. Opsætning og installation

This section outlines the general steps for installing your FEELON LED light bar and pods. Specific vehicle requirements may vary.

5.1 Montering af lysene

1. Vælg en placering: Select a suitable mounting location on your vehicle (e.g., car roof, grille cover, front bar, hood). Ensure the location provides adequate clearance and a stable surface for the brackets.
2. Fastgør beslag: Secure the provided mounting brackets to the light bar and pods using the included hardware. The brackets are adjustable up to approximately 45 degrees, allowing for precise aiming of the light.
3. Mount Lights to Vehicle: Position the lights with attached brackets onto your chosen location and secure them firmly using appropriate fasteners.

Figur 3: Eksample Installation Positions on a Vehicle.

Figure 4: Heat Sink Design and Adjustable Brackets.

5.2 Ledningsforbindelser

Use the provided control wiring harness for connecting the light bar and pods to your vehicle's power system. Ensure all connections are secure and properly insulated to maintain the IP67 waterproof rating.

• Connect the light bar and pods to the wiring harness.
• Connect the wiring harness to a 12V DC power source on your vehicle.
• Install the rocker switch in a convenient location within your vehicle's cabin.
• Ensure all wiring is routed safely, away from moving parts or heat sources.

Figure 5: Waterproof Features and Connections.

6. Betjeningsvejledning

Your FEELON RGB LED lights can be controlled via the included remote control or a dedicated smartphone application.

6.1 Betjening af fjernbetjening

1. Tænd: Before using the remote control, press and hold the ON button on the remote until the lights power on.
2. Farvevalg: Use the color buttons to select from 16 solid colors.
3. Valg af tilstand: Cycle through over 92 flashing modes using the mode buttons.
4. Justering af lysstyrke: Adjust the brightness levels as desired.

6.2 Styring af smartphone-app

The dedicated app provides advanced control over your lighting system, including music synchronization and custom color modes.

1. Download appen: Scan the QR code below or search for "BLEDIM2" in your device's App Store or Google Play Store.
2. Connect to Lights: Follow the in-app instructions to connect your smartphone to the FEELON RGB LED lights. The app can control up to 4 sets of lights simultaneously.
3. Udforsk funktioner: Utilize the app for:
   • Custom color selection (millions of colors)
   • Music mode (lights glow to the rhythm of music or voice)
   • Flashing functions and automatic control modes
   • Color DIY (add/delete up to 7 different colors)

Figure 6: BLEDIM2 App Interface and QR Code for Download. App Download Link: http://qr07.cn/A9M4xq

Figure 7: App and Remote Control Options with Lighting Examples.

Figure 8: Diverse RGB Lighting Effects.

7. Vedligeholdelse

Regular maintenance helps ensure the longevity and performance of your LED lights.

• Rensning: Periodically clean the light bar and pods with a soft cloth and mild detergent. Avoid abrasive cleaners that could scratch the lenses or housing.
• Tilslutningskontrol: Regularly inspect all wiring connections for tightness and signs of corrosion. Re-tighten or clean as necessary.
• Monteringssikkerhed: Verify that the mounting brackets and hardware remain secure. Tighten any loose fasteners.

8. Fejlfinding

If you encounter issues with your FEELON RGB LED lights, refer to the following troubleshooting tips:

9. Anvendelsesscenarier

The FEELON RGB LED Light Bar and Pods are versatile and suitable for a wide range of 10-30V (12V, 24V) off-road and general lighting applications.

• 4x4 Trucks and Off-Road Vehicles
• UTVs and ATVs
• Både og marineapplikationer
• Arbejdslys
• Vehicle Dome Lights
• Emergency and Auxiliary Lighting
• Garden and Decorative Lighting

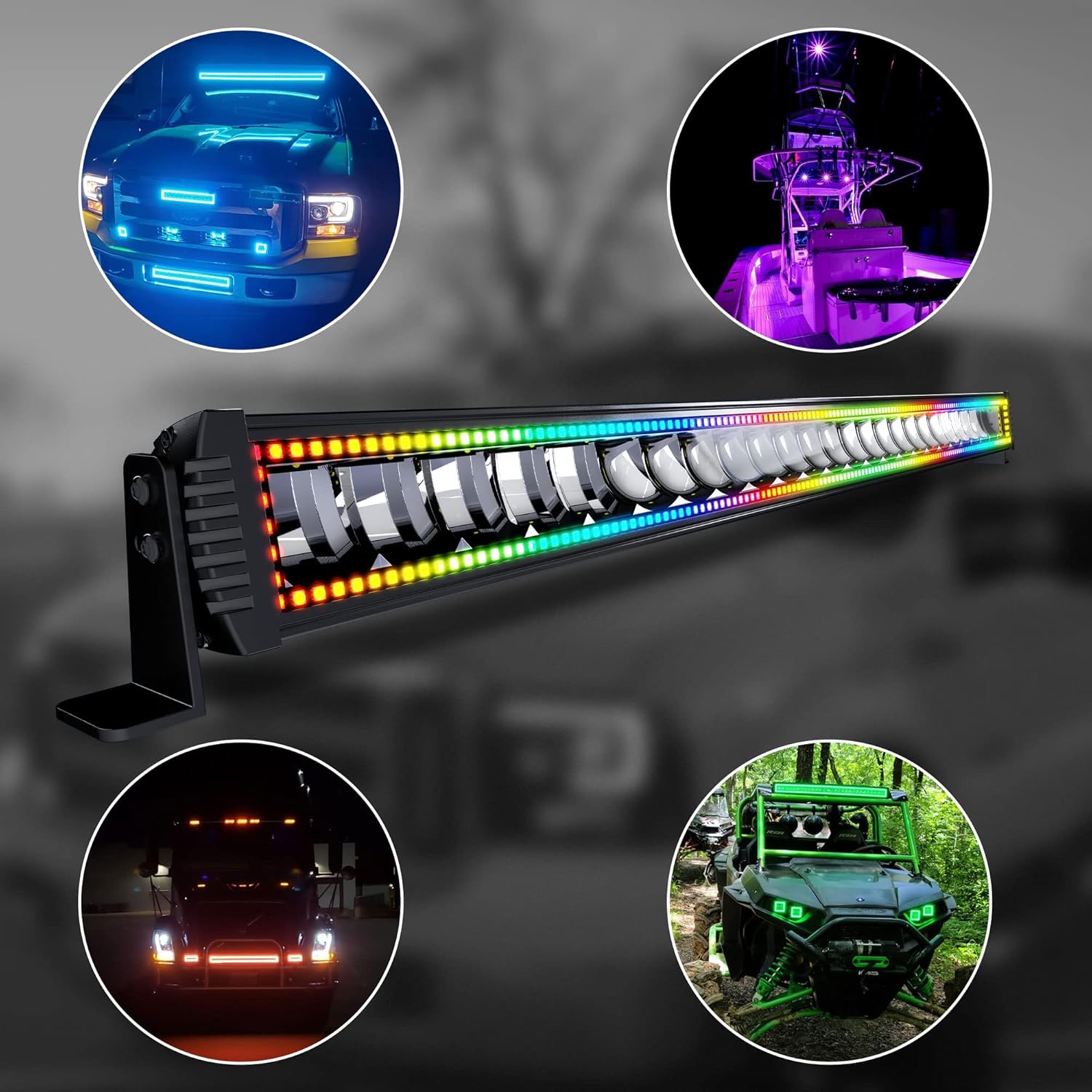

Figure 9: Various Application Examples.

10. Garanti og support

FEELON provides a One Year hassle-free warranty for dette produkt. Derudover, Lifetime free service is offered. If you have any questions, concerns, or require technical assistance, please do not hesitate to contact FEELON customer support directly.
