WIWU P16 Max

WIWU P16 Max Wireless Speaker with Wireless Microphone User Manual

Mærke: WIWU

Model: P16 Maks

1. Introduktion

The WIWU P16 Max Wireless Speaker is designed to provide high-quality stereo sound for various occasions, including travel and parties. Engineered with premium components, it delivers powerful audio with 55 watts of output, ensuring clear sound without distortion even at maximum volume. Its impressive Bluetooth 5.0 connectivity offers a wireless range of up to 10 meters for uninterrupted music playback. The speaker also features IPX5 water resistance, making it suitable for outdoor use, such as beach trips or poolside gatherings. It includes an AUX input and memory card slots for versatile audio playback options.

2. Produktet er slutview

Familiarize yourself with the components and design of your WIWU P16 Max speaker.

WIWU P16 Max Wireless Speaker with adjustable carrying strap, showing the green and black design.

The WIWU P16 Max speaker features a robust design with a green and black finish. It includes a durable, adjustable strap for easy portability. The front grille is perforated, indicating the speaker output, and the top panel has control buttons.

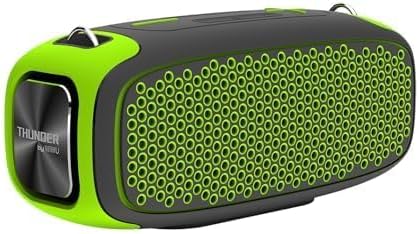

Side view of the WIWU P16 Max Wireless Speaker, displaying the 'THUNDER by WIWU' logo on the end cap.

En side view of the WIWU P16 Max speaker, highlighting the 'THUNDER by WIWU' branding on the metallic end cap. The speaker's compact and ergonomic shape is visible.

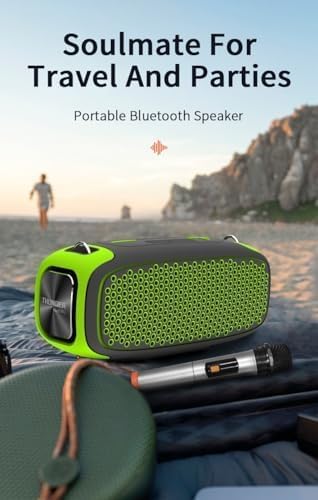

WIWU P16 Max Wireless Speaker and a wireless microphone in an outdoor travel setting.

The WIWU P16 Max speaker shown in an outdoor setting, emphasizing its suitability for travel and parties. A wireless microphone is also visible, indicating its compatibility.

WIWU P16 Max Wireless Speaker near a swimming pool, demonstrating its water resistance.

The WIWU P16 Max speaker positioned near a swimming pool, illustrating its IPX5 water-resistant capability, making it suitable for use in damp miljøer.

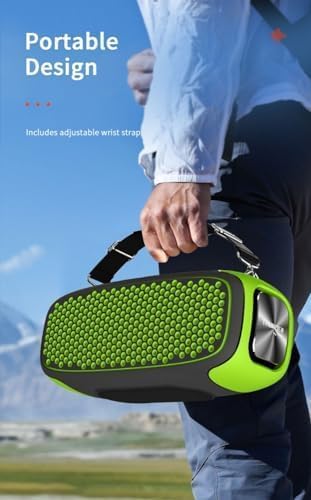

Person carrying the WIWU P16 Max Wireless Speaker with its adjustable strap, highlighting portability.

A person carrying the WIWU P16 Max speaker using its adjustable strap, showcasing its portable design for on-the-go use.

WIWU P16 Max Wireless Speaker with people using wireless microphones, illustrating its microphone feature.

The WIWU P16 Max speaker with people singing using wireless microphones, demonstrating its built-in wireless Bluetooth microphone functionality for karaoke or public speaking.

3. Opsætningsvejledning

3.1 Opladning af højttaleren

The speaker is battery-powered. Before first use, fully charge the speaker using the provided charging cable. The charging indicator light will show the charging status.

3.2 Tænd/sluk

Press and hold the power button located on the top panel to turn the speaker on or off.

3.3 Bluetooth -parring

  1. Sørg for, at højttaleren er tændt.
  2. Activate Bluetooth on your device (smartphone, laptop).
  3. Søg efter 'WIWU P16 Max' in your device's Bluetooth settings.
  4. Vælg den højttaler, der skal parres. En bekræftelseslyd angiver, at parringen er gennemført.

3.4 AUX-forbindelse

Connect an audio device to the speaker's AUX input using a 3.5mm audio cable. The speaker will automatically switch to AUX mode or you may need to select it manually using the Mode button.

3.5 Afspilning fra hukommelseskort

Insert a compatible memory card (e.g., microSD) into the designated slot. The speaker will automatically detect and play audio files fra kortet.

3.6 Opsætning af trådløs mikrofon

The speaker includes a wireless microphone. Power on the microphone; it should automatically connect to the speaker. Refer to the microphone's separate instructions for specific pairing details if needed.

4. Betjeningsvejledning

4.1 Lydstyrkekontrol

Use the '+' and '-' buttons on the speaker's top panel to adjust the volume. Alternatively, adjust the volume from your connected device.

4.2 Afspilningskontrol

When playing audio via Bluetooth or memory card:

  • Tryk på Afspil/Pause-knappen for at sætte afspilningen på pause eller genoptage den.
  • Press the 'Next Track' button to skip to the next song.
  • Press the 'Previous Track' button to go to the previous song.

4.3 Modeskift

Press the 'Mode' button to cycle through available input modes: Bluetooth, AUX, and Memory Card.

4.4 Besvarelse af opkald

If connected to a smartphone via Bluetooth, press the Play/Pause button to answer an incoming call or end an ongoing call.

5. Vedligeholdelse

5.1 Rengøring

Tør højttaleren af ​​med en blød, tør klud. Brug ikke slibende rengøringsmidler, opløsningsmidler eller stærke kemikalier, da disse kan beskadige overfladen eller de indvendige komponenter.

5.2 Vandtæthed

The speaker is IPX5 water-resistant, meaning it is protected against low-pressure water jets from any direction. This makes it suitable for splashes and light rain. Nedsænk ikke højttaleren i vand.

5.3 Opbevaring

Store the speaker in a cool, dry place away from direct sunlight, high humidity, and extreme temperatures. Avoid placing heavy objects on top of the speaker.

5.4 Pleje af batterier

To prolong battery life, avoid fully discharging the battery frequently. Charge the speaker regularly, even if not in use for extended periods (e.g., once every 3 months).

6. Fejlfinding

  • Ingen strøm: Ensure the speaker is charged. Connect it to a power source using the provided cable and try again.
  • Ingen lyd: Check volume levels on both the speaker and the connected device. Ensure the correct input mode (Bluetooth, AUX, Memory Card) is selected.
  • Bluetooth afbrydelse: Ensure the speaker and your device are within the 10-meter wireless range. Disconnect and re-pair the Bluetooth connection. Clear previous Bluetooth pairings on your device if necessary.
  • Mikrofonen virker ikke: Ensure the microphone is powered on and fully charged. Check if it's properly paired with the speaker. Refer to the microphone's manual for specific troubleshooting steps.
  • Forvrænget lyd: Reduce the volume on both the speaker and the connected device. Ensure the audio source is of good quality. Move away from potential sources of interference.

7. Specifikationer

FeatureDetalje
MærkenavnWIWU
Emnedimensioner16 x 19 x 6 cm
ForbindelsesteknologiBluetooth
FarveGrøn
Kompatible enhederLaptop, smartphone
MonteringstypeGulvmontering
StrømkildeBatteridrevet
Connector TypeAux
MaterialerPlast, Metal
Varens vægt250 gram
LydindgangHjælpekabel (3.5 mm)
Udgangseffekt55 watt
Modelnummer6936686403900
Anbefalede anvendelserMusic parties, conferences, places of worship, outdoor events, parties, travel
FabrikantWIWU
Varenummer6936686403900
Inkluderede komponenterHøjttaler

8. Garanti og support

8.1 Garantioplysninger

Bemærk venligst, at dette produkt er angivet til at have Ingen garanti. For any concerns regarding product defects upon receipt, please contact your point of purchase immediately.

8.2 Kundesupport

For product support, technical assistance, or general inquiries, please contact your retailer or visit the official WIWU webside for yderligere information.

© 2024 WIWU. Alle rettigheder forbeholdes.
