Fszdorj 20'' Smart Ceiling Fan with Light User Manual

1. Introduktion

This user manual provides detailed instructions for the installation, operation, and maintenance of your Fszdorj 20'' Smart Ceiling Fan with Light. Designed for optimal air circulation and adjustable lighting, this modern fixture enhances comfort and aesthetics in various living spaces. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.

Fszdorj 20-inch Smart Ceiling Fan with Light, showcasing its sleek, modern design with a circular light ring and integrated fan blades.

Figure 1: Fszdorj 20'' Smart Ceiling Fan with Light

2. Sikkerhedsoplysninger

For at mindske risikoen for elektrisk stød, brand eller personskade skal du læse og følge alle instruktioner omhyggeligt.

Afbryd altid strømmen ved hovedafbryderen før installation eller vedligeholdelse.
Installation must be performed by a qualified electrician or a person with sufficient electrical knowledge.
Sørg for, at monteringsstrukturen kan bære ventilatorens vægt.
Indsæt ikke genstande i ventilatorbladenes bane, mens ventilatoren er i drift.
Hold børn og kæledyr væk fra ventilatoren under drift.
Use only the remote control and app provided or specified by the manufacturer.
Brug ikke blæseren i damp eller våde steder.

3. Opsætning og installation

The Fszdorj Smart Ceiling Fan is designed for straightforward installation with pre-assembled components. Follow these general steps:

Strømafbrydelse: Turn off power at the circuit breaker to the fan's location.
Montering af monteringsbeslag: Securely attach the mounting bracket to the ceiling junction box. Ensure it is firmly fixed and can support the fan's weight.
Ledningsføring: Connect the fan's electrical wires to the household wiring according to local electrical codes. Typically, this involves connecting live, neutral, and ground wires. Refer to the wiring diagram included in the packaging.
Ventilatorsamling: Attach the fan body to the mounting bracket. The design features an enclosed structure for safety.
Klingefastgørelse: The fan features 7 ABS invisible blades. Ensure they are securely attached if not pre-installed.
Lys installation: The LED light is integrated. Ensure all connections are secure.
Strømgendannelse: Når installationen er færdig, og alle forbindelser er sikre, skal strømmen genoprettes ved afbryderen.

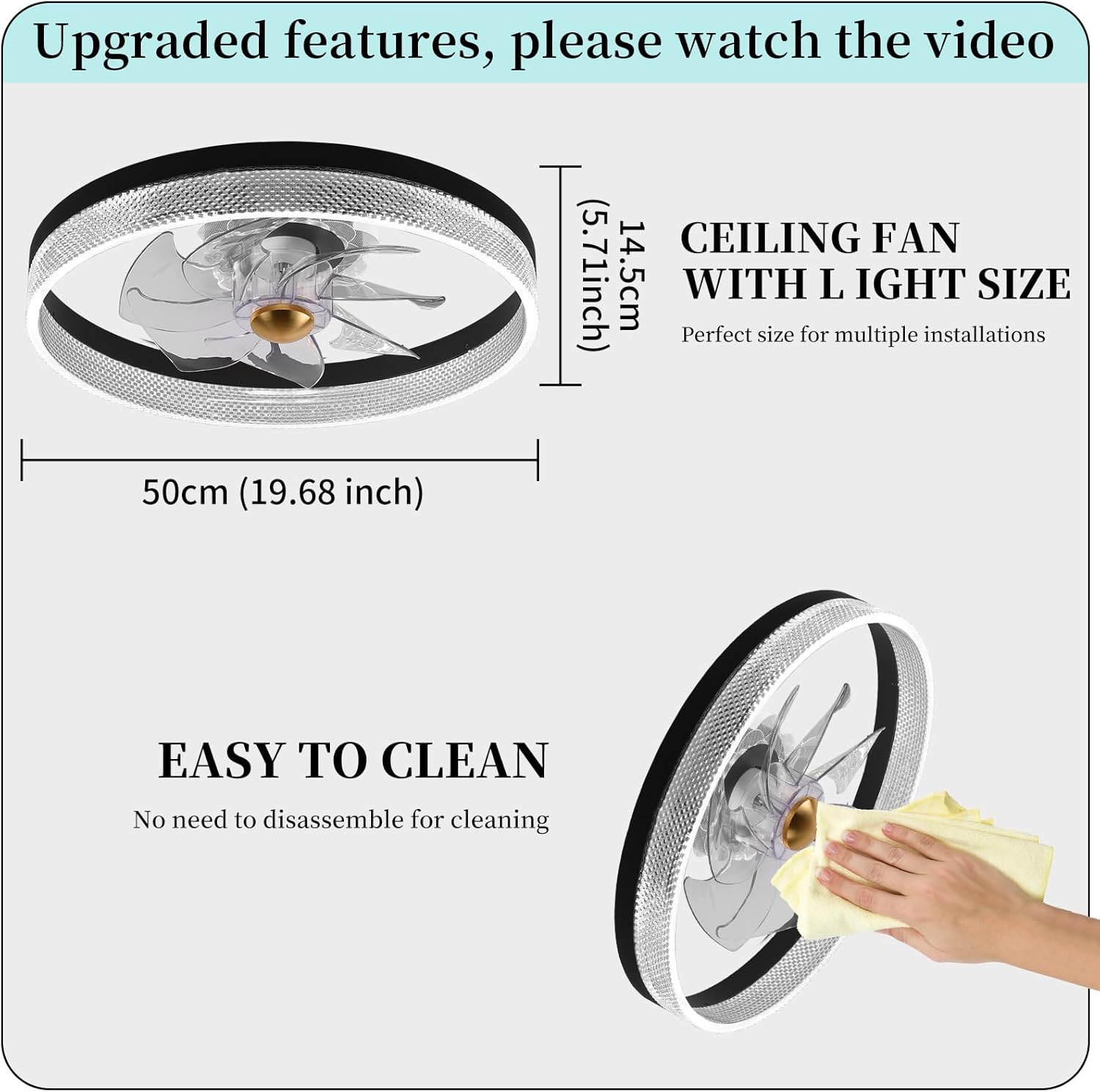

Diagram showing the dimensions of the 20-inch ceiling fan (50cm diameter, 14.5cm height) and an illustration of easy cleaning without disassembly.

Figure 2: Fan Dimensions and Easy Cleaning Feature

The fan measures approximately 19.69 inches (50 cm) in diameter and 5.71 inches (14.5 cm) in height, making it suitable for various room sizes. Its enclosed design allows for easy cleaning without requiring disassembly.

4. Betjeningsvejledning

Your Fszdorj Smart Ceiling Fan offers multiple control options for convenience and personalized comfort.

4.1 Kontrolmetoder

Fjernbetjening: Use the included remote to adjust fan speed, light brightness, and color temperature.
Smartphone app: Download the dedicated app (scan QR code on remote diagram or visit http://www.jasonghost.com/smartdevicecontrol/index-en.html) to control all functions from your smartphone.
Vægkontakt: A standard wall switch can control the basic on/off function of the light (switch not included).

Image showing the remote control and a smartphone screen with the fan control app, detailing various buttons and functions like light switch, night light, color change temperature, LED dimming, fan forward, invert, fan off, and adjust fan speed. A QR code for app installation is also visible.

Figure 3: Remote and App Control Interface

The remote control and smartphone app provide comprehensive control over the fan's features, including fan speed, light settings, and directional flow.

4.2 Ventilatorfunktioner

6 vindhastigheder: Adjust the airflow from a gentle breeze to a strong current to suit your comfort needs.
Vendbar motor: The fan features a reversible DC motor for year-round use.
- Summer Mode (Forward Airflow): Skaber en nedadgående luftstrøm, hvilket giver en kølende effekt.
- Winter Mode (Reverse Airflow): Skaber en opadgående luftstrøm, der cirkulerer varm luft fanget nær loftet.
Stille drift: The DC motor ensures ultra-quiet operation, typically below 30dB, ideal for bedrooms and quiet spaces.
Timer funktion: Indstil ventilatoren til at slukke automatisk efter 1, 2, 4 eller 8 timer.

Diagram illustrating the reversible motor function of the ceiling fan, showing summer forward airflow (blue arrows) and winter reverse airflow (orange arrows) for optimal air circulation.

Figur 4: Sommer- og vinterluftstrømningstilstande

The reversible motor allows for efficient air circulation, keeping you comfortable in both warm and cool seasons.

Image showing the ceiling fan in a bedroom setting, highlighting its ultra-quiet operation (less than 30dB) and listing features like brightness adjustment, light color adjustment, fan speed settings, smart device control, reverse function, timing function, quick install, and easy clean.

Figure 5: Quiet Operation and Key Features

Enjoy a peaceful environment with the fan's quiet operation, perfect for relaxation and sleep.

4.3 Belysningsfunktioner

Dæmpbar LED: Adjust light brightness from 0% to 100% to create the desired ambiance.
Justerbar farvetemperatur: Seamlessly transition between warm white (3000K), neutral white (4500K), and cool white (6500K) lighting.
Natlys funktion: A separate 4-watt night light provides soft illumination.
Smart hukommelsesfunktion: The fan remembers your last light and fan settings, ensuring consistent comfort upon next use.
Separate Control: Fan and light functions can be operated independently.

Image demonstrating the dimmable feature of the ceiling fan light, showing a slider from 0% to 100% brightness and color temperature options: Bright (6000K), Warm (3000K), and Neutral (4500K).

Figure 6: Dimmable Light and Color Temperature Adjustment

Customize your lighting experience with stepless dimming and a wide range of color temperatures.

Image showing the ceiling fan light with three night lighting color options: Natural Light, Violet, and Warm Blue, demonstrating its versatility for different moods.

Figure 7: Night Lighting Color Options

Beyond standard white light, the fan offers unique night lighting colors to enhance room ambiance.

5. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din loftsventilators levetid og optimale ydeevne.

Rensning: The enclosed design allows for easy cleaning. Simply wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents. No need to disassemble for cleaning.
Bladinspektion: Periodically check that all fan blades are securely attached.
Elektriske forbindelser: Ensure all electrical connections remain secure. If you notice any loose wires or unusual behavior, disconnect power and consult a qualified electrician.

6. Fejlfinding

If you encounter issues with your Fszdorj Smart Ceiling Fan, refer to the following common problems and solutions:

Problem	Mulig årsag	Løsning
Ventilatoren fungerer ikke.	No power; loose wiring; remote control battery low.	Kontroller afbryderen. Sørg for, at alle ledningsforbindelser er sikre. Udskift batterierne i fjernbetjeningen.
Lyset tændes ikke.	Loose wiring; LED failure; remote control issue.	Check wiring connections. If LED is faulty, contact customer support. Ensure remote is paired and batteries are good.
Ventilator vakler.	Loose mounting; unbalanced blades.	Ensure mounting bracket is securely fastened. Check that all blades are tightly screwed.
Remote control or App not responding.	Batteries dead; not paired; interference.	Replace batteries. Re-pair remote/app with the fan (refer to pairing instructions in packaging). Reduce interference from other devices.
Blæseren larmer.	Løse skruer; motorproblem.	Kontrollér og spænd alle skruer. Kontakt kundesupport, hvis støjen fortsætter.

7. Specifikationer

Key technical specifications for the Fszdorj 20'' Smart Ceiling Fan with Light:

Mærke: Fszdorj
Modelnavn: 2-F093
Produktdimensioner: 50 cm L x 50 cm B x 14.5 cm H (19.69" L x 19.69" B x 5.71" H)
Materiale: Iron (frame), Acrylic (shade)
Strømkilde: DC
Voltage: 110 volt
Wattage: 80 watt (hoved lamp), 4 watt (natlys)
Lyskildetype: LED
Lys farvetemperatur: 3000K-6500K (Justerbar)
Lysstyrke: 6500 Lumen
Blæserhastigheder: 6 niveauer
Støjniveau: <30dB
Kontrolmetode: App, fjernbetjening
Installationstype: Flush Mount
Inkluderede komponenter: Fjernbetjening

Infographic detailing product specifications: Power (110V-60Hz), Control (App & Remote Control), Use Area (107-269 sq ft), Noise Level (<=30 dB(A)), Materials (Acrylic & Iron), Fan Speed (6 Speed).

Figur 8: Produktspecifikationer overview

Det her forbiview highlights the fan's power requirements, control options, recommended use area, and quiet operation.

Image showing a detailed view of the 100% DC Copper Motor, emphasizing its quiet and powerful performance, alongside a diagram illustrating different wind speeds: Soft Wind, Middling Wind, and Cool Wind.

Figure 9: DC Copper Motor and Wind Speed Characteristics

The fan is equipped with a durable and efficient DC copper motor, providing powerful yet quiet airflow across its 6 speed settings.

Four close-up images showing key components: Transparent Acrylic Lampshade, Quality Lumen Light Strips, Uniform Glow Effect, and Iron Frame, highlighting the material quality and design.

Figure 10: Component Quality and Design

The fan features high-quality materials such as a transparent acrylic lampshade, efficient lumen light strips for uniform illumination, and a robust iron frame for durability.

8. Garanti og support

Fszdorj is committed to providing quality products and customer satisfaction.

Garanti: This product comes with a 2-YEAR WARRANTY.
Kundesupport: For any questions, issues, or assistance, please contact our professional online after-sales team. We are available 24/7 to ensure a smooth and satisfying experience.
Kontakte: Please reach out via Amazon message for support.

Image highlighting the '2 YEAR PROMISE' for the modern ceiling fan, listing convenient functions like 6 wind speeds, reverse function, light memory, 2H timing, night light, and separate fan and light operation.

Figure 11: 2-Year Warranty and Convenient Functions

Fszdorj stands by its products with a 2-year warranty, ensuring peace of mind for your purchase.

Fszdorj 2-F093
