Indledning
This manual provides essential instructions for the setup and operation of your new Generic replacement infrared remote control for various York and Goodman air conditioner models. This remote is designed to offer basic control functionality. Please note that as a replacement unit, it may not support all advanced features or functions of your original air conditioner remote. No programming is required; simply insert batteries to begin use.
Produkt overview
The remote control is an infrared (IR) device designed to operate specific York and Goodman air conditioner units. It features standard buttons for power, mode selection, temperature adjustment, fan speed, and timer functions. The remote operates on AAA batteries.
Billede 1: Forside view of the remote control, displaying the LCD screen, power button, mode selection, temperature controls, fan speed, and other function buttons.
Opsætning: Batteriinstallation
- Find batterirummet på bagsiden af fjernbetjeningen.
- Skub batteridækslet nedad, eller tryk på låsen, og løft det for at åbne.
- Isæt to (2) AAA-batterier, og sørg for, at de positive (+) og negative (-) poler er korrekt justeret med markeringerne inde i batterirummet.
- Sæt dækslet til batterirummet på igen, og sørg for, at det klikker sikkert på plads.
- The remote is now ready for use. No additional programming is required.
Billede 2: Bagside view på fjernbetjeningen, så batteridækslet fremhæves.

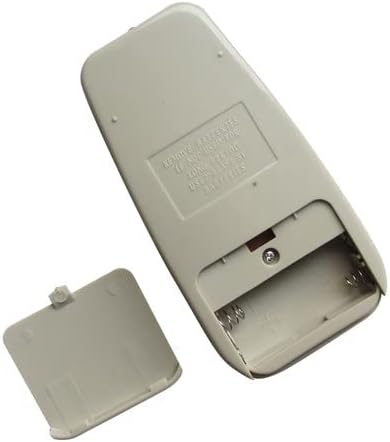

Billede 3: Vinklet view of the remote's back with the battery cover open, revealing the empty battery slots.
Image 4: Straight view of the remote's back with the battery cover open, showing the battery terminals.
Betjeningsvejledning
Ret fjernbetjeningen direkte mod klimaanlæggets modtagervindue. Sørg for, at der ikke er nogen forhindringer mellem fjernbetjeningen og enheden.
- Power knap: Tryk for at tænde eller slukke for klimaanlægget.
- Mode knap: Cycles through available operating modes such as COOL, DRY, FAN, AUTO. (Note: This remote is specified for "Cool Only" functionality and may not fully support other modes on all compatible units.)
- Temperature Adjustment (TEMP +/-): Use the up and down arrows to increase or decrease the desired temperature setting.
- Fan Speed (FAN): Adjusts the fan speed (e.g., AUTO, HIGH, MED, LOW).
- Timer knap: Activates or adjusts the timer function for scheduled operation. Refer to your air conditioner's main manual for specific timer settings.
- Sleep knap: Activates the sleep mode, which typically adjusts temperature and fan speed for comfortable sleep.
- Sving knap: Controls the louver swing function, if available on your air conditioner.
Fejlfinding
- Fjernbetjeningen svarer ikke:
Sørg for, at batterierne er isat korrekt med den korrekte polaritet.
Udskift gamle batterier med nye AAA-batterier.
Check for any obstructions between the remote and the air conditioner's IR receiver.
Ensure you are within the effective range of the air conditioner's IR receiver.
- Certain functions do not work:
As a replacement remote, some advanced or specific functions of your original air conditioner remote may not be supported. This remote is primarily designed for basic operational control.
Verify that your air conditioner model is listed as compatible. Incompatibility can lead to partial or no functionality.
- Temperature display is in Celsius only:
This remote is specified to operate in Celsius only and does not support changing to Fahrenheit.
Specifikationer
- Produkttype: Replacement Infrared (IR) Remote Control
- Strømkilde: 2 x AAA batterier (medfølger ikke)
- Forbindelse: Infrarød
- Controller type: Knap kontrol
- Speciel funktion: Cool Only, Cannot change from Celsius to Fahrenheit
- Kompatible enheder: Various York and Goodman Air Conditioner models (refer to compatibility list in header)
Opretholdelse
- Rensning: Tør fjernbetjeningen af med en blød, tør klud. Brug ikke flydende rengøringsmidler eller slibende materialer.
- Udskiftning af batteri: Replace batteries when the remote's performance degrades or if the display becomes dim. Remove batteries if the remote will not be used for an extended period to prevent leakage.
- Opbevaring: Opbevar fjernbetjeningen et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
Garanti og support
This product is a generic replacement remote control. Specific warranty information or dedicated technical support from the original air conditioner manufacturer is not typically provided for third-party replacement parts. For issues beyond basic functionality, please refer to the seller or retailer from whom the remote was purchased.
