YATO YT-06721 Cooling System Pressure Tester Kit Instruction Manual

1. Introduktion

The YATO YT-06721 Cooling System Pressure Tester Kit is designed for professional and DIY use to diagnose leaks in automotive cooling systems. This kit allows for quick and efficient testing of radiators, heater cores, and radiator caps by applying pressure to the system and observing for pressure drops. Proper use of this tool ensures accurate diagnosis and helps prevent engine damage due to coolant loss.

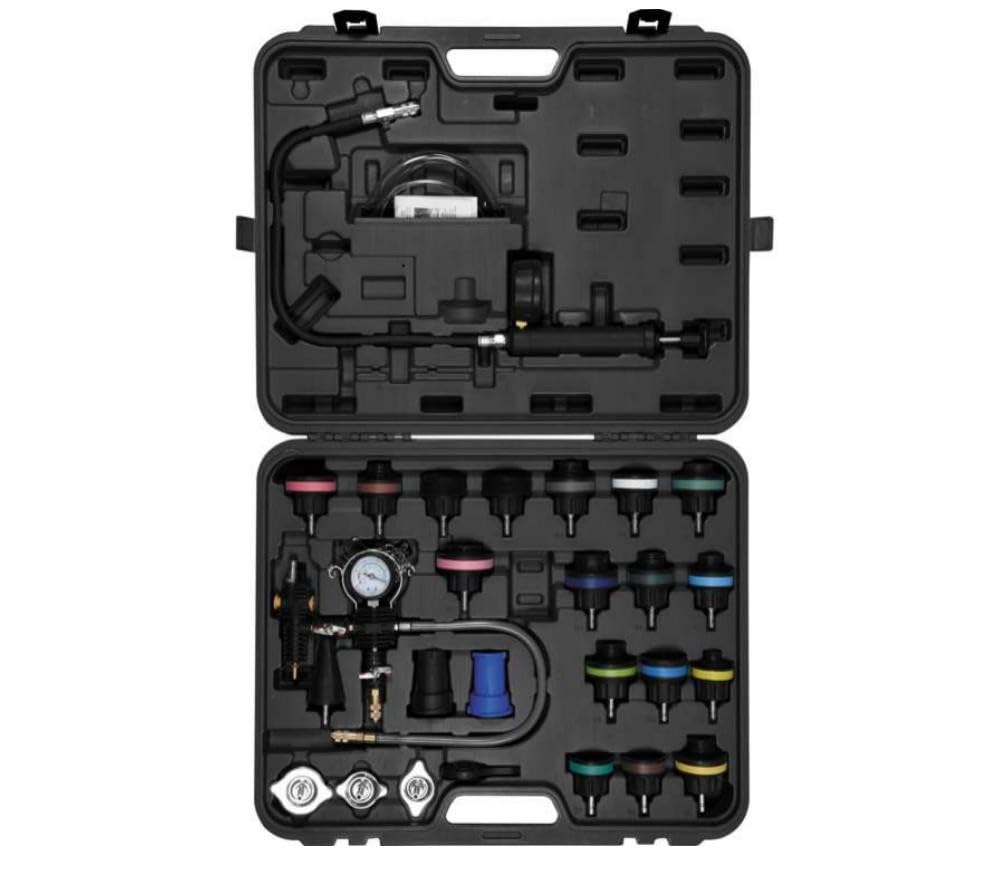

Figur 1: Overview of the YATO YT-06721 Cooling System Pressure Tester Kit. The image displays various adapters, a hand pump with a pressure gauge, and a carrying case.

2. Sikkerhedsoplysninger

Always observe the following safety precautions when using the YATO YT-06721 Cooling System Pressure Tester Kit:

• Brug passende personlige værnemidler (PPE), including safety glasses and gloves, to protect against splashes of hot coolant.
• Sørg for, at motoren er afkøle before performing any cooling system tests. Hot coolant is under pressure and can cause severe burns.
• Do not exceed the maximum pressure specified by the vehicle manufacturer or the tester's gauge. Over-pressurizing the system can cause damage.
• Hold børn og omkringstående væk fra arbejdsområdet.
• Brug kun værktøjet til det tilsigtede formål.
• Undersøg værktøjet for skader før hver brug. Brug det ikke, hvis det er beskadiget.
• Dispose of used coolant responsibly according to local regulations.

3. Pakkens indhold

The YATO YT-06721 kit typically includes the following components:

• Håndpumpe med trykmåler
• Various radiator adapters for different vehicle makes and models
• Radiator cap test adapters
• Hose and connectors
• Opbevaringskasse
• Instruktionsmanual (dette dokument)

Note: Actual contents may vary slightly. Please check the packaging upon receipt.

4. Opsætning

Before beginning the test, ensure the vehicle's engine is completely cool. This is crucial for safety.

1. Klargør køretøjet: Ensure the engine is off and cool. Open the hood and locate the radiator cap.
2. Remove Radiator Cap: Carefully remove the radiator cap. If the engine is warm, cover the cap with a thick cloth and turn slowly to release any residual pressure before fully removing.
3. Vælg adapter: Identify the correct adapter from the kit that fits snugly onto the radiator filler neck. The kit includes various adapters for different vehicle types.
4. Fastgør adapter: Securely attach the selected adapter to the radiator filler neck. Ensure a tight seal to prevent pressure loss during testing.
5. Connect Hand Pump: Connect the hose from the hand pump to the adapter. Ensure the connection is secure.

5. Betjeningsvejledning

Follow these steps to perform a cooling system pressure test:

1. Pumpetryk: Use the hand pump to slowly build pressure in the cooling system. Refer to the vehicle's service manual for the recommended operating pressure. Do not exceed this pressure. The gauge on the hand pump will display the current pressure.
2. Monitortryk: Once the desired pressure is reached, stop pumping and observe the pressure gauge for at least 5-10 minutes.
3. Identify Leaks:
   • If the pressure drops, there is a leak in the system. Visually inspect all cooling system components (hoses, radiator, heater core, water pump, engine block, cylinder head gaskets) for signs of coolant leakage.
   • If the pressure holds steady, the system is sealed.
4. Test Radiator Cap (Optional):
   • Remove the radiator cap from the vehicle.
   • Select the appropriate radiator cap test adapter and attach the cap to it.
   • Connect the hand pump to the adapter and pump pressure. The cap should hold pressure up to its rated value (usually stamped on the cap). If it fails to hold pressure or releases it too early, the cap is faulty and needs replacement.
5. Udløs tryk: After testing, carefully release the pressure from the system by pressing the pressure release valve on the hand pump or slowly disconnecting the hose from the adapter.
6. Remove Equipment: Disconnect the adapter from the radiator filler neck and replace the vehicle's radiator cap.

6. Vedligeholdelse

Proper maintenance ensures the longevity and accuracy of your YATO YT-06721 kit:

• Rensning: After each use, wipe down all components with a clean, dry cloth. Ensure no coolant residue remains on the adapters or pump.
• Opbevaring: Store the kit in its original carrying case in a clean, dry place, away from direct sunlight and extreme temperatures.
• Inspektion: Periodically inspect hoses for cracks or wear, and check adapters for damage or deformation. Replace any damaged components immediately.
• Måler kalibrering: The pressure gauge is factory calibrated. If you suspect inaccuracy, consult a professional for recalibration or replacement.

7. Fejlfinding

8. Specifikationer

Bemærk: Specifikationerne kan ændres uden forudgående varsel.

9. Garanti og support

YATO products are manufactured to high-quality standards. Specific warranty terms and conditions are typically provided with the product packaging or can be found on the official YATO webwebsted. Gem venligst din købsbevis til garantikrav.

For technical support, spare parts, or warranty inquiries, please contact your local YATO distributor or visit the official YATO webwebsted for kontaktoplysninger.
