BAIJAC Foot Control Pedal with Cord Replacement for Singer Sewing Machines User Manual

1. Introduktion

This manual provides instructions for the installation, operation, and maintenance of your new BAIJAC Foot Control Pedal with Cord. This product is designed as a replacement part for various Singer sewing machine models, ensuring reliable speed control during your sewing projects.

Kompatible Singer-modeller:

• 5417
• 5430
• 5502
• 5504
• 5505
• 5508
• 5522
• 5524
• 5525
• Og andre kompatible modeller.

2. Pakkens indhold

Kontroller venligst, at alle varer er til stede og i god stand, når du åbner pakken.

• 1 x BAIJAC Foot Control Pedal with attached power cord and machine connector.

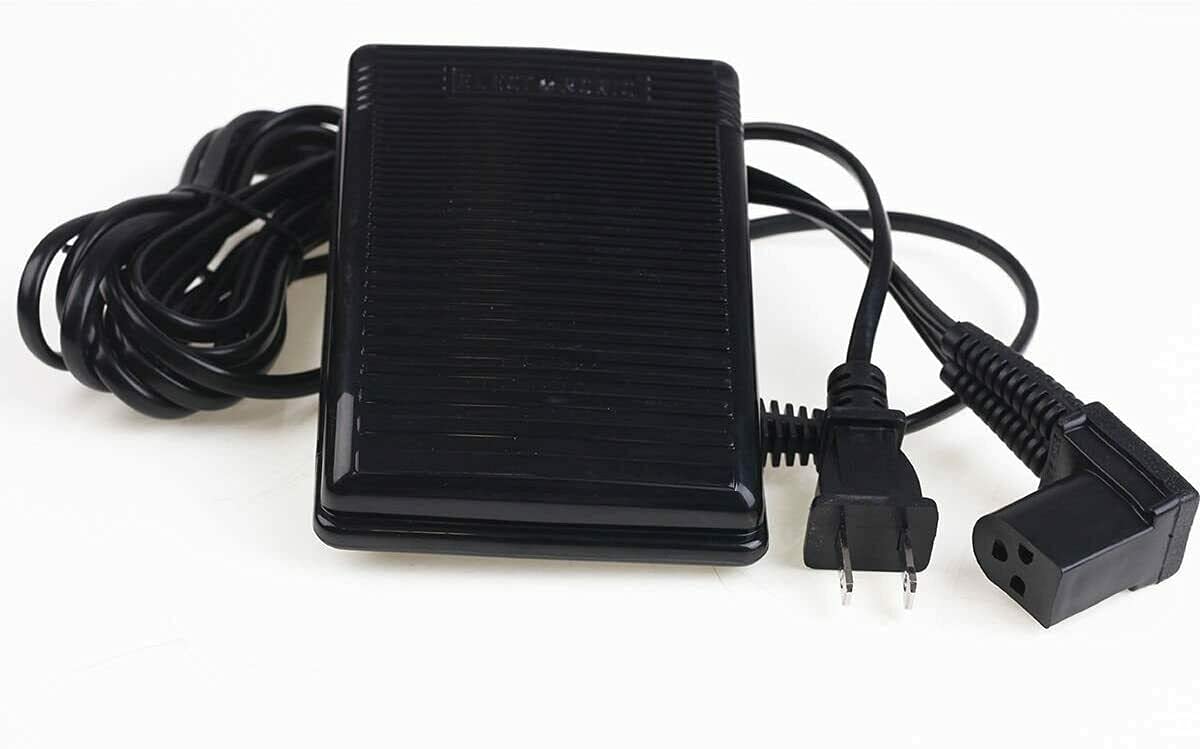

This image displays the BAIJAC Foot Control Pedal, a black rectangular unit with a textured surface. A coiled black cord extends from one end, leading to a standard two-prong power plug and a separate three-hole connector plug. An inset graphic shows a close-up of the three-hole connector's front view.

3. Opsætning

Follow these steps to properly connect your new foot control pedal to your sewing machine.

1. Sørg for, at strømmen er slukket: Before connecting or disconnecting any parts, ensure your sewing machine is turned off and unplugged from the wall outlet.
2. Locate the Pedal Port: Identify the foot control pedal port on your Singer sewing machine. This is typically located on the front or side of the machine.
3. Connect the Machine Plug: Take the three-hole connector from the BAIJAC foot pedal cord and align it with the corresponding pins in the sewing machine's pedal port. Gently push the connector firmly into place until it is secure. Do not force the connection.
4. Tilslut til stikkontakten: Plug the two-prong power plug of the foot control pedal into a standard electrical wall outlet.
5. Tænd maskinen: Turn on your sewing machine's power switch.

4. Betjening

The foot control pedal allows you to regulate the sewing speed of your machine.

1. Placer pedalen: Place the foot control pedal on the floor in a comfortable position where you can easily operate it with your foot.
2. Kontrol hastighed: Gently press down on the pedal with your foot to start the machine. The harder you press, the faster the machine will sew. Release pressure to slow down, and fully release to stop.
3. Praksis: If you are new to using a foot pedal, practice controlling the speed on a scrap piece of fabric to get accustomed to its responsiveness.

5. Vedligeholdelse

Proper care will extend the life of your foot control pedal.

• Rensning: Wipe the pedal surface with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Opbevaring: When not in use, store the pedal in a clean, dry place, away from direct sunlight or extreme temperatures. Avoid coiling the cord too tightly to prevent damage.
• Ledningsinspektion: Periodically inspect the power cord and connectors for any signs of wear, fraying, or damage. If damage is observed, discontinue use and replace the pedal.

6. Fejlfinding

If you encounter issues with your foot control pedal, refer to the following common problems and solutions.

• Pedalen reagerer ikke:
  • Ensure the pedal's machine connector is fully inserted into the sewing machine's port.
  • Verify that the power plug is securely inserted into a working electrical outlet.
  • Check if the sewing machine's power switch is turned on.
  • Confirm that the sewing machine itself is functioning correctly with its original pedal (if available) or by other means.
• Inkonsekvent hastighedskontrol:
  • Ensure the pedal is placed on a flat, stable surface.
  • Check for any obstructions under or around the pedal that might interfere with its movement.
  • Inspect the cord for any visible damage or kinks.
• Machine Runs Continuously or Not at All:
  • This could indicate a faulty pedal or a problem with the sewing machine itself. Disconnect the pedal and consult a qualified technician if the issue persists.

Hvis fejlfindingstrinene ikke løser problemet, bedes du kontakte kundesupport.

7. Specifikationer

8. Garanti og support

Specific warranty information for this BAIJAC Foot Control Pedal is not provided within this manual. Please refer to the product packaging or contact the retailer/manufacturer directly for warranty details and customer support inquiries.
