1. Introduktion
Thank you for choosing the HITBOX HBM200-EU 3-in-1 MIG 200A Welder. This compact and versatile welding machine is designed for various welding tasks, offering MIG MAG, ARC MMA, and Lift TIG functionalities. It is equipped with an intelligent one-button control system and a clear digital display for ease of use. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your welding machine.

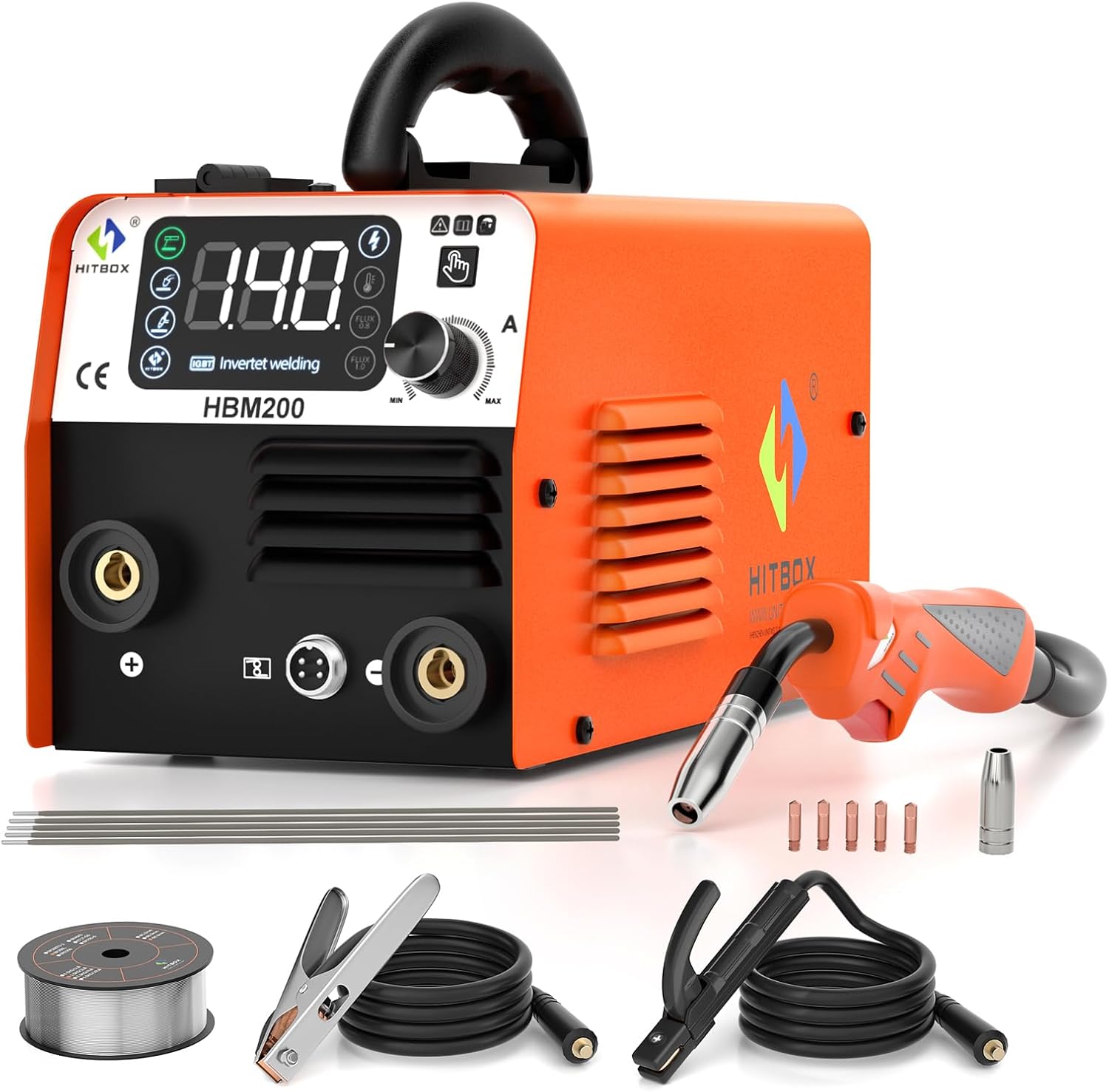

Figure 1.1: The HITBOX HBM200-EU 3-in-1 MIG 200A Welder and its included accessories.
2. Sikkerhedsinstruktioner
Prioritér altid sikkerheden ved brug af svejseudstyr. Læs og forstå alle sikkerhedsadvarsler og instruktioner før brug. Undladelse af at gøre dette kan resultere i elektrisk stød, brand, alvorlig personskade eller død.
- Elektrisk sikkerhed: Ensure the power supply matches the machine's requirements (230V). Always connect to a grounded outlet. Do not operate in wet conditions.
- Personligt beskyttelsesudstyr (PPE): Bær altid en svejsehjelm med passende solskærm, svejsehandsker, beskyttelsestøj og sikkerhedssko.
- Ventilation: Weld in a well-ventilated area to avoid inhaling fumes.
- Brandforebyggelse: Hold brandfarlige materialer væk fra svejseområdet. Hav en brandslukker let tilgængelig.
- Integrerede beskyttelser: The welder is equipped with built-in overcurrent, overvoltage, and overheating protection. The machine will automatically shut down if these conditions are detected. Allow the machine to cool down before resuming operation.
- Kølesystem: The fan cooling system helps reduce dust penetration and extends the machine's lifespan. Do not obstruct the ventilation openings.
Figure 2.1: The HBM200-EU features multiple safety protections including overvoltage, overcurrent, overheating, and overload protection, supported by an efficient cooling fan.
3. Produktet er slutview
3.1 Nøglefunktioner
- 3-i-1 funktionalitet: Supports MIG MAG (Flux-cored), ARC MMA, and Lift TIG welding modes.
- Intelligent kontrol: Features a one-button intelligent control system for simplified operation.
- Digital skærm: Large digital display for clear monitoring and adjustment of welding parameters.
- Kompakt og bærbar: Lightweight design (3.7 kg / 7.63 lbs) with a carrying handle for easy transport. Dimensions: 170 x 152 x 155 mm (6.7 x 5.98 x 6.1 inches).
- Robust design: Heat-dissipating plastic casing on front and back to prevent overheating.
Figure 3.1: The HBM200-EU supports three welding processes: Flux MIG, MMA, and Lift TIG (requires WP17V torch, sold separately).
3.2 Inkluderede komponenter
The standard package for the HITBOX HBM200-EU includes:
- 1 x HITBOX MIG Welder (HBM200-EU)
- 1 x Split Welding Torch
- 1 x Electrode Clip
- 1 x formalet kloramp
- 1 x børste
- 2 x dyser
- 1 x 0.5 kg Welding Wire (0.8 mm flux-cored)
Figure 3.2: The complete set of accessories provided with the HBM200-EU welding machine.
4. Opsætning
4.1 Udpakning
Carefully remove all components from the packaging. Inspect for any damage during transit. Keep the original packaging for future storage or transport.
4.2 Tilslutning af tilbehør
- Connect the split welding torch to the designated port on the front panel.
- Fastgør jorden clamp to the negative (-) terminal and the electrode clip to the positive (+) terminal for MMA welding. For MIG welding, connect the ground clamp til den positive (+) pol og MIG-brænderen til den negative (-) pol.
- Ensure all connections are secure before powering on the machine.
4.3 Wire Installation (for MIG/Flux-Cored Welding)
- Åbn trådspolerummet.
- Place the 0.5 kg flux-cored welding wire spool onto the spindle.
- Thread the wire through the wire feeder mechanism, ensuring it is properly seated in the drive roller groove (compatible with 0.8mm and 1.0mm wire).
- Close the compartment and adjust the wire tension if necessary.

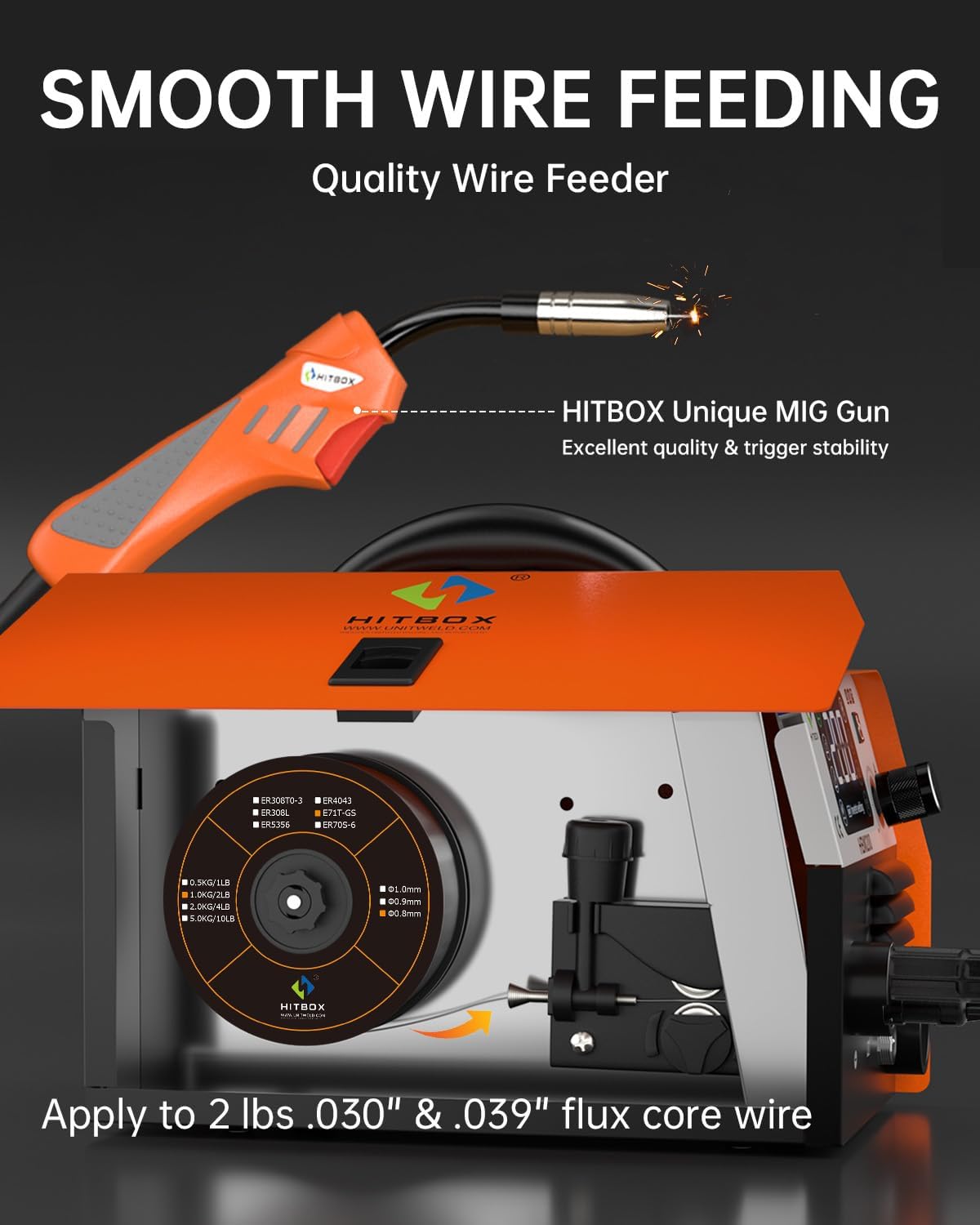

Figure 4.1: Proper installation of the flux-cored wire spool and threading through the wire feeder for smooth operation.
5. Betjeningsvejledning
5.1 Tænd/sluk
Connect the power cord to a suitable 230V power outlet. Turn on the main power switch located on the back of the machine. The digital display will illuminate.
5.2 Valg af tilstand
Use the mode selection button on the control panel to cycle through the available welding modes: MIG MAG, ARC MMA, and Lift TIG. The selected mode will be indicated on the digital display.
5.3 Parameterjustering
The intelligent one-button control allows for easy adjustment of welding parameters. Rotate the control knob to set the desired current (amperage) and, for MIG mode, the wire feeding speed. The digital display will show the current settings. For MIG welding, you can also select the wire size (0.8mm or 1.0mm) on the display.

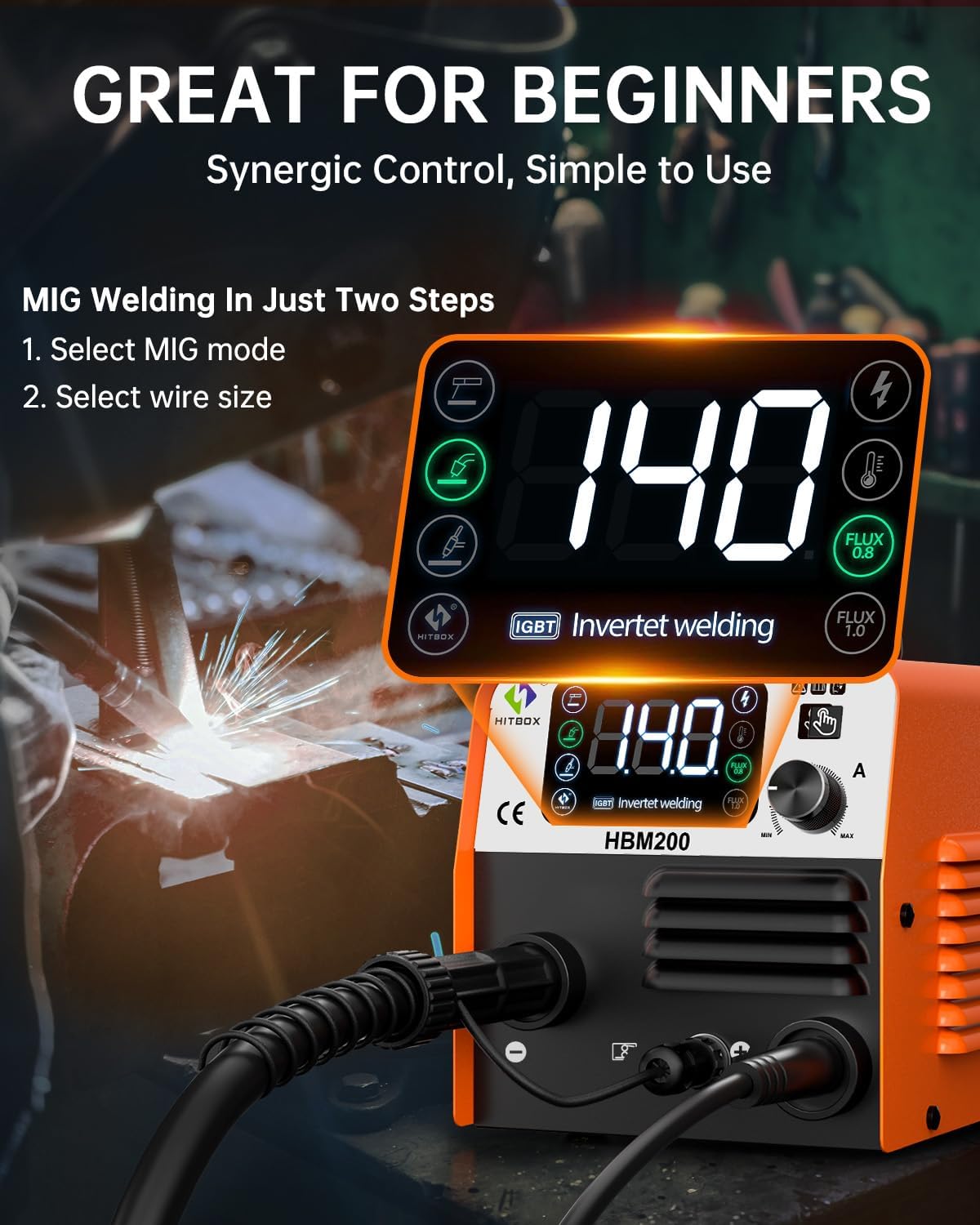

Figure 5.1: The HBM200-EU features a clear digital display and a single control knob for intuitive parameter adjustment, making it suitable for beginners.
5.4 Svejseproces
Once the mode and parameters are set, you can begin welding. Always perform test welds on scrap material to fine-tune settings before working on your main project. The machine offers features like Hot Start, Arc Force, and Anti-stick for improved welding performance.
Figure 5.2: The HBM200-EU delivers excellent welding performance with features like Hot Start, Arc Force, Anti-stick, and IGBT Technology.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer din svejsemaskines lange levetid og sikker drift.
- Rensning: Periodically clean the exterior of the machine with a dry cloth. Use compressed air to clear dust from the ventilation openings and internal components (ensure power is disconnected).
- Inspektion af brænder og kabel: Regularly inspect the welding torch, cables, and connections for wear, damage, or loose fittings. Replace damaged parts immediately.
- Vedligeholdelse af trådboks: Hold trådfremføringsmekanismen ren og fri for snavs for at sikre en jævn trådfremføring.
- Opbevaring: Opbevar svejsemaskinen et tørt og rent miljø, væk fra direkte sollys og ekstreme temperaturer.
7. Fejlfinding
Dette afsnit indeholder løsninger på almindelige problemer, du kan støde på.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Machine shuts off during operation. | Overheating, overcurrent, or overload protection activated. | Allow the machine to cool down. Check for proper ventilation. Reduce welding current or duty cycle. |
| Ingen bue. | Loose connections, incorrect settings, faulty electrode/wire. | Check all cable connections. Verify power supply. Adjust current settings. Replace electrode/wire. |
| Problemer med trådfremføring (MIG). | Forkert trådspænding, tilstoppet liner, forkert drivrullestørrelse. | Adjust wire tension. Clean or replace torch liner. Ensure correct drive roller for wire size. |
| Dårlig svejsekvalitet. | Incorrect parameters, improper technique, dirty workpiece. | Juster strøm/volumentage/wire speed. Practice welding technique. Clean the workpiece thoroughly. |
8. Tekniske specifikationer
| Specifikation | Værdi |
|---|---|
| Modelnummer | HBM200-EU |
| Fabrikant | Shenzhen Unitweld Welding and Motor Co., Ltd. |
| Dimensioner (L x B x H) | 170 x 152 x 155 mm (ca. 6.7 x 5.98 x 6.1 tommer) |
| Produktets vægt | 3.7 kg (7.63 lbs) |
| Strømtype | DC |
| Voltage | 230 volt |
| Støjniveau | 52 dB |
| Applicable Welding Rod (ARC) | 1.0-3.2 mm |
| Applicable Flux-Cored Wire (MIG) | 0.8/1.0 mm |
| Welding Plate Thickness (MIG) | 0.8-3 mm |
| Welding Plate Thickness (ARC) | 1-6 mm |
9. Garanti og support
HITBOX offers a 2 års garanti on this welding machine. If you are not satisfied with your purchase, a replacement or refund is available within 60 days of purchase.
For technical support, warranty claims, or any inquiries regarding your HITBOX HBM200-EU welder, please contact the HITBOX Official Shop directly through your purchase platform or their official website. Please have your model number (HBM200-EU) and purchase details ready when contacting support.
