MIFA Camping Lantern Speaker S2120 Instruction Manual

1. Introduktion

Tak for købetasing the MIFA Camping Lantern Speaker S2120. This device combines a portable Bluetooth speaker with an LED camping lantern, designed for outdoor activities. It features IPX7 waterproofing, dual pairing, deep bass, and a Micro SD card slot for versatile use. Please read this manual carefully before use to ensure proper operation and maintenance.

Figure 1: MIFA Camping Lantern Speaker in an outdoor setting, demonstrating its use as both a speaker and a lantern.

Video 1: Overståetview of the MIFA Wildcamping Outdoor Speaker, showcasing its features and outdoor applications.

2. Produktfunktioner

• Camping Speaker with LED Lantern: Functions as both a portable Bluetooth speaker and a camping lanterne.
• Color Changing Lights and Tripod Installation: Offers white and warm white light, stepless dimmable, with a 1/4 inch screw hole for tripod mounting.
• MIFA Pro Sound: Equipped with 20W output, full-frequency dual speakers, dual bass radiators, Bluetooth 5.3, and DSP sound processing.
• TWS and PartyAdd: Connect two speakers for true wireless stereo or up to 100 speakers for simultaneous music playback and 360° sound.
• Long Battery Life and Portable Size: Built-in 9600mAh rechargeable battery provides up to 38 hours of playtime and can act as a power bank (5V/2A Max.). Compact dimensions (4.33''x9.98''x4.33'') and lightweight (1.8LB).

3. Pakkens indhold

• MIFA Camping Lantern Højttaler

4. Opsætning

4.1 Indledende opladning

Before first use, fully charge the speaker using the provided USB-C cable. Connect the cable to the charging port on the speaker and a compatible USB power adapter (not included). The charging indicator light will show the charging status.

4.2 Tænd/sluk

Press and hold the power button located on the top of the speaker for approximately 3 seconds to power on or power off the device. A sound prompt will indicate the status.

5. Betjeningsvejledning

5.1 Bluetooth -parring

1. Power on the MIFA Camping Lantern Speaker. It will automatically enter Bluetooth pairing mode, indicated by a flashing LED.
2. Aktiver Bluetooth på din mobilenhed, og søg efter tilgængelige enheder.
3. Select "MIFA S2120" from the list. Once connected, a sound prompt will confirm successful pairing, and the LED will stop flashing.

5.2 Lantern Operation

The lantern features two light colors (white and warm white) and stepless dimming. Use the rotary knob on top of the speaker to adjust brightness and switch between light modes.

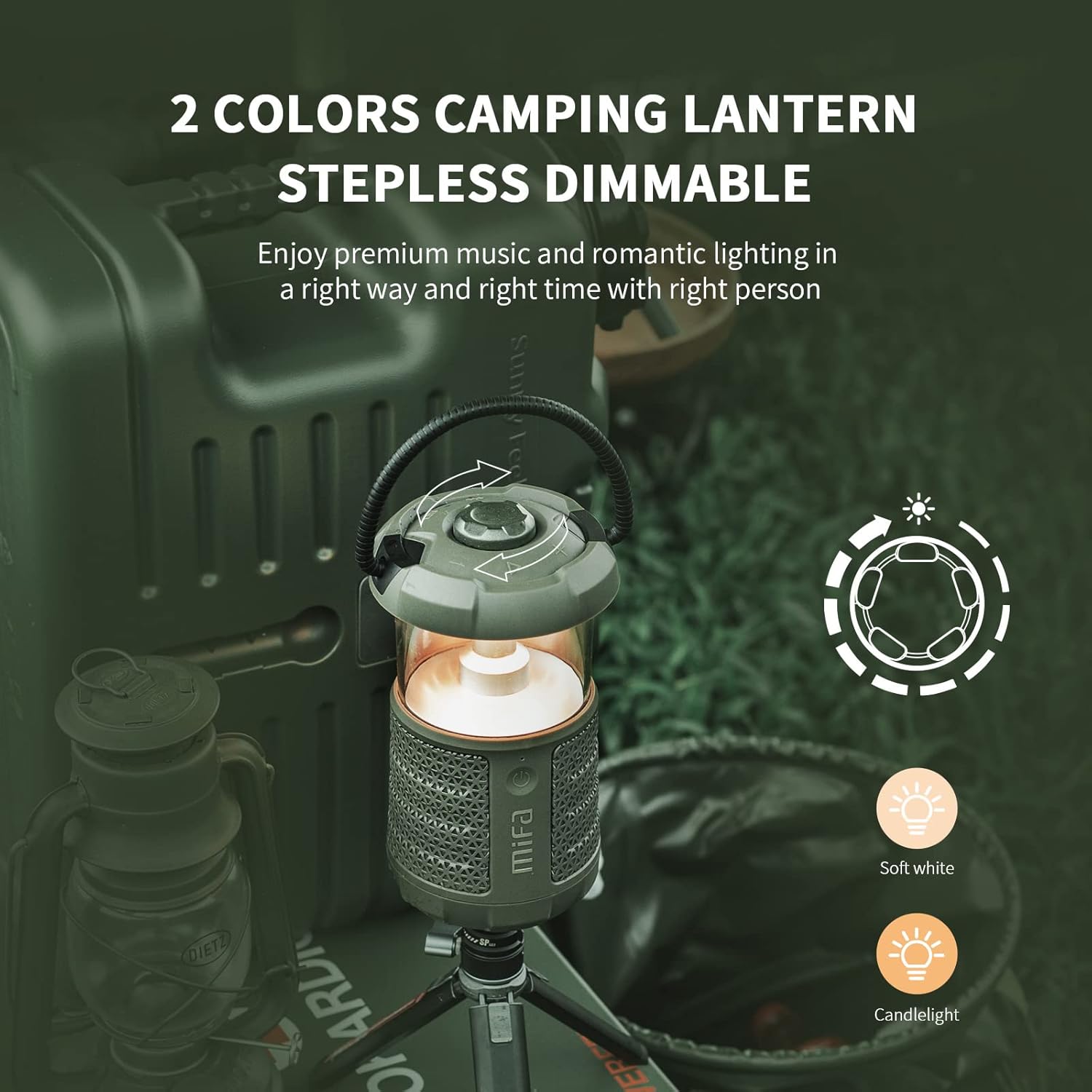

Figure 2: The lantern speaker demonstrating its two light color options and stepless dimming capability.

5.3 TWS (True Wireless Stereo) and PartyAdd Function

For an enhanced audio experience, you can connect two MIFA S2120 speakers for TWS or multiple speakers (up to 100) using the PartyAdd function.

1. Power on both (or all) speakers.
2. Ensure no speaker is currently connected to a Bluetooth device.
3. On one speaker (the master), press the TWS/PartyAdd button (refer to the device for button location, typically indicated by a chain link icon). The speaker will search for other compatible speakers.
4. Once connected, a sound prompt will confirm the connection. Your mobile device should then connect to the master speaker.

5.4 Powerbankens funktion

The built-in 9600mAh battery allows the speaker to function as a power bank. Connect your mobile device or tablet to the USB-A output port on the speaker using a compatible charging cable. The speaker can provide up to 5V/2A Max. output.

Figure 3: The speaker being used to charge a smartphone, demonstrating its power bank capability.

5.5 Afspilning fra Micro SD-kort

Insert a Micro SD card (up to 32GB, FAT32 format) loaded with audio files into the Micro SD card slot. The speaker will automatically switch to Micro SD card playback mode. Use the control buttons on the speaker to manage playback (play/pause, skip tracks).

6. Vedligeholdelse

To ensure the longevity and optimal performance of your MIFA Camping Lantern Speaker, follow these maintenance guidelines:

• Rensning: Tør højttaleren af ​​med en blød, damp klæde. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
• Vandtæthed (IPX7): The speaker is IPX7 waterproof, meaning it can be submerged in up to 1 meter of water for 30 minutes. Ensure all port covers are securely closed before exposing the device to water. After exposure to water, dry the device thoroughly before charging or opening port covers.
• Opbevaring: Opbevar højttaleren et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• Batteripleje: For long-term storage, charge the battery to approximately 50% every three months to prevent deep discharge.

Video 2: Demonstration of the speaker's outdoor waterproof capabilities.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

This MIFA Camping Lantern Speaker S2120 comes with a 1-year manufacturer's warranty. For technical support, warranty claims, or further assistance, please contact MIFA customer service through their official webwebstedet eller forhandleren, hvor produktet blev købt. Gem venligst din købsbevis for at validere garantien.
