XYGStudy RGB-Matrix-P4-64x32 LED Matrix Panel User Manual

1. Introduktion

The XYGStudy RGB-Matrix-P4-64x32 is a full-color LED matrix panel designed for displaying text, colorful images, and animations. It features 2048 individual RGB LEDs arranged in a 64x32 pixel grid with a 4mm pitch. This panel offers adjustable brightness and is compatible with various microcontrollers, including Raspberry Pi and Arduino platforms.

XYGStudy RGB-Matrix-P4-64x32 LED Matrix Panel displaying 'Waveshare Electronics RGB MATRIX P4 64x32' — The RGB-Matrix-P4-64x32 LED Matrix Panel, showcasing dens visningsmuligheder.

Nærbillede view of the RGB LED matrix panel showing individual LEDs — En detaljeret view of the LED matrix surface, highlighting the 4mm pixel pitch.

2. Pakkens indhold

Kontroller venligst, at alle nedenstående varer er inkluderet i din pakke:

RGB-Matrix-P4-64x32 LED matrix panel and accessories (x1)
Power supply terminal adapter (x1) - Note: A 5V 4A power supply is recommended (not included).
16P wire, approximately 30cm in length (x1)
Pico Accessories (x1)

3. Specifikationer

Feature	Specifikation
Varenummer	RGB-Matrix-P4-64x32
Dimensioner	256mm × 128mm
Pixels	64 × 32 (2048 dots)
Pitch	4 mm
Pixel Form	1R1G1B
Viewi vinkel	≥160°
Kontroltype	Synkronisering
Kørsel	1/16 scanning
Overskrift	HUB75
Strømforsyning	5V / 4A (VH4 header input)
Strømforbrug	≤20W
Forbindelsesteknologi	HUB75, 16-pin parallel interface
Operativsystemkompatibilitet	Linux

Diagram showing the dimensions of the LED matrix panel: 256mm width, 128mm height, 14mm thickness — Physical dimensions of the RGB-Matrix-P4-64x32 panel.

Table summarizing features and specifications of the LED matrix panel — Overview of key features and technical specifications.

4. Opsætning

4.1 Strømtilslutning

The LED matrix panel requires a 5V DC power supply. Connect the provided power supply terminal adapter to the panel's power input. A 5V 4A power supply is recommended for optimal performance. Ensure correct polarity when connecting the power supply.

4.2 Data Connection (HUB75 Interface)

The panel uses a HUB75 interface for data input. Use the included 16P wire to connect the panel to your control board (e.g., Raspberry Pi, Arduino with appropriate adapter). Refer to the 'Header Definition' diagram for correct pin assignments.

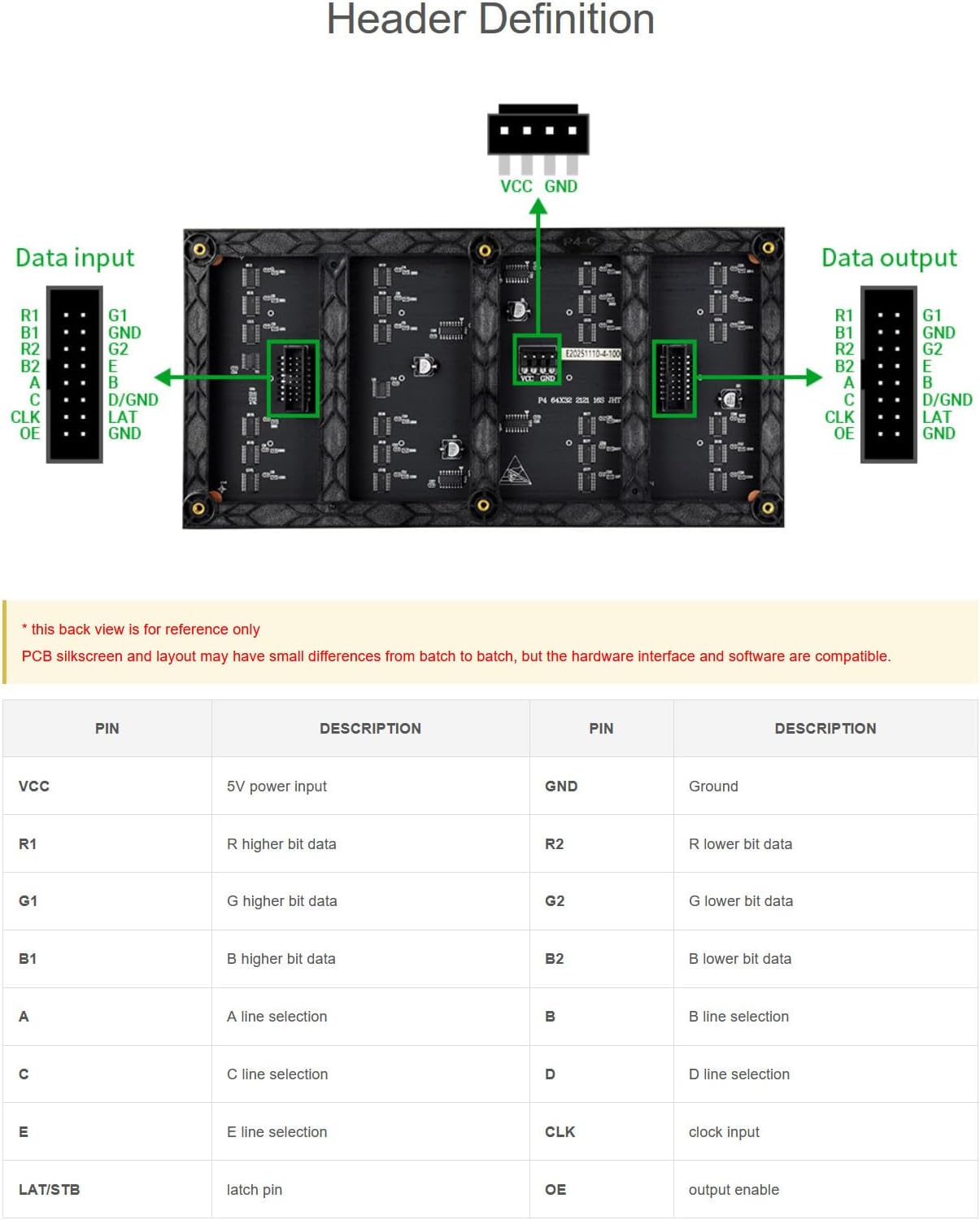

Diagram showing the pinout for the HUB75 data input and output headers on the back of the LED matrix panel — Header Definition: Pin assignments for data input and output. Note that PCB silkscreen and layout may vary slightly between batches, but hardware interface and software compatibility remain.

Tilbage view of the LED matrix panel showing the input and output connectors — Bag view of the LED matrix panel, illustrating the connection points.

4.3 Chainable Design

Multiple LED matrix panels can be chained together to create a larger display. This is achieved via the HUB75 input/output headers. When chaining panels, each RGB LED matrix panel requires a standalone 5V/4A or above power supply to ensure stable operation and display quality.

LED matrix panel displaying a colorful cube pattern, illustrating its chainable design capability — Example of a single panel, demonstrating the potential for larger displays through chaining.

5. Betjening

Once properly connected to a compatible microcontroller (e.g., Raspberry Pi, Arduino), the LED matrix panel can be programmed to display various content. Software libraries and example code are typically available from the manufacturer or community resources for controlling HUB75 panels.

Justering af lysstyrke: The panel supports adjustable brightness, which can typically be controlled through software commands from your microcontroller.
Content Display: Display text, static images, or dynamic animations by sending appropriate data to the panel via the HUB75 interface.

5.1 Brugsscenarier

The RGB LED matrix panel is versatile and can be used in various applications:

DIY desktop or wall-mount displays
Digital signboards
Environmental monitors
Kunstinstallationer

Four images showing different usage scenarios for the LED matrix panel, including a desktop clock, a large artistic display, an immersive room, and a data dashboard — Examples of how the LED matrix panel can be utilized in different settings.

6. Vedligeholdelse

To ensure the longevity and optimal performance of your LED matrix panel, follow these maintenance guidelines:

Rensning: Gently wipe the surface of the LED panel with a soft, dry, lint-free cloth. Avoid using liquid cleaners or abrasive materials.
Miljø: Operate the panel in a dry environment, away from excessive moisture, dust, and extreme temperatures.
Håndtering: Handle the panel by its edges to avoid touching the LED surface directly. Avoid applying excessive pressure or bending the panel.
Magt: Always disconnect the power supply before performing any maintenance or making connections.

7. Fejlfinding

If you encounter issues with your LED matrix panel, consider the following troubleshooting steps:

Ingen visning/Delvis visning:
- Check all power connections to ensure they are secure and the power supply meets the 5V 4A requirement.
- Verify that the data cable (16P wire) is correctly connected to both the panel and the microcontroller, following the pinout diagram.
- Ensure your microcontroller is running the correct code and sending data to the panel.
- If chaining panels, confirm each panel has adequate power.
Forkerte farver/flimren:
- Review your software code for correct color mapping and refresh rates.
- Check for loose data connections.
- Ensure your power supply is stable and providing sufficient current.
Panelet svarer ikke:
- Restart your microcontroller and the LED panel.
- Confirm that the correct libraries and drivers are installed and configured for your microcontroller.

Hvis disse trin ikke løser problemet, bedes du se supportafsnittet for yderligere hjælp.

8. Garanti og support

For further assistance, detailed user guides, or to inquire about warranty information, please contact XYGStudy customer support directly via Amazon. Provide your product model number (RGB-Matrix-P4-64x32) and a clear description of your issue for efficient support.
