Indledning
Thank you for choosing the AFMAT PSX1 Electric Pencil Sharpener. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new sharpener. Designed for durability and precision, the PSX1 features a multi-hole design to accommodate various pencil sizes and an auto-stop function to prevent over-sharpening. Please read these instructions carefully before use.
Produktegenskaber
- 6-Hole Design: Accommodates pencils with diameters from 6mm to 11mm, including round, triangular, hexagonal, oval, and octagonal shapes. Ensures a snug fit for even and precise sharpening.
- Kraftig ydeevne: Equipped with an industrial-grade helical blade engineered for extended longevity, supporting up to 7000 sharpening cycles. Suitable for frequent use in demanding environments without overheating.
- Fast Sharpening with Auto-Stop: Sharpens new pencils in under 3 seconds and used pencils in under 2 seconds. The auto-stop mechanism prevents over-sharpening, preserving pencil life and preventing lead breakage.
- Blyantbevaring: Designed to minimize wood waste and prevent lead breakage, contributing to longer pencil usability.
- Large Capacity Shavings Bin: Features a transparent, drawer-type bin for easy monitoring of shavings levels and convenient emptying. A stopper ensures the bin remains securely closed during operation.
- Stabil drift: Four integrated suction cups on the base provide secure placement and stability on various surfaces during use.
Image: The AFMAT PSX1 Electric Pencil Sharpener, highlighting its fast sharpening and auto-stop capabilities.

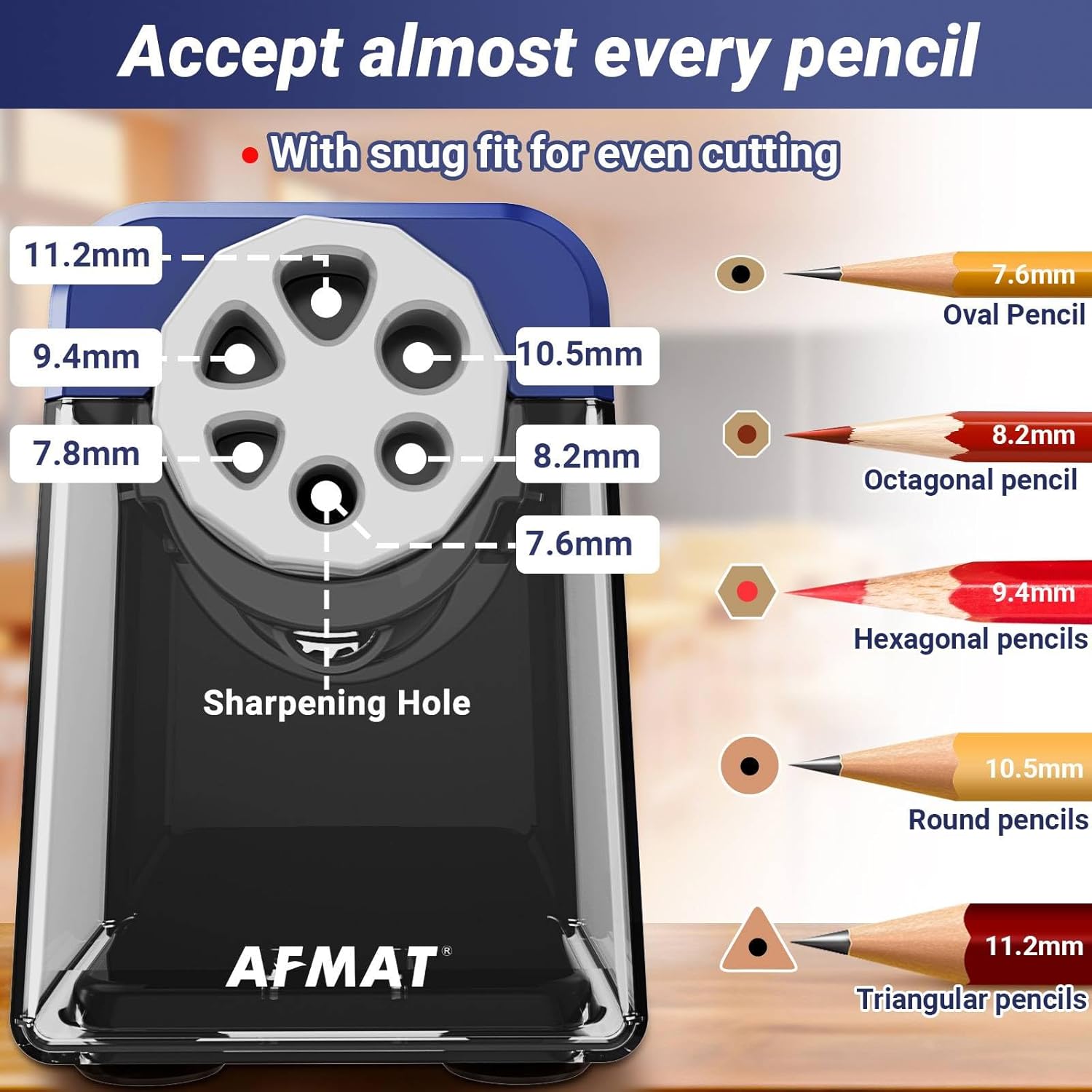

Image: Diagram detailing the six sharpening holes and their compatibility with various pencil diameters and shapes.
Opsætningsinstruktioner
- Pakker ud: Tag forsigtigt blyantspidseren ud af emballagen.
- Placering: Place the sharpener on a stable, flat, and dry surface. Ensure the four suction cups on the base are firmly attached to the surface for stability.
- Shavings Bin: Verify that the transparent shavings bin is securely closed and properly inserted into the sharpener. The sharpener will not operate if the bin is open or incorrectly seated.
- Strømtilslutning: Plug the power cord into a standard 120V 60Hz US electrical outlet.
Betjeningsvejledning
- Vælg hul: Identify the appropriate sharpening hole for your pencil's diameter. The sharpener offers six holes to accommodate pencils ranging from 6mm to 11mm.
- Indsæt blyant: Gently insert the pencil into the chosen hole. Apply light, consistent pressure.
- Skærpe: The sharpener will automatically begin sharpening when the pencil is inserted.
- Auto-stop: The motor will automatically stop once the pencil has reached a fine, sharp point. Remove the pencil.
- Vigtig bemærkning: This sharpener is not recommended for use with soft-core pencils, as they may cause clogging or uneven sharpening.
Image: Visual representation of the sharpener's fast sharpening and auto-stop function, showing a pencil before and after sharpening.
Image: The sharpener in action, demonstrating its powerful motor and ability to handle multiple pencils.
Opretholdelse
- Tømning af spånbeholder: When the transparent shavings bin appears full, gently pull out the drawer-type bin. Dispose of the pencil shavings responsibly. Reinsert the bin securely until it clicks into place.
- Udvendig rengøring: Wipe the exterior of the sharpener with a soft, dry cloth. Do not use water, harsh chemicals, or abrasive cleaners, as these can damage the unit.
- Bladinspektion: Periodically inspect the sharpening blade for any obstructions or excessive wear. For detailed cleaning or blade replacement procedures, refer to the official user guide or contact customer support.
Image: The sharpener's large shavings bin removed for emptying, and a view of the stabilizing suction cups.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Slibemaskinen tænder ikke. |
|
|
| Pencil not sharpening evenly or lead breakage. |
|
|
| Sharpener over-sharpens pencils. |
|
|
Specifikationer
- Mærke: AFMAT
- Modelnummer: PSX1BL
- Strømkilde: Corded Electric - US Plug 120V 60Hz
- Materiale: ABS-hus + klinge i rustfrit stål
- Varens vægt: 1.65 pund
- Produktdimensioner: 6.9 x 3.3 x 4.6 tommer
- Blyantkompatibilitet: 6-11mm diameter, various shapes (round, triangular, hexagonal, oval, octagonal)
- Sharpening Cycles: Op til 7000 gange
Image: Comparison of blade durability, emphasizing the PSX1's extended blade life.
Garanti og support
For detailed warranty information, product registration, or further technical assistance, please visit the official AFMAT website or contact their customer support directly. You may also refer to the Certificate of Compliance for this product, available as a PDF document:
