IDEAPLAY J8 1500A Bærbar Bilbatteri Jumpstarter Brugermanual

Indledning

The IDEAPLAY J8 Portable Car Battery Jump Starter is a versatile device designed to provide emergency jump-starting for vehicles and portable power for electronic devices. With a 1500A peak current and 12000mAh capacity, it can jump start up to 7.0L gas or 5.5L diesel 12V vehicles, including hybrid and electric cars, motorcycles, ATVs, UTVs, RVs, boats, trucks, lawn mowers, and snowmobiles. The J8 supports up to 15 jump starts on a full charge and has a standby time of up to 6 months.

Beyond jump-starting, it functions as a 12000mAh portable charger with 2 x USB-A 18W Quick Charge ports and 1 x 30W two-way USB-C port, suitable for charging phones, tablets, cameras, and e-readers. It also features an ultra-bright LED flashlight with three modes: Flashlight, SOS, and Strobe, enhancing safety and utility in various situations.

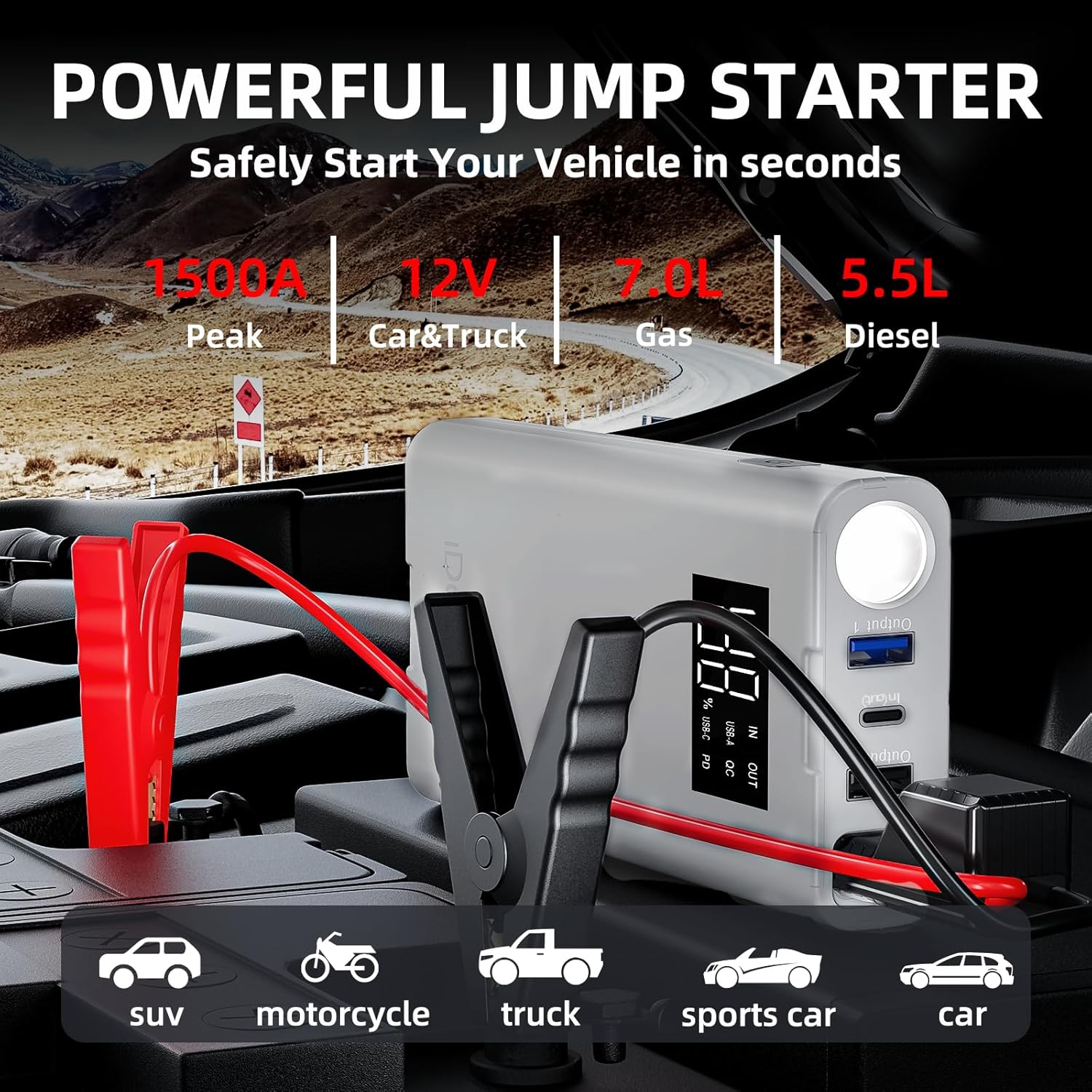

Image: The IDEAPLAY J8 Jump Starter connected to a car battery, illustrating its primary function.

Opsætning

1. Oplad jumpstarteren: Ensure the IDEAPLAY J8 is charged to at least 60% before use. Connect the included USB-C Fast Charging Cable to the 'In (Out)' USB-C port on the device and a suitable power adapter. The digital display will show the charging percentage.
2. Connect Smart Jumper Cable Clamps: Open the protective cap on the 'ENGINE START' port of the jump starter. Insert the blue plug of the intelligent jumper cable clamps firmly into this port. The indicator light on the smart clamps will flash red and green, indicating it is ready for connection to the vehicle battery.
3. Identificér batteripolerne: Locate your vehicle's battery. Identify the positive (+) terminal (usually marked with a plus sign and covered by a red cap) and the negative (-) terminal (usually marked with a minus sign).
4. Tilslut Clamps til batteri: Fastgør den røde (+) clamp to the positive (+) terminal of the vehicle battery. Attach the black (-) clamp to the negative (-) terminal of the vehicle battery. Ensure a secure connection. The indicator light on the smart clamps should turn solid green, indicating a correct and safe connection. If it remains red or flashes, check connections and battery status.

Billede: Detaljeret view of the IDEAPLAY J8 Jump Starter, highlighting the various ports and buttons for setup and operation.

Betjeningsvejledning

Jump-start af et køretøj

1. Follow the setup steps above to connect the jump starter to your vehicle battery. Ensure the smart clamp indikatorlyset lyser konstant grønt.
2. Enter your vehicle and start the engine. If the engine does not start immediately, wait 30 seconds before attempting again. Do not attempt more than 3 consecutive jump starts.
3. Når køretøjet starter, skal den sorte (-) kobling straks frakobles.amp fra bilens batteri, efterfulgt af den røde (+) kl.amp.
4. Disconnect the smart jumper cable clamps from the IDEAPLAY J8 jump starter.

Bruges som en bærbar oplader

The IDEAPLAY J8 features two USB-A 18W Quick Charge output ports and one 30W two-way USB-C port. Use appropriate USB cables to connect your electronic devices (phones, tablets, cameras, etc.) to these ports for charging.

Image: The IDEAPLAY J8 Jump Starter simultaneously charging a smartphone and a tablet via its USB ports.

LED-lommelygtebetjening

Press and hold the power button on the side of the device to activate the LED flashlight. Subsequent short presses will cycle through the three modes:

• Lommelygte: Giver kontinuerlig belysning.
• SOS: Udsender et morsekode SOS-signal i nødsituationer.
• Strobe: Produces a rapid flashing light.

To turn off the flashlight, press and hold the power button again.

Image: The IDEAPLAY J8 Jump Starter's LED flashlight in action, showing its various lighting modes for different scenarios.

Officielle produktvideoer

Opretholdelse

• Genopladning: Recharge the IDEAPLAY J8 after each use or every 3-6 months to maintain optimal battery health. Use the provided USB-C cable and a compatible power adapter.
• Opbevaring: Store the jump starter in its carrying case in a cool, dry place away from direct sunlight and extreme temperatures.
• Rensning: Tør enheden af ​​med en blød, tør klud. Brug ikke skrappe kemikalier eller slibende materialer.

Fejlfinding

• Indicator Light Flashing Red/Green: This indicates the smart clamps are ready for connection. Ensure proper connection to the vehicle battery terminals.
• Indicator Light Solid Red: This typically means there is an issue with the connection or the battery. Check for reverse polarity, short circuit, or if the vehicle battery is severely damaged. The intelligent jumper cables provide ultra-safe protection against short circuit, over-load, over-current, reverse polarity, over-voltage, over-charge, over-discharge, and high-temperature.
• Køretøjet starter ikke: Ensure the jump starter has at least 60% charge. Check all connections for tightness. If the vehicle still doesn't start after a few attempts, the vehicle battery may be beyond jump-starting or there may be another mechanical issue.
• Enheden oplades ikke: Ensure the USB-C cable and power adapter are functioning correctly. Check the USB-C port for any debris.

Image: The IDEAPLAY J8 Jump Starter's smart clamps, illustrating the various safety protections it offers.

Specifikationer

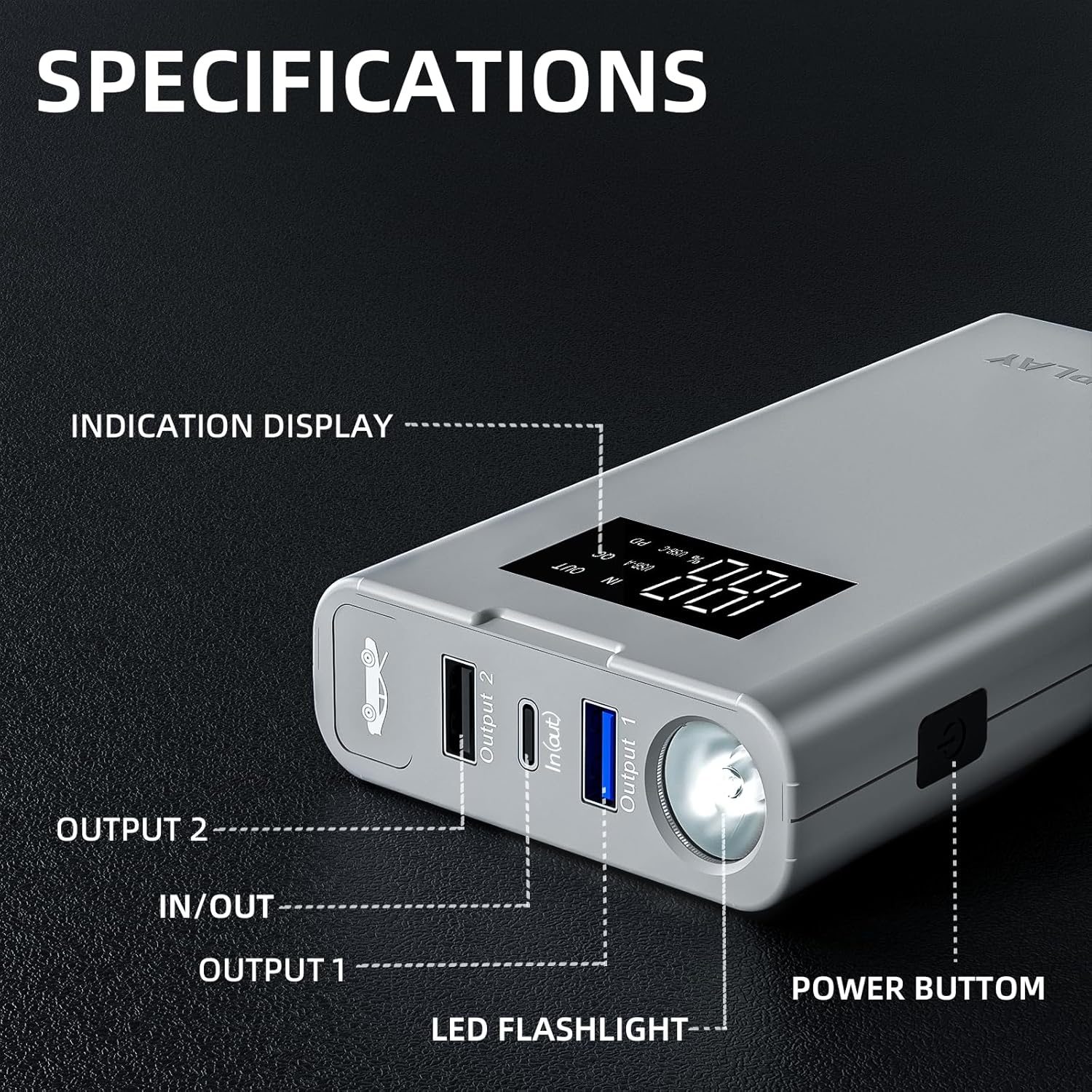

Image: The IDEAPLAY J8 Jump Starter, showing its various ports and the digital display.

Sikkerhedsoplysninger

The IDEAPLAY J8 is UL2743 certified and equipped with advanced safety protections to ensure safe operation for both the user and the vehicle. These protections include:

• Kortslutningsbeskyttelse: Forhindrer skader fra utilsigtede kortslutninger.
• Overbelastningsbeskyttelse: Beskytter mod for højt strømforbrug.
• Overstrømsbeskyttelse: Protects the device and battery from current surges.
• Omvendt polaritetsbeskyttelse: Alerts and prevents damage if clamps er forbundet forkert.
• Over-bindtage Beskyttelse: Beskytter mod voltage pigge.
• Overopladningsbeskyttelse: Forhindrer batteriskader forårsaget af overopladning.
• Beskyttelse mod overafladning: Forlænger batteriets levetid ved at forhindre dyb afladning.
• Høj temperatur beskyttelse: Overvåger og regulerer den indre temperatur for at forhindre overophedning.

Always ensure the intelligent jumper cables' indicator light is solid green before attempting to jump start. If the light is red or flashing, recheck connections and troubleshoot according to the manual.

Garanti og support

The IDEAPLAY J8 Portable Battery Jump Starter comes with a 2-Year Protection Plan. IDEAPLAY brand products are designed in the USA and offer 24/7 customer service. If you encounter any problems with your product, please reach out to IDEAPLAY customer support for assistance.

Hvad er inkluderet:

• 1 x Portable Battery Jump Starter (J8)
• 1 x Intelligent Jumper Cable Clamps
• 1 x USB-C hurtigopladningskabel
• 1 x bæretaske
• 1 x brugermanual
