Indledning
Thank you for choosing the BANTI Electric Standing Desk B-SDE-55WE-DD. This manual provides essential information for the safe assembly, operation, and maintenance of your new electric standing desk. Please read these instructions carefully before use and retain them for future reference.
This height-adjustable electric standing desk is designed to enhance your working environment by allowing seamless transitions between sitting and standing positions, promoting better posture and reducing discomfort associated with prolonged sitting.
Sikkerhedsoplysninger
- Sørg for, at alle komponenter er til stede og ubeskadigede før montering. Må ikke anvendes, hvis der mangler eller er dele i stykker.
- Hold børn og kæledyr væk fra skrivebordet under brug, især når højden justeres.
- Ensure there are no obstructions above or below the desk when adjusting its height to prevent collision.
- Do not overload the desk. The maximum weight capacity is 150 lbs (68 kg).
- Only use the provided power adapter and controller.
- Do not disassemble or modify the desk's electrical components. Contact qualified service personnel for repairs.
- Hold væsker væk fra elektriske komponenter for at undgå elektrisk stød.
- Always unplug the desk from the power outlet before cleaning or performing maintenance.
Pakkens indhold
Kontroller venligst, at alle følgende komponenter er inkluderet i din pakke:
- Skrivebordsstel (ben og tværstang)
- Skrivebordsoverflade
- Kontrolpanel
- Strømadapter og kabel
- Skuffekomponenter (2 sæt)
- Monitor Stand / Top Shelf
- Monteringshardware (skruer, værktøj)
- Optional Detachable and Lockable Casters
- Instruktionsmanual (dette dokument)
Opsætning og montering
The BANTI Electric Standing Desk is designed for straightforward assembly. A detailed installation manual with visual guides is included in your package. Please follow those instructions carefully for proper setup.
Trin for generalforsamling:
- Pak alle komponenter ud, og læg dem på en ren, blød overflade for at forhindre ridser.
- Assemble the desk frame according to the provided diagrams, ensuring all screws are tightened securely.
- Attach the desktop surface to the assembled frame.
- Install the double drawers and the monitor stand/top shelf.
- Mount the control panel to the underside of the desk in an accessible location.
- Connect all electrical cables (motor to control box, control box to control panel, power adapter to control box).
- If desired, attach the detachable and lockable casters to the desk legs. Ensure they are securely fastened.
- Sæt strømadapteren i en stikkontakt.

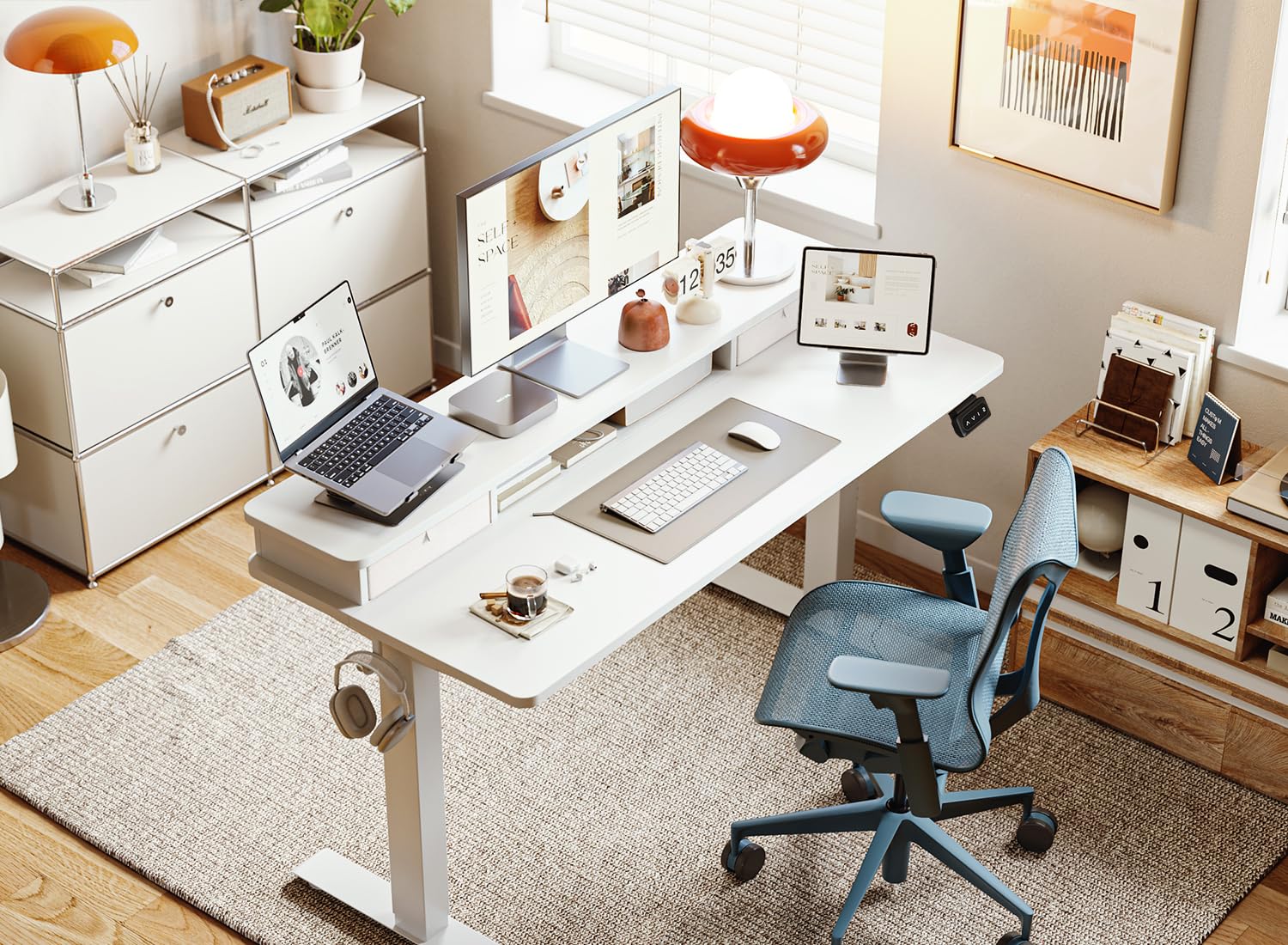

Image: Fully assembled BANTI Electric Standing Desk, showcasing its design and functionality in a home office setting.
Image: Diagram illustrating the product dimensions, including desktop size (55x24 inches) and height adjustment range.
Betjeningsvejledning
Elektrisk højdejustering
Your BANTI Electric Standing Desk features an electric lift system allowing you to adjust the desk height smoothly between 32.48 og 51.38 tommer. The control panel includes up/down buttons and memory presets for convenience.
- Justering af højde: Brug ▲ (Op) og ▼ (Down) buttons on the control panel to raise or lower the desk to your desired height. Release the button to stop movement.
- Indstilling af hukommelsesforudindstillinger: Skrivebordets funktioner 3 preset memory buttons (1, 2, 3). To save a height setting: Adjust the desk to your preferred height, then press and hold one of the memory buttons (1, 2, or 3) until you hear a beep or see the display flash, indicating the height is saved.
- Brug af hukommelsesforudindstillinger: Press a saved memory button (1, 2, or 3) to automatically move the desk to the corresponding pre-set height.
- Collision-Avoiding Feature: The desk is equipped with a collision-avoiding system. If the desk encounters an obstruction during height adjustment, it will automatically stop and reverse slightly to prevent damage.
Image: Visual representation of the desk's height adjustment capabilities, illustrating both sitting and standing positions.

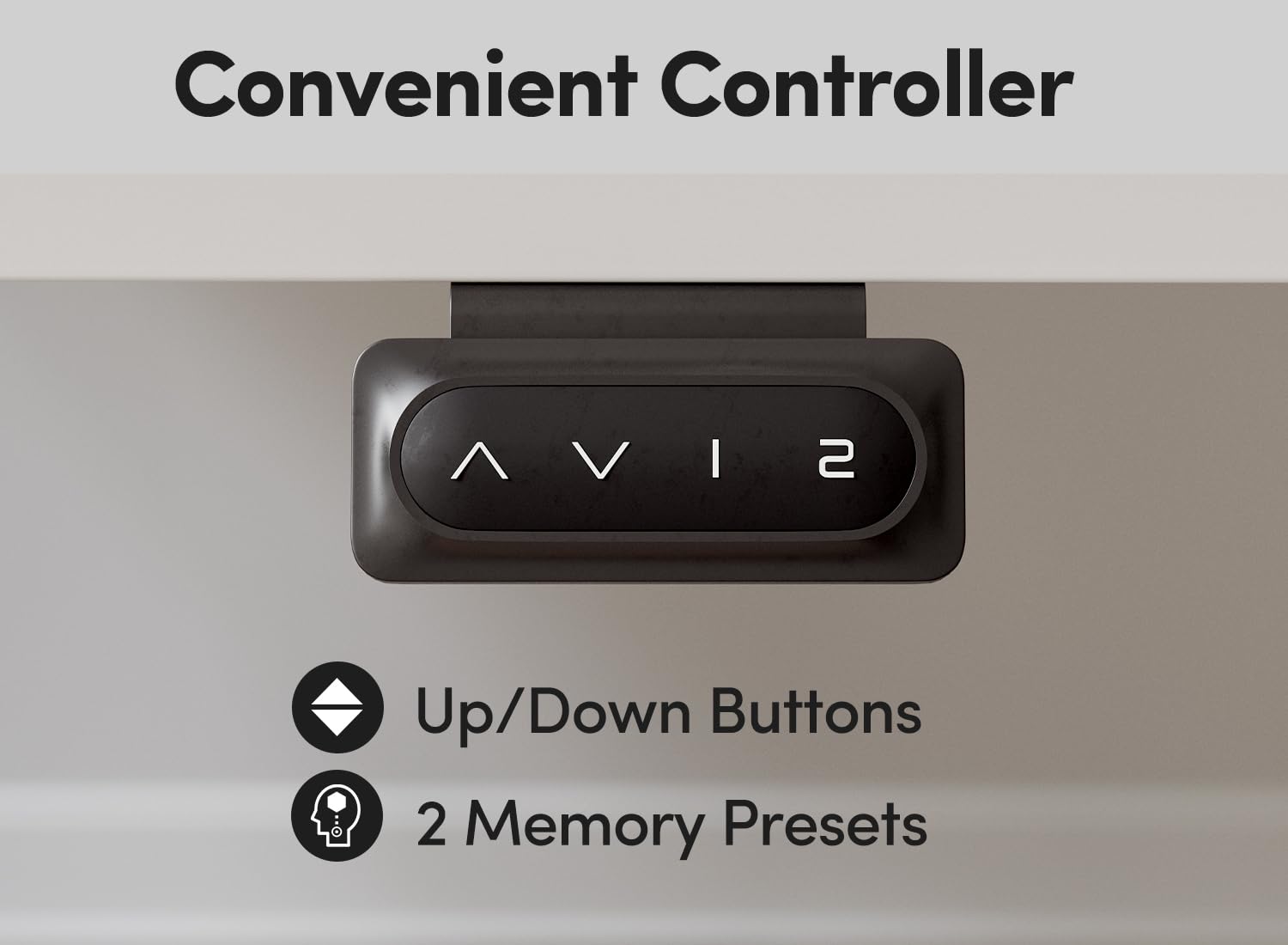

Billede: Detaljeret view of the convenient control panel, highlighting the up/down arrows and two memory preset buttons.
Skuffe og opbevaringsbrug
The desk features integrated storage solutions to help keep your workspace organized.
- Dual Drawers: Utilize the two integrated drawers for storing small office supplies, documents, or personal items, keeping your desktop clutter-free.
- Åben opbevaringszone: The top shelf includes an open storage area, ideal for placing items like speakers, books, or decorative elements, providing convenient access and saving space.
Billede: View of the dual-drawer organization, showing internal dimensions and exampfærre genstande, der kan opbevares.
Billede: Detaljeret view of the open storage zone, demonstrating its capacity for various items like speakers and books.
Detachable and Lockable Casters
The desk comes with optional swivel casters that allow for easy mobility. These casters can rotate 360 degrees and include a locking mechanism.
- Mobilitet: When unlocked, the casters allow you to easily move the desk to different locations without lifting.
- Stabilitet: Engage the locking mechanism on the casters to secure the desk in place and prevent unintended movement.
Opretholdelse
Regular maintenance ensures the longevity and optimal performance of your BANTI Electric Standing Desk.
- Rensning: Tør skrivebordets overflade og ramme af med en blød, tør kludamp klud. Undgå skrappe kemikalier eller slibende rengøringsmidler, der kan beskadige overfladen.
- Kabelstyring: Kontroller og organiser kabler med jævne mellemrum for at forhindre sammenfiltringer og sikre, at de ikke forstyrrer skrivebordets bevægelse.
- Fastgørelsesmidler: Kontrollér lejlighedsvis alle skruer og bolte for at sikre, at de forbliver fastspændte. Efterspænd om nødvendigt.
- Motorinspektion: Listen for any unusual noises during height adjustment. If you notice any issues, unplug the desk and contact support.
Fejlfinding
If you encounter any issues with your BANTI Electric Standing Desk, please refer to the following troubleshooting guide:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Skrivebordet bevæger sig ikke eller reagerer ikke på betjeningselementer. | Power cable disconnected, control panel cable loose, motor error. | Check all cable connections. Ensure the power adapter is securely plugged into both the desk and the wall outlet. Try unplugging the desk for 2-5 minutes, then plug it back in. |
| Skrivebordet bevæger sig ujævnt eller laver usædvanlige lyde. | Overload, loose fasteners, obstruction. | Reduce weight on the desk. Check for any obstructions. Ensure all assembly fasteners are tight. |
| Desk stops during adjustment (Collision-Avoiding). | Obstruction detected. | Remove any objects that may be obstructing the desk's movement. The desk should resume normal operation. |
| Hukommelsesforudindstillingerne virker ikke. | Forudindstillingerne er ikke gemt korrekt. | Re-save your desired height settings by adjusting the desk to the height, then pressing and holding the desired memory button until confirmed. |
Specifikationer
Detailed specifications for the BANTI Electric Standing Desk B-SDE-55WE-DD:
| Feature | Specifikation |
|---|---|
| Modelnummer | B-SDE-55WE-DD |
| Desktop dimensioner | 55 x 24 tommer |
| Højdejusteringsområde | 32.48 til 51.38 tommer |
| Minimum højde | 27.6 Inches (without casters) |
| Maksimal vægtkapacitet | 150 lbs (68 kg) |
| Antal skuffer | 2 |
| Rammemateriale | Legeret stål |
| Top materiale | Alloy Steel Engineered Wood |
| Farve | White Top / White Frame |
| Særlige funktioner | Adjustable, Electric, Ergonomic, Double Drawers, Storage Shelf, Collision-Avoiding |
| Montering påkrævet | Ja |
| Varens vægt | 85.98 pund (ca. 39 kg) |
Garanti og support
BANTI stands behind the quality of its products. For specific warranty details, please refer to the warranty card included with your purchase or visit the official BANTI webwebsted.
If you require technical assistance, have questions about assembly, or need to report a missing/damaged part, please contact BANTI customer support through the retailer where you purchased the product or via the contact information provided on the official BANTI webwebsted.
