1. Introduktion

Thank you for choosing the Elica LANE GR/A/52 Built-in Cooker Hood. This manual provides essential information for the safe installation, operation, and maintenance of your appliance. Please read these instructions carefully before using the cooker hood and keep them for future reference.

Sikkerhedsoplysninger

  • Sørg for, at apparatet installeres af en kvalificeret tekniker i overensstemmelse med lokale regler.
  • Afbryd altid strømforsyningen, før du udfører vedligeholdelse eller rengøring.
  • Lad ikke børn betjene apparatet uden opsyn.
  • Sørg for tilstrækkelig ventilation i rummet, når emhætten bruges samtidig med gas- eller andre apparater, der bruger brændstof.

2. Produktet er slutview

The Elica LANE GR/A/52 is a sleek, built-in cooker hood designed to integrate seamlessly into your kitchen cabinetry. It features electronic button controls for ease of use and efficient LED lighting to illuminate your cooking area. This model operates with a ductless/recirculation ventilation system.

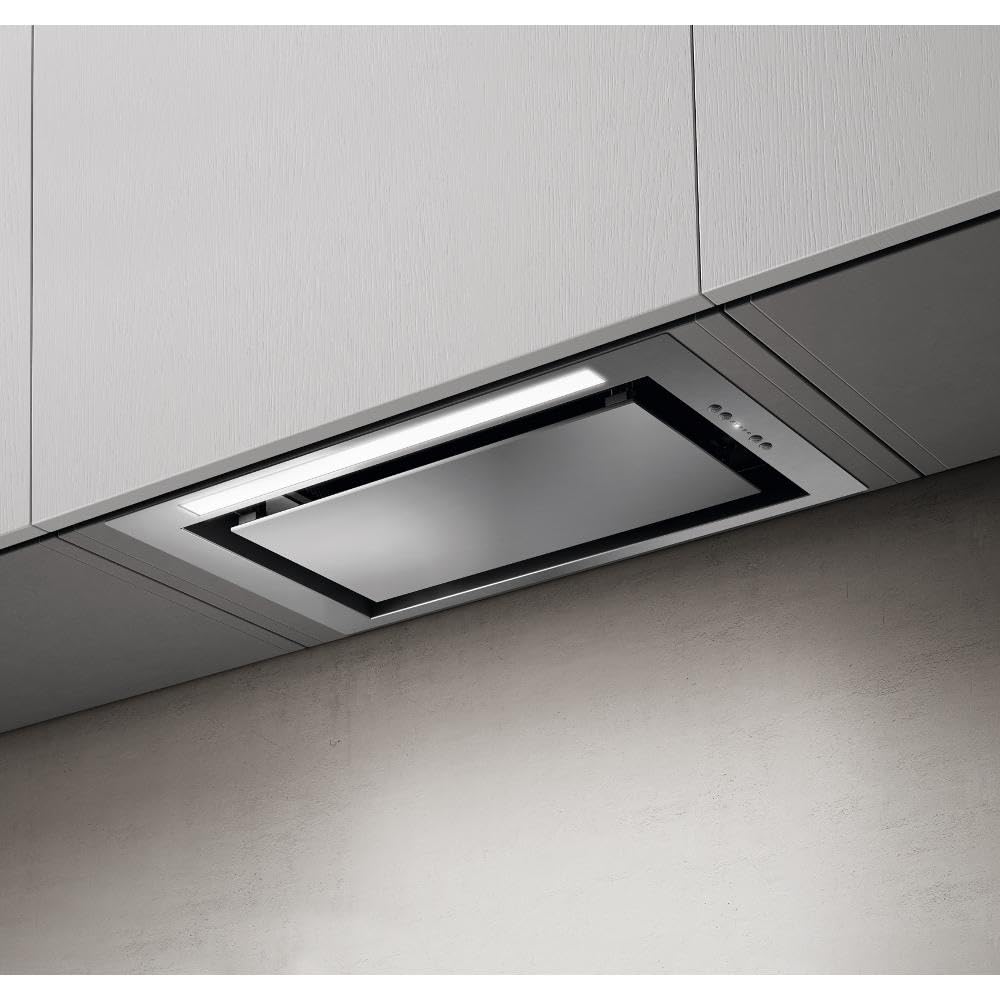

Elica LANE GR/A/52 Built-in Cooker Hood, front view.

Image showing the Elica LANE GR/A/52 built-in cooker hood, highlighting its sleek design and integrated LED lighting.

Nøglefunktioner:

  • Built-in hood design for discreet integration.
  • Electronic touch controls for intuitive operation.
  • Energieffektiv LED-belysning.
  • Ductless/Recirculation ventilation type.
  • Durable Aluminum Alloy Steel construction with a painted finish.

Komponenter inkluderet:

  • Kontrolpanel
  • LED light unit
  • Skruer
  • Installationssæt

3. Opsætning og installation

The Elica LANE GR/A/52 cooker hood is designed for integrated mounting. Due to the nature of built-in appliances and electrical connections, professional installation is highly recommended to ensure safety and proper functionality.

Installationstrin (generel vejledning):

  1. Forberedelse: Unpack all components and ensure they are intact. Verify that the installation area meets the required dimensions and electrical specifications.
  2. Montering: Secure the hood within the cabinet opening using the provided screws and installation kit. Ensure it is level and firmly attached.
  3. Elektrisk tilslutning: Connect the hood to the main power supply. This step must be performed by a qualified electrician.
  4. Filterinstallation: Install the charcoal filters (if not pre-installed) for recirculation mode.
  5. Test: After installation, test all functions of the hood, including fan speeds and lighting.

Refer to the detailed installation diagrams and instructions provided in the separate installation guide for specific measurements and procedures.

4. Betjeningsvejledning

The Elica LANE GR/A/52 cooker hood features intuitive electronic touch controls located on the control panel.

Brug af kontrollerne:

  • Tænd/sluk: Tryk på tænd/sluk-knappen for at tænde eller slukke emhætten.
  • Justering af blæserhastighed: Use the speed control buttons (usually indicated by '+' and '-' or numbered levels) to select the desired extraction power. Higher speeds are suitable for intense cooking, while lower speeds are for general ventilation.
  • Lysstyring: Press the light button to switch the LED lighting on or off. The LED lights provide clear illumination of your cooking surface.

This hood operates in recirculation mode, meaning it filters the air through charcoal filters and then releases the purified air back into the kitchen. This eliminates the need for external ducting.

5. Vedligeholdelse

Regular maintenance ensures the optimal performance and longevity of your Elica cooker hood. Always disconnect the appliance from the power supply before cleaning or maintenance.

Rengøring af ydersiden:

  • Tør de udvendige overflader af med en blød kludamprengjort med mildt rengøringsmiddel og varmt vand.
  • Do not use abrasive cleaners, corrosive detergents, or harsh brushes, as these can damage the painted finish.
  • Tør grundigt med en ren, blød klud.

Filtervedligeholdelse:

  • Fedtfiltre: The metal grease filters should be cleaned regularly (approximately every 2-4 weeks, depending on usage) to prevent grease buildup. They can typically be washed by hand with hot water and detergent or in a dishwasher on a low-temperature cycle.
  • Charcoal Filters (for Recirculation): Charcoal filters are not washable and must be replaced periodically (typically every 3-6 months, depending on usage). Refer to your specific filter model for replacement instructions.

6. Fejlfinding

If you encounter issues with your cooker hood, refer to the following common problems and solutions before contacting technical support.

Problem Mulig årsag Løsning
Emhætten tænder ikke. No power supply; faulty wiring; control panel issue. Check power connection and circuit breaker. If problem persists, contact a qualified technician.
Lysene virker ikke. Faulty LED bulb; electrical connection issue. Check if the light button was pressed. If bulbs are replaceable, check them. Contact support if LEDs are integrated.
Dårlig ekstraktionsevne. Clogged grease filters; saturated charcoal filters; insufficient room ventilation. Clean or replace grease filters. Replace charcoal filters. Ensure adequate air intake in the kitchen.
Usædvanlig støj under drift. Løse komponenter; fremmedlegeme i ventilator; motorproblem. Check for loose parts. Disconnect power and inspect fan area carefully. Contact technician if motor noise persists.

For issues not listed here or if solutions do not resolve the problem, please contact Elica customer support or a qualified service technician.

7. Specifikationer

  • Modelnummer: LANE GR/A/52
  • Mærke: Elica
  • Fabrikant: Okap
  • Produktmål (L x B x H): 24 x 69 x 2.5 cm; 250 gram
  • Farve: Sølv
  • Materiale: Aluminiumlegering stål
  • Udfør type: Malet
  • Speciel funktion: LED lys
  • Sound Level / Noise Level: 65 decibel
  • Monteringstype: Integreret montering
  • Kontroltype: Røre
  • Voltage: 3 volt
  • Lyskildetype: LED
  • Ventilationstype: Ductless/Recirculation
  • Genstandsform: Pyramide
  • Hood Design: Indbygget hætte

8. Garanti og support

Warranty information for the Elica LANE GR/A/52 cooker hood is not available in this document. Please refer to the warranty card included with your product or contact your retailer or Elica customer service for details regarding warranty coverage and support.

For technical assistance, spare parts, or further inquiries, please contact the official Elica support channels.
