SINGER MX231 Sewing Machine and Universal Hard Carrying Case

1. Introduktion

This manual provides instructions for the setup, operation, and maintenance of your SINGER MX231 Sewing Machine and its accompanying Universal Hard Carrying Case. The SINGER MX231 is designed for a wide range of sewing projects, from basic mending to creative crafts, offering 97 stitch applications including basic, decorative, and stretch stitches. Its lightweight and portable design, along with user-friendly features, make it suitable for both beginners and experienced sewers.

Figure 1: SINGER MX231 Sewing Machine, a versatile tool for various sewing tasks.

2. Opsætning

2.1 Udpakning og placering

Carefully remove the sewing machine and all accessories from the packaging. Place the machine on a stable, flat surface with adequate lighting. Ensure there is enough space for fabric movement.

2.2 Tilslutning af strøm og fodpedal

1. Sæt netledningen i maskinens stikkontakt.
2. Sæt fodpedalen i den dertil beregnede port på maskinen.
3. Tilslut netledningen til en passende stikkontakt.
4. Turn on the machine using the power switch, usually located on the side. The built-in LED light will illuminate the sewing area.

2.3 Trådning af maskinen

Proper threading is crucial for optimal stitch quality. Follow the numbered guides on the machine for the upper thread path. For the bobbin, wind it first, then insert it into the bobbin case.

Figur 2: Side view of the SINGER MX231, illustrating the upper threading path and needle area.

2.4 Brug af den automatiske nåletråder

The built-in needle threader simplifies threading the needle. Follow the machine's instructions for engaging the threader and guiding the thread through the needle eye.

3. Betjeningsvejledning

3.1 Valg af sting

The SINGER MX231 offers 97 stitch applications. Use the stitch selector dial to choose your desired stitch pattern. Refer to the stitch chart on the machine for available options.

Figure 3: Close-up of the SINGER MX231 showing the stitch selector dial with various stitch patterns.

3.2 Justering af stinglængde og -bredde

Customize your stitches by adjusting the stitch length and width dials. Experiment with different settings on scrap fabric to achieve the desired look for your project.

3.3 Knaphul i ét trin

The machine features a convenient one-step buttonhole function. Attach the buttonhole foot and follow the specific instructions in the detailed manual for consistent buttonholes.

3.4 Justerbart trykfodstryk

Adjust the presser foot pressure to accommodate various fabric thicknesses, from very heavy to very fine, ensuring smooth feeding and consistent stitching.

3.5 Syning med fri arm

Remove the accessory storage compartment to convert the machine into a free arm. This feature is ideal for sewing cuffs, sleeves, pant hems, and other small, circular projects.

Figure 4: A person operating the SINGER MX231 Sewing Machine, demonstrating its ease of use for various projects.

4. Medfølgende tilbehør

The SINGER MX231 comes with a comprehensive accessory kit to support your sewing needs:

• Almindelig fod
• Knaphulsfod
• Knap syfod
• Kant-/quiltevejledning
• Skruetrækker
• Sømopsprætter / fnugbørste
• Pakke med nåle
• Spoler (klasse 15 transparent)
• Trådspolehætte
• Stoppetallerken

Figure 5: The accessory kit for the SINGER MX231, including various feet, needles, and tools.

5. SINGER Universal Hard Carrying Case

The SINGER Universal Hard Carrying Case provides sturdy protection and convenient portability for your sewing machine. It accommodates most free-arm portable sewing machines, including the MX231.

5.1 Case Features

• Impact Resistant Storage: Provides rigid support and protection for the machine.
• Non-Slip Inner Tray: Offers extra protection on all sides.
• Handle for Easy Transport: Comfortable and sturdy handle built into the lid for durability and portability.
• Safety Lock Clasps: Securely holds the case closed.

5.2 Husets dimensioner

• Indvendige mål: 18" x 9" x 12.5" (51 x 28 x 37 cm)
• Udvendige dimensioner: 20.5" x 11.8" x 14.8" (52 x 30 x 38 cm)

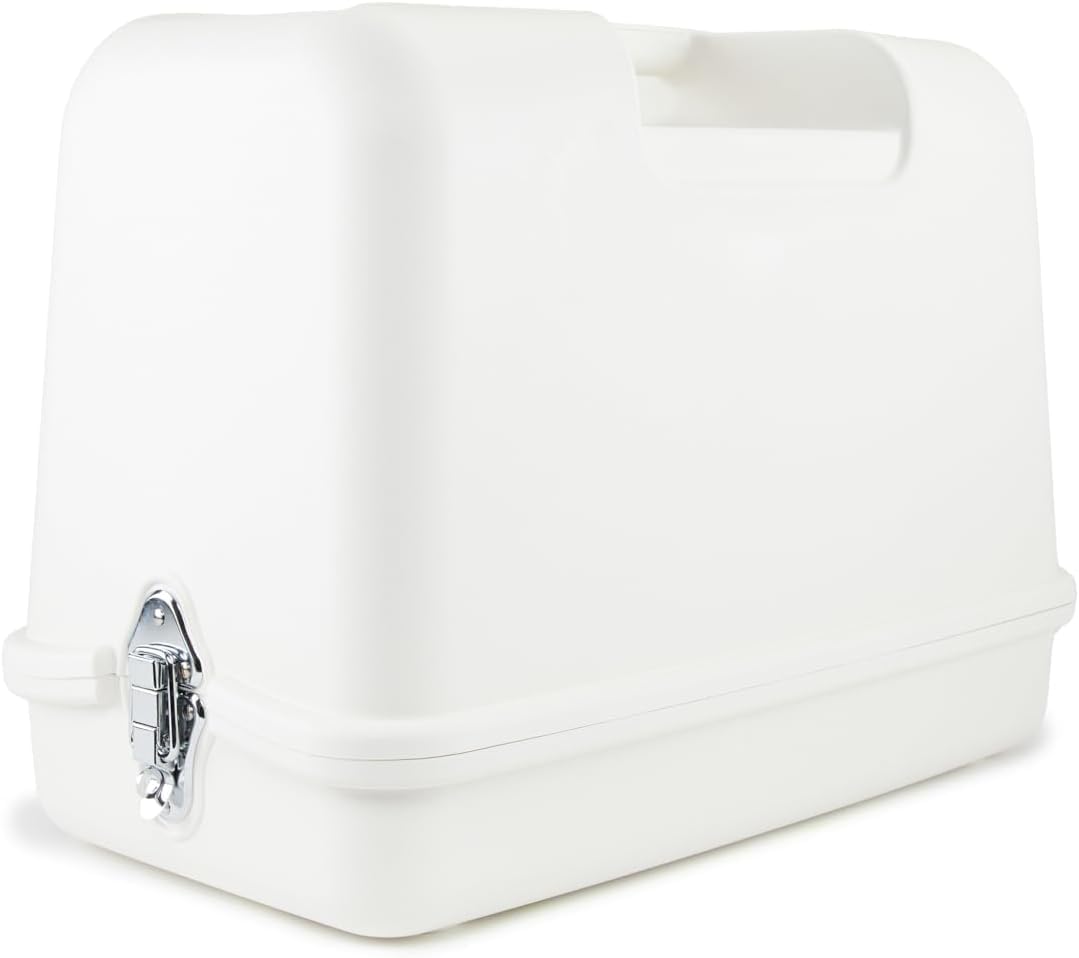

Figure 6: The SINGER Universal Hard Carrying Case, designed for protecting and transporting your sewing machine.

Figure 7: A person demonstrating the portability of the SINGER MX231 in its Universal Hard Carrying Case.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din symaskines levetid og optimale ydeevne.

• Rensning: Regularly remove lint and dust from the bobbin area, feed dogs, and tension discs using the provided lint brush.
• Udskiftning af nåle: Replace needles frequently, especially when working with new projects or if the needle shows signs of dullness or bending.
• Oliering: Refer to the detailed product manual for specific oiling instructions, if applicable.

7. Fejlfinding

If you encounter issues with your sewing machine, consider the following common troubleshooting steps:

• Oversprungne sømme: Check if the needle is inserted correctly, if it's the right type for your fabric, and if it's bent or dull. Re-thread the machine completely.
• Trådbrud: Ensure the machine is threaded correctly, the tension is appropriate for your thread and fabric, and the thread is not old or damaged.
• Stofblokering: Verify that the presser foot is down and the feed dogs are engaged. Ensure proper needle and thread combination for the fabric.

For more detailed troubleshooting, consult the full product manual or the SINGER support webwebsted.

8. Specifikationer

9. Garantioplysninger

The SINGER MX231 Sewing Machine comes with a limited warranty:

• 90-dages garanti: For electrical components.
• 2-års garanti: For mechanical components.
• 25-års garanti: For the sewing machine head.

Please retain your proof of purchase for warranty claims. For full details, refer to the warranty card included with your product or visit the official SINGER webwebsted.

10. Support

For additional assistance, detailed instructions, or to access online resources, please visit the official SINGER website or contact SINGER customer support.

This manual is intended for informational purposes only. SINGER reserves the right to make changes to product specifications without prior notice.
