1. Introduktion
1.1 Produkt overview
Thank you for choosing the Generic A8 Portable HEPA Air Purifier. This device is designed to improve air quality in your home, office, car, or during travel by effectively removing airborne pollutants. Featuring a 3-stage filtration system and negative ion technology, it provides clean, fresh air in small spaces.
1.2 Tilsigtet brug
The A8 Portable Air Purifier is intended for indoor use to filter common airborne particles such as dust, pollen, pet dander, smoke, and odors. Its compact design and rechargeable battery make it suitable for personal spaces, desks, bedrooms, and vehicles.
This image illustrates the Generic A8 Portable Air Purifier's effectiveness against various airborne irritants, including unpleasant odors, pet dander, dust particles, common allergens, pollen, and smoke.
2. Nøglefunktioner
- 3-Stage Filtreringssystem: Captures 99.95% of airborne particles as small as 0.3 microns, including a fine pre-filter, H13 True HEPA filter, and activated carbon filter.
- Bærbart design: Compact (8.8 x 8.3 x 13.7 cm) with an integrated handle and rechargeable battery for use at home, in vehicles, or while traveling.
- Lang batterilevetid: Indbygget genopladeligt batteri giver op til 10 timers drift.
- Stille drift: Operates at a low noise level (30 dB), ensuring minimal disturbance for sleep or work.
- To ventilatorhastigheder: Adjustable fan speeds to suit air quality and space requirements.
- Anion funktion: Releases negative ions to further enhance air purification.
- Aroma Sponge: Allows for the addition of essential oils (not included) to diffuse fragrance with air movement.
- 360° Deep Air Purification: Efficiently cleans air in small spaces, covering approximately 12m² (129ft²).
- Clear Panel Display: LED display shows fan speed, anion function status, and battery level.

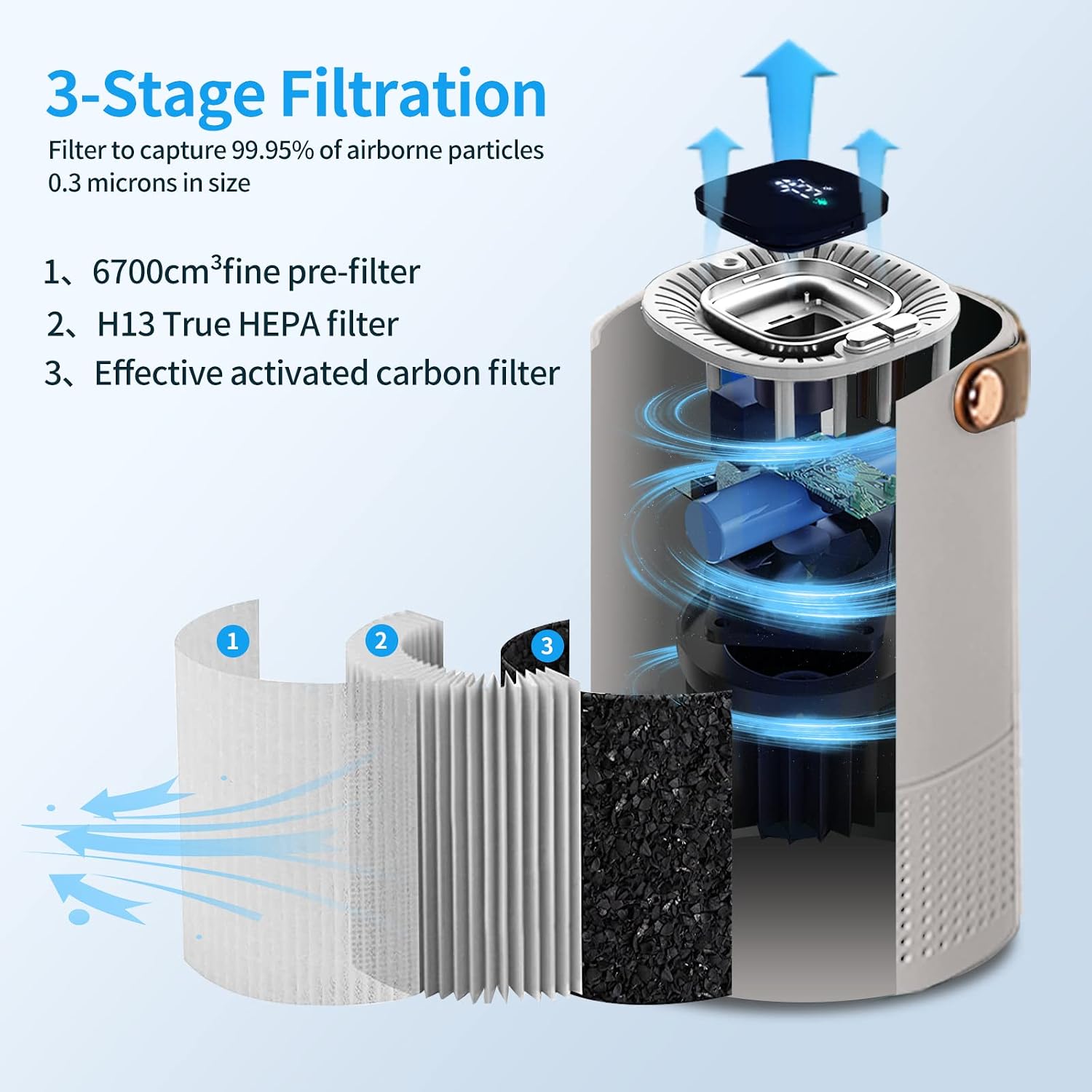

Et detaljeret diagram viserasing the internal 3-stage filtration system of the A8 air purifier. It consists of a fine pre-filter, an H13 True HEPA filter, and an effective activated carbon filter, designed to capture 99.95% of airborne particles.
The image illustrates the negative ion technology of the A8 air purifier, showing negative ions being released to help purify the air and contribute to a healthier environment.
3. Vigtige sikkerhedsinstruktioner
Læs venligst alle instruktioner omhyggeligt, inden du bruger dette apparat, og gem dem til senere brug. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller alvorlig personskade.
- Brug ikke noget apparat med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet tabt eller beskadiget på nogen måde.
- Før ikke ledningen under gulvtæpper. Dæk ikke ledningen med tæpper, løbere eller lignende belægninger. Anbring ledningen væk fra trafikområdet, og hvor den ikke vil blive snublet over.
- For at mindske risikoen for brand eller elektrisk stød må denne blæser ikke bruges sammen med en solid-state hastighedskontrolenhed.
- Always unplug the air purifier before moving it, opening the grille, changing filters, cleaning, or whenever it is not in use.
- Må ikke bruges udendørs.
- Brug kun på en fast, plan overflade.
- Do not insert fingers or foreign objects into any openings and do not obstruct air vents.
- Må ikke bruges i våde eller damp miljøer, såsom badeværelser.
- Keep the appliance away from heat sources such as radiators, heat registers, stoves, or other heat-producing appliances.
- Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de har fået opsyn eller instruktion i brugen af apparatet af en person, der er ansvarlig for deres sikkerhed.
4. Opsætningsvejledning
4.1 Udpakning
Carefully remove the air purifier from its packaging. Check for any signs of damage. Ensure all components are present:
- A8 Portable Air Purifier unit
- USB ladekabel
- Brugermanual
4.2 Indledende opladning
Before first use, fully charge the air purifier using the provided USB cable. Connect the USB cable to the charging port on the unit and to a compatible USB power adapter (not included) or computer USB port. The battery indicator on the display will show charging status.
4.3 Filter Installation/Check
3-ernetage filter is pre-installed. Before first use, ensure the filter is securely in place and any protective packaging has been removed from the filter. To access the filter compartment:
- Gently twist the bottom cover of the air purifier counter-clockwise to unlock it.
- Remove the bottom cover and check the filter. Remove any plastic wrapping from the filter if present.
- Place the filter back into the unit, ensuring it sits correctly.
- Sæt bunddækslet på igen, og drej det med uret for at låse det sikkert.
4.4 Placering
Place the air purifier on a stable, flat surface. Ensure there is adequate space around the unit (at least 15 cm or 6 inches) for proper air circulation. Avoid placing it directly against walls or furniture that might obstruct air intake or output.
5. Betjeningsvejledning
The A8 air purifier features a simple control panel for easy operation.
Et nærbillede view of the A8's clear panel display, which provides visual feedback on the device's status. It shows the battery level, indicators for the two fan speeds, and the button for activating the anion function.
5.1 Tænd/sluk og justering af ventilatorhastighed
- For at tænde for enheden skal du trykke på Fan Speed knap (usually indicated by a fan icon or '1/2'). The unit will start at Fan Speed 1.
- Tryk på Fan Speed knap again to switch to Fan Speed 2.
- Tryk på Fan Speed knap en tredje gang for at slukke for enheden.
5.2 Anion Function
The anion function helps to further purify the air by releasing negative ioner.
- To activate the anion function, press the Anion knap (usually indicated by an ion icon). An indicator light or symbol on the display will confirm activation.
- Tryk på Anion knap again to deactivate the function.
5.3 Aroma Sponge Use
To add fragrance to your environment:
- Locate the aroma sponge compartment, typically under the air outlet or near the filter.
- Add a few drops of your preferred essential oil (not included) directly onto the sponge.
- Ensure the sponge is properly placed back in its compartment. The aroma will diffuse with the air movement when the purifier is operating.
5.4 Batteristatus
The LED display shows the current battery level, allowing you to monitor when recharging is needed. When the battery is low, the indicator will typically flash or change color.
This image depicts the A8 air purifier in a bedroom setting, emphasizing its quiet operation for an undisturbed night's sleep. Icons indicate features such as improved sleep, a 10-hour battery life, and the availability of two fan speeds.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger levetiden for din luftrenser.
6.1 Filterudskiftning
3-ernetage composite filter should be replaced periodically, typically every 3-6 months, depending on usage and air quality. A dirty filter will reduce purification efficiency.
- Sørg for, at luftrenseren er slukket og frakoblet.
- Drej bunddækslet mod uret for at låse det op og fjerne det.
- Fjern forsigtigt det gamle filter. Bortskaf det korrekt.
- Unpack the new filter and insert it into the unit, ensuring it fits snugly.
- Sæt bunddækslet på igen, og drej det med uret for at låse det.
- After replacing the filter, it is recommended to reset the filter life indicator (if applicable, refer to specific model instructions if a reset button is present).
6.2 Rengøring af enheden
- Sluk altid for enheden, og tag stikket ud før rengøring.
- Tør luftrenserens yderside af med en blød, tør klud.
- Brug ikke slibende rengøringsmidler, voks eller opløsningsmidler.
- Periodically clean the air intake and outlet vents with a soft brush or vacuum cleaner to remove dust buildup.
6.3 Aroma Sponge Cleaning
If using essential oils, the aroma sponge may need occasional cleaning or replacement to prevent oil buildup or mixing of scents. Remove the sponge and rinse it with mild soap and water, then allow it to air dry completely before reinserting.
7. Fejlfinding
If you encounter any issues with your air purifier, please refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | Ingen strøm eller lavt batteri. | Ensure the unit is charged or connected to a power source. Check the USB cable connection. |
| Weak airflow or no air coming out. | Blocked air intake/outlet or dirty filter. | Check for obstructions around the air intake and outlet. Clean the vents. Replace the filter if it's heavily soiled. |
| Usædvanlig støj under drift. | Loose filter or foreign object inside. | Turn off and unplug the unit. Check if the filter is properly installed. Carefully inspect for any foreign objects. |
| Luftkvaliteten ser ikke ud til at blive bedre. | Filter needs replacement or unit is too small for the space. | Replace the filter. Ensure the unit is used in an appropriately sized room (up to 12m²). |
| Aroma is not diffusing. | No essential oil added or sponge is dry. | Add more essential oil to the aroma sponge. Ensure the sponge is clean and not saturated with old oil. |
8. Produktspecifikationer
| Feature | Specifikation |
|---|---|
| Modelnummer | A8 |
| Dimensioner (L x B x H) | 8.8 x 8.3 x 13.7 cm |
| Vægt | 360 gram |
| Strømkilde | Batteridrevet (USB genopladelig) |
| Filtertype | HEPA (3-stage-filtrering) |
| Støjniveau | 30 decibel |
| Purification Area | Op til 12 m² (129 ft²) |
| Batterilevetid | Op til 10 timer |
| Farve | Hvid |
| UPC/GTIN | 761325464273 |
9. Garanti og support
This product is covered by a standard manufacturer's warranty. Please refer to the retailer's policy or contact the seller for specific warranty terms and conditions. For technical support or inquiries, please contact your point of purchase or the manufacturer's customer service.
Gem din købskvittering som købsbevis i tilfælde af garantikrav.
