Wheelie Scoot EX500 User Manual

Produkt overview

The Wheelie Scoot EX500 is a premium rolling work seat designed for comfort and utility in various settings, including gardening, garage work, and other household projects. Manufactured by Vertex Products in the USA, this durable seat features never-flat wheels and an adjustable, swiveling seat to enhance user mobility and reduce strain during tasks.

Figure 1: The Wheelie Scoot EX500, showcasing its robust design and large wheels.

Nøglefunktioner

• Height Adjustable Swivel Seat: Comfort contour seat supports up to 240 lbs. Adjusts from 15 to 18 inches in 1-inch increments. The seat rotates 360 degrees for flexible positioning.
• Heavy-Duty Rust-Resistant Design: Constructed from premium polymer material with durable additives for longevity and easy cleaning.
• 10-Inch Never-Flat Tires: Large, solid wheels designed to navigate various terrains without needing air.
• Multi-Purpose Utility: Suitable for gardening, garage work, handyman tasks, and other projects requiring low-level seating.
• 100% American Made: Manufactured by Vertex Products in the USA, ensuring quality and commitment to detail.

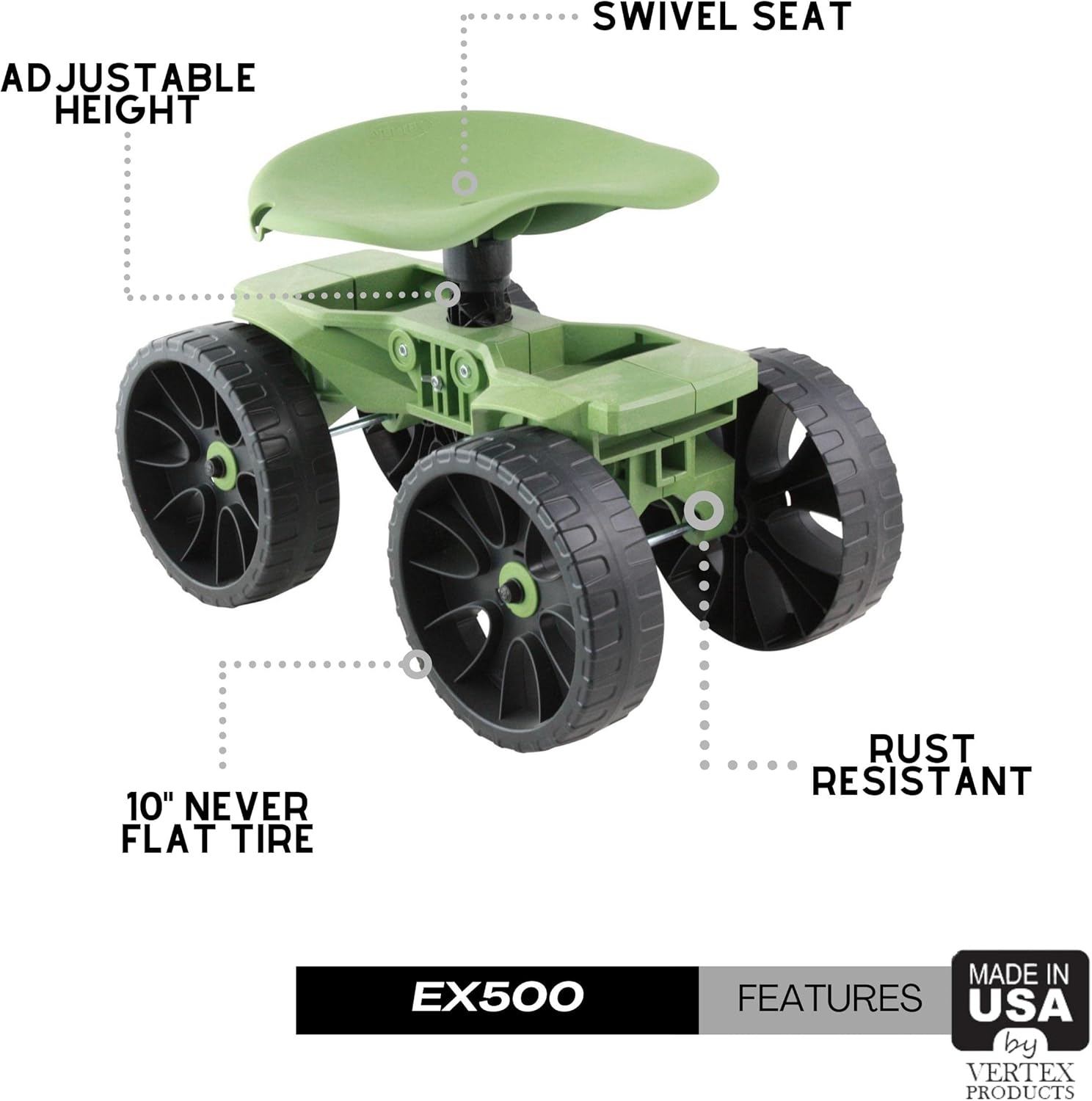

Figure 2: Key features of the Wheelie Scoot EX500, including adjustable height and swivel seat.

Opsætning og montering

The Wheelie Scoot EX500 requires some assembly. Please follow these general steps. Refer to the included assembly guide for detailed instructions and diagrams.

1. Udpak komponenter: Carefully remove all parts from the packaging. Verify all components are present according to the parts list in your assembly guide.
2. Fastgør hjul: Secure the 10-inch never-flat wheels to the main body of the scoot using the provided axles, washers, and fasteners. Ensure they are firmly attached and spin freely.
3. Installer sadelpind: Insert the seat post into the designated opening on the main body.
4. Monter sæde: Place the contoured swivel seat onto the seat post. Secure it using the bolt and wing nut, allowing for height adjustment.
5. Juster sædehøjde: Adjust the seat height to your preferred working level by loosening the wing nut, sliding the seat post to the desired height (15 to 18 inches), and then tightening the wing nut securely.
6. Valgfrit tilbehør: If you have purchased optional accessories such as handles or tool holders, follow their specific installation instructions.

Tools required for assembly typically include a screwdriver, hammer, and a block for support during wheel installation.

Figure 3: Seat height adjustment mechanism.

Betjeningsvejledning

The Wheelie Scoot EX500 is designed for ease of use and mobility. Follow these guidelines for optimal operation:

• Siddepladser: Sit comfortably on the contoured seat. The seat is designed to provide support during extended periods of work.
• Mobilitet: Use your feet to propel and steer the scoot. The large, never-flat wheels allow for smooth movement across various surfaces, including gravel, grass, and concrete.
• Drejefunktion: Utilize the 360-degree swivel seat to easily change your working direction without needing to reposition the entire scoot. This is particularly useful for tasks requiring movement across a wide area, such as weeding a garden bed.
• Højdejustering: Adjust the seat height as needed for different tasks to maintain an ergonomic working posture and reduce back strain.
• Værktøjsopbevaring: If your model includes tool holders, utilize them to keep essential tools within easy reach.

Figure 4: User demonstrating comfortable use of the Wheelie Scoot in a garden setting.

Opretholdelse

To ensure the longevity and optimal performance of your Wheelie Scoot EX500, follow these simple maintenance steps:

• Rensning: Wipe the entire unit with a damp cloth after each use, especially if used in dirty or muddy conditions. The rust-resistant design allows for easy spray-off cleaning.
• Inspektion: Periodically inspect all bolts, nuts, and connections to ensure they are secure. Tighten any loose fasteners.
• Opbevaring: Store the scoot in a dry, protected area when not in use to prevent prolonged exposure to extreme weather conditions, although its rust-resistant properties make it durable.

Fejlfinding

The Wheelie Scoot EX500 is designed for durability and simplicity. Most issues can be resolved with basic checks.

• Besvær med at rulle:
  • Check for debris or obstructions around the wheels or axles.
  • Ensure wheels are properly attached and not binding.
  • Verify the terrain is suitable for rolling; extremely soft or uneven ground may impede movement.
• Seat Instability/Wobbling:
  • Ensure the wing nut securing the seat height is fully tightened.
  • Verify the seat post is correctly seated in its base.
  • Note that the seat is designed to "bob" slightly for flexibility, which is normal operation.
• Generel ustabilitet:
  • Ensure the scoot is on a relatively flat and stable surface before sitting or moving.
  • For users with mobility concerns, consider adding optional handles for additional support when pushing up or maneuvering.

Hvis du støder på vedvarende problemer, der ikke er dækket her, bedes du kontakte kundesupport.

Specifikationer

Figur 5: Produktmål og vægtkapacitet.

Garanti og support

The Wheelie Scoot EX500 is manufactured by Vertex Products, a company with over 25 years of experience in designing and manufacturing consumer products. For any questions regarding your product, assembly, operation, or potential issues, please contact Vertex Products directly.

While specific warranty details are not provided in this manual, Vertex Products is committed to quality. Please retain your proof of purchase for any warranty claims or support inquiries.

For yderligere hjælp kan du besøge TheXceptional Store on Amazon or contact Vertex Products through their official channels.
