Indledning
This manual provides detailed instructions for the installation, operation, and maintenance of your WOODBRIDGE Solid Surface Shower Base, Model SBR6032-1000R-BN. This shower base features a recessed trench side with a stainless steel linear drain cover, measuring 60 inches in length, 32 inches in width, and 4 inches in height, with a right-side drain. Please read all instructions carefully before beginning installation to ensure proper function and longevity of the product.
Sikkerhedsoplysninger
- Brug altid passende personlige værnemidler (PPE) under installationen, herunder sikkerhedsbriller og handsker.
- Sørg for, at installationsområdet er rent, tørt og fri for forhindringer.
- Verify that the floor structure can support the weight of the shower base and user.
- Follow all local plumbing and building codes. If unsure, consult a qualified professional.
- Do not use harsh chemicals or abrasive cleaners on the shower base, as this may damage the surface.
Pakkens indhold
Ved udpakning skal du kontrollere, at alle komponenter er til stede og ubeskadigede:
- WOODBRIDGE Solid Surface Shower Base (60"L x 32"W x 4"H, Right Drain)
- Brushed Stainless Steel Trench Drain Cover
- Standard White PVC Drain
- User and Instruction Manual
The shower base is transported in a firm carton box to ensure safe delivery.
Specifikationer
| Attribut | Detalje |
|---|---|
| Modelnummer | SBR6032-1000R-BN |
| Dimensioner (L x B x H) | 60 cm x 32 cm x 4 cm |
| Afløbssted | Højre |
| Materiale | Solid overflade |
| Finish Type | Brushed (for drain cover) |
| Farve | White with Brushed Nickel Cover |
| Installationstype | Glue Up |
| Certificeringer | US and Canada UPC and CSA certified |
The shower base features an integral 3-sided tiling/water retention flange for simplified installation.
Opsætning og installation
Proper installation is crucial for the performance and longevity of your shower base. This product is designed for a 'Glue Up' installation type. Refer to the included technical drawings and follow these general steps. For detailed visual guidance, please refer to the installation videos provided.
Trin før installation:
- Undersøg produktet: Before installation, carefully inspect the shower base for any damage. Do not install a damaged product.
- Forbered området: Ensure the subfloor is level, clean, and structurally sound. The area where the shower base will be installed must be properly waterproofed according to local building codes.
- Grov-in VVS: Confirm that the drain rough-in is correctly positioned for the right-side drain of this model.
Installationsprocedure:
- Tør pasform: Place the shower base in its intended position without adhesive to ensure proper fit and alignment with the drain and surrounding walls.
- Påfør klæbemiddel: Apply a suitable adhesive (compatible with solid surface materials and your subfloor) to the subfloor according to the adhesive manufacturer's instructions.
- Indstil basen: Carefully set the shower base into the adhesive, ensuring it is level in all directions. Apply pressure evenly across the base to ensure good adhesion.
- Tilslut afløbet: Install the provided standard white PVC drain to the plumbing system, ensuring a watertight seal.
- Seal Flanges: The integral 3-sided tiling/water retention flange should be sealed to the wall studs or backer board using appropriate waterproofing methods before tiling.
- Monter afløbsdæksel: Once the base is securely installed and plumbing is complete, place the brushed stainless steel trench drain cover into the recessed channel.

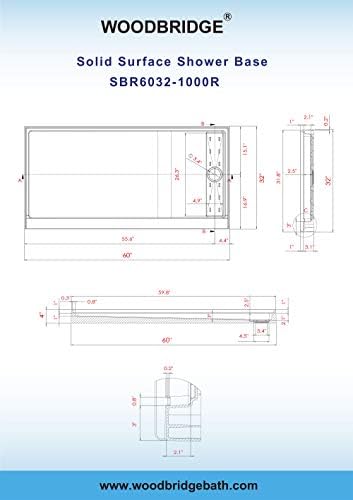

Figure 1: Technical drawing of the SBR6032-1000R shower base, showing dimensions and drain placement.
Figur 2: Underside view of the shower base, illustrating the sturdy grid support design for enhanced load-bearing capacity.
Video 1: En overview of the WOODBRIDGE Rectangle Shower Base with Right Drain, demonstrating its features and appearance.
Video 2: A demonstration of the ease of installation for the WOODBRIDGE shower base, highlighting key steps.
Betjeningsvejledning
The WOODBRIDGE shower base is designed for immediate use after proper installation and curing of adhesives/sealants. Its primary function is to provide a durable, waterproof, and safe showering surface.
Nøglefunktioner for drift:
- Skridsikker overflade: The shower base features a slip-resistant textured floor to enhance safety during use.
- Effektiv dræning: The recessed linear drain with its brushed stainless steel cover ensures quick and effective water removal.
Figur 3: Detaljeret view of the slip-resistant textured floor, designed to prevent accidental slips.
Opretholdelse
Maintaining your WOODBRIDGE shower base is simple due to its solid surface material and design. Regular cleaning will preserve its appearance and hygiene.
Rengøringsvejledning:
- Rutinemæssig rengøring: Clean the shower base regularly with a soft cloth or sponge and a mild, non-abrasive bathroom cleaner. Rinse thoroughly with water after cleaning.
- Undgå barske kemikalier: Do not use abrasive powders, scouring pads, or cleaners containing ammonia, bleach, or strong acids, as these can damage the solid surface finish.
- Vedligeholdelse af afløb: Periodically remove the brushed stainless steel drain cover and clean any accumulated debris from the PVC drain to ensure optimal water flow.
Repair and Restoration:
The solid surface material offers excellent durability. In the event of minor chips or scratches, the product can be sanded down to restore its original look and quality. For significant damage, professional repair may be required.
Figure 4: Illustration emphasizing the superior, non-porous solid surface material that is easy to clean and maintain.
Fejlfinding
This section addresses common issues you might encounter with your shower base.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Langsom dræning | Debris in drain, improper slope | Remove drain cover and clear debris. Ensure proper installation and leveling during setup. |
| Vandlækager | Improper sealing of drain or flanges | Check all plumbing connections and sealant around the drain and integral flanges. Reapply sealant if necessary. |
| Overfladepletter | Hard water deposits, residue from products | Clean with a mild, non-abrasive cleaner. For stubborn stains, consult a solid surface cleaning guide or contact support. |
Garanti og support
WOODBRIDGE products are manufactured to high-quality standards and are backed by a comprehensive warranty.
- Garanti: This product comes with a 10-year limited warranty, covering material defects.
- Certificeringer: The shower base is US and Canada UPC and CSA certified, ensuring compliance with safety and quality standards.
- Kundesupport: For any sales or product-oriented queries, our US-based product support team is available to assist you. Please refer to the contact information provided on our official website or product packaging for assistance.
