Ballu NCA2-15-EF3.0 rumvarmer brugsanvisning

1. Vigtige sikkerhedsoplysninger

Læs venligst alle instruktioner omhyggeligt, inden du bruger dette apparat. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller alvorlig personskade.

• Sæt altid varmeapparatet direkte i en stikkontakt. Brug det aldrig med en forlængerledning eller en flytbar vandhane.
• Brug ikke varmelegemet i badeværelser, vaskerum eller lignende indendørs steder, hvor der er vand til stede.
• Hold brændbare materialer, såsom møbler, puder, sengetøj, papirer, tøj og gardiner mindst 3 m fra forsiden af ​​varmelegemet, og hold dem væk fra siderne og bagsiden.
• Ekstrem forsigtighed er nødvendig, når et varmeapparat bruges af eller i nærheden af ​​børn eller handicappede, og når varmeapparatet efterlades i drift og uden opsyn.
• Indsæt eller lad ikke fremmedlegemer trænge ind i ventilations- eller udsugningsåbninger, da dette kan forårsage elektrisk stød eller brand eller beskadige varmeren.
• For at forhindre en mulig brand, må du ikke blokere luftindtag eller udstødning på nogen måde. Må ikke bruges på bløde overflader, som f.eks. en seng, hvor åbninger kan blive blokeret.

2. Produktet er slutview

The Ballu NCA2-15-EF3.0 is a micathermic infrared space heater designed for efficient and comfortable indoor heating. It utilizes far infrared technology to warm objects directly, providing a gentle and consistent heat without drying the air or consuming oxygen.

Figure 1: Ballu NCA2-15-EF3.0 Space Heater (Front View)

3. Opsætning og installation

3.1 Floor Standing Setup

1. Carefully remove the heater and all accessories from the packaging.
2. Attach the two provided pedestal feet to the base of the heater using the included screws. Ensure they are securely fastened.
3. Place the heater on a stable, level surface, away from any obstructions or combustible materials.

3.2 Vægmontering

The heater can also be mounted on a wall. Mounting accessories are included for this purpose.

1. Identify a suitable wall location, ensuring it is clear of electrical wiring, plumbing, and combustible materials.
2. Use the provided wall brackets and hardware to securely mount the heater to the wall. Refer to the detailed diagrams in the separate installation guide for precise measurements and steps.
3. Ensure the heater is level and securely attached before plugging it in.

Figur 2: Bagside view of the heater showing wall mount brackets and handle.

For a visual guide on unboxing and assembly, please refer to the video below:

Video 1: Unboxing and Assembly of the Ballu Space Heater.

4. Betjeningsvejledning

4.1 Kontrolpanel overview

The heater features an advanced digital control system with a TFT color screen and touch controls for easy operation.

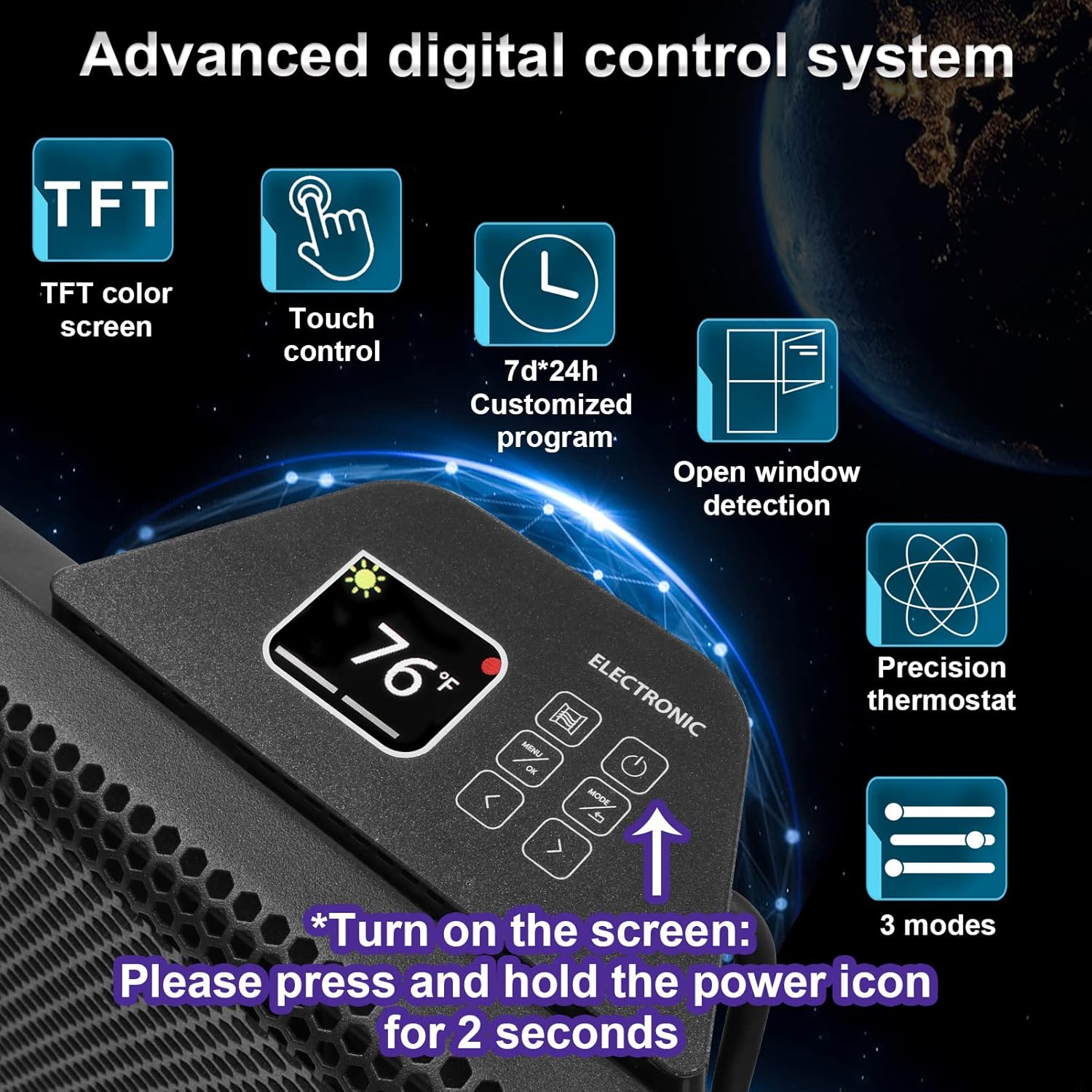

Figure 3: Digital control panel with touch buttons and TFT display.

4.2 Tænd/sluk

1. Ensure the heater is plugged into a suitable power outlet.
2. Press and hold the power icon on the touch screen for 2 seconds to turn the display on.
3. Press the power icon again to turn the heater on or off.

4.3 Temperaturjustering

The precision thermostat allows temperature adjustment from 41°F to 96°F (5°C to 35°C).

1. Use the up (^) and down (v) arrow buttons on the control panel to increase or decrease the desired temperature.
2. The current and set temperatures will be displayed on the TFT screen.

4.4 varmetilstande

The heater offers three distinct heating modes:

• Komforttilstand: Maintains a consistent, comfortable temperature.
• Smart Eco Mode: Automatically adjusts energy consumption to maintain the set temperature, optimizing for energy savings.
• Frostvæske tilstand: Prevents the room temperature from dropping below a certain point (e.g., 37°F/3°C) to protect against freezing.

Press the 'Mode' button on the control panel to cycle through the available heating modes.

4.5 Timer funktion

The 24-hour timer allows you to program the heater to turn on or off at specific times.

1. Press the 'Timer' button on the control panel.
2. Use the up (^) and down (v) arrow buttons to set the desired on/off time.
3. Confirm your selection to activate the timer.

4.6 Åbn vinduesregistrering

This feature automatically stops the heater from operating if it detects a sudden drop in room temperature, indicating an open window or door. This helps to conserve energy.

• When an open window is detected, the heater will pause operation.
• Close the window/door, and the heater will resume normal operation or can be manually restarted.

5. Funktioner og fordele

• Higher Heating Efficiency: Micathermic with far infrared warms objects directly rather than the surrounding air, ensuring 100% electrical input to heat with no visible light.


Figure 4: Illustration of micathermic infrared heating.

• Quick Room Heating: Effectively heats rooms up to 300 square feet. For first use, it is recommended to set the maximum temperature (96°F) and power (1500W) for at least 1 hour.


Figure 5: Visual representation of room heating coverage.

• Silent and Comfortable Operation: Operates quietly (≤25db) without a fan, preventing dry skin and providing heat without dazzling light.


Figure 6: Benefits of silent and comfortable heating.

• Flere sikkerhedsbeskyttelser: Includes tip-over protection, a child lock feature, and overheat protection for safe operation.

6. Vedligeholdelse

Regular maintenance ensures optimal performance and longevity of your Ballu space heater.

• Rensning: Ensure the heater is unplugged and completely cool before cleaning. Use a soft, damp klud til at tørre de udvendige overflader af. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Opbevaring: If storing the heater for an extended period, unplug it, clean it, and store it in a cool, dry place.
• Inspektion: Periodically check the power cord and plug for any signs of damage. If any damage is found, discontinue use and contact customer support.

7. Fejlfinding

If you encounter issues with your Ballu space heater, refer to the following common troubleshooting steps:

8. Specifikationer

9. Garanti og support

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Ballu webwebstedet. Behold din købskvittering som købsbevis.
