Indledning
Welcome to the user manual for your RoMech 660lb Digital Hanging Scale. This manual provides essential information for the safe and effective use of your scale. Please read it thoroughly before operation to ensure proper functionality and longevity of the device.
Produkt overview
Komponenter
The RoMech Digital Hanging Scale is designed for durability and precision, featuring a robust cast aluminum case.
This image displays the main components of the RoMech Digital Hanging Scale, including the scale unit, S-shape hook, shackle, and batteries.
The scale features a robust cast aluminum body, ensuring durability and longevity compared to plastic alternatives.
Detaljeret view highlighting the tight assembly, clear LCD display, and high precision engineering of the scale.
The package includes the main crane scale unit, shackle, S-hook, and 3 AA batteries.
Nøglefunktioner
- Transportabel: Mini size handheld crane scale with S-shape hook, 300kg/660lb capacity, suitable for farm, hunting, fish weight, travel and more indoor outdoor activities.
- Multi-function and Accurate: Press "UNIT" to switch from "lb" to "kg" to "N". Press "HOLD/TARE" to turn on or off hold readings function for further use. The increment is 0.05kg / 0.02lb / 0.1N. The accuracy is ± 0.1%.
- Forsamling: Please refer to the product image to assemble within minutes; disassembly is also easy when you need.
- Batterier: 3 AA batteries (non-rechargeable) included in the package; Normally lasts for 6 month at least.
Opsætning
Installation af batteri
The scale requires 3 AA batteries for operation.
To install batteries, unscrew the battery cover on the back of the unit and insert 3 AA batteries, ensuring correct polarity.
Forsamling
The RoMech Digital Hanging Scale comes with a shackle for hanging the unit and an S-hook for attaching items to be weighed.
Attach the shackle to the top eyelet of the scale and the S-hook to the bottom eyelet. Ensure all connections are secure before use.
Operation
Grundlæggende funktioner
The scale features an intuitive control panel with ON/OFF, TARE, and UNIT buttons.
This image illustrates the basic operation of the scale:
- TIL/FRA: Press to power the scale on or off.
- ENHED: Press to cycle through measurement units (lb, kg, N).
- TARE/HOLD: Short press to tare the current weight (zero out the scale). Long press to hold the current reading.
Vejningsprocedure
- Sørg for, at vægten er tændt og viser "0.00".
- Select your desired unit (lb, kg, or N) by pressing the "UNIT" button.
- Hang the item to be weighed on the S-hook.
- Vent til aflæsningen stabiliserer sig på LCD-displayet.
- If weighing items in a container, hang the empty container and press "TARE" to zero the scale before adding the items.
Opretholdelse
Rengøring og opbevaring
- Tør vægten af med en blød, damp klud. Brug ikke slibende rengøringsmidler, og nedsænk ikke enheden i vand.
- Store the scale in a dry place away from extreme temperatures and direct sunlight.
- Fjern batterierne, hvis vægten ikke skal bruges i længere tid, for at forhindre lækage.
Fejlfinding
Fælles problemer
| Problem | Løsning |
|---|---|
| Displayet viser "Lo" | Batteries are low. Replace with new AA batteries. |
| Unøjagtige aflæsninger | Ensure the scale is hanging freely and not touching any surfaces. Check for stable environment (no wind). Recalibrate if necessary (refer to advanced manual for calibration steps). |
| Displayet viser "O-Ld" | Overload. The weight exceeds the maximum capacity (660lb/300kg). Remove the item immediately to prevent damage. |
Specifikationer
Tekniske detaljer

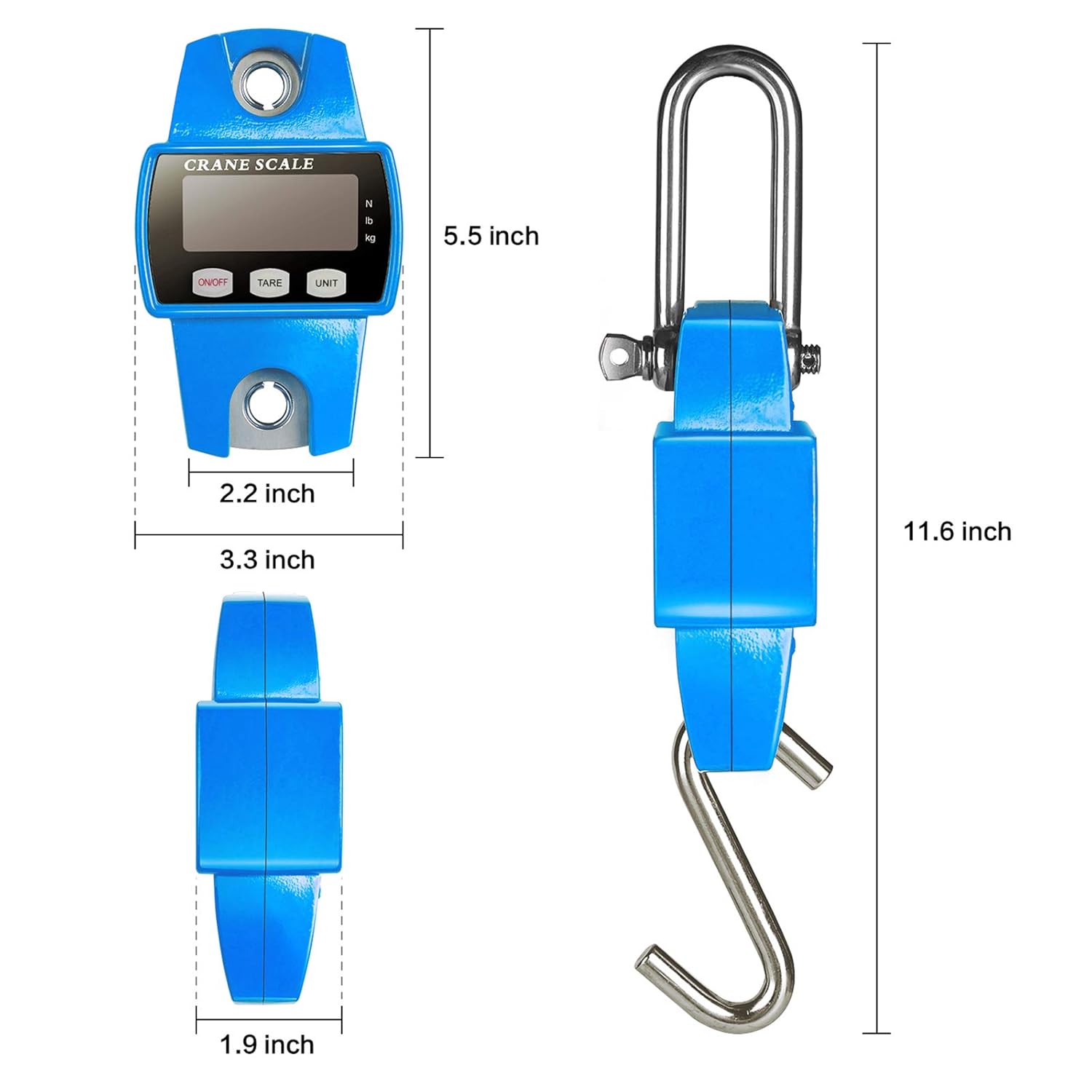

This image provides the physical dimensions of the scale unit and its total length with the shackle and hook attached.
| Feature | Detalje |
|---|---|
| Produktdimensioner | 3.3 x 1.9 x 5.5 tommer; 1.5 pund |
| Varemodelnummer | ROMECH-110 |
| Batterier | 3 AA batterier påkrævet. |
| Fabrikant | ROMECH |
| Farve | Blå |
| Display Type | Digital |
| Vægtgrænse | 660 pund |
| Formfaktor | Mini, Handheld |
Officielle produktvideoer
Produktdemonstrationer
Denne video giver et generelt overblikview and demonstration of the ROMECH Crane Scale in use.
En detaljeret videovisningasing the RoMech 660lb Digital Hanging Scale with its cast aluminum case and various applications.
Garanti og support
Garantioplysninger
RoMech stands behind the quality of its products. This scale comes with a 45-day money-back guarantee and a 12-month warranty, ensuring your satisfaction and peace of mind.
Kundesupport
For any questions, concerns, or technical assistance regarding your RoMech Digital Hanging Scale, please contact RoMech customer support. Refer to your product packaging or the official RoMech webwebstedet for specifikke kontaktoplysninger.
