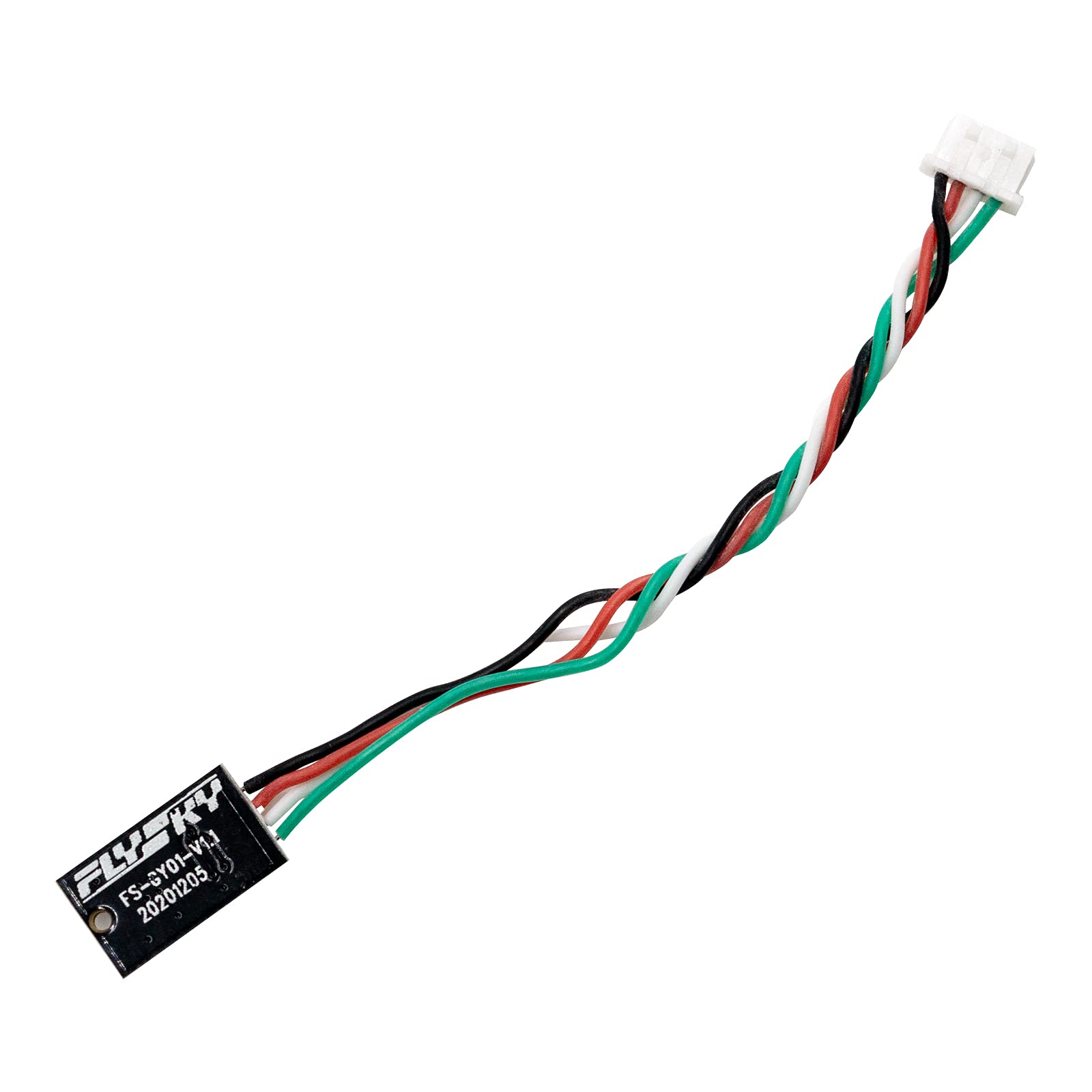

GoolRC Flysky FS-GY01 Gyroscope Module User Manual

Indledning

This manual provides instructions for the installation, operation, and maintenance of the GoolRC Flysky FS-GY01 Gyroscope Module. The FS-GY01 is designed to enhance the stability and control of RC mini cars and drift cars by correcting deviations in vehicle movement.

Pakkens indhold

• 1 x FS-GY01 Gyroscope Module
• 1 x brugermanual
• Double-sided adhesive pads

Produktegenskaber

• Deviation Correction: Automatically corrects vehicle deviation for improved stability.
• Kompakt design: Small and lightweight for easy integration into RC models.
• Nem installation: Designet til ligetil opsætning.
• Smart Vehicle Control: Enables advanced control functions when paired with a compatible remote control system.
• Kompatibel modtager: Specifically designed for use with GMr receivers.
• Anvendelse: Ideal for Mini Car and Drift Car models.
• Dataforbindelse: Utilizes a Gyro Connection for data input/output.

Opsætning

1. Fysisk installation

Locate a suitable flat surface on your RC vehicle for mounting the FS-GY01 module. Ensure the surface is clean and dry. Use the provided double-sided adhesive pads to securely attach the gyroscope module to the chosen location. Ensure the module is oriented correctly as per the markings on the device.

2. Elektrisk tilslutning

Connect the gyroscope module to your GMr receiver using the provided cable. Ensure the connections are firm and correctly aligned to prevent damage. The module requires a power input of 3.3V. Refer to your GMr receiver's manual for specific port identification and connection procedures.

Betjeningsvejledning

Once installed and connected, the FS-GY01 module operates in conjunction with your GMr receiver and remote control system. The gyroscope automatically detects and corrects deviations in the vehicle's movement, providing enhanced stability, especially during turns or on uneven surfaces. For optimal performance, ensure your remote control system is properly calibrated according to its own user manual. The module is designed for real-time correction and does not require manual adjustment during operation.

Opretholdelse

The FS-GY01 Gyroscope Module requires minimal maintenance.

• Rensning: Keep the module free from dust, dirt, and moisture. Use a soft, dry cloth for cleaning. Avoid using solvents or harsh chemicals.
• Inspektion: Periodically check the wiring connections to ensure they are secure. Inspect the module for any visible damage.
• Opbevaring: When not in use for extended periods, store the module in a dry, cool environment, away from direct sunlight and extreme temperatures.

Fejlfinding

If you experience issues with the FS-GY01 module, consider the following:

No Response / Incorrect Operation:

• Verify all electrical connections are secure and correctly plugged into the GMr receiver.
• Ensure the power input to the module is stable at 3.3V.
• Check the compatibility of your receiver. The FS-GY01 is designed for GMr receivers.
• Consult your remote control system's manual for proper calibration and settings.

Unstable Vehicle Behavior:

• Sørg for, at modulet er sikkert monteret og ikke vibrerer for meget.
• Check for any physical obstructions or damage to the module or its wiring.
• If the issue persists, contact GoolRC customer support for further assistance.

Specifikationer

Garanti og support

For any problems or inquiries regarding the GoolRC Flysky FS-GY01 Gyroscope Module, please contact the GoolRC store or authorized dealer where the product was purchased. Please retain your proof of purchase for warranty claims.
