Vigtige sikkerhedsinstruktioner
Please read all instructions carefully before using the Edihome Electric Meat Grinder. Keep this manual for future reference.
- Sørg altid for, at apparatet er taget ud af stikkontakten før montering, adskillelse eller rengøring.
- Motorenheden må ikke nedsænkes i vand eller andre væsker. Rengør medamp kun klud.
- Hold hænder og redskaber væk fra bevægelige dele under drift for at forhindre skader.
- Ensure all parts are correctly assembled before plugging in and operating the appliance.
- Dette apparat er kun beregnet til husholdningsbrug. Brug det ikke til kommercielle formål.
- Brug ikke apparatet med en beskadiget ledning eller et beskadiget stik, eller hvis det ikke fungerer korrekt eller er blevet beskadiget på nogen måde.
- Supervise children closely if they are near the appliance.
- Forsøg ikke at reparere apparatet selv. Kontakt kvalificeret servicepersonale.

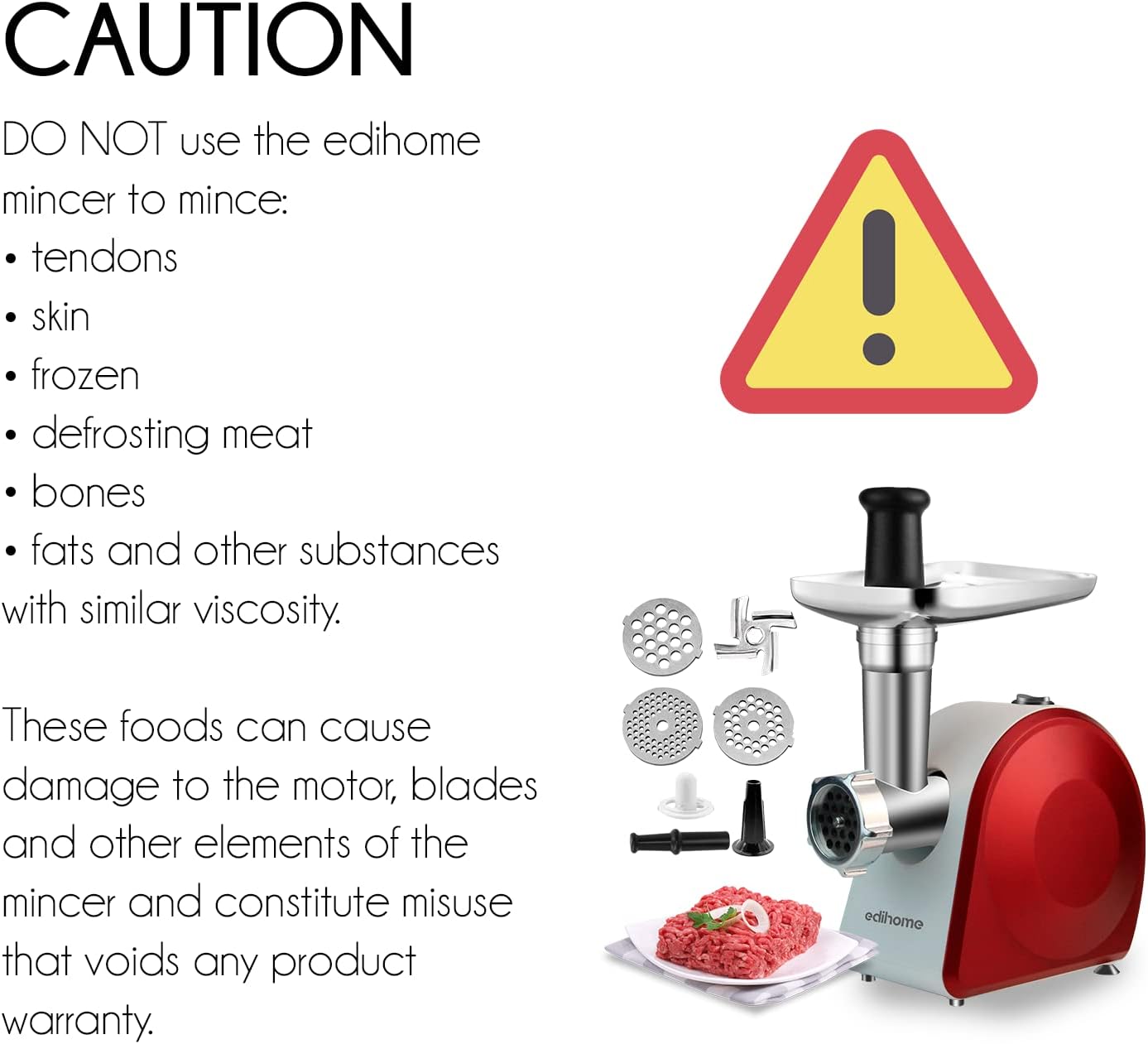

Billede: Important safety warnings for the Edihome Electric Meat Grinder, listing prohibited items for mincing.
Prohibited Items for Mincing:
To prevent damage to the motor, blades, and other components, and to avoid voiding your warranty, GØR IKKE use the Edihome meat grinder to mince:
- Sener
- Hud
- Frosset kød
- Partially defrosted meat
- Knogler
- Fats and other substances with similar high viscosity
These items can cause severe damage to the appliance.
Produkt overview og komponenter
Familiarize yourself with the parts of your Edihome Electric Meat Grinder before use.
Billede: Edihome Electric Meat Grinder main components labeled: Rush rod, Tray, Loose lock key, Host.
Billede: Diagram of Edihome Electric Meat Grinder accessories, including various cutting plates, blades, and attachments.
Komponentliste:
- Enema Circle (Sausage Stuffer Ring)
- Meat Pie Circle (Kubbe Attachment)
- Meat Cone with (Grinder Head)
- Small Holes and Wound Knives (Fine Cutting Plate)
- Big Holes and Round Knives (Coarse Cutting Plate)
- Medium Holes and Round Knives (Medium Cutting Plate)
- Four Blade Cutter (Grinding Blade)
- Screw (Auger)
- Meat Cone (Feed Tube)
- Rush Rod (Food Pusher)
- Tray (Food Tray)
- Loose Lock Key (Locking Knob)
- Host (Motor Unit)
Opsætning og montering
Følg disse trin for at samle din kødhakker inden første brug.
- Pakker ud: Fjern forsigtigt alle komponenter fra emballagen.
- Indledende rengøring: Wash all detachable parts (except the motor unit) in warm, soapy water. Rinse thoroughly and dry immediately. Do not wash aluminum parts in a dishwasher.
- Fastgør kværnhoved: Insert the grinder head (Meat Cone with) into the motor unit opening. Secure it by turning the loose lock key clockwise until it is firm.
- Indsæt snegl: Place the auger (Screw) into the grinder head, ensuring it is properly seated.
- Place Blade: Position the four-blade cutter (Grinding Blade) onto the auger shaft, with the sharp edges facing outwards towards the cutting plate.
- Vælg skæreplade: Choose your desired cutting plate (fine, medium, or coarse) and place it over the blade.
- Secure Ring: Screw the securing ring onto the grinder head until it is tight. Do not overtighten.
- Fastgør bakke: Place the food tray (Tray) onto the top of the grinder head.
- Position Pusher: Keep the food pusher (Rush Rod) nearby for use during operation.
Betjeningsvejledning
This section details how to use your Edihome Electric Meat Grinder for various tasks.
General Mincing:
- Tilbered kød: Cut meat into small pieces (approximately 2-3 cm) that fit easily into the feed tube. Remove any bones, tendons, or excessive fat.
- Tænd: Sæt apparatet i en passende stikkontakt.
- Start slibning: Turn on the meat grinder. Place prepared meat into the food tray and gently feed it into the grinder head using the food pusher. Brug aldrig fingrene eller andre redskaber til at skubbe kød.
- Kontinuerlig brug: For optimal performance and to prevent motor overheating, avoid continuous operation for more than 10 minutes. Allow the motor to cool down for at least 10 minutes between uses.
- Reverse Function (if applicable): If the grinder jams, switch off the appliance, then use the reverse function (if available on your model) to clear the blockage.
- Slutte: Once all meat is minced, turn off the appliance and unplug it.
Billede: Freshly ground meat, demonstrating the grinder's capability to produce consistent texture.
Using Attachments (Sausage Stuffer, Kubbe Maker):
To use the sausage stuffer or kubbe maker attachments, follow these steps:
- Skille ad: Remove the cutting plate and grinding blade.
- Attach Specific Tool: For sausage stuffing, attach the sausage stuffer nozzle (Enema Circle) to the grinder head. For kubbe, attach the kubbe attachment (Meat Pie Circle).
- Samle: Secure the chosen attachment with the securing ring.
- Forbered blanding: Prepare your sausage or kubbe mixture according to your recipe.
- Behandle: Turn on the grinder and feed the mixture into the tray, using the food pusher to guide it through the attachment.
- Slutte: Turn off and unplug the appliance when done.
Billede: Various applications of the meat grinder, including making ground beef, meat rolls, and sausages.
Vedligeholdelse og rengøring
Proper cleaning and maintenance will extend the life of your Edihome Electric Meat Grinder.
- Tag stikket ud: Træk altid stikket ud af stikkontakten inden rengøring.
- Skille ad: Disassemble all removable parts in reverse order of assembly.
- Rengør dele: Wash all metal and plastic detachable parts (grinder head, auger, blade, cutting plates, attachments, tray, food pusher) immediately after use in warm, soapy water. Use a brush to remove any food residue.
- Skyl og tør: Rinse all parts thoroughly with clean water and dry them completely with a soft cloth. Do not allow aluminum parts to air dry, as this can lead to discoloration or oxidation. Do not use alkaline cleaners or bleach.
- Motorenhed: Wipe the motor unit (Host) with a damp cloth. Never immerse it in water or place it under running water.
- Opbevaring: Ensure all parts are completely dry before reassembling or storing. Store the appliance in a dry, cool place.
Fejlfinding
Hvis du støder på problemer med din kødhakker, kan du se følgende almindelige problemer og løsninger.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Motor stopper under drift. | Overbelastning eller overophedning. | Turn off and unplug. Remove any blockage. Let the motor cool down for at least 30 minutes. Reduce the amount of meat or cut it into smaller pieces. |
| Meat is not grinding properly or jams. | Meat is too tough, contains bones/tendons, or pieces are too large. Parts are incorrectly assembled. | Ensure meat is boneless, tendon-free, and cut into small pieces. Check assembly of blade and cutting plate. Use the reverse function to clear minor jams. |
| Høj støj under drift. | Incorrect assembly or foreign object. | Check that all parts are correctly assembled and tightened. Disassemble and check for any foreign objects. |
| Aluminum parts discolor after washing. | Washed in dishwasher or with harsh chemicals. Not dried immediately. | Always hand wash aluminum parts with warm, soapy water and dry immediately. Avoid alkaline cleaners or bleach. This discoloration is often cosmetic and does not affect function, but proper care prevents it. |
Specifikationer
- Modelnummer: 1
- Mærke: Edihome
- Magt: 2200 watt
- Voltage: 230 volt
- Materiale: Plastic (housing), Stainless Steel (blades, plates, auger)
- Vægt: 2.58 kilo
- Dimensioner (pakke): 30.5 x 30.4 x 21.6 cm
- Anbefalet brug: Meat mincing, sausage stuffing, kubbe making
- Oprindelse: Kina
Garanti og support
Edihome products are covered by a European warranty. If you experience any issues with your product, please contact Edihome customer support for assistance.
For warranty claims or technical support, please refer to the contact information provided at the point of purchase or visit the official Edihome webwebsted.
