Runva EWP 2500lbs Electric Winch User Manual

1. Produktet er slutview

The Runva EWP 2500lbs (1134kg) 12V DC Electric Winch is a robust and reliable tool designed for pulling applications in off-road environments. This compact yet powerful winch is ideal for Jeeps, SUVs, and ATVs, providing significant pulling capacity for recovery and utility tasks. It comes equipped with a mounting plate, a handheld remote for convenient operation, and a roller fairlead to guide the cable smoothly.

Important Note: This electric winch is designed and intended solely for pulling purposes (off-roading) and is strictly NOT intended for lifting purposes. Misuse can lead to serious injury or damage.

2. Nøglefunktioner

• Nominel linjetræk: 1134 kg (2,500 lb.) single line pull, providing ample power for various pulling needs.
• Motor: 2.6 HP, 12V permanent magnet motor ensures efficient and consistent performance.
• Gear Ratio: 170:1 gear reduction ratio for powerful and controlled pulling.
• Bremsning: Features an automatic braking action for enhanced safety and control during operation.
• Kobling: Free spooling clutch allows for quick and easy cable deployment.
• Inkluderet tilbehør: Comes complete with a mounting plate, handheld remote, and roller fairlead for immediate use.

3. Sikkerhedsoplysninger

Always read and understand all safety warnings and operating instructions before using the winch. Failure to follow these instructions may result in serious injury or property damage.

• DO NOT USE FOR LIFTING: This winch is designed for pulling only. Never use it for lifting or hoisting people or objects.
• Brug beskyttelsesudstyr: Brug altid kraftige handsker og øjenbeskyttelse, når du betjener spillet.
• Efterse før brug: Before each use, inspect the winch, cable, hook, and all connections for damage or wear. Do not use if any components are damaged.
• Hold sikker afstand: Keep hands, hair, clothing, and jewelry clear of the cable, fairlead, and drum during operation. Stand clear of the cable's path.
• Sikker montering: Ensure the winch is securely mounted to a structure capable of withstanding the rated pulling force.
• Undgå overbelastning: Do not exceed the winch's rated line pull. Overloading can damage the winch and cause injury.
• Batteriforbindelse: Ensure proper 12V DC battery connection. Incorrect wiring can cause damage or fire.
• Kabelpleje: Never allow the cable to kink or fray. Always spool the cable evenly on the drum.
• Fjernbetjeningssikkerhed: Keep the remote control away from children and unauthorized users. Disconnect the remote when not in use.
• Miljøforhold: Be aware of your surroundings. Avoid winching in extreme conditions that could compromise safety.

4. Pakkens indhold

Kontroller venligst, at alle varer er til stede og ubeskadigede ved udpakning:

• Runva EWP 2500lbs Electric Winch with pre-spooled cable and hook
• Monteringsplade
• Håndholdt fjernbetjening
• Roller Fairlead
• Hardware for installation (bolts, nuts, washers)
• Brugervejledning (dette dokument)

5. Opsætning og installation

Proper installation is crucial for the safe and effective operation of your winch. If you are unsure about any step, it is highly recommended to seek assistance from a qualified professional.

5.1 Montering af spillet

1. Vælg en sikker placering: Select a mounting location on your vehicle (e.g., bumper, winch plate) that is structurally sound and capable of supporting the winch's weight and maximum pulling force.
2. Placer monteringspladen: Place the provided mounting plate in the desired location. Ensure it is level and aligned correctly.
3. Bor monteringshuller: If necessary, mark and drill holes for the mounting bolts according to the mounting plate's pattern. Ensure holes are appropriately sized for the supplied hardware.
4. Fastgør vinsjen: Attach the winch to the mounting plate using the supplied bolts, washers, and nuts. Tighten all fasteners securely.
5. Install Roller Fairlead: Mount the roller fairlead to the front of the mounting plate, ensuring the cable can pass through it smoothly without obstruction.

Image: The Runva EWP 2500lbs Electric Winch, showcasing its compact design, pre-spooled cable, hook, mounting plate, and roller fairlead. This view highlights the main components of the winch system.

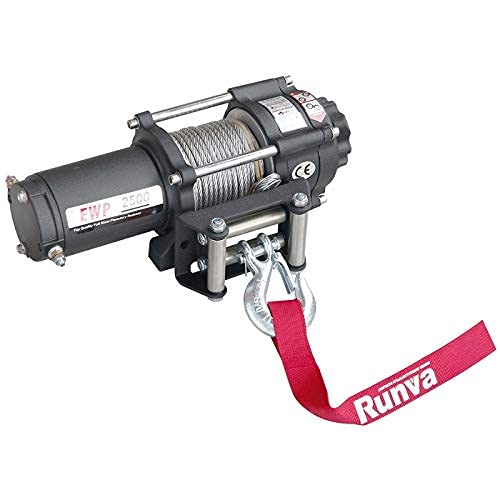

Image: A different perspective of the Runva EWP 2500lbs Electric Winch, showing the motor housing and drum assembly from an elevated angle. The red strap attached to the hook is also visible.

Image: The Runva EWP 2500lbs Electric Winch with an overlay indicating its power specifications: Input 1.9 kW / 2.6 hp, Output 0.8 kW / 1.1 hp, and a Permanent Magnet 12V Motor. This image emphasizes the winch's electrical characteristics.

Image: A technical drawing providing detailed dimensions of the Runva EWP 2500lbs Electric Winch in both inches and millimeters. Key measurements include overall length (335mm / 13.2"), width (113mm / 4.5"), height (165mm / 6.5"), and drum dimensions.

5.2 Elektriske ledninger

Connect the winch to a 12V DC battery system. Ensure all connections are clean, tight, and properly insulated to prevent short circuits and corrosion. It is recommended to install an appropriate circuit breaker or fuse in the main power line to protect the system.

• Connect the positive (+) cable from the winch to the positive terminal of the battery.
• Connect the negative (-) cable from the winch to the negative terminal of the battery or a suitable chassis ground point.
• Connect the remote control wiring harness to the winch's control box.

6. Betjeningsvejledning

Familiarize yourself with the winch controls and safe operating procedures before attempting any pulling operations.

6.1 Tjekliste før brug

• Ensure the vehicle's engine is running to maintain battery voltage during winching.
• Check that the winch is securely mounted and all electrical connections are tight.
• Inspect the wire rope for kinks, frays, or damage.
• Confirm the hook is securely attached and the safety latch is functional.
• Identify a suitable anchor point (e.g., tree, another vehicle, rock) that can withstand the pulling force. Use a tree saver strap if attaching to a tree.
• Clear the area of bystanders and obstacles.

6.2 Vinsjeprocedure

1. Tilkoble kobling: If the clutch is disengaged, rotate the clutch lever to the "Engaged" position to lock the drum.
2. Unspool Cable: Disengage the clutch (if applicable) and pull out the required length of cable to reach your anchor point. Alternatively, use the "OUT" button on the remote control to slowly unspool the cable. Ensure at least 5 wraps of cable remain on the drum to prevent damage.
3. Secure Hook: Attach the hook securely to the anchor point. Ensure the safety latch is closed.
4. Tension Cable: Re-engage the clutch (if disengaged). Use the "IN" button on the remote control to slowly take up any slack in the cable until it is taut.
5. Begynd at vinsjere: Operate the winch using the handheld remote control. Press the "IN" button to pull the load. Operate in short bursts to prevent overheating and allow the motor to cool.
6. Monitordrift: Continuously monitor the winching operation, ensuring the cable spools evenly and there are no obstructions or excessive strain on the winch or anchor point.
7. Stop med at vinsjere: Once the pulling operation is complete, release the "IN" button.
8. Slip spændingen: Carefully release tension on the cable.
9. Disconnect Hook: Frakobl krogen fra ankerpunktet.
10. Respool Cable: Use the "IN" button on the remote to carefully respool the cable onto the drum. Ensure the cable spools evenly and tightly. Do not allow the cable to pile up on one side.

Image: The orange handheld remote control for the Runva Electric Winch, featuring a rocker switch for "IN" and "OUT" operations and a coiled cable for connection to the winch. This remote allows for safe operation from a distance.

7. Vedligeholdelse

Regular maintenance will ensure the longevity and reliable performance of your Runva winch.

• Kabelinspektion: Regularly inspect the wire rope for signs of wear, fraying, kinks, or corrosion. Replace the cable if any damage is found.
• Renhed: Keep the winch clean and free of dirt, mud, and debris. Use a damp klud til at tørre det udvendige af.
• Elektriske forbindelser: Kontrollér regelmæssigt alle elektriske forbindelser for tæthed og korrosion. Rengør terminalerne efter behov.
• Smøring: Consult a professional for internal lubrication if the winch shows signs of stiffness or unusual noise. Do not attempt to disassemble the winch unless you are qualified.
• Opbevaring: When not in use, store the winch in a dry, protected environment to prevent rust and damage.

8. Fejlfinding

This section provides solutions to common issues you might encounter with your winch.

9. Specifikationer

10. Garanti og support

For warranty information, technical support, or service inquiries regarding your Runva EWP 2500lbs Electric Winch, please contact the manufacturer or the authorized seller directly. Keep your purchase receipt as proof of purchase.
