Finder 12.A4.8.230.0010 NFC ugentligt tidsur brugermanual

1. Introduktion

This manual provides comprehensive instructions for the installation, programming, and operation of the Finder 12.A4.8.230.0010 NFC Weekly Time Clock. This electronic astronomical time switch features a weekly program, an analog output, and can be programmed via a joystick or an NFC-enabled smartphone using the Finder Toolbox app.

2. Sikkerhedsoplysninger

Please read these safety instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or damage to the device.

• Installationen skal udføres af en kvalificeret elektriker i overensstemmelse med lokale el-forskrifter.
• Sørg for, at strømforsyningen er afbrudt før installations- eller vedligeholdelsesarbejde.
• Udsæt ikke enheden for fugt, ekstreme temperaturer eller ætsende miljøer.
• Enheden er kun designet til indendørs brug.

3. Produktet er slutview

The Finder 12.A4.8.230.0010 is an electronic time switch designed for DIN rail mounting. It offers precise time control with a weekly program and astronomical function.

Figur 1: Forside view of the Finder 12.A4.8.230.0010 Time Clock, showing the LCD display, joystick, and NFC symbol.

Nøglefunktioner:

• Weekly program for flexible scheduling.
• 1 analog output: 0-10 V or PWM.
• 1 changeover contact for 16 A / 250 V AC (AC1).
• Forsyning voltage: 110-230 V AC/DC.
• LCD display for clear information.
• Programming via joystick or NFC-enabled smartphone with Finder Toolbox app (Android and iOS).
• Astronomical time control: automatic switching at sunrise and sunset based on postcode or coordinates.
• Adjustable time offset for sunrise/sunset.

4. Opsætning og installation

This device is designed for DIN rail mounting. Follow these steps for proper installation:

1. Strømafbrydelse: Ensure the main power supply to the installation area is completely disconnected before proceeding.
2. Montering: Mount the time switch securely onto a standard DIN rail.
3. Ledningsføring: Connect the power supply (110-230 V AC/DC) to terminals A1 and A2. Connect the load to the changeover contact terminals (NO, NC, COM) and the analog output (W, O, Y) as required. Refer to the wiring diagram below.

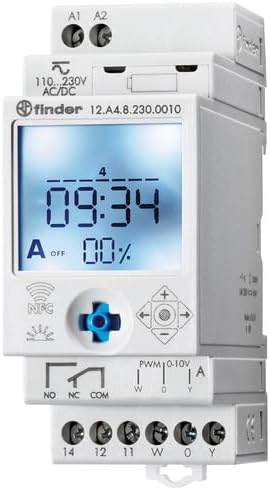

Figur 2: Detaljeret view of the wiring terminals for power input (A1, A2), relay output (NO, NC, COM), and analog output (W, O, Y).

Note: The device features safe separation between the power supply and contacts.

5. Betjeningsvejledning

5.1 Indledende opstart

Once wired, restore power. The LCD display will illuminate. You may need to set the current date and time if it's the first use or after a prolonged power outage.

5.2 Programming via Joystick

The integrated joystick allows for direct programming on the device:

• Navigation: Use the joystick to move through menu options (up, down, left, right).
• Selection/Confirmation: Press the joystick inwards to select an option or confirm a setting.
• Follow the on-screen prompts to set the current time, date, weekly program, and astronomical functions.

5.3 Programming via NFC (Finder Toolbox App)

For maximum flexibility, program the time switch using an NFC-enabled smartphone and the Finder Toolbox app:

1. Download app: Download the "Finder Toolbox" app from the Google Play Store (Android) or Apple App Store (iOS).
2. Create/Load Program: Open the app and create a new program or load an existing one. The app allows for detailed configuration of weekly schedules, astronomical settings, and special functions.
3. Overfør data: To transfer the program, hold your smartphone close to the NFC symbol on the time switch. The app will guide you through the data transfer process.
4. Read Program: You can also read an existing program from the time switch to your smartphone for editing or backup.

5.4 Astronomical Time Control

The device can automatically switch based on sunrise and sunset times:

• Placeringsindstilling: Set your location by entering a postcode or geographical coordinates in the programming menu (via joystick or app).
• Offset: You can set a selectable time offset for both sunrise and sunset times to adjust switching points.
• Astro ON/OFF: Configure specific ON/OFF times during the astronomical ON period if needed.

6. Vedligeholdelse

The Finder 12.A4.8.230.0010 is designed for maintenance-free operation. However, periodic checks are recommended:

• Rensning: Rengør enheden med en tør, blød klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Forbindelser: Periodically check terminal connections to ensure they are secure.
• Firmwareopdateringer: Check the Finder website or app for any available firmware updates for improved functionality or bug fixes.

7. Fejlfinding

If the problem persists, please contact Finder technical support.

8. Tekniske specifikationer

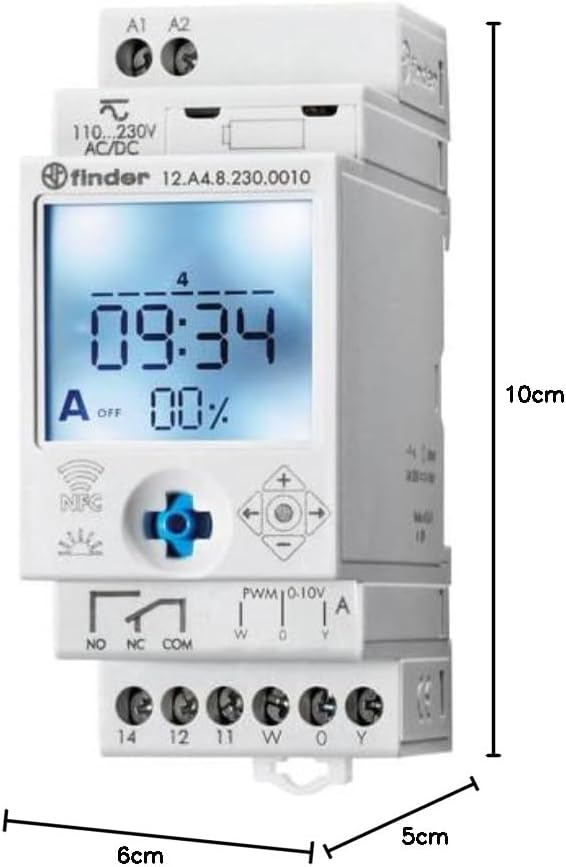

Figure 3: Dimensions of the Finder 12.A4.8.230.0010 Time Clock, showing approximate measurements of 10cm height, 6cm width, and 5cm depth.

9. Garanti og support

For warranty information and technical support, please refer to the official Finder webwebstedet eller kontakt din lokale forhandler. Gem din købskvittering som købsbevis.

Fabrikant: Finder
