Indledning
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Briggs & Stratton Vanguard Series Twin Cylinder 4-Cycle Gas Engine, model 356776-0013-G1. Please read this manual thoroughly before operating the engine to ensure proper use and to prevent injury or damage.

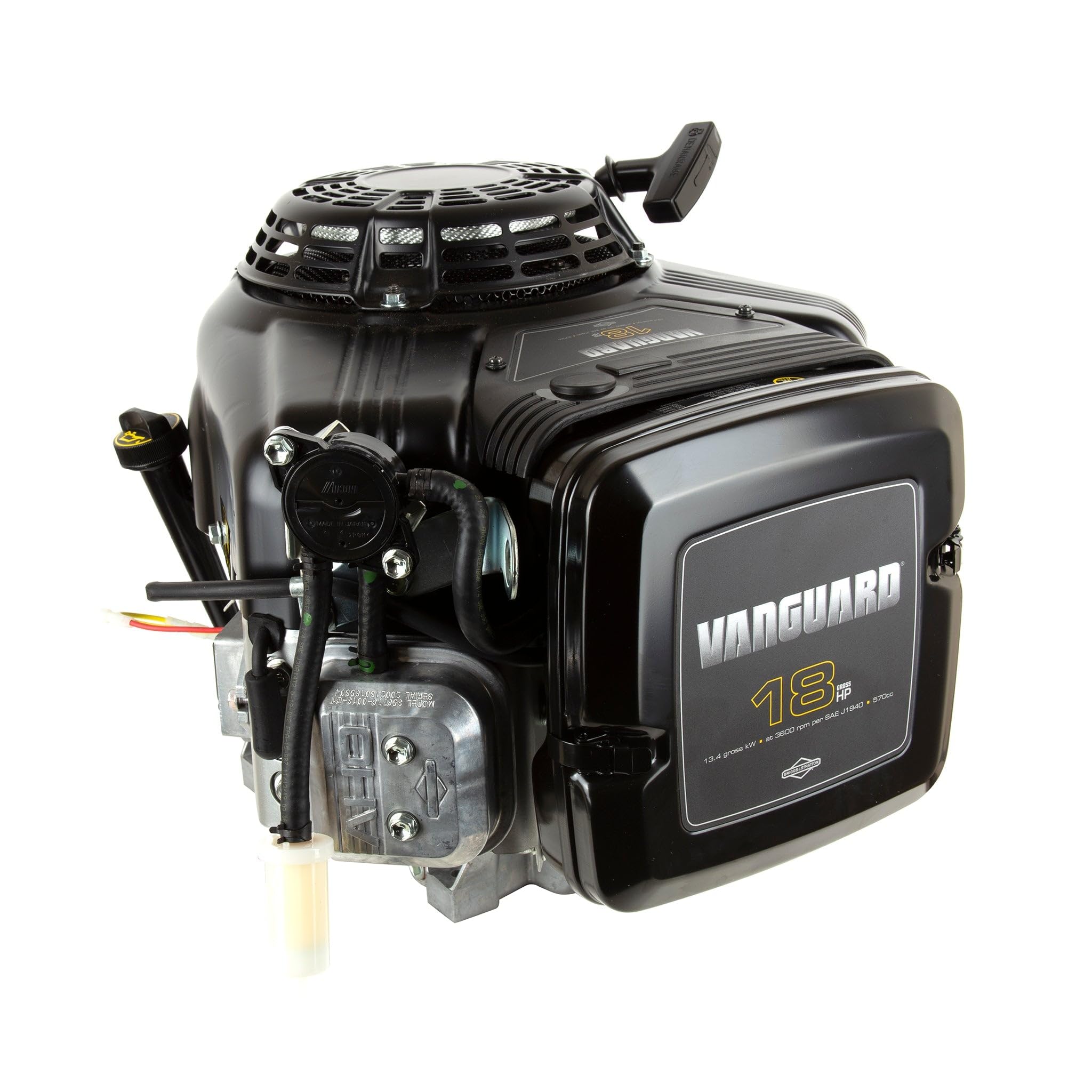

Figur 1: Forrest til højre view of the Briggs & Stratton Vanguard Series Gas Engine. This image shows the overall design, including the air filter housing and cooling fan cover.
Sikkerhedsoplysninger
Always observe safety precautions to prevent serious injury or death. This engine produces carbon monoxide, a colorless, odorless, poisonous gas. Operate only in well-ventilated areas.
- Læs manualen: Gør dig bekendt med alle instruktioner og advarsler inden brug.
- Brændstofsikkerhed: Gasoline is highly flammable. Store fuel in approved containers, away from ignition sources. Refuel outdoors and do not smoke while refueling.
- Varme overflader: Motorkomponenter, især lyddæmperen, bliver meget varme under drift og forbliver varme i et stykke tid efter slukning. Undgå kontakt.
- Bevægelige dele: Keep hands, feet, and clothing away from moving parts such as the flywheel and crankshaft.
- Ventilation: Ensure adequate ventilation when operating the engine to prevent carbon monoxide poisoning.
- Opretholdelse: Frakobl tændrørskablet, før du udfører vedligeholdelse eller justeringer, for at forhindre utilsigtet start.
Opsætning og installation
Proper setup is crucial for engine performance and longevity. Ensure the engine is securely mounted and all connections are correct.
1. Udpakning og inspektion
Tag forsigtigt motoren ud af emballagen. Undersøg for eventuelle transportskader. Rapporter eventuelle skader til din forhandler med det samme.
2. Montering af motoren
Mount the engine on a stable, level surface using appropriate hardware. Ensure proper alignment with the driven equipment. Refer to the equipment manufacturer's instructions for specific mounting requirements.
3. Påfyldning af motorolie
The engine is shipped without oil. Fill the crankcase with the recommended type and amount of oil. Refer to the "Maintenance" section for oil specifications.

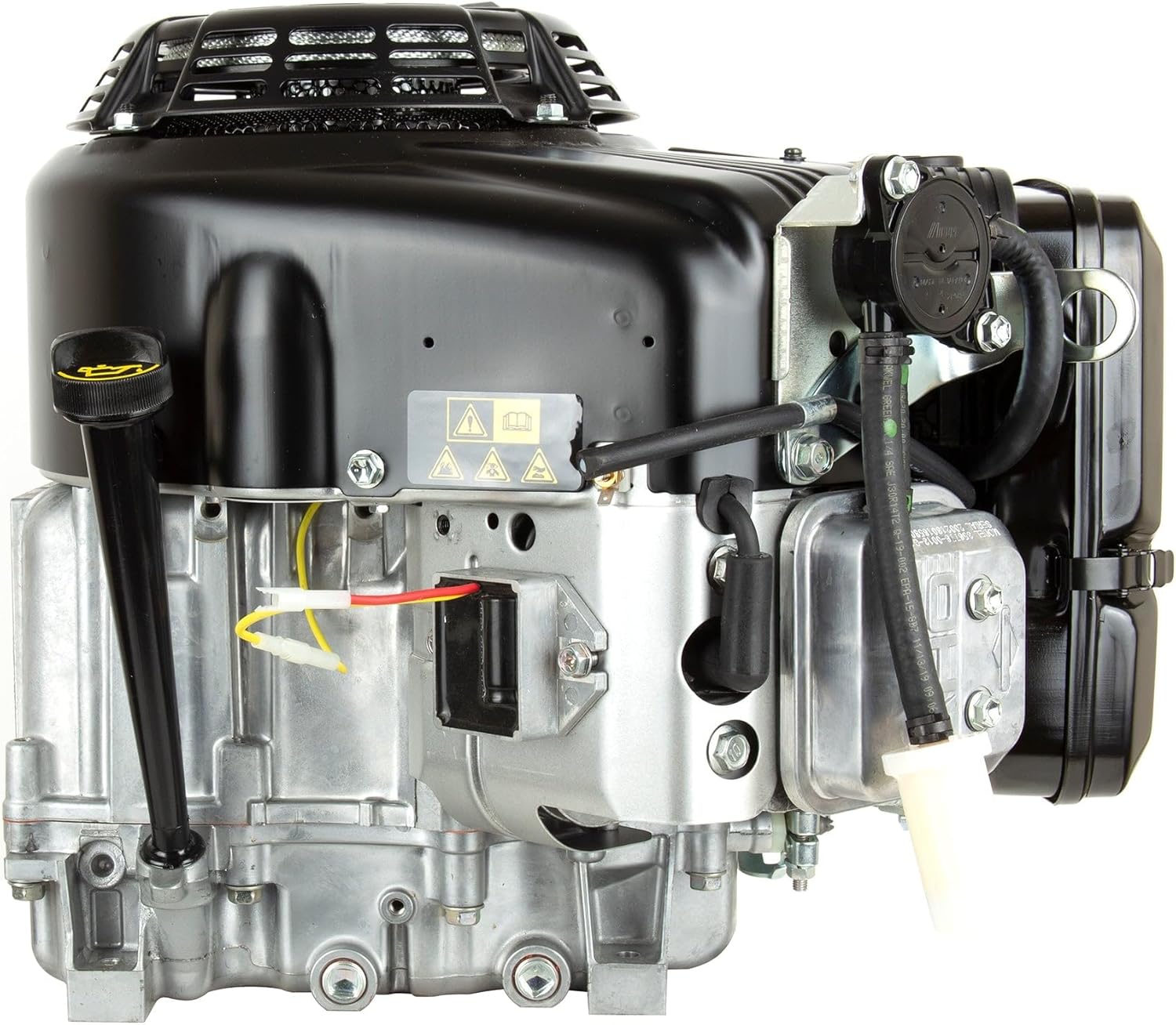

Figur 2: Venstre side view of the engine, highlighting the oil fill/dipstick location. Always check oil levels before starting.
4. Påfyldning af brændstof
Use clean, fresh, unleaded gasoline with an octane rating of 87 or higher. Do not use E85 fuel. Fill the fuel tank carefully, avoiding spills.
Betjeningsvejledning
1. Pre-Start Checks
- Kontroller motoroliestanden.
- Sørg for, at brændstoftanken er tilstrækkeligt fyldt.
- Kontroller luftfilteret for renlighed.
- Bekræft, at alle forbindelser er sikre.
2. Start af motoren
- Sørg for, at udstyret er i neutral eller frakoblet.
- Flyt gashåndtaget til "HURTIG"-positionen.
- If the engine is cold, move the choke control to the "CHOKE" position.
- Engage the starter (electric start or recoil starter).
- Once the engine starts, gradually move the choke control to the "RUN" position.
3. Standsning af motoren
- Move the throttle control to the "SLOW" or "IDLE" position.
- Flyt motorkontakten til "OFF"-positionen.
Opretholdelse
Regular maintenance is essential for optimal performance and extended engine life. Always refer to the maintenance schedule in the full owner's manual for detailed intervals.
1. Motorolie
- Tjek oliestand: Før hver brug.
- Skift olie: After the first 5 hours of operation, then every 50 hours or annually, whichever comes first. Use Briggs & Stratton SAE 30W oil or a high-quality detergent oil classified for service SF, SG, SH, SJ, SL, or SM.
Figur 3: Højre side view of the engine, showing the spin-on oil filter. Replace the oil filter during every oil change.
2. Luftfilter
- Check: Every 25 hours or annually.
- Rengør/Udskift: More frequently in dusty conditions. Refer to the full manual for cleaning instructions.
3. Tændrør
- Inspect/Clean: Every 100 hours or annually.
- Erstatte: As needed. Ensure correct gap setting.
4. Brændstoffilter
- Inspect/Replace: Årligt eller efter behov.
Fejlfinding
This section addresses common issues. For more complex problems, consult a qualified service technician.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Motoren vil ikke starte | No fuel; stale fuel; spark plug issue; low oil level; choke not set correctly. | Add fresh fuel; replace spark plug; check oil level; adjust choke. |
| Motoren kører dårligt | Dirty air filter; stale fuel; incorrect spark plug gap; carburetor issue. | Clean/replace air filter; drain and refill with fresh fuel; check/adjust spark plug gap. |
| Motoren overophedes | Low oil level; blocked cooling fins; operating in high ambient temperatures. | Check/add oil; clean cooling fins; ensure proper ventilation. |
Specifikationer
- Model: 356776-0013-G1
- Motortype: Twin Cylinder, 4-Cycle Gas Engine
- Forskydning: 570cc
- Krumtapaksel: 67 cm x 3,5 cm
- Produktdimensioner: 22.25 x 19.63 x 19.63 tommer
- Varens vægt: 87 pund
- Fabrikant: Briggs og Stratton
Måltegninger

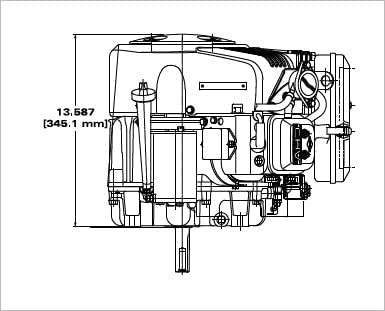

Figur 4: Side view dimensional drawing of the engine.

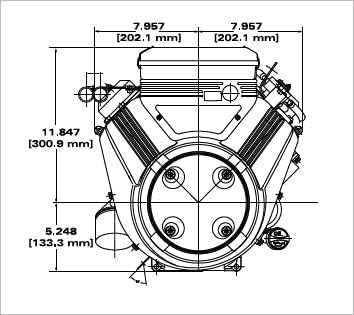

Figur 5: Front view dimensional drawing of the engine.
Garantioplysninger
Briggs & Stratton engines are covered by a limited warranty. The specific terms and duration of the warranty may vary based on the engine model and region. Please refer to the official Briggs & Stratton warranty statement included with your engine or visit the official Briggs & Stratton website for complete details. Keep your proof of purchase for warranty claims.
Support og kontakt
For yderligere assistance, teknisk support eller for at finde en autoriseret forhandler, kan du besøge den officielle Briggs & Stratton-side. webwebsted eller kontakt deres kundeservice.
- Officiel Webwebsted: www.briggsandstratton.com
- Product Information Link: Vanguard Engine Information
- Servicelokalisering: Brug forhandlerfindingsværktøjet på den officielle website to find a service center near you.
