1. Introduktion
This manual provides essential information for the safe installation, operation, and maintenance of your ROBAM A832 36-inch Range Hood. Please read this manual thoroughly before using the appliance and retain it for future reference.
The ROBAM A832 range hood is designed to effectively remove smoke, grease, and odors from your kitchen, offering both under-cabinet and wall-mount installation options. It features a powerful motor, LED lighting, and touch controls for ease of use.
2. Sikkerhedsoplysninger
For at mindske risikoen for brand, elektrisk stød eller personskade skal du overholde følgende:
- Læs alle instruktioner, før du bruger dette apparat.
- Installationsarbejde og elektriske ledninger skal udføres af kvalificeret(e) person(er) i overensstemmelse med alle gældende regler og standarder, inklusive brandklassificeret konstruktion.
- Betjen ikke en ventilator med en beskadiget ledning eller stik. Kassér blæseren eller returner til et autoriseret serviceværksted til undersøgelse og/eller reparation.
- Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back-drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
- Når du skærer eller borer i væg eller loft, må du ikke beskadige elektriske ledninger og andre skjulte værktøjer.
- Kanalventilatorer skal altid udluftes til det fri.
- Brug ikke denne enhed med nogen solid-state hastighedskontrolenhed.
- For at reducere risikoen for brand, brug kun metalrør.
- Denne enhed skal være jordet.
3. Produktet er slutview
The ROBAM A832 range hood is engineered for efficient ventilation and modern kitchen integration. Key features include:
- Powerful DC Motor: Rated at 800PA static pressure with a low noise level of 42dB.
- Dobbelt installation: Suitable for both under-cabinet and wall-mount configurations.
- Recirculation Option: Patented charcoal filter system for ductless operation, effectively filtering 99.3% of grease and odors. Also compatible with 6-inch round ductwork for external venting.
- Brugervenlig kontrol: Responsive touch screen with 9-speed fan settings.
- Effektiv belysning: Energy-saving LED lights illuminate the cooking area.
- Nem vedligeholdelse: Dishwasher-safe baffle filters.
This image displays the front of the ROBAM A832 range hood, showcasing its sleek black control panel and stainless steel chimney.
En vinklet view from below the range hood, highlighting the mesh filters and the overall stainless steel construction.
An infographic highlighting the 10.5-inch slim profile, double static pressure, DC inverter motor, air purifying module, and 9-speed touch control.
4. Installation
The ROBAM A832 range hood offers flexible installation options: under-cabinet or wall-mount. Professional installation is recommended.
4.1 Tjekliste før installation
- Verify all components are present: LED Lights, Touch Controls, Mesh Filters, Installation Hardware.
- Ensure adequate electrical supply (120V~ 60Hz).
- Determine ventilation type: ducted (6-inch round duct required) or ductless (charcoal filters installed).
- Confirm mounting location provides sufficient clearance above the cooking surface according to local building codes and manufacturer recommendations.
4.2 Monteringsmuligheder
Under Cabinet Mount: The range hood integrates seamlessly beneath existing kitchen cabinets. The slim design (270mm depth) facilitates this installation.

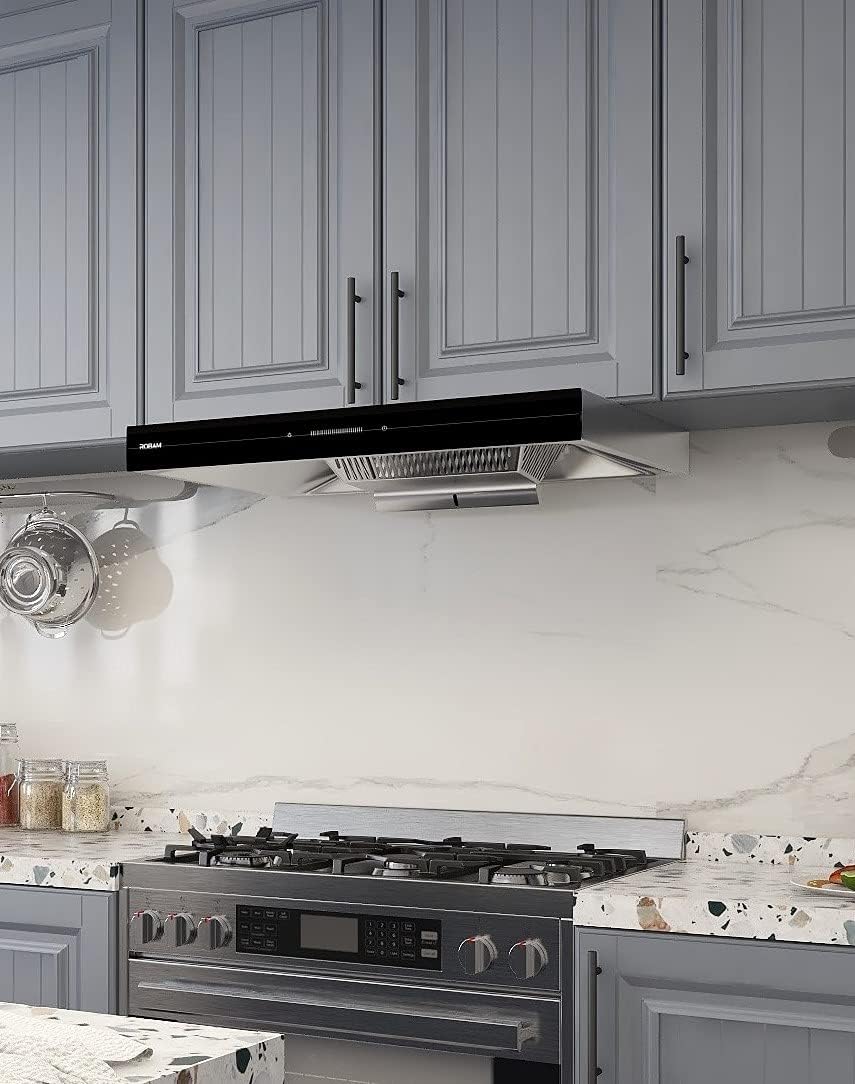

The range hood is shown installed in an under-cabinet configuration, blending with kitchen cabinetry.
Vægbeslag: The range hood can be mounted directly to the wall, providing a modern aesthetic.
A full kitchen view featuring the range hood mounted on the wall above a stove, showcasing its contemporary design.
4.3 Ducting Considerations
- Kanalinstallation: Connect the range hood to a 6-inch round duct system that vents to the outside. Ensure duct runs are as short and straight as possible for optimal performance.
- Kanalfri (recirkulerende) installation: Install the patented charcoal filters (sold separately if not included) within the range hood. These filters purify the air before recirculating it back into the kitchen.
5. Betjeningsvejledning
The ROBAM A832 features a touch control panel for easy operation.
Detail of the black glass touch control panel, showing the power button, light control, and fan speed indicator.
5.1 Tænd/sluk
- Tryk på Power-knap (cirkel med lodret linje) to turn the range hood on or off.
5.2 Blæserhastighedskontrol
- The range hood features a 9-speed setting. Use the speed adjustment controls (indicated by vertical bars) to increase or decrease the fan speed according to your cooking needs. Higher speeds are recommended for heavy cooking, while lower speeds are suitable for simmering.
5.3 Lysstyring
- Tryk på Lys knap (pæreikon) for at tænde eller slukke LED-lysene.
En detaljeret view of the integrated LED light strip, providing illumination for the cooking surface.
6. Vedligeholdelse
Regelmæssig rengøring og vedligeholdelse vil sikre optimal ydeevne og levetid for din emhætte.
6.1 Rengøring af netfiltrene
The mesh filters should be cleaned regularly, depending on cooking frequency. They are dishwasher-safe for convenience.
- Sluk emhætten og afbryd strømmen før rengøring.
- Locate the filter release latches. Gently pull the latch and remove the mesh filter.
- Place the filters in a dishwasher or wash by hand with warm, soapy water. Rinse thoroughly.
- Lad filtrene tørre helt, før de monteres igen.
This image illustrates the process of detaching a mesh filter for cleaning or replacement.
6.2 Cleaning the Exterior and Interior Surfaces
Clean the stainless steel surfaces with a non-abrasive cleaner and a soft cloth. For the black glass control panel, use a glass cleaner. Avoid harsh chemicals or abrasive pads.
A hand wiping the stainless steel interior of the range hood, demonstrating ease of cleaning.
6.3 Charcoal Filter Replacement (Ductless Models)
If using the range hood in recirculating mode, the charcoal filters need to be replaced periodically (typically every 3-6 months, depending on usage). Refer to the specific charcoal filter instructions for replacement procedures.
An infographic explaining the innovative recirculated design, powerful motor, air purifying module, and double-layer oil screen.
A visual representation of the three-layer filtration system using activated carbon filters to remove carbon monoxide, benzene, and other harmful substances.
7. Fejlfinding
Hvis du støder på problemer med din emhætte, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Emhætten tænder ikke | Ingen strømforsyning; Netledningen er ikke sat i; Afbryderen er udløst. | Check power connection; Ensure circuit breaker is not tripped; Contact a qualified electrician if issues persist. |
| Dårlig sugeevne | Grease filters are clogged; Ductwork is obstructed or too long/restrictive; Charcoal filters are saturated (ductless). | Clean or replace grease filters; Check ductwork for obstructions; Replace charcoal filters. |
| Overdreven støj | Loose components; Impeller obstruction; Improper installation. | Check for loose screws or parts; Inspect impeller for foreign objects; Verify proper installation. |
| Lys virker ikke | LED light module failure; Loose connection. | Contact customer support for replacement LED module; Check connections if accessible. |
For problems not listed here, or if solutions do not resolve the issue, please contact ROBAM customer support.
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Model | A832 |
| Mål (D x B x H) | 21" x 36" x 35" (Product) / 21"D x 36"W x 35"H (Installed) |
| Materiale | Rustfrit stål |
| Støjniveau | 42 dB |
| Statisk tryk | 800 PA |
| Monteringstype | Under Cabinet Mount, Wall Mount |
| Kontroltype | Berøringsskærm |
| Blæserhastigheder | 9-Speed Setting |
| Belysning | LED |
| Filtertype | Mesh (Dishwasher-Safe) |
| Ventilationstype | Ductless/Recirculating (with optional charcoal filters) or Ducted (6" Round) |
| Strømforsyning | 120V~ 60Hz |
| Varens vægt | 70 pund |
| UPC | 850010082295 |
An image depicting the 9-speed touch control interface and the 270mm depth for easy under-cabinet installation, including model specifications.
9. Garanti og support
ROBAM provides comprehensive warranty coverage for the A832 range hood:
- 1-Year Labor Warranty: Covers labor costs for repairs during the first year.
- 5 års reservedelsgaranti: Covers replacement parts for five years from the date of purchase.
- Livstids motorgaranti: The powerful DC motor is covered for the lifetime of the product.
For warranty claims, technical assistance, or to purchase replacement parts, please contact ROBAM customer support. Keep your proof of purchase for warranty validation.
