Koolatron P40_CA
Koolatron 12V Electric Cooler/Warmer
Model: P40_CA - Instruction Manual
Indledning
Thank you for choosing the Koolatron 12V Electric Cooler/Warmer. This versatile appliance is designed to provide convenient iceless cooling or warming for your food and beverages, perfect for travel, work, or outdoor activities. Utilizing efficient thermoelectric technology, it can be powered by your vehicle's 12V outlet, offering reliable performance with low power consumption.
This manual provides essential information for the safe and effective use of your cooler/warmer, including setup, operation, maintenance, and troubleshooting tips. Please read it thoroughly before first use and retain it for future reference.
Vigtige sikkerhedsoplysninger
Læs og forstå alle sikkerhedsinstruktioner, før du bruger dette apparat. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller alvorlig personskade.
- This appliance is designed for 12V DC power sources. Do not attempt to connect it to any other voltage without an appropriate adapter.
- Sørg for tilstrækkelig ventilation omkring enheden. Bloker ikke luftventilerne.
- Enheden må ikke nedsænkes i vand, og den må ikke udsættes for overdreven fugtighed.
- Opbevares utilgængeligt for børn.
- Træk stikket ud, når det ikke er i brug, eller før rengøring.
- Må ikke bruges, hvis netledningen eller stikket er beskadiget.
- Californiens forslag 65 advarsel: Dette produkt kan indeholde materialer, der er advaret i henhold til California Proposition 65.
Produktegenskaber
Image: This diagram illustrates the key features of the Koolatron 12V Electric Cooler/Warmer, including its magnetic latch for secure closure, the reversible door for flexible access, convenient easy-carry handles, and the integrated cooling/warming vent.
- Generøs kapacitet: 38 Liters (40 Quarts) capacity, capable of holding approximately 56 standard soft drink cans.
- Dobbelt funktionalitet: Efficiently cools to 32°F (18°C) below the surrounding temperature or warms to 135°F (57°C).
- Alsidigt design: Can be used as a classic chest-style cooler or a front-opening mini-fridge with a reversible door.
- Bærbar og holdbar: Sturdy inset handles and injection-molded exterior for easy transport and long-lasting use. Weighs only 18 lbs (8.3 kg) unloaded.
- 12V DC Powered: Comes with a 12V DC (5 Amps/60 Watts) power cord for use in cars, trucks, boats, and RVs.
- AC Compatible: Can be used with an optional 110V AC adapter (sold separately) for indoor use.
Opsætning og førstegangsbrug
Udpakning og inspektion
Carefully remove the cooler/warmer from its packaging. Inspect the unit for any signs of damage. If any damage is found, do not operate the unit and contact customer support.
Strømtilslutning
Your Koolatron cooler/warmer is designed to operate on 12V DC power, typically from a vehicle's cigarette lighter outlet.
- Ensure the cooler/warmer is empty and clean before connecting power.
- Locate the 12V DC power cord provided with your unit.
- Plug the smaller end of the power cord into the DC input port on the cooler/warmer.
- Insert the larger plug end into your vehicle's 12V DC accessory outlet (cigarette lighter socket).
- For indoor use, an optional 110V AC adapter (sold separately) is required. Connect the 12V DC cord to the adapter, then plug the adapter into a standard wall outlet.

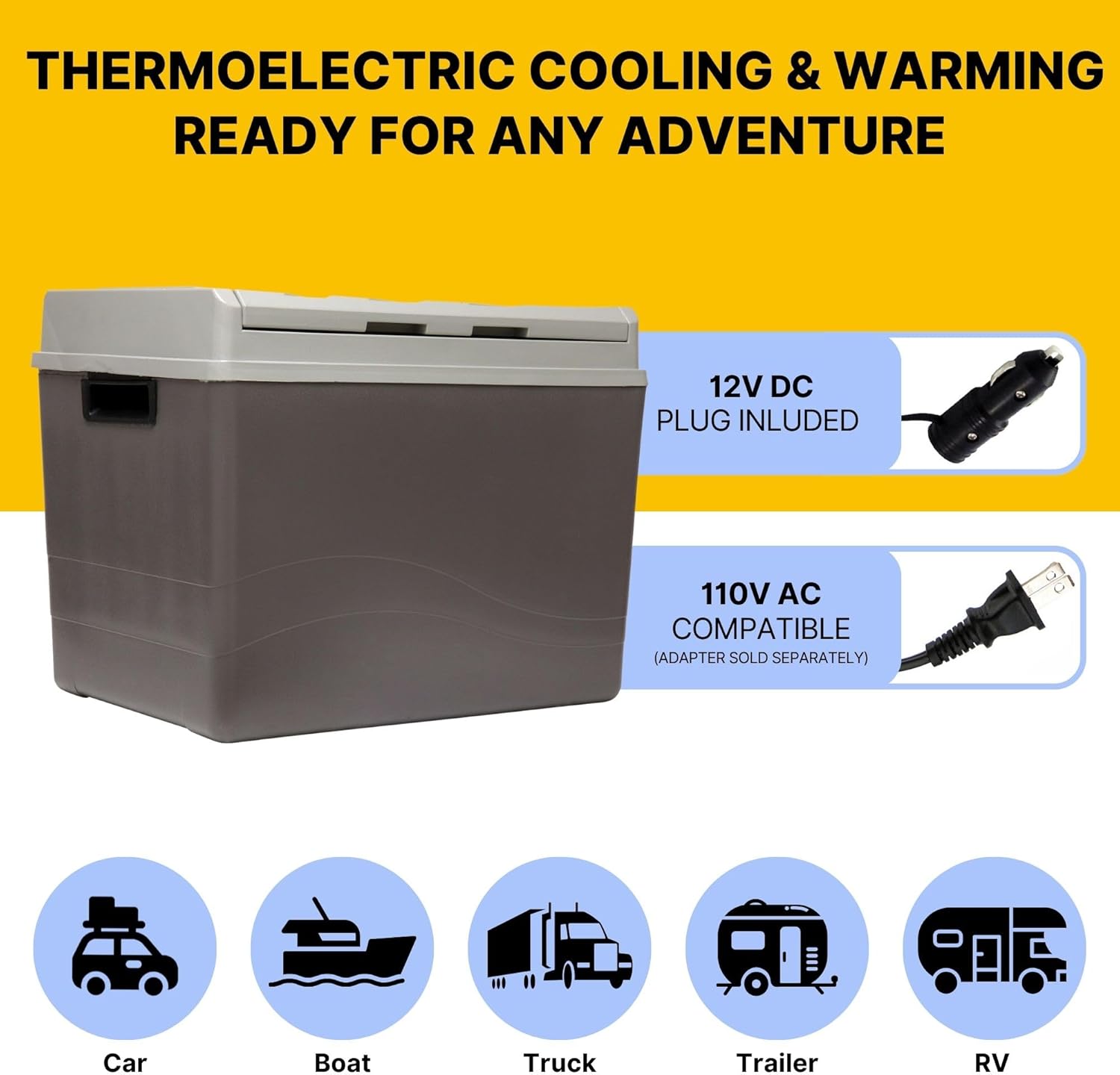

Image: This image displays the 12V DC plug included with the cooler and an optional 110V AC adapter (sold separately). It also illustrates various compatible environments for use, including cars, boats, trucks, trailers, and RVs.
Image: This visual guide demonstrates how to connect the power cord for both warming (matching arrow to red dot) and cooling (matching arrow to blue dot) modes. It also shows the connection process for an optional AC adapter for indoor use and the standard 12V car outlet.
Configuring Orientation and Door
The Koolatron cooler/warmer offers a unique two-way design, allowing it to function as a traditional chest-style cooler or an upright mini-fridge.
- To use as a chest-style cooler, place the unit horizontally with the lid facing upwards.
- To use as a minikøleskab, stand the unit vertically. The lid then functions as a front-opening door.
- Døren er reversibel. You can change the hinge side to open from the left or right, depending on your preference and space requirements. Refer to the diagram for visual guidance on changing orientation.
- A removable divider is included to help organize contents within the unit.
Image: This diagram illustrates the versatile design of the cooler, showing how it can be used in a horizontal chest orientation or a vertical mini-fridge orientation with a reversible door, adapting to different needs and spaces.
Betjeningsvejledning
Køletilstand
To activate the cooling function:
- Ensure the unit is properly connected to a 12V DC power source (or AC adapter).
- Locate the power cord connection point on the unit. There is usually an indicator or marking to align for cooling.
- Align the arrow on the power cord connector with the BLUE DOT on the unit's input port. This activates the cooling mode.
- The unit will begin to cool, reaching temperatures up to 32°F (18°C) below the ambient temperature. For best results, pre-chill items before placing them in the cooler.
- Keep the lid/door securely latched to maintain optimal cooling efficiency.
Opvarmningstilstand
To activate the warming function:
- Ensure the unit is properly connected to a 12V DC power source (or AC adapter).
- Locate the power cord connection point on the unit.
- Align the arrow on the power cord connector with the RØD PRIK on the unit's input port. This activates the warming mode.
- The unit will begin to warm, reaching temperatures up to 135°F (57°C).
- Keep the lid/door securely latched to maintain optimal warming efficiency.
Note: Thermoelectric coolers are most efficient when filled. For best performance, ensure items are already at the desired temperature before placing them inside.
Vedligeholdelse og pleje
Proper maintenance will ensure the longevity and optimal performance of your Koolatron cooler/warmer.
- Rensning: Disconnect the unit from power before cleaning. Wipe the interior and exterior surfaces with a damp cloth and mild detergent. Do not use abrasive cleaners or solvents. Ensure the unit is completely dry before reconnecting power.
- Ventilation: Regularly check that the air vents on the unit are clear of dust, dirt, or obstructions. Blocked vents can reduce efficiency and lead to overheating.
- Opbevaring: When not in use for extended periods, clean the unit thoroughly and store it in a dry, well-ventilated area, away from direct sunlight and extreme temperatures. Leave the lid slightly ajar to prevent odors and mildew.
- Strømledning: Inspect the power cord and plug regularly for any signs of damage. If damaged, do not use the unit and seek professional repair or replacement.
Fejlfinding
If you experience issues with your Koolatron cooler/warmer, please refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Unit not turning on/no power. | Loose power connection; Vehicle 12V outlet not working; Blown fuse in vehicle or plug; Faulty power cord. | Ensure power cord is securely plugged into both the unit and the power source. Test the 12V outlet with another device. Check and replace vehicle fuse if necessary. Inspect power cord for damage. |
| Unit not cooling/warming effectively. | Blocked air vents; Incorrect mode selected; Ambient temperature too high; Unit overloaded; Door/lid not sealed properly. | Clear any obstructions from air vents. Ensure the power cord is aligned with the correct BLUE DOT (cooling) or RØD PRIK (warming). Operate in a cooler environment if possible. Do not overfill the unit. Ensure lid/door is securely latched. |
| Usædvanlig støj fra enheden. | Ventilatorblokering; Enhed ikke i vater. | Check for any debris obstructing the fan. Ensure the unit is placed on a stable, level surface. |
If the problem persists after trying these solutions, please contact Koolatron customer support for further assistance.
Specifikationer
- Model: P40_CA
- Kapacitet: 38 liter (40 quarts)
- Strømindgang: 12 Volts DC (5 Amps / 60 watt)
- Køleydelse: Køler ned til 18 °C under omgivelsestemperaturen
- Opvarmningsydelse: Warms to 135°F (57°C)
- Varens vægt: 18 pund (8.16 kg)
- Farve: Grå
- Konfiguration: Uden fryser
- Installationstype: Frit stående
- Antal døre: 1 (Reversible)
- Afrimningssystem: Automatisk
Image: This diagram provides the key dimensions of the Koolatron cooler, indicating a height of 16.5 inches, a width of 20.5 inches, and a depth of 15 inches. It also reiterates the capacity of 38 liters (40 quarts), equivalent to 56 standard 355ml cans.
Produktdimensioner: 39.4 cm D x 53.3 cm B x 41.4 cm H (15.51 cm D x 20.98 cm B x 16.3 cm H)
Garanti og kundesupport
Koolatron products are manufactured to the highest standards. For information regarding warranty coverage, product registration, or to obtain technical support, please visit the official Koolatron webhjemmeside eller kontakt deres kundeserviceafdeling direkte.
Koolatron Official Webwebsted: www.koolatron.com
When contacting support, please have your product model number (P40_CA) and purchase information readily available.
