Brugermanual til jacuzzi-støvsuger

Indledning

The Jacuzzi JMV Spa-Vac is designed for effective and simple cleaning of spas and hot tubs. Unlike larger pool cleaners, this manual vacuum is perfectly suited for the smaller dimensions of a hot tub, providing targeted cleaning without excessive water circulation. It functions as a dual-purpose tool, combining a manual brush for sweeping with a vacuum that filters out small particles and debris from the water. Its operation is straightforward, requiring no batteries or complex setup, making spa maintenance efficient and easy.

Produktegenskaber

• Two-in-One Functionality: Serves as both a spa brush and a vacuum, streamlining your cleaning process.
• Simple and Effective Operation: Features minimal moving parts and requires no batteries. Simply pull up on the pole while sweeping to vacuum, and push down between sweeps.
• Reusable and Replaceable Filter: The internal filter can be easily hosed off for cleaning and is designed for repeated use.
• Includes Replacement Filter: Comes with one free replacement filter to ensure continued performance.

Opsætning

The Jacuzzi Manual Spa Vacuum is designed for quick and easy assembly. Follow these steps to prepare your vacuum for use:

1. Fastgør stangen: Securely connect the pole to the main vacuum body. Ensure it clicks into place or is firmly tightened to prevent detachment during use.

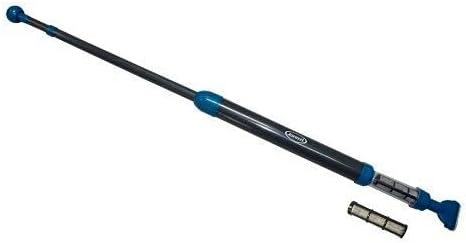

Figure 1: The Jacuzzi Manual Spa Vacuum, showing the main body, extended pole, and a detached filter cartridge.

Betjeningsvejledning

Using the Jacuzzi Manual Spa Vacuum is intuitive. Follow these steps for effective cleaning:

1. Submerge and Sweep: Place the vacuum head into the spa water. Gently sweep the spa surface with the brush head, targeting areas with debris.
2. Aktivér vakuum: While sweeping, pull up on the pole. This action draws water and debris through the vacuum head and into the internal filter.
3. Release Water: When the vacuum is full or you need to move to another area, push down on the pole. This action releases filtered water back into the spa through a separate channel, retaining the debris within the filter.
4. Gentage: Continue sweeping, pulling up, and pushing down until the spa is clean.

The transparent body of the vacuum allows you to visually monitor the amount of debris collected in the filter, indicating when it's time for cleaning.

Opretholdelse

Regular maintenance of your Jacuzzi Manual Spa Vacuum's filter is crucial for optimal performance and longevity. The filter is designed to be easily cleaned and reused.

1. Fjern filteret: After use, or when the filter appears full, unscrew the end of the vacuum body to access the internal filter.
2. Skyl filteret: Remove the filter cartridge and thoroughly rinse it under a hose or faucet to remove all trapped debris. Ensure all particles are flushed out from the mesh.
3. Reattach the Filter: Once clean, reinsert the filter cartridge into the vacuum body and securely screw the end back on.

Figur 2: Et nærbillede view of the reusable filter cartridge for the Jacuzzi Manual Spa Vacuum, showing its mesh design for trapping debris.

Fejlfinding

If you encounter issues with your Jacuzzi Manual Spa Vacuum, consider the following common troubleshooting tips:

• Dårlig sugeevne:
  • Check if the filter is clogged. A dirty filter will significantly reduce suction. Clean the filter as described in the Maintenance section.
  • Ensure the pole is securely attached and there are no air leaks at the connection points.
  • Verify that the one-way valve inside the vacuum is functioning correctly and not obstructed by large debris.
• Debris Escaping:
  • This can occur if the filter is not properly seated or if the end cap is not securely tightened. Reassemble the filter and ensure all parts are snug.
  • Ensure you are pushing down on the pole completely to allow filtered water to exit through the correct channel, preventing debris from being pushed back out.
• Difficulty Pumping:
  • Check for any obstructions within the vacuum's internal mechanism.
  • Ensure the pole is not bent or damaged, which could impede smooth operation.

For persistent issues not resolved by these steps, please contact Jacuzzi customer support.

Specifikationer

Garanti og support

For information regarding warranty coverage, product support, or to purchase replacement parts, please visit the official Jacuzzi webwebstedet eller kontakt deres kundeserviceafdeling. Gem din købskvittering til garantikrav.

Jacuzzi Official Webwebsted: www.jacuzzi.com
