HFBTE Digital Kraftmåler 50N Dynamometer Brugermanual

Indledning

The HFBTE Digital Force Gauge 50N Dynamometer is a small, simple, multi-functional, and high-precision instrument designed for accurate force measurement. It is widely used across various industries including electronic appliances, construction hardware, light industrial textiles, auto parts, lighters and other ignition devices, fire equipment, pen manufacturing, push-pull load testing, insertion force testing, destructive testing of locks, fishing gear, chemical industry, power machinery, and scientific research institutions.

This digital display instrument offers high resolution, fast sampling speed, and ease of use, making it a new generation of high-efficiency and high-precision push-pull test equipment.

Produktegenskaber

• High precision and high resolution for accurate measurements.
• Three measurement modes for selection: Real-time, Peak, and First Peak.
• Supports four units for selection and conversion: N (Newton), Kg (Kilogram), Lb (Pound), and Oz (Ounce).
• Gravity acceleration setting function: Users can input the accurate value of gravity acceleration at the usage location for more precise testing and unit conversion.
• Upper and lower limits can be set for statistical analysis. An audible buzzer alarm will activate if limits are exceeded.
• Minimum force value shielding function: Data within a set minimum range can be ignored.
• Automatic shutdown function: The automatic shutdown time can be set to conserve battery when not in use for a long period.
• Automatic backlight and buzzer alarm functions for enhanced usability.

Pakkens indhold

Når du åbner pakken, skal du kontrollere, at alle komponenter er til stede og i god stand.

The package includes the main digital force gauge unit, a set of interchangeable tips (flat, conical, chisel, notched, small hook), an extension rod, and a user manual. All items are neatly organized within a protective carrying case.

This image shows the main force gauge unit along with the five different tips: Flat Tip, Conical Tip, Chisel Tip, Notched Tip, and Small Hook. An extension rod is also visible, designed to be screwed into the top of the gauge for extended reach.

Opsætning

1. Batteriinstallation

The Digital Force Gauge requires two AAA 1.5V batteries (not included). Follow these steps to install them:

1. Find batterirummet på bagsiden af ​​enheden.
2. Skub batteridækslet nedad for at åbne det.
3. Isæt to AAA-batterier, og sørg for at polerne (+/-) vender korrekt som angivet i batterirummet.
4. Sæt batteridækslet på igen ved at skubbe det på plads, indtil det klikker sikkert.

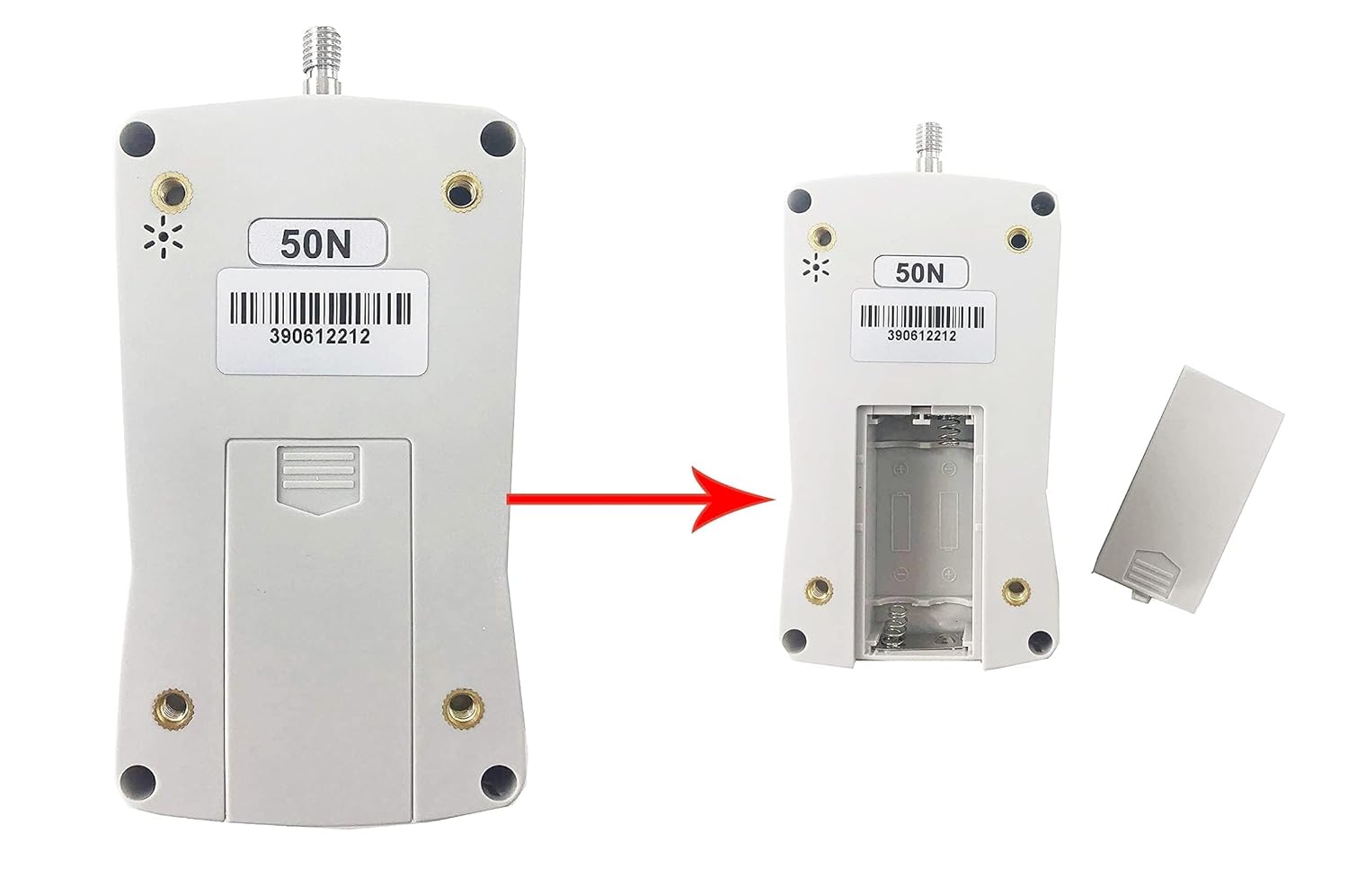

This image demonstrates how to open the battery compartment on the back of the force gauge and insert the AAA batteries. Ensure the correct orientation of the batteries for proper function.

2. Attaching Tips and Extension Rod

Select the appropriate tip for your measurement application. The tips and extension rod can be screwed into the sensor shaft at the top of the force gauge.

• To attach a tip, gently screw it clockwise onto the threaded shaft until secure.
• If extended reach is required, first screw the extension rod onto the sensor shaft, then attach the desired tip to the end of the extension rod.

Betjeningsvejledning

1. Tænd/sluk

Tryk på Magt button (red circle with power symbol) to turn the device on or off.

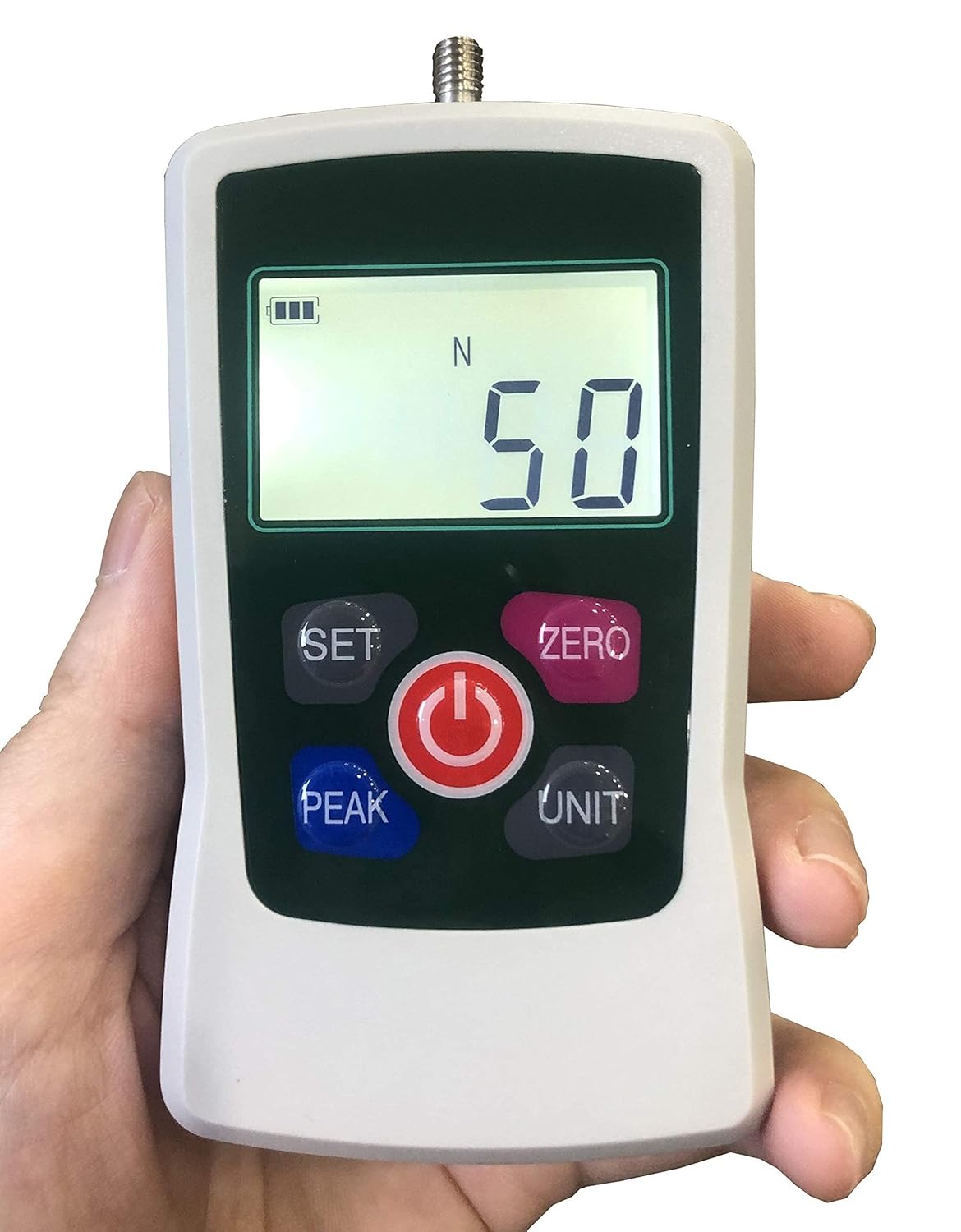

This image displays the main interface of the force gauge, highlighting the 'SET', 'ZERO', 'PEAK', 'UNIT', and Power buttons. The digital display shows the current measurement and battery level.

2. Valg af enhed

Tryk på ENHED button to cycle through the available measurement units: Newtons (N), Kilograms (Kg), Pounds (Lb), and Ounces (Oz).

3. Zeroing the Display

Before taking a measurement, ensure the display reads 0.00. If not, press the NUL button to reset the reading.

4. Måletilstande

The device supports three measurement modes:

• Real-time Mode: Displays the current force being applied. This is the default mode.
• Toptilstand: Tryk på SPIDS button to enter Peak mode. The display will hold the maximum force value detected during the measurement. Press SPIDS again to return to real-time mode.
• Første peak-tilstand: (Refer to the detailed user manual for specific instructions on activating and using First Peak mode, typically accessed via the SET button or a combination of buttons). This mode captures the first significant peak in force.

5. Setting Parameters (SET Button)

De SÆT button is used to access advanced settings such as gravity acceleration compensation, upper/lower limits for alarm, and minimum force value shielding. Consult the comprehensive PDF user manual for detailed instructions on configuring these parameters.

For a visual demonstration of basic operation and unit switching, please refer to the video below:

Opretholdelse

• Rensning: Tør enheden af ​​med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Opbevaring: Store the force gauge in its protective case in a dry environment, away from direct sunlight and extreme temperatures.
• Udskiftning af batteri: Replace batteries promptly when the low battery indicator appears on the display to ensure accurate readings and prevent corrosion. Remove batteries if the device will not be used for an extended period.
• Kalibrering: For professional applications requiring certified accuracy, periodic calibration by a qualified service provider is recommended.

Fejlfinding

Tekniske specifikationer

Garanti og support

For warranty information, technical support, or service inquiries, please contact HFBTE-US directly through their official Amazon store page or the contact details provided with your purchase. Keep your purchase receipt as proof of purchase for warranty claims.

You can visit the official HFBTE Store on Amazon for more information: HFBTE Store
