Rosewill Air Fryer Convection Toaster Oven User Manual

1. Vigtige sikkerhedsoplysninger

Please read all instructions carefully before using this appliance. Failure to follow these safety guidelines may result in fire, electric shock, or injury.

• Elektrisk sikkerhed: Do not immerse the cord, plug, or appliance in water or other liquid. Ensure the voltage rating on the appliance matches your local power supply. Unplug from outlet when not in use and before cleaning.
• Varmesikkerhed: Surfaces become hot during use. Use oven mitts or gloves when handling hot materials. Do not touch hot surfaces. Allow the appliance to cool completely before cleaning or storing.
• Ventilation: Ensure adequate space around the appliance for proper ventilation. Do not block any ventilation openings.
• Børnesikkerhed: Tæt opsyn er nødvendigt, når et apparat bruges af eller i nærheden af ​​børn. Hold apparatet og dets ledning utilgængeligt for børn.
• Korrekt brug: Do not use the appliance for anything other than its intended use. Do not operate with a damaged cord or plug. Do not place any non-food items in the oven.
• Rensning: Always unplug the appliance before cleaning. Refer to the 'Maintenance and Cleaning' section for detailed instructions.

2. Produktet er slutview

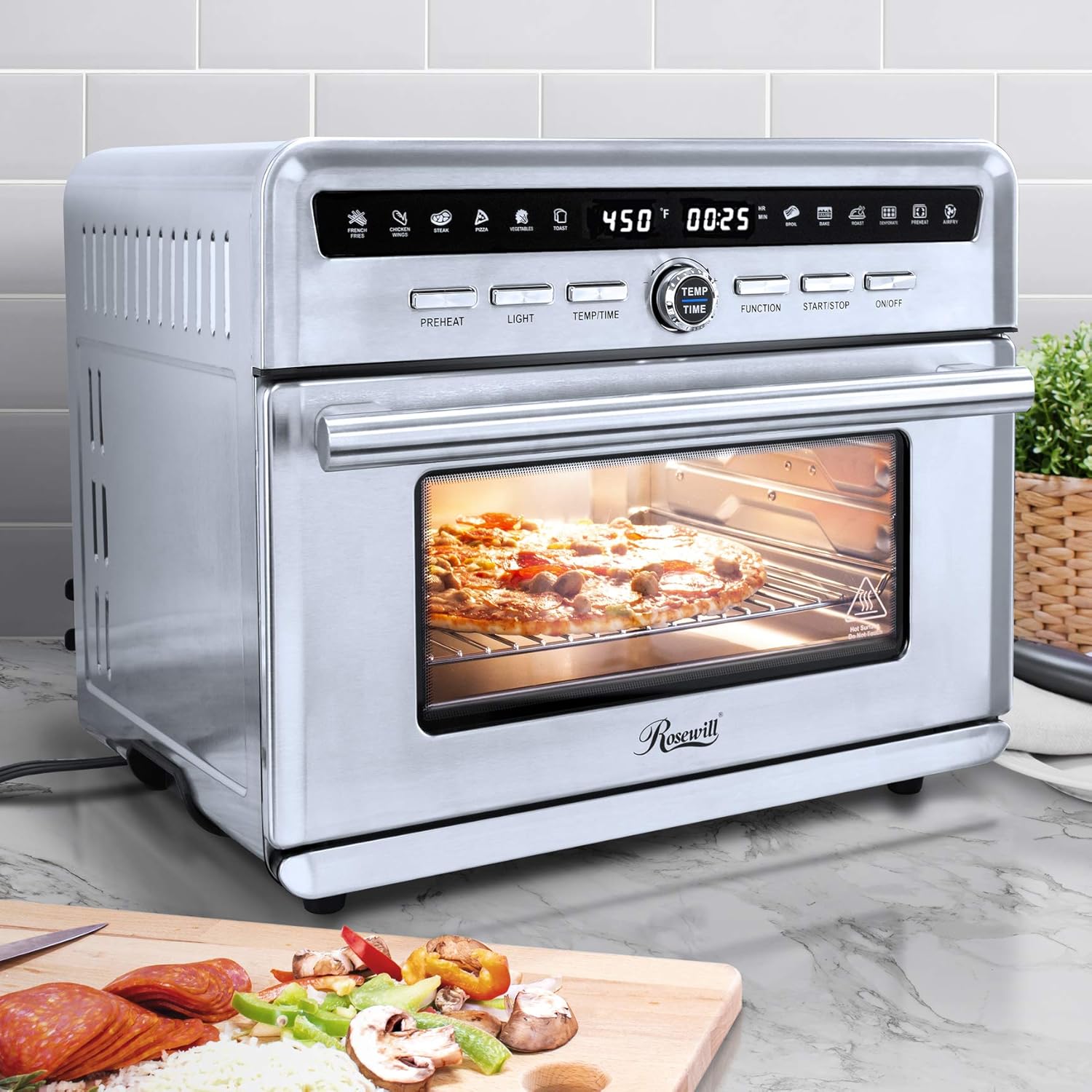

The Rosewill RHTO-20001 is a versatile Air Fryer Convection Toaster Oven designed for a wide range of cooking tasks. Its 26.4-quart capacity makes it suitable for family-sized meals, accommodating a 12-inch pizza, a 13 lb chicken, or up to 26 chicken wings.

Nøglefunktioner:

• 10 Built-In Smart Program Presets for various cooking needs.
• 360° Hot Air Circulation Technology for even cooking.
• Powerful 1800-watt heating element with a temperature range of 100-450°F.
• Four tray layers for versatile cooking and simultaneous preparation.
• Up to 12-hour delay timer for convenient meal preparation.
• Large transparent window for easy monitoring of cooking progress.

Komponenter og tilbehør:

Familiarize yourself with the main components and included accessories:

3. Opsætning

Follow these steps for the initial setup of your Rosewill Air Fryer Convection Toaster Oven:

1. Udpakning: Tag forsigtigt apparatet og alt tilbehør ud af emballagen. Gem emballagematerialerne til senere opbevaring eller transport, hvis det er nødvendigt.
2. Placering: Place the oven on a stable, heat-resistant, and level surface. Ensure there is at least 6 inches (15 cm) of clearance on all sides and above the oven for proper air circulation. Do not place it near flammable materials or under cabinets.
3. Indledende rengøring: Tør ovnens yderside af med en rengøringsklud før første brug.amp cloth. Wash all removable accessories (air frying basket, baking pan, oven rack, crumb tray) with warm, soapy water. Rinse thoroughly and dry completely.
4. Første brug (afbrænding): To eliminate any manufacturing odors, operate the oven empty for approximately 15-20 minutes at 400°F (200°C) in a well-ventilated area. A slight odor or smoke may be present during this initial use; this is normal and will dissipate.
5. Strømtilslutning: Sæt netledningen i en jordet stikkontakt. Sørg for, at stikkontaktens lydstyrketage opfylder apparatets krav.

4. Betjeningsvejledning

This section guides you through the various functions and operations of your Rosewill Air Fryer Convection Toaster Oven.

Kontrolpanel overview:

The digital control panel features intuitive buttons and a central knob for easy operation.

• ON/OFF knap: Tænder eller slukker for apparatet.
• START/STOP knap: Starter eller sætter tilberedningscyklussen på pause.
• FUNKTIONSknap: Cycles through the various cooking presets.
• TEMP/TIME Knob: Rotates to adjust temperature or time, and presses to confirm selection.
• LIGHT -knap: Tænder eller slukker den indvendige ovnslys.
• PREHEAT Button: Activates the preheat function.
• Digital skærm: Shows temperature, time, and selected function.

Grundlæggende betjening:

1. Tænd: Tryk på ON/OFF-knappen for at tænde ovnen. Displayet lyser.
2. Vælg funktion: Press the FUNCTION button repeatedly to cycle through the 10 preset cooking modes (e.g., Air Fry, Bake, Roast, Toast, Broil, Dehydrate, Pizza, Bagel, French Fries, Chicken Wings, Steak, Vegetables). The selected function icon will light up.
3. Juster temperatur/tid: Once a function is selected, the default temperature and time will appear. Rotate the TEMP/TIME knob to adjust the temperature. Press the knob to switch to time adjustment, then rotate to set the desired cooking time.
4. Forvarmning (valgfrit): For functions like Bake or Roast, you may wish to preheat. Press the PREHEAT button. The oven will heat to the set temperature and beep when ready.
5. Begynd at lave mad: Place your food inside the oven using the appropriate accessory (e.g., air frying basket for air frying, baking pan for baking). Close the oven door. Press the START/STOP button to begin cooking.
6. Pause/Stop: During cooking, press START/STOP to pause the cycle. Press again to resume. To stop the cycle completely, press and hold the START/STOP button for a few seconds, or press the ON/OFF button.

Brug af forsinkelsestimeren:

The delay timer allows you to set a start time for your cooking cycle up to 12 hours in advance.

1. Set your desired cooking function, temperature, and time as described above.
2. Before pressing START/STOP, press and hold the TEMP/TIME knob for a few seconds until the display shows a flashing time for delay.
3. Rotate the TEMP/TIME knob to set the desired delay time.
4. Press START/STOP to confirm the delay. The oven will count down the delay time before automatically starting the cooking cycle.

Rack positioner:

The oven features multiple rack positions for optimal cooking. Refer to the following guidelines:

• Top Position: Ideal for broiling, toasting, or quick browning.
• Middle Positions: Best for most baking, roasting, and air frying tasks.
• Nederste position: Suitable for larger items or slow cooking.

5. Vedligeholdelse og rengøring

Regelmæssig rengøring og vedligeholdelse vil sikre din ovns levetid og optimale ydeevne.

• Tag altid stikket ud: Tag altid stikket ud af stikkontakten og lad ovnen køle helt af, inden du rengør den.
• Udvendig rengøring: Tør de udvendige overflader af med en blød, damp klud. Brug ikke slibende rengøringsmidler eller skuresvampe, da de kan ridse den rustfri ståloverflade.
• Indvendig rengøring: Tør indersiden af ​​med enamp cloth and mild detergent. For stubborn stains, a non-abrasive oven cleaner designed for non-stick surfaces can be used, following the product's instructions. Ensure all cleaner residue is wiped away.
• Krummebakke: The crumb tray should be emptied and cleaned regularly, ideally after each use, to prevent grease buildup and potential fire hazards. Slide out the crumb tray from the bottom front of the oven, discard crumbs, and wash with warm, soapy water. Rinse and dry thoroughly before reinserting.
• Tilbehør: The air frying basket, baking pan, and oven rack can be washed with warm, soapy water. They are also dishwasher safe for convenient cleaning. Ensure they are completely dry before storing or re-using.
• Fordyb ikke: Nedsænk aldrig ovnens hovedenhed, ledning eller stik i vand eller anden væske.

6. Fejlfinding

If you encounter issues with your Rosewill Air Fryer Convection Toaster Oven, refer to the following common problems and their solutions:

7. Specifikationer

Detailed technical specifications for the Rosewill RHTO-20001 Air Fryer Convection Toaster Oven:
