Yinhing AC100V-250V 30A High Power 2-Channel Relay Module User Manual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of the Yinhing AC100V-250V 30A High Power 2-Channel Relay Module. This module is designed to control two independent loads with high or low-level DC5V trigger signals. Please read this manual thoroughly before use to ensure safe and efficient operation.

2. Sikkerhedsoplysninger

• Always disconnect power before installing or servicing the module.
• This module operates with AC100V-250V and DC5V. Improper handling can result in electric shock or damage to equipment.
• Ensure all connections are secure and correctly wired according to the diagrams.
• Do not exceed the maximum load capacity of 30A, 250V AC / 30V DC.
• Installationen bør udføres af kvalificeret personale, hvis du ikke er bekendt med elektriske ledninger.
• Hold modulet væk fra fugt, støv og ekstreme temperaturer.

3. Produktet er slutview

The Yinhing 2-Channel Relay Module features two independent relays capable of switching high-power AC or DC loads. It includes screw terminals for convenient wiring and jumpers for selecting high or low-level trigger modes for each channel.

Figur 3.1: Øverst view of the Yinhing 2-Channel Relay Module.

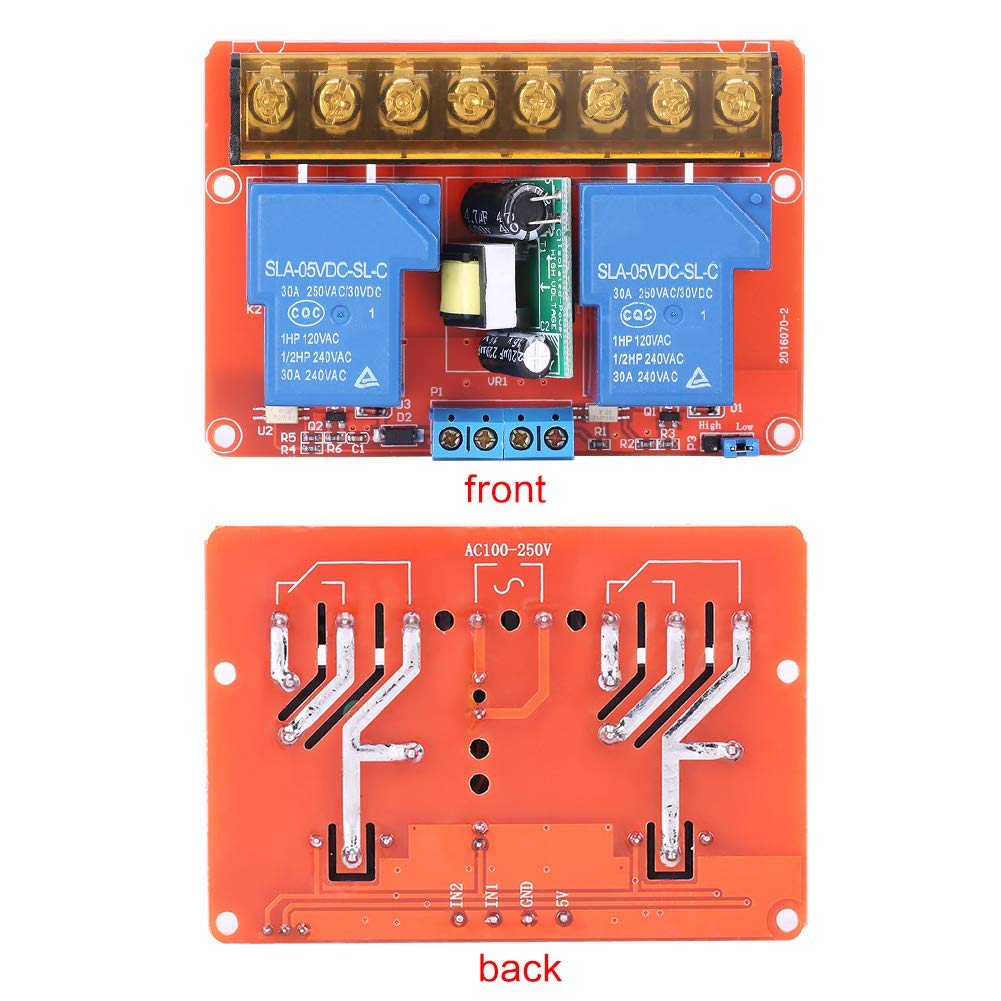

Figur 3.2: Forside og bagside views of the relay module, illustrating component placement and circuit board layout.

The module is equipped with screw terminals for easy and secure connection of both control signals and load wiring. Jumpers allow for flexible configuration of trigger sensitivity.

Figure 3.3: Detail of the blue screw terminals for control signal input.

Figure 3.4: Detail of the yellow screw terminals for load connections.

4. Specifikationer

Figure 4.1: Physical dimensions of the relay module.

5. Opsætning

Follow these steps to set up your relay module:

1. Montering: The module features four mounting holes for secure installation. Choose a stable, dry location away from heat sources.
2. Strømforsyningsforbindelse: Connect the AC100-250V power supply to the designated terminals on the module. Ensure correct polarity and secure connections.
3. Belastningsforbindelse: Connect your AC or DC loads to the relay output terminals. Each relay can handle up to 30A, 250V AC or 30V DC. Ensure the load current does not exceed this rating.
4. Control Signal Connection: Connect your DC5V control signals to the CH1 and CH2 trigger input terminals. Connect DC+ to 5V and DC- to GND.
5. Trigger Level Selection: Use the jumpers on the module to select either high-level or low-level triggering for each channel independently. Refer to the operating instructions for details on jumper settings.

6. Betjeningsvejledning

The relay module can be configured for high-level or low-level triggering using onboard jumpers. This allows flexibility in integrating with various control systems.

• Højniveau-udløser: When configured for high-level triggering, the relay will activate (switch) when the input control signal voltage on CH1 or CH2 is between 1.5V and 5V DC.
• Lavniveau-trigger: When configured for low-level triggering, the relay will activate (switch) when the input control signal voltage on CH1 or CH2 is between 0V and 1V DC.

To change the trigger level, carefully adjust the corresponding jumper on the module. Always ensure power is disconnected before making any changes to jumper settings.

7. Vedligeholdelse

The Yinhing Relay Module is designed for reliable operation with minimal maintenance. Follow these guidelines to ensure longevity:

• Rensning: Periodically clean the module with a soft, dry cloth to remove dust and debris. Do not use liquid cleaners.
• Tilslutningstjek: Regularly inspect all wiring connections to ensure they remain tight and free from corrosion. Loose connections can lead to intermittent operation or overheating.
• Miljøforhold: Sørg for, at driftsmiljøet forbliver inden for de angivne temperatur- og fugtighedsområder for at forhindre skader.

8. Fejlfinding

If you encounter issues with your relay module, refer to the following troubleshooting steps:

• Relæ aktiveres ikke:
  • Check the main power supply to the module (AC100-250V).
  • Verify the DC5V control signal is present and stable at the CH1/CH2 terminals.
  • Ensure the jumper setting for the trigger level (high or low) matches your control signal.
  • Undersøg alle ledninger for løse forbindelser eller brud.
• Belastning modtager ikke strøm:
  • Confirm the relay is activating (you may hear a click or see an indicator LED if present).
  • Check the wiring between the relay output terminals and the load.
  • Ensure the load itself is functional and not drawing excessive current.
  • Verify the load's voltage- og nuværende krav er inden for modulets specifikationer.
• Overophedning af modul:
  • Ensure the load current does not exceed 30A.
  • Check for proper ventilation around the module.
  • Verify that the ambient temperature is not too high.

If the problem persists after following these steps, contact customer support for further assistance.

9. Garanti og support

For warranty information or technical support, please refer to the product's purchase documentation or contact the seller directly. You can also visit the Yinhing Brand Store for mere information.
