Lexicon Twin Metal Daybed with Trundle Instruction Manual

1. Introduktion og overview

This manual provides detailed instructions for the assembly, operation, and maintenance of your Lexicon Twin Metal Daybed with Trundle. This multi-functional furniture piece is designed to offer versatile sleeping and lounging options, featuring a sturdy metal frame and a convenient pop-up trundle bed.

2. Produktfunktioner

• Rammemateriale: Durable metal construction for strength and longevity.
• Steel Slat Support: Provides robust mattress support, eliminating the need for a box spring and enhancing mattress longevity.
• Lift-Up Trundle: Features a pop-up trundle with folding legs and casters, allowing for easy expansion of the sleep area from a twin daybed to a larger sleeping surface or two separate twin beds.
• Vægt kapacitet: Each twin size bed supports a maximum weight capacity of 300 lbs.
• Multifunktionelt design: Serves as a comfortable daybed for lounging and easily converts into a spacious sleeping area.

3. Opsætning og montering

The Lexicon Twin Metal Daybed with Trundle is designed for easy assembly. All necessary parts, tools, and instructions are shipped in one efficiently packed box. Assembly typically takes less than an hour with assistance.

3.1. Inkluderede komponenter

• Arm Post/LSF Arm/RSF Arm
• Back Frame/Rail/Trundle Long Rail/Trundle Short Rail
• Hardwares (screws, bolts, washers)
• Legs/Wheel
• Slat/Spacer/Slat Connector/Bracket

Note: Mattresses and bedding are NOT included with this product.

3.2. Monteringstrin

1. Unpack all components and verify against the parts list in the included instruction booklet.
2. Follow the step-by-step diagrams and instructions provided in the physical manual to assemble the main daybed frame.
3. Assemble the trundle bed frame, ensuring the folding legs and casters are correctly installed.
4. Once assembled, place the main daybed in its desired location.
5. Insert the trundle bed underneath the main daybed.

Vigtig: Periodically re-tighten all bolts to ensure stability and prevent squeaking.

Figure 1: Daybed and Trundle Dimensions Diagram.

4. Operating the Trundle Bed

The Lexicon Daybed features a convenient lift-up trundle for additional sleeping space.

4.1. Extending the Trundle

1. Gently pull the trundle bed out from underneath the main daybed using its casters.
2. Once fully extended, locate the folding legs on the trundle frame.
3. Lift the trundle frame to engage the folding legs, bringing the trundle to the same height as the main daybed.

Figure 2: Daybed with trundle extended and raised.

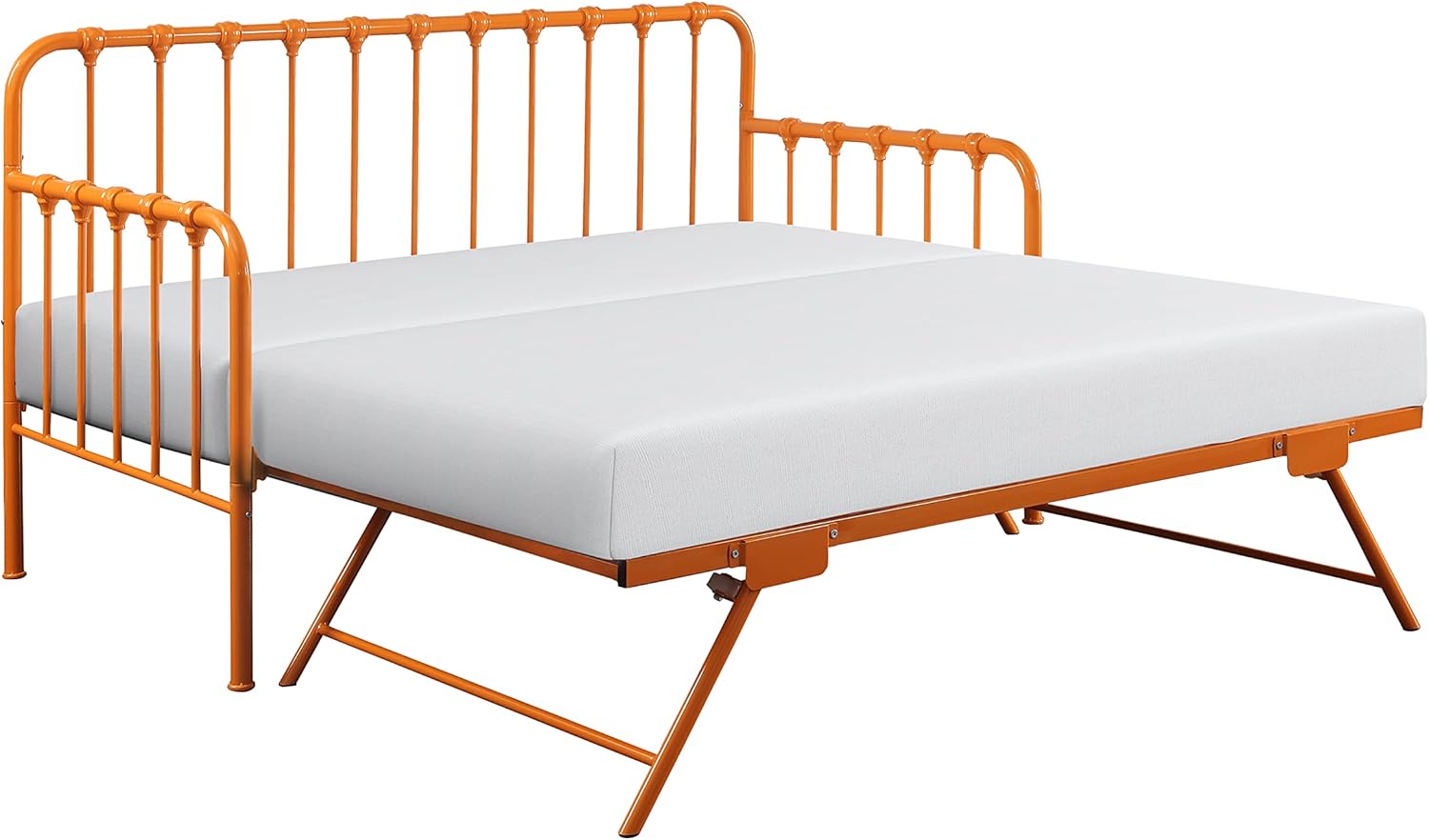

Figur 3: Vinklet view of the daybed with trundle extended and raised.

4.2. Retracting the Trundle

1. Disengage the folding legs by lowering the trundle frame.
2. Push the trundle bed back underneath the main daybed until it is fully stored.

Figure 4: Daybed with trundle stored underneath.

Figur 5: Vinklet view of the daybed with trundle stored.

4.3. Produktdemonstrationsvideo

5. Vedligeholdelse

To ensure the longevity and appearance of your Lexicon Daybed, follow these maintenance guidelines:

• Rensning: Wipe the metal frame with a dry cloth. Avoid using harsh chemicals or abrasive cleaners.
• Stofpleje: For any fabric components (not included with the frame), refer to their specific care instructions.
• Hardwarekontrol: Periodically inspect all bolts and screws and tighten them as needed to maintain structural integrity and prevent loosening.

6. Fejlfinding

If you encounter any issues with your Lexicon Daybed, consider the following:

• Knirkende lyde: Squeaking often indicates loose connections. Re-tighten all assembly bolts and screws.
• Trundle Not Rolling Smoothly: Check the casters for any obstructions or damage. Ensure the floor surface is clear.
• Difficulty Lifting Trundle: Ensure the trundle is fully pulled out from under the daybed before attempting to lift and engage the folding legs.
• Manglende dele: Hvis der manglede dele ved levering, bedes du straks kontakte kundesupport.

7. Specifikationer

8. Garanti og support

Lexicon offers a 1-year warranty guarantee on this product. If you encounter any issues with your purchase, please contact customer support for assistance. For detailed warranty information, refer to the product description or the Lexicon store page.

Fabrikant: Hjemmeelegance
