Rocketek USB 3.0 7-in-1 High-Speed Memory Card Reader

Indledning

The Rocketek USB 3.0 7-in-1 Memory Card Reader is a versatile device designed for high-speed data transfer from various memory card formats to your computer. It supports simultaneous reading and writing of up to five different memory cards, enhancing your workflow efficiency. This manual provides detailed instructions for setup, operation, and maintenance of your card reader.

Produktegenskaber

7-in-1 Card Compatibility

Supports a wide range of memory card types including CF, SD, TF (Micro SD), XD, and MS. This includes variants like SDXC, SDHC, Micro SDXC, Micro SDHC, and UDMA CF cards.

Image: Diagram illustrating the various card slots and compatible card types.

USB 3.0 Super Speed

Experience data transfer speeds up to 5Gbps, which is 10 times faster than USB 2.0 (480Mbps). Transfer high-resolution movies, images, and video recordings in seconds.

Image: The card reader connected to a laptop, highlighting the USB 3.0 interface and speed.

Simultaneous Read/Write

The card reader allows for simultaneous reading and writing on up to five memory cards, eliminating the need to plug and unplug cards repeatedly.

Image: The card reader with various memory cards inserted, showing its capability for simultaneous data access.

Plug & Play with LED Indicator

No driver installation is required. Simply plug the device into your computer's USB port. A separate LED indicator for each slot shows the working status: red when connected, blue when a card is inserted, and blinking blue during data transfer.

Image: The card reader shown with different computer setups (Windows, Mac, Linux), emphasizing its plug-and-play functionality.

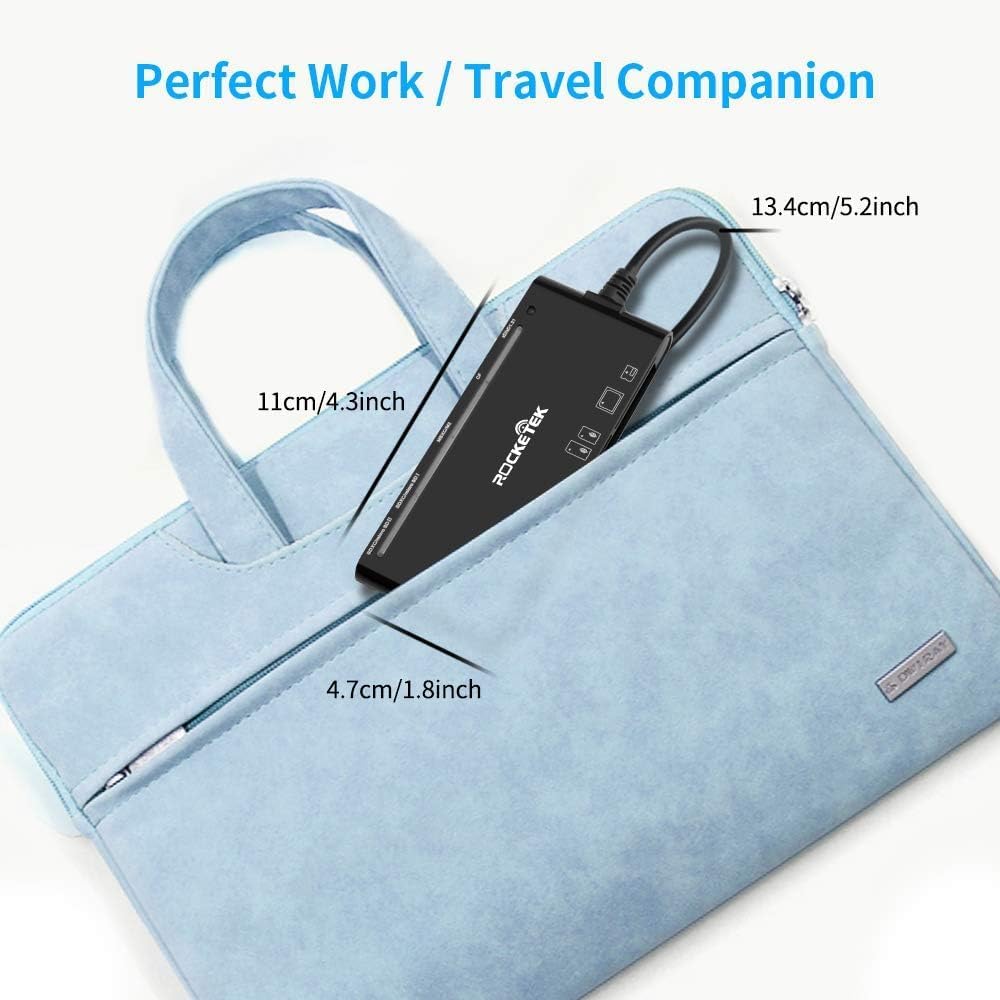

Kompakt og bærbart design

The ultra-slim, compact, and lightweight design makes it easy to carry the multi-card reader with you anywhere. The removable 13cm USB cable reduces strain on your computer's USB port.

Image: The card reader displayed with its dimensions, illustrating its compact and portable nature.

Pakkens indhold

• 1 x Rocketek USB 3.0 7-in-1 Memory Card Reader (Model: JS-CR7-EU)

Opsætningsvejledning

1. Tilslut kortlæseren: Insert the USB 3.0 connector of the Rocketek card reader into an available USB 3.0 port on your computer. For optimal performance, use a USB 3.0 port. The device is also backward compatible with USB 2.0/1.1 ports, but data transfer speeds will be limited to the lower standard.
2. Systemgenkendelse: Your operating system (Windows, Mac OS, Linux, Chrome OS) will automatically detect and install the necessary drivers. No manual driver installation is required. The red LED indicator on the card reader will illuminate, indicating it is powered on.
3. Klar til brug: Once the device is recognized, it is ready to accept memory cards.

Betjeningsvejledning

1. Indsæt hukommelseskort: Carefully insert your memory card into the corresponding slot on the card reader. Ensure the card is inserted correctly according to its shape and the slot's orientation.
   • SD slot: For SD, SDXC, SDHC, Extreme I III SD, Ultra II SD, MMC, UHS-I cards.
   • Micro SD (TF) Slot: For Micro SD, TF, Micro SDXC, Micro SDHC, UHS-I cards.
   • CF Slot: For CF I 3.0/4.0, Extreme I III CF, Ultra II CF, HS CF, XS-XS CF, CF Elite Pro, CF Pro, CF Pro II cards.
   • MS Slot: For MS, MS PRO, MS PRO Duo, MS PRO-HG, MS XC DUO cards.
   • XD Slot: For XD, XD1.21 cards.

   When a card is correctly inserted, the corresponding blue LED indicator will light up.
2. Adgangsdata: Open "My Computer" or "This PC" (Windows) or "Finder" (Mac OS). The inserted memory card will appear as a removable disk drive. Double-click to access its contents.
3. Overfør data: Du kan nu trække og slippe files between your computer and the memory card, or copy and paste them. During data transfer, the blue LED indicator for the active slot will blink.
4. Eject Memory Card: Before removing the memory card, always safely eject it from your operating system to prevent data corruption.
   • Windows: Right-click on the drive icon in "My Computer" and select "Eject" or use the "Safely Remove Hardware and Eject Media" icon in the system tray.
   • Mac OS: Drag the drive icon to the Trash or click the Eject button next to the drive name in Finder.

Kompatibilitet

Operativsystemkompatibilitet:

• Windows XP / Vista / 7 / 8 / 8.1 / 10
• Mac OS
• Linux
• Chrome OS
• Android (with compatible devices/adapters)
• iOS (with compatible devices/adapters)

Enhedskompatibilitet:

• Personal Computers (Desktops, Laptops)
• Tablets (e.g., Surface, IdeaPad)
• Smartphones (with OTG support and appropriate adapters)
• Digital Cameras, Action Cameras, Drones, Security Cameras, etc.

Image: The card reader shown connected to different types of devices, illustrating its broad compatibility.

Fejlfinding

Specifikationer

Opretholdelse

• Rensning: Use a soft, dry cloth to clean the exterior of the card reader. Do not use liquid cleaners or solvents.
• Opbevaring: Store the card reader in a cool, dry place away from direct sunlight and extreme temperatures. When not in use, it is recommended to keep the USB connector protected.
• Håndtering: Avoid dropping the device or subjecting it to strong impacts. Do not force memory cards into slots.

Garanti og support

Rocketek provides customer support for its products. If you encounter any issues or have questions regarding your Rocketek USB 3.0 7-in-1 Memory Card Reader, please contact our support team.

• Garanti: Please refer to your purchase documentation or the Rocketek official website for specific warranty period details. Rocketek aims to respond to inquiries within 24 hours.
• Kontakt support: For assistance, please visit the Rocketek official webwebstedet eller se de kontaktoplysninger, der følger med din produktemballage.
