FibroPool FH255 55,000 BTU Swimming Pool Heat Pump

1. Introduktion

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your FibroPool FH255 55,000 BTU Swimming Pool Heat Pump. Please read this manual thoroughly before installation and use, and retain it for future reference.

The FibroPool FH255 is an all-electric heat pump designed to heat above-ground and in-ground pools and spas up to 10,000 gallons (in-ground) or 21-foot round/15x30-foot oval (above-ground). It operates by transferring heat from the ambient air into your pool water, offering an energy-efficient alternative to traditional gas or propane heaters.

2. Sikkerhedsoplysninger

ADVARSEL: Fare for elektrisk stød

Always disconnect power to the unit before performing any service or maintenance. Installation and service must be performed by a qualified professional in accordance with all local and national electrical codes.

Generelle sikkerhedsforanstaltninger:

• Do not block the discharge vent of the heat pump. Ensure adequate airflow around the unit.
• Keep children away from the heat pump during operation.
• Sørg for, at enheden er korrekt jordet.
• Brug ikke varmepumpen, hvis nogen af ​​delene er beskadigede eller mangler.
• Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de har fået opsyn eller instruktion i brugen af ​​apparatet af en person, der er ansvarlig for deres sikkerhed.

3. Produktet er slutview

The FibroPool FH255 heat pump features a robust design with an enamel-coated steel chassis for durability. Key components include the digital control panel, water inlet/outlet, and the fan discharge vent.

Figur 1: Forside view of the FibroPool FH255 Heat Pump, showing the large fan and FibroPool FH-255 branding.

Figur 2: Side view of the FibroPool FH255 Heat Pump, highlighting the digital control panel, water inlet and outlet connections, and the EnergyGuide label.

Figur 3: Bagside view of the FibroPool FH255 Heat Pump, revealing the internal heat exchange coils.

Figur 4: Vinklet view of the FibroPool FH255 Heat Pump, providing a comprehensive look at the fan, control panel, and water connections.

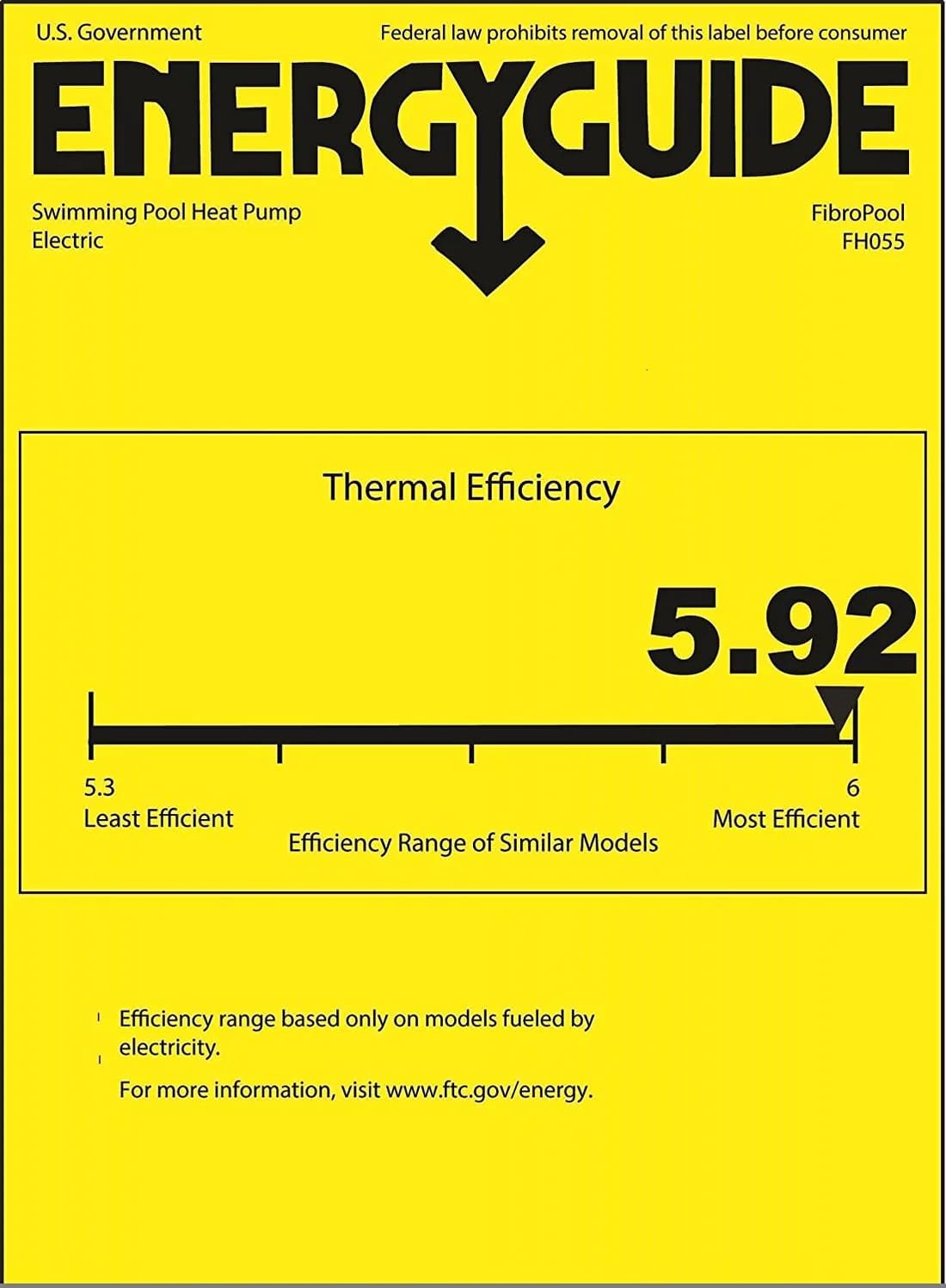

Figure 5: EnergyGuide label for the FibroPool FH055 (FH255) Swimming Pool Heat Pump, indicating a thermal efficiency of 5.92.

4. Opsætning og installation

Proper installation is crucial for the performance and longevity of your heat pump. It is recommended that installation be performed by a qualified pool professional.

4.1 Valg af sted

• Choose a location with adequate airflow, away from obstructions.
• Ensure the unit is placed on a solid, level surface capable of supporting its weight.
• Consider proximity to the pool pump and electrical supply.

4.2 VVS-tilslutninger

The FH255 installs conveniently with included 1 1/2 inch compression fittings. Connect the heat pump in series after the pool filter and before any chemical feeders.

1. Connect the "WATER IN" port to the filtered water return line from your pool pump.
2. Connect the "WATER OUT" port to the return line leading back to your pool.
3. Sørg for, at alle forbindelser er vandtætte.

4.3 Elektriske forbindelser

WARNING: Electrical installation must comply with all local and national electrical codes. Consult a licensed electrician.

• The FH255 requires a dedicated 240V electrical circuit.
• Sørg for korrekt jording.
• The unit should be protected by a properly sized circuit breaker.

5. Betjening

The FH255 features a digital control panel for easy temperature setting and monitoring.

5.1 Første opstart

1. Sørg for, at poolpumpen kører, og at der strømmer vand gennem varmepumpen.
2. Turn on the electrical power to the heat pump.
3. Det digitale display vil lyse.

5.2 Indstilling af ønsket temperatur

• Use the up/down arrows on the control panel to adjust the desired water temperature.
• The heat pump will automatically activate to reach and maintain the set temperature.

5.3 Driftsbetingelser

For optimal performance, the FH255 operates best in humid climates with ambient temperatures down to 50°F (10°C). In dry climates, a traditional gas heater may be more suitable.

The heat pump will cycle on and off as needed to maintain the set temperature. This is normal operation.

6. Vedligeholdelse

Regular maintenance ensures efficient operation and extends the lifespan of your FibroPool FH255 heat pump.

6.1 Rengøring af spole

• Periodically inspect the evaporator coils (visible from the rear of the unit) for debris such as leaves, dirt, or lint.
• Clean the coils gently with a soft brush or rinse with a garden hose. Do not use high-pressure washers.
• Ensure the fan discharge vent is clear of obstructions.

6.2 Vinterisering

Before freezing temperatures arrive, it is essential to properly winterize your heat pump to prevent damage.

1. Turn off the electrical power to the heat pump at the breaker.
2. Drain all water from the heat pump by disconnecting the plumbing connections.
3. Store the unit in a dry, protected area if possible, or cover it with a breathable, waterproof cover if it must remain outdoors.

7. Fejlfinding

This section addresses common issues you might encounter with your heat pump.

For further assistance, refer to the official FibroPool support resources. You can find helpful videos and guides on the FibroPool YouTube channel.

8. Specifikationer

9. Garanti og support

FibroPool products are designed for longevity and functionality. For specific warranty details, please refer to the warranty card included with your product or visit the official FibroPool webwebsted.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact FibroPool customer service. You can also find additional resources and product information on the FibroPool Amazon Store.
