Aerocool Duo 12 Pro Pack ARGB Fan System Instruction Manual

Indledning

The Aerocool Duo 12 Pro Pack provides an advanced cooling solution for your computer system, featuring three 120mm Addressable RGB (ARGB) fans, an H66F RGB fan hub, and a remote control. This system is designed to enhance both the aesthetic and thermal performance of your PC with vibrant lighting and efficient airflow.

This manual provides detailed instructions for the installation, operation, and maintenance of your Aerocool Duo 12 Pro Pack to ensure optimal performance and longevity.

Pakkens indhold

Før du fortsætter med installationen, skal du kontrollere, at alle komponenter er til stede i din pakke:

• 3 x Aerocool Duo 12 ARGB 120mm Fans
• 1 x H66F RGB Fan Hub
• 1 x fjernbetjening
• Monteringsskruer
• Cables for connection (6-pin fan connectors, 5V ARGB connector)

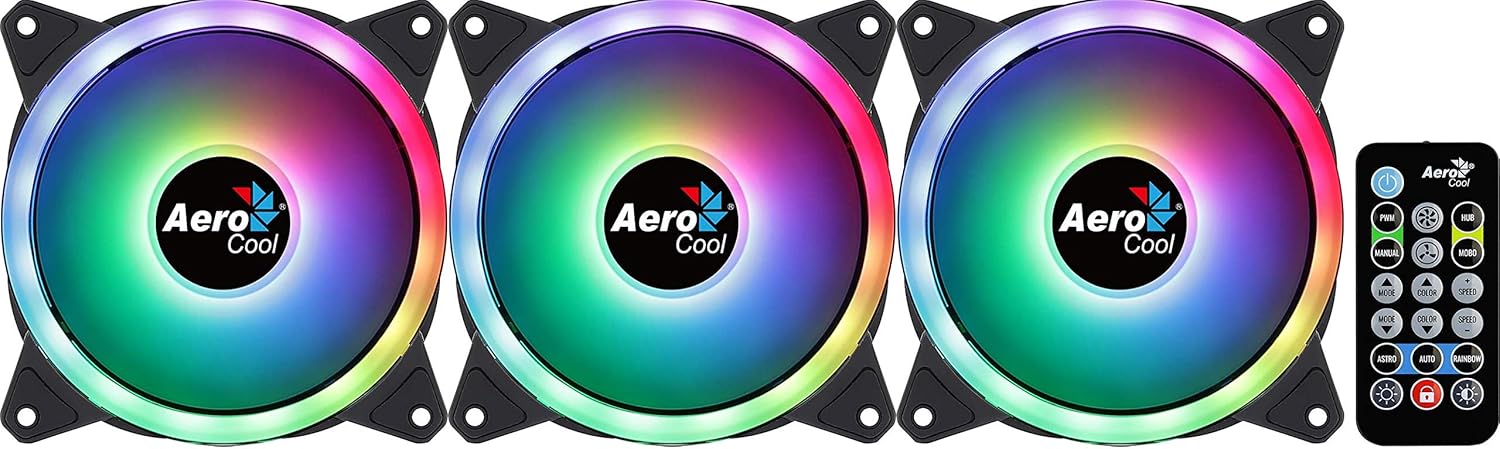

Image: The Aerocool Duo 12 Pro Pack showing three ARGB fans and the included remote control.

Opsætning og installation

Follow these steps to properly install your Aerocool Duo 12 Pro Pack fans and hub into your computer system.

1. Forbered dit system

• Sørg for, at din computer er slukket, og at stikket er taget ud af stikkontakten.
• Open your computer case to access the internal components.

2. Install the Fans

1. Identify suitable 120mm fan mounting locations within your PC case (e.g., front, top, rear).
2. Position each fan in the desired location, ensuring correct airflow direction (typically, the side with the frame supports is the exhaust side).
3. Fastgør hver ventilator med de medfølgende monteringsskruer. Antivibrationspuderne på ventilatorhjørnerne hjælper med at reducere støj.

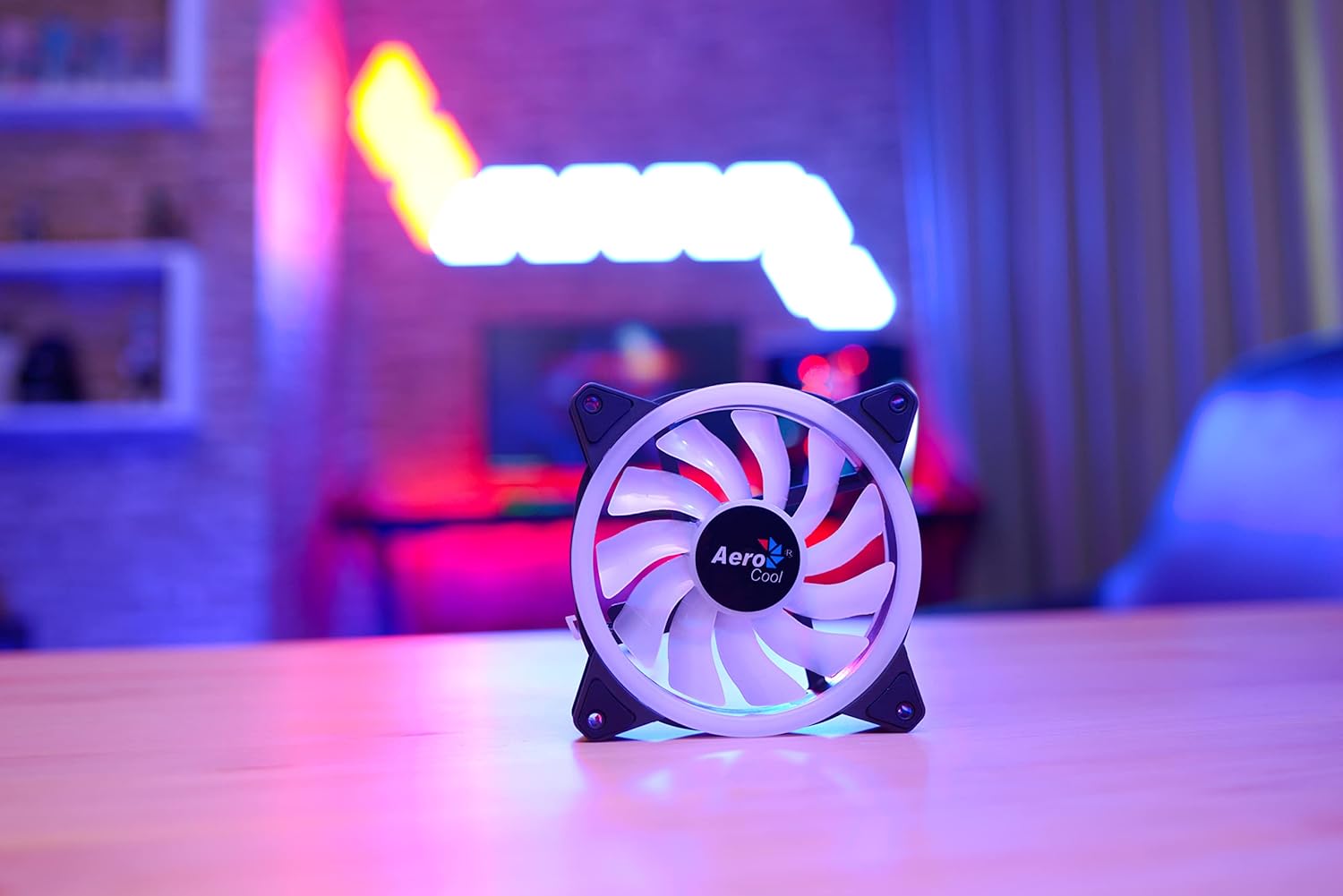

Image: A single Aerocool Duo 12 ARGB fan, highlighting its curved blades and anti-vibration pads.

3. Connect to the H66F RGB Fan Hub

• Locate a suitable mounting spot for the H66F RGB Fan Hub inside your case, away from moving parts and heat sources.
• Connect each 6-pin fan cable from the Aerocool Duo 12 fans to the corresponding 6-pin ports on the H66F RGB Fan Hub. The hub supports up to six 6-pin ARGB fans.
• Connect the 5V ARGB connector from the H66F hub to a compatible 5V ARGB header on your motherboard (if you wish to synchronize lighting with your motherboard's software).
• Connect the SATA power connector from the H66F hub to an available SATA power cable from your power supply unit (PSU). This provides power to the hub and connected fans/LEDs.

Image: The Aerocool Duo 12 Pro fans, H66F RGB fan hub, and remote control arranged on a desk, illustrating the components of the system.

Betjeningsvejledning

Once installed, you can control the fan speed and lighting effects using the included remote control or compatible motherboard software.

Brug af fjernbetjeningen

The remote control allows for easy adjustment of lighting modes, colors, and fan speeds without needing to open your PC case or use software.

• Power knap: Tænder eller slukker LED-belysningen.
• PWM-knap: Cycles through fan speed modes (e.g., Silent, Standard, Performance).
• MODE knap: Changes the ARGB lighting effect mode.
• FARVE knap: Selects static colors or color cycling effects.
• SPEED +/- Buttons: Justerer hastigheden af ​​dynamiske lyseffekter.
• BRIGHTNESS +/- Buttons: Adjusts the brightness of the LED lighting.
• AUTO knap: Initiates an automatic cycle through all available lighting effects.

Motherboard Synchronization

If the H66F hub is connected to a 5V ARGB header on a compatible motherboard, you can control the lighting effects through your motherboard's RGB software (e.g., ASUS Aura Sync, MSI Mystic Light Sync, Gigabyte RGB Fusion, ASRock Polychrome Sync). This allows for synchronized lighting across your entire system.

Opretholdelse

Regular maintenance ensures optimal performance and extends the lifespan of your Aerocool Duo 12 Pro fans.

• Rensning: Periodically clean the fan blades and frames to remove dust buildup. Use compressed air or a soft, dry cloth. Ensure the system is powered off and unplugged before cleaning.
• Antivibrationspuder: The integrated anti-vibration pads are designed for durability. Inspect them occasionally for wear and tear, though replacement is rarely needed.
• Kabelstyring: Ensure all cables are neatly routed and secured to prevent interference with fan blades or other components, which can cause noise or damage.

Fejlfinding

If you encounter issues with your Aerocool Duo 12 Pro Pack, refer to the following common problems and solutions:

Ventilatorer drejer ikke

• Strømtilslutning: Verify that the H66F RGB Fan Hub's SATA power connector is securely connected to your PSU.
• Ventilatortilslutninger: Ensure all 6-pin fan cables are firmly connected to the H66F hub.
• Hub-funktionalitet: Check if the hub itself is receiving power (some hubs have an indicator LED).

RGB-belysning fungerer ikke eller er forkert

• ARGB-forbindelse: Confirm the 5V ARGB connector from the H66F hub is correctly plugged into a compatible 5V ARGB header on your motherboard (not a 12V RGB header, which can cause damage).
• Fjernbetjening: Ensure the remote control has a working battery and is pointed towards the hub or a clear line of sight. Try pressing the power button on the remote.
• Bundkortsoftware: If using motherboard software, ensure it is up-to-date and correctly configured to control the ARGB header.
• LED-kontrolknap: If your system has an external LED control button connected to the hub, try using it to cycle through effects.

Overdreven støj

• Montering: Ensure fans are securely mounted and not vibrating against the case. The anti-vibration pads should minimize this.
• Forhindringer: Check for any cables or objects obstructing the fan blades.
• Støvopbygning: Clean the fans as described in the Maintenance section.
• Blæserhastighed: Adjust fan speed using the remote control or motherboard software to a lower setting if noise is a concern.

Specifikationer

Garanti og support

Aerocool products are manufactured to high-quality standards. In the unlikely event of a defect, please refer to the following information.

• Garantiperiode: The EU spare part availability duration is 2 years. Please check your local retailer or Aerocool's official webwebstedet for specifikke garantivilkår i din region.
• Teknisk support: For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Aerocool customer support through their official webwebsted.
• Købsbevis: Gem din købsbevis for at validere garantien.
