Indledning
Thank you for choosing the Udreamer Voksun 3-Speed Precision Turntable. This high-fidelity vinyl record player is designed to provide an exceptional audio experience with its magnetic cartridge, belt-drive system, and dual 15-watt speakers. It also features Bluetooth connectivity for versatile audio streaming. This manual will guide you through the setup, operation, and maintenance of your new turntable to ensure optimal performance and longevity.
Produkt overview
Komponenter og kontroller
Familiarize yourself with the various parts of your turntable:
Figure 1: Turntable Components Overview
- 45 RPM pladeadapter: Bruges til at afspille 7-tommer plader med et stort hul i midten.
- Pladespillerfad: Den roterende platform, hvor plader placeres.
- Tonearm Counterweight: Balances the tonearm for proper tracking force.
- Tonearmholder: Sikrer tonearmen, når den ikke er i brug.
- Løftehåndtag: Raises and lowers the tonearm gently onto the record.
- Tonearm: Holder patronen og pennen.
- 33/45/78 RPM Speed Selector: Adjusts the platter speed to match your record.
- Pitch Adjust Switch: Fine-tunes the playback speed.
- Power Switch/Volume Control/Bluetooth Control: Multi-function knob for power, volume, and mode selection.
- Stylus Needle: The needle that reads the grooves of the record.
Opsætning
1. Udpakning
Carefully remove all components from the packaging. Ensure all parts listed in the Product Overview section are present. Retain packaging for future transport or storage.
2. Montering af bælte
The belt is pre-stored in the groove on the back of the iron turntable. To install:
- Hold up the turntable platter and rotate it 90 degrees.
- Locate the belt in the groove and carefully place it onto the drive shaft.
Figure 2: Belt Installation Steps
3. Højttalerforbindelse
Connect the included dual 15-watt speakers to the turntable using the provided speaker cables. Ensure the left speaker is connected to the 'SP-L' output and the right speaker to the 'SP-R' output on the rear of the turntable.

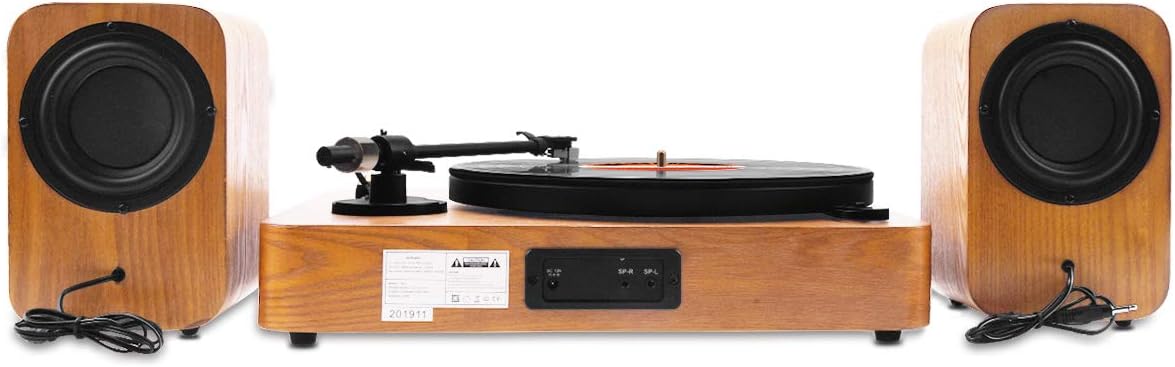

Figure 3: Rear Connections for Speakers
4. Strømtilslutning
Connect the power adapter to the DC input on the rear of the turntable, then plug it into a suitable wall outlet.
Betjeningsvejledning
1. Afspilning af en plade
- Place a record on the turntable platter. If playing a 7-inch record, use the 45 RPM adapter.
- Select the appropriate speed (33, 45, or 78 RPM) using the speed selector knob.
- Gently release the tonearm from its holder.
- Lift the tonearm using the lift lever.
- Placer tonearmen over den ønskede startrille på pladen.
- Sænk langsomt tonearmen ved hjælp af løftehåndtaget. Pennen vil have kontakt med pladen, og afspilningen vil begynde.
- Juster lydstyrken med lydstyrkeknappen.
- To stop playback, lift the tonearm using the lift lever, return it to the tonearm holder, and secure it.
2. Speed and Pitch Adjustment
The turntable supports three playback speeds: 33, 45, and 78 RPM. Use the speed selector knob to choose the correct speed for your record. The pitch adjust switch allows for minor adjustments to the playback speed, which can be useful for fine-tuning or correcting slight variations in record pressings.
Figure 4: Speed and Pitch Controls
3. Bluetooth-tilstand
The turntable features a built-in Bluetooth receiver, allowing you to stream music wirelessly from your smartphone, tablet, or other Bluetooth-enabled devices through the turntable's speakers.
- Tænd for pladespilleren.
- Rotate the Power/Volume/Bluetooth Control knob to select Bluetooth mode. The indicator light will typically change to a blue flashing light, indicating it's in pairing mode.
- On your external device, enable Bluetooth and search for available devices. Select 'Voksun Turntable' (or similar) from the list.
- Once paired, the indicator light will become solid blue, and you can begin streaming audio.
Figur 5: Bluetooth-forbindelse
4. Operationelle videoer
Video 1: Demonstrates the Voksun turntable in operation, showcasing its features and sound quality. This video provides a practical overview of the product's functionality.
Video 2: Shows the turntable playing a record, highlighting its ease of use and immediate functionality right out of the box.
Opretholdelse
1. Rensning
Regularly dust the turntable and speakers with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish. For records, use a dedicated record cleaning brush and solution to remove dust and static before each play.
2. Pleje af pennen
The stylus is a delicate component. Clean it periodically with a soft brush designed for stylus cleaning, brushing gently from back to front. Avoid touching the stylus with your fingers. A worn or damaged stylus can harm your records and degrade sound quality. Replace the stylus when necessary.
Figure 6: Audio-Technica Stylus
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm | Strømadapteren er ikke tilsluttet, eller stikkontakten virker ikke. | Ensure power adapter is securely connected to the turntable and a live power outlet. |
| Ingen lyd fra højttalerne | Speakers not connected, volume too low, or incorrect mode. | Check speaker cable connections. Increase volume. Ensure turntable is not in Bluetooth pairing mode if playing records. |
| Springer over poster | Beskidt plade, slidt pen eller ustabil overflade. | Rengør pladen. Undersøg og udskift pennen, hvis den er slidt. Placer pladespilleren på en stabil, plan overflade. |
| Bluetooth forbinder ikke | Pladespilleren er ikke i parringstilstand, enheden er for langt væk, eller der er interferens. | Ensure turntable is in Bluetooth pairing mode. Move device closer to the turntable. Restart both devices. |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Udreamer |
| Modelnavn | 3-Speed Precision |
| Materiale | Konstrueret træ |
| Farve | Valnød |
| Hastigheder | 33, 45, 78 RPM |
| Motortype | AC motor |
| Strømforbrug | 15 watt |
| Forbindelsesteknologi | Trådløs (Bluetooth) |
| Kompatible enheder | Højttaler |
| Fabrikant | VOKSUN |
| UPC | 744678239309 |
| ASIN | B083FPMH78 |
Garanti og support
Your Udreamer Voksun 3-Speed Precision Turntable comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Udreamer customer service through the retailer where you purchased the product or visit the official Udreamer webwebsted.
