Indledning
Thank you for choosing the Globe Electric Ultra Slim 4-inch LED Recessed Light. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new lighting fixture. Please read all instructions carefully before beginning installation and retain this manual for future reference.
Image: The complete Globe Electric Ultra Slim 4-inch LED Recessed Light kit, showing the light fixture, integrated cables, junction box, and an inline dimmer switch.
Vigtige sikkerhedsoplysninger
- Sluk altid for strømmen ved afbryderen, inden installationen påbegyndes.
- Kontakt en kvalificeret elektriker, hvis du er usikker på installationsprocessen.
- Sørg for, at alle elektriske tilslutninger er udført i overensstemmelse med lokale forskrifter og bestemmelser.
- Installer ikke denne lampe med våde hænder eller mens du står på en våd overflade.
- This product is designed for indoor use. While water resistant, it is not intended for direct water exposure.
- Forsøg ikke at ændre armaturet eller dets komponenter.
Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes:
- Ultra Slim 4-inch LED Recessed Light Fixture
- Remote Junction Box with integrated LED connect cable
- Quick Connectors (pre-installed in junction box)
- Instruktionsmanual (dette dokument)
Opsætning og installation
Follow these steps for proper installation of your recessed light fixture:
Trin 1: Forbered installationsområdet
- Sluk for strømmen ved afbryderen.
- Determine the desired location for the light fixture. Ensure there is sufficient clearance above the ceiling for the junction box and fixture.
- Using the provided template (if included, or measure the fixture diameter), cut a 4-inch (10.16 cm) diameter hole in the ceiling. Refer to the dimensions image below for precise measurements.

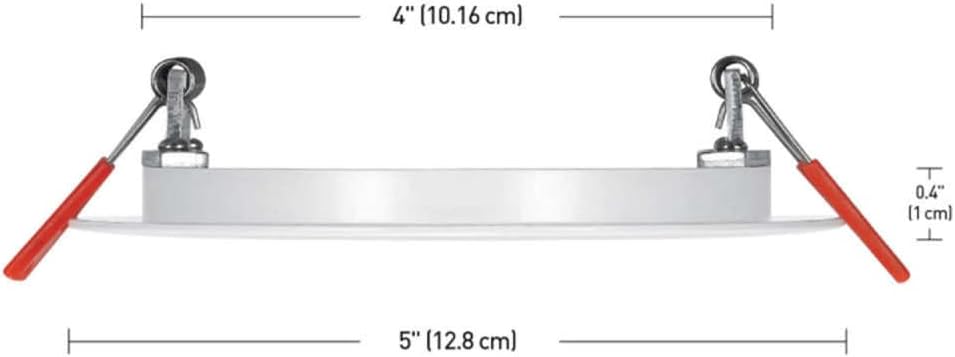

Image: Detailed dimensions of the recessed light fixture, indicating a 4-inch (10.16 cm) diameter and a slim profile of 0.4 inches (1 cm) in thickness.
Trin 2: Elektriske forbindelser
- Open the remote junction box.
- Connect the household electrical wires to the quick connectors inside the junction box. Typically, this involves connecting the black wire to black, white wire to white, and ground wire to ground.
- Ensure all connections are secure. The "PUSH & CLICK" quick connectors allow for easy and reliable installation.
- Close the junction box cover.
Billede: Den lavprofessionellefile junction box with its cover open, showing the integrated LED connect cable and the "PUSH & CLICK" quick connectors for household wiring.
Trin 3: Installer lysarmaturet
- Connect the integrated LED cable from the junction box to the light fixture. Ensure the connection is firm.
- Push the spring clips on the side of the recessed light fixture upwards.
- Insert the light fixture into the prepared hole in the ceiling. The spring clips will automatically secure the fixture in place.
- Position the junction box above the ceiling, ensuring it is not pinched or damaged.
Betjeningsvejledning
Once installed, restore power at the circuit breaker. Your Globe Electric Ultra Slim LED Recessed Light is now ready for use.
- Tænd/sluk: Control the light using your wall switch.
- Dæmpning: This fixture is compatible with most standard LED dimmers. Adjust the dimmer switch to achieve your desired brightness level. The product supports color temperature adjustment via a compatible dimmer, allowing you to select from various white light settings (e.g., warm white to daylight).
Billede: En eksample installation of multiple recessed lights in a modern kitchen, demonstrating their aesthetic integration into the ceiling.
Opretholdelse
The Globe Electric Ultra Slim LED Recessed Light requires minimal maintenance.
- Rensning: Sørg for, at strømmen er slukket, inden rengøring. Tør armaturet af med en blød, tør eller let fugtet klud.amp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- LED-levetid: The integrated LED is designed for long life and does not require replacement.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | Ingen strøm til armaturet. Løs ledningsforbindelse. Defekt vægafbryder. | Tjek afbryderen. Kontroller, at alle ledningsforbindelser er sikre (sørg først for, at strømmen er slukket). Test vægkontakten. |
| Lyse flimrer. | Inkompatibel lysdæmper. Løse ledninger. | Ensure your dimmer is compatible with LED fixtures. Kontrollér ledningsforbindelserne (sørg først for, at strømmen er slukket). |
| Lyset er svagt. | Dæmperindstillingen er for lav. | Juster lysdæmperen til en højere indstilling. |
Specifikationer
| Modelnummer | 91497 |
| Mærke | Globe Electric |
| Armaturtype | Ultra Slim LED Recessed Light / Canless Downlight |
| Størrelse | 4 tomme (10.16 cm) |
| Wattage | 9 watt (svarende til 60 watt glødelampe) |
| Lysstyrke | 540 lumen |
| Lyskilde | Integreret LED |
| Farvetemperatur | Adjustable (via compatible dimmer) |
| Materiale | Plast / Metal |
| Installationstype | Flush Mount, Recessed |
| Indendørs/Udendørs brug | Indendørs |
| Vandmodstandsniveau | Vandtæt |
| Varens vægt | 1.1 pund (ca. 0.5 kg) |
| UPC | 058219914977 |
Garantioplysninger
This Globe Electric product comes with a manufacturer's warranty. For specific details regarding the warranty period and coverage, please refer to the documentation included with your purchase or visit the official Globe Electric webwebsted. Gem din købsbevis til garantikrav.
Kundesupport
If you have any questions, require technical assistance, or need to report an issue with your Globe Electric Ultra Slim LED Recessed Light, please contact Globe Electric customer support.
- Webwebsted: Visit the official Globe Electric webwebsted med ofte stillede spørgsmål, supportressourcer og kontaktoplysninger.
- Kontakte: Refer to the product packaging or the Globe Electric website for phone numbers or email addresses for customer service.
