INFANS 2-in-1 Convertible Bassinet Pram Stroller User Manual

1. Introduktion

This manual provides essential information for the safe assembly, operation, and maintenance of your INFANS 2-in-1 Convertible Bassinet Pram Stroller. Please read all instructions carefully before use and retain this manual for future reference. This stroller is designed for infants and toddlers, offering a convertible bassinet and seat configuration.

2. Sikkerhedsoplysninger

ADVARSEL: Manglende overholdelse af disse advarsler og instruktioner kan resultere i alvorlig personskade eller død.

• Always use the 5-point safety harness to secure your child in the stroller.
• Efterlad aldrig dit barn uden opsyn i klapvognen.
• Ensure the stroller is fully open and locked before placing a child inside.
• Do not overload the storage basket. Maximum capacity is 6.6 pounds (3 kg).
• Hæng ikke tasker eller andre genstande på håndtaget, da dette kan få barnevognen til at vælte.
• Engage the parking brake whenever the stroller is stationary.
• Avoid placing hot liquids in the cup holder.
• This stroller is not compatible with car seats.
• The maximum weight recommendation for the child is 33 pounds (15 kg).
• Keep children clear of moving parts during adjustment or folding.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede før montering:

• Barnevognsstel
• Konvertibel vugge/sædeenhed
• Hjul (for og bag)
• Zippered Foot Cover
• Kopholder
• Baby pude
• Myggenet
• Opbevaringspose
• Stroller Wrist Strap
• Instruktionsmanual

4. Monteringsvejledning

Follow these steps to assemble your INFANS stroller. Refer to the included diagrams for visual guidance.

1. Fold rammen ud: Slip foldelåsen, og fold forsigtigt klapvognens stel ud, indtil det klikker på plads. Sørg for, at alle låsemekanismer er aktiveret.
2. Fastgør hjulene: Insert the front and rear wheels into their respective slots on the frame until they click securely. Ensure wheels rotate freely.
3. Install the Bassinet/Seat Unit: Align the bassinet/seat unit with the connectors on the frame and press down firmly until it locks into position. Verify it is securely attached by gently pulling upwards.
4. Vedhæft tilbehør: Install the cup holder, mosquito net, and storage bag as desired. The zippered foot cover can be attached to the bassinet/seat unit for warmth.

Figure 4.1: Fully assembled INFANS stroller.

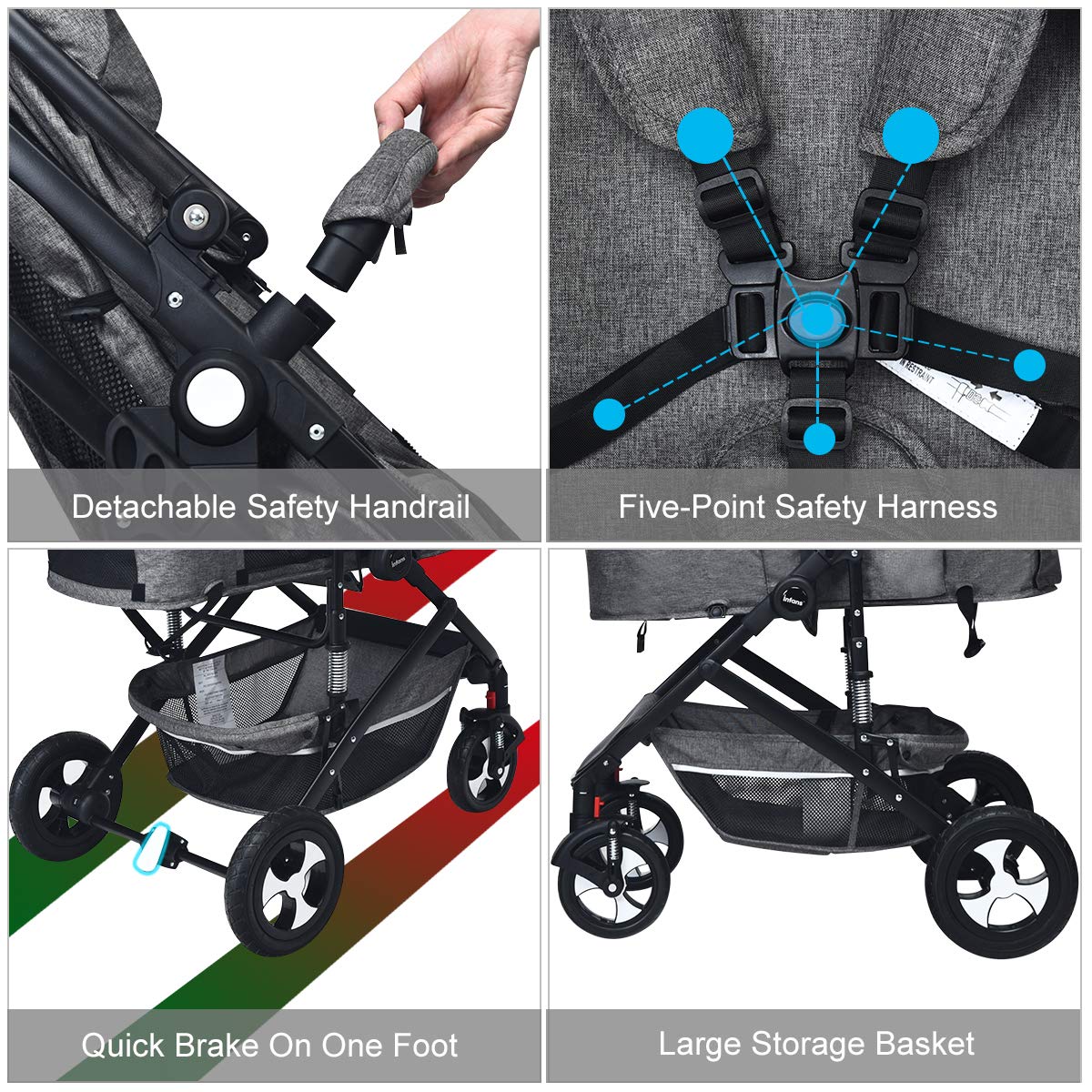

Figure 4.2: Key features including the detachable safety handrail, 5-point safety harness, quick brake, and large storage basket.

5. Betjeningsvejledning

5.1 Adjusting the Bassinet/Seat Unit

The 2-in-1 unit can be adjusted to various positions to suit your child's needs, from a sleeping bassinet to a sitting position.

• Sleeping Basket (180°): Ideal for newborns and infants.
• Semi-Recline (150°): Suitable for resting or slightly elevated comfort.
• Sitting Position (120°): For older infants and toddlers who can sit unassisted.

To adjust, locate the adjustable belt or lever under the sleeping basket and manipulate it to achieve the desired angle. Ensure the unit locks securely into each position.

Figure 5.1: Different angle adjustments for the bassinet/seat unit.

5.2 Vending af sæderetningen

The bassinet/seat unit can be reversed to allow your child to face you or face forward.

1. Ensure your child is removed from the stroller before reversing the seat.
2. Locate the release buttons or levers on both sides of the bassinet/seat unit where it connects to the frame.
3. Press the buttons/levers and lift the unit off the frame.
4. Rotate the unit 180 degrees and re-attach it to the frame, ensuring it clicks securely into place in the desired direction.

Figure 5.2: The bassinet/seat unit can be reversed for parent-facing or forward-facing.

5.3 Justering af baldakin

The full canopy can be adjusted to provide optimal shade and protection from UV radiation and weather conditions.

• Gently push or pull the canopy to extend or retract it.
• The three-section design allows for flexible adjustment.

Figure 5.3: Adjustable full canopy for sun and weather protection.

5.4 Hjulbetjening og bremser

The front wheels feature 360° rotation for maneuverability and can be locked for straight-line travel. The rear wheels have a one-touch parking brake.

• Forhjulslås: To lock the front wheels in a straight direction, press down the lever located above each front wheel. To allow 360° rotation, pull the lever up.
• Parkeringsbremse: To engage the parking brake, press down on the red pedal located near the rear wheels. Ensure both rear wheels are locked. To release, lift the pedal. Always engage the brake when the stroller is stationary.

Figure 5.4: Front wheel rotation lock and anti-skid rear wheels.

5.5 Sammenfoldning af klapvognen

The stroller is designed for easy folding for storage and transport.

1. Ensure the bassinet/seat unit is in the forward-facing position and fully upright or slightly reclined, depending on the folding mechanism.
2. Aktiver parkeringsbremsen.
3. Locate the folding release mechanisms (usually levers or buttons on the handle or frame).
4. Follow the specific folding sequence as indicated by the product's design, typically involving pressing buttons and pushing the handle forward or down.
5. Secure the folding latch to keep the stroller in its compact folded state.

Figure 5.5: Stroller dimensions and folded configuration.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din barnevogns levetid og sikker drift.

• Rengøring af ramme: Spot clean the aluminum alloy frame with a damp klud og mild sæbe. Brug ikke slibende rengøringsmidler.
• Stofpleje: The fabric cover and cushion can be machine washed. Refer to the care label for specific washing instructions (e.g., cold water, gentle cycle). Air dry thoroughly.
• Vedligeholdelse af hjul: Periodically check wheels for debris and ensure they rotate smoothly. Lubricate axles if necessary.
• Sikkerheds sele: Inspect the 5-point safety harness regularly for wear and tear. Ensure buckles function correctly.
• Opbevaring: Opbevar klapvognen et tørt, køligt sted væk fra direkte sollys, når den ikke er i brug.

7. Fejlfinding

Hvis du støder på problemer med din klapvogn, kan du bruge følgende almindelige løsninger:

• Barnevognen folder sig ikke jævnt ud/ud: Check for any obstructions in the folding mechanism. Ensure all locking latches are disengaged before folding and fully engaged after unfolding.
• Hjulene er stive eller knirkende: Clean any debris from the wheel axles. Apply a small amount of silicone-based lubricant to the moving parts of the wheels.
• Bremsen aktiveres ikke: Ensure the brake pedal is fully depressed. Check for any obstructions preventing the brake mechanism from engaging the wheels.
• Bassinet/Seat unit not attaching securely: Verify that the unit is correctly aligned with the frame connectors and pressed down until it clicks into place. Ensure no fabric or debris is blocking the connection points.

If problems persist, contact INFANS customer support for assistance.

8. Specifikationer

9. Garanti og support

For warranty information or customer support, please contact INFANS directly through their official webwebstedet eller forhandleren, hvor produktet blev købt. Gem din købsbevis i tilfælde af garantikrav.
