Indledning
The Microsoft Xbox Adaptive Controller is a unified hub for devices that help make gaming more accessible. Designed to meet the needs of gamers with limited mobility, it features large programmable buttons and connects to external switches, buttons, mounts, and joysticks to create a custom gaming experience. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your device.
Opsætning
Follow these steps to set up your Xbox Adaptive Controller for use with your Xbox console or Windows PC.
1. Udpakning og indledende inspektion
Carefully remove the controller from its packaging. Inspect the device for any visible damage. Ensure all included components are present.
2. Tænd for controlleren
The Xbox Adaptive Controller can be powered via its USB-C port or an external 5VDC 2A power adapter (sold separately). For optimal performance and to power connected accessories, using the external power adapter is recommended.
3. Tilslutning til din enhed
- Xbox-konsol: Connect the controller to your Xbox console using the included USB-C cable. The controller will automatically pair.
- Windows pc: Connect the controller to your PC using the included USB-C cable. The necessary drivers will install automatically. For wireless connection, ensure your PC has Bluetooth capability or use an Xbox Wireless Adapter (sold separately).
4. Connecting External Accessories
The Xbox Adaptive Controller features numerous 3.5mm input jacks and USB-A ports for connecting a wide range of external adaptive accessories (switches, buttons, joysticks, etc.).
This image displays the front edge of the Xbox Adaptive Controller, highlighting the numerous 3.5mm input jacks for external accessories, the USB-C port for connection, and the 5VDC 2A power input.
This image shows the top surface of the Xbox Adaptive Controller, featuring two large, prominent programmable buttons and a directional pad, along with smaller system buttons.
Betjening af controlleren
The Xbox Adaptive Controller is designed for customization. Here's how to get started with basic operation.
1. Grundlæggende kontroller
The controller features two large, integrated buttons and a D-pad. Additional system buttons (Menu, View, Xbox button) are also present. These can be used directly or remapped.
2. Customizing Button Mappings
To customize the function of the integrated buttons and connected external accessories, use the Xbox-tilbehørsappen. This app is available on Xbox consoles and Windows PCs. It allows you to remap buttons, create profiles, and adjust sensitivity settings.
3. Connecting Headsets and Other Peripherals
A 3.5mm headphone jack is located on the left side of the controller for connecting compatible headsets. USB-A ports on the sides allow for additional USB peripherals.
This image illustrates the left side of the Xbox Adaptive Controller, where a USB-A port and a 3.5mm headphone jack are located for connecting additional peripherals.

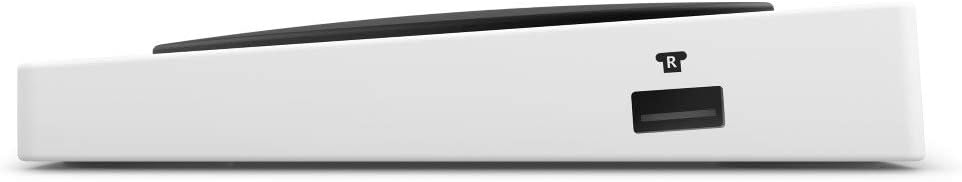

This image displays the right side of the Xbox Adaptive Controller, featuring an additional USB-A port for connecting compatible accessories.
This image shows the back of the Xbox Adaptive Controller, providing a different perspective of its design.
Opretholdelse
Proper care ensures the longevity and performance of your Xbox Adaptive Controller.
Rensning
Brug en blød, tør og fnugfri klud til at rengøre controllerens overflade. Tør let genstridigt snavs af.ampRengør kluden med vand. Undgå at bruge skrappe kemikalier, slibende rengøringsmidler eller opløsningsmidler, da disse kan beskadige overfladen eller de indvendige komponenter.
Opbevaring
When not in use, store the controller in a cool, dry place away from direct sunlight and extreme temperatures. Avoid placing heavy objects on top of the controller.
Batteripleje
The controller contains an internal rechargeable battery. To maximize battery life, avoid fully discharging the battery frequently. Charge the controller regularly, especially if it will be stored for an extended period.
Fejlfinding
If you encounter issues with your Xbox Adaptive Controller, try the following troubleshooting steps.
Controller reagerer ikke
- Ensure the controller is properly connected via USB-C or that its battery is charged for wireless use.
- Try connecting the controller to a different USB port on your console or PC.
- Genstart din Xbox-konsol eller pc.
External Accessories Not Working
- Verify that the external accessory is securely plugged into the correct 3.5mm jack or USB-A port.
- Check the Xbox Accessories app to ensure the accessory is recognized and its function is correctly mapped.
- Test the external accessory with another compatible device if possible, to rule out a fault with the accessory itself.
Forbindelsesproblemer (trådløs)
- Ensure Bluetooth is enabled on your PC or that your Xbox Wireless Adapter is properly installed.
- Prøv at parre controlleren med din enhed igen.
- Reduce the distance between the controller and your device, and remove any potential obstructions.
Firmware opdateringer
Regularly check for and install firmware updates for your Xbox Adaptive Controller via the Xbox Accessories app. Updates can resolve known issues and improve performance.
Specifikationer
- Mærke: Microsoft
- Modelnavn: Xb1 Adaptive Controller
- Kompatible enheder: PC, Windows, Xbox Consoles
- Controller type: Knap kontrol
- Forbindelse teknologi: USB-C, Bluetooth (Wireless), IR (Infrared)
- Yderligere funktioner: Ergonomic, Wireless capability
- Button Quantity: 14 (programmable inputs)
- Hardware platform: Desktop, Gaming Console, Laptop
- Strømkilde: Battery Powered (internal rechargeable), 5VDC 2A external power input
- Emnedimensioner: 5.1 x 11.5 x 0.9 tommer
- Vægt: 2.8 lb
- GTIN/UPC: 889842295368
Garantioplysninger
The Microsoft Xbox Adaptive Controller comes with a Limited Warranty. For detailed information regarding warranty coverage, terms, and conditions, please refer to the official Microsoft webwebstedet eller garantidokumentationen, der fulgte med dit køb.
Støtte
For further assistance, technical support, or to access additional resources, please visit the official Microsoft Support webwebsted. Du kan finde ofte stillede spørgsmål, fejlfindingsvejledninger og kontaktoplysninger til kundeservice.
Microsoft Support Webwebsted: support.microsoft.com
