1. Introduktion
This user manual provides comprehensive instructions for the installation, operation, and maintenance of the Sonew A7-RK-EM RFID Access Controller. This device is designed to provide secure access control for various environments, offering multiple authentication methods and robust construction.
Figur 1.1: Forside view of the Sonew A7-RK-EM RFID Access Controller. This image shows the silver-colored unit with a black keypad featuring numerical buttons (0-9), asterisk (*), and hash (#) keys.
2. Sikkerhedsoplysninger
- Læs alle instruktioner omhyggeligt før installation og drift.
- Sørg for, at strømforsyningen voltage matches the device's specifications (DC 10-24V). Incorrect voltage kan beskadige enheden.
- Afbryd strømmen, før du udfører nogen form for ledningsføring eller vedligeholdelse.
- Installationen bør udføres af kvalificeret personale, hvis du er usikker på den elektriske ledningsføring.
- Do not expose the device to extreme temperatures or corrosive environments beyond its IP67 rating.
3. Pakkens indhold
Kontroller venligst, at alle varer er til stede i pakken:
- Sonew A7-RK-EM RFID Access Controller Unit
- Mounting Screws and Wall Plugs (typically 2 sets)
- Brugervejledning (dette dokument)

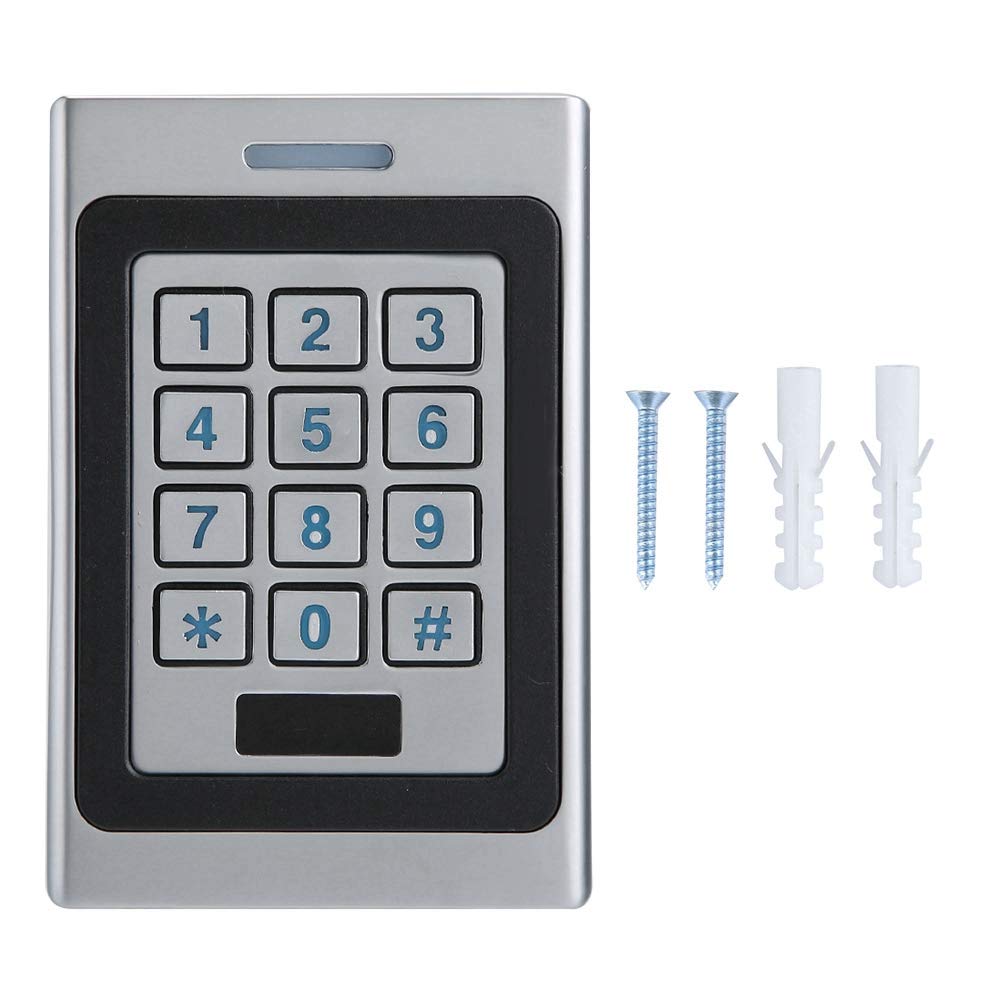

Figure 3.1: Package contents showing the access controller unit alongside mounting screws and wall plugs.
4. Produktfunktioner
The Sonew A7-RK-EM RFID Access Controller boasts a range of features designed for reliable and secure access management:
- Non-contact Induction: Supports RFID ID cards for quick and convenient access.
- Høj brugerkapacitet: Capable of storing up to 2000 user credentials.
- Flere adgangstilstande: Offers three methods for door opening: Card, Password, or a combination of Card + Password.
- Robust konstruktion: Features a durable zinc alloy casing.
- Forbedret sikkerhed: Equipped with a tamper alarm for increased security.
- Miljømæssig holdbarhed: IP67 rated for explosion-proof, waterproof, and dustproof performance, suitable for outdoor installation.
- Wiegand26 Support: Compatible with standard Wiegand26 input/output for integration with other access control systems.
- Brugeradministration: Includes functions for adding and deleting user cards for easy administration.
Figure 4.1: Visual representation of key product features, highlighting non-contact induction, user capacity, and IP67 rating.
5. Opsætning og installation
Proper installation is crucial for the optimal performance and longevity of your access controller. Refer to the wiring diagram for connections.
5.1 Montering af enheden
- Choose a suitable location for installation, typically near the door frame.
- Marker borepunkterne på væggen ved hjælp af enhedens monteringshuller som skabelon.
- Bor huller og isæt de medfølgende vægdyvler.
- Secure the access controller to the wall using the mounting screws.
Figure 5.1: The access controller unit securely mounted on a wall, ready for operation.
5.2 Ledningsdiagram
Connect the access controller to your door lock system and power supply according to the following general diagram. Specific wiring details may vary based on your lock type (e.g., NO/NC lock) and power supply unit.
Figure 5.2: Illustrative wiring diagram showing the connection of the access controller to a door lock, power supply, and exit button.
5.3 Strømtilslutning
Connect the power supply (DC 10-24V) to the designated power input terminals on the back of the unit. Ensure correct polarity.
Figur 5.3: Bagside view of the access controller, indicating the power input and other connection ports.
6. Betjeningsvejledning
6.1 Indledende opstart
Upon first power-up, the device will typically enter a standby mode. The default administrator password is usually 123456 (or similar, refer to specific product documentation if different). It is highly recommended to change this immediately.
6.2 Adgang til systemet
Users can gain access using one of the configured methods:
- Kortadgang: Present a registered RFID card to the reader area on the front of the device.
- Adgangskodeadgang: Indtast din registrerede adgangskode på tastaturet, efterfulgt af '#'-tasten.
- Card + Password Access: Present your registered RFID card, then enter your password followed by the '#' key.
Figure 6.1: A user demonstrating card access by holding an RFID card near the controller's reader.
7. Programmering og konfiguration
This section outlines common programming steps. Refer to the full programming guide for advanced features.
7.1 Gå ind i programmeringstilstand
To enter programming mode, typically you will press * then enter the Administrator Password, followed by #. The device will usually emit a confirmation tone or light indicator.
7.2 Changing Administrator Password
- Gå ind i programmeringstilstand.
- Follow the specific command for changing admin password (e.g., 0 + new password + #).
- Bekræft den nye adgangskode.
7.3 Adding User Cards
- Gå ind i programmeringstilstand.
- Follow the specific command for adding users (e.g., 1 + user ID + #).
- Present the RFID card to be added to the reader.
- The device will confirm successful addition. Repeat for additional cards.
7.4 Deleting User Cards
- Gå ind i programmeringstilstand.
- Follow the specific command for deleting users (e.g., 2 + user ID + #, or 3 + present card to delete + #).
- The device will confirm successful deletion.
Note: Specific programming codes and sequences may vary. Always refer to the detailed programming instructions provided with your device for precise commands.
8. Vedligeholdelse
The Sonew A7-RK-EM access controller is designed for low maintenance. However, regular checks can ensure optimal performance:
- Rensning: Tør overfladen af med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Ledningsinspektion: Periodically check all wiring connections for looseness or damage.
- Funktionstest: Regularly test the access methods (card, password) to ensure they are working correctly.
- Firmwareopdateringer: Tjek producentens website for any available firmware updates (if applicable).
Figure 8.1: The device's IP67 rating ensures durability against water and dust, simplifying outdoor maintenance.
9. Fejlfinding
Hvis du støder på problemer med din adgangscontroller, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | No power supply, incorrect wiring, or faulty power adapter. | Kontroller strømtilslutninger, sørg for korrekt lydstyrketage (DC 10-24V), and test power adapter. |
| Card/Password not recognized. | Card not registered, incorrect password, or card reader malfunction. | Ensure card/password is correctly registered. Re-register if necessary. Clean card reader area. |
| Door does not unlock. | Lock wiring issue, faulty lock, or incorrect lock settings. | Verify lock wiring (NO/NC), test the lock independently, and check controller's lock output settings. |
| Tamper alarm constantly triggers. | Improper mounting or physical interference with the tampeh skifte. | Ensure the device is securely mounted and there is no obstruction to the tampeh skifte. |
10. Specifikationer
| Feature | Detalje |
|---|---|
| Model | A7-RK-EM |
| Mærke | Sonew |
| Materiale | Zinc Alloy (Casing), Metal |
| Input bindtage | DC 10-24V |
| Brugerkapacitet | 2000 Brugere |
| Adgangstilstande | Kort, Adgangskode, Kort + Adgangskode |
| Wiegand-interface | Wiegand26 |
| Beskyttelsesvurdering | IP67 (Waterproof, Dustproof, Explosion-proof) |
| Fabrikant | shanrya |
| UPC | 719855487675 |
Figur 10.1: Detaljeret view of the product, showing front keypad and rear label with input voltage and certifications.
11. Garanti og support
Specific warranty information for the Sonew A7-RK-EM RFID Access Controller is not provided in this manual. Please refer to your purchase documentation or contact the retailer/manufacturer directly for warranty terms and technical support.
For further assistance, please visit the manufacturer's official webwebsted eller kontakt deres kundeserviceafdeling.
