Antec NeoECO Gold Zen NE600G Zen 600W Power Supply User Manual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your Antec NeoECO Gold Zen NE600G Zen 600W Power Supply. This power supply unit (PSU) is designed to deliver stable and efficient power to your personal computer system, featuring 80 PLUS Gold certification for high energy efficiency and a 120mm silent fan for quiet operation.

Figur 1.1: Top-down view of the Antec NeoECO Gold Zen NE600G Zen 600W Power Supply, showing the fan grill and Antec logo.

2. Sikkerhedsoplysninger

Please read and follow all safety instructions carefully before installing or operating the power supply unit. Failure to do so may result in personal injury or damage to the product or other components.

• Høj voltage: The power supply contains high voltage components. Do not open the power supply casing. Der er ingen dele indeni, som kan serviceres af brugeren.
• Professionel installation: Installation skal udføres af kvalificeret personale.
• Strømafbrydelse: Always disconnect the AC power cord from the wall outlet before installing, removing, or cleaning the power supply.
• Korrekt jording: Ensure the power supply is properly grounded to prevent electrical shock.
• Ventilation: Do not block any ventilation openings of the power supply. Ensure adequate airflow around the unit.
• Fugtighed: Do not operate the power supply in high humidity environments or near water.
• Temperatur: Avoid operating the power supply in excessively high temperatures.

3. Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

• Antec NeoECO Gold Zen NE600G Zen 600W Power Supply Unit
• AC strømledning
• Monteringsskruer
• Brugermanual

4. Produktfunktioner

The Antec NeoECO Gold Zen NE600G Zen 600W Power Supply offers the following key features:

• 600W kontinuerlig effekt: Provides stable and reliable power output.
• 80 PLUS guld certificeret: Achieves up to 92% efficiency, reducing electricity consumption and heat generation.
• 120mm Silent Fan: High-quality fan designed for quiet operation and long lifespan.
• CircuitShield Industrial Grade Protection: Includes multiple protection circuits for system safety.
• Non-Modular Design: All cables are permanently attached to the power supply.
• 99% +12V Output: Strong +12V rail for maximum CPU and GPU support.

Figur 4.1: Side view of the Antec NeoECO Gold Zen NE600G Zen 600W Power Supply, displaying the product branding and model name.

Figur 4.2: Nærbillede view of the 120mm fan, highlighting its design for efficient and quiet cooling.

5. Specifikationer

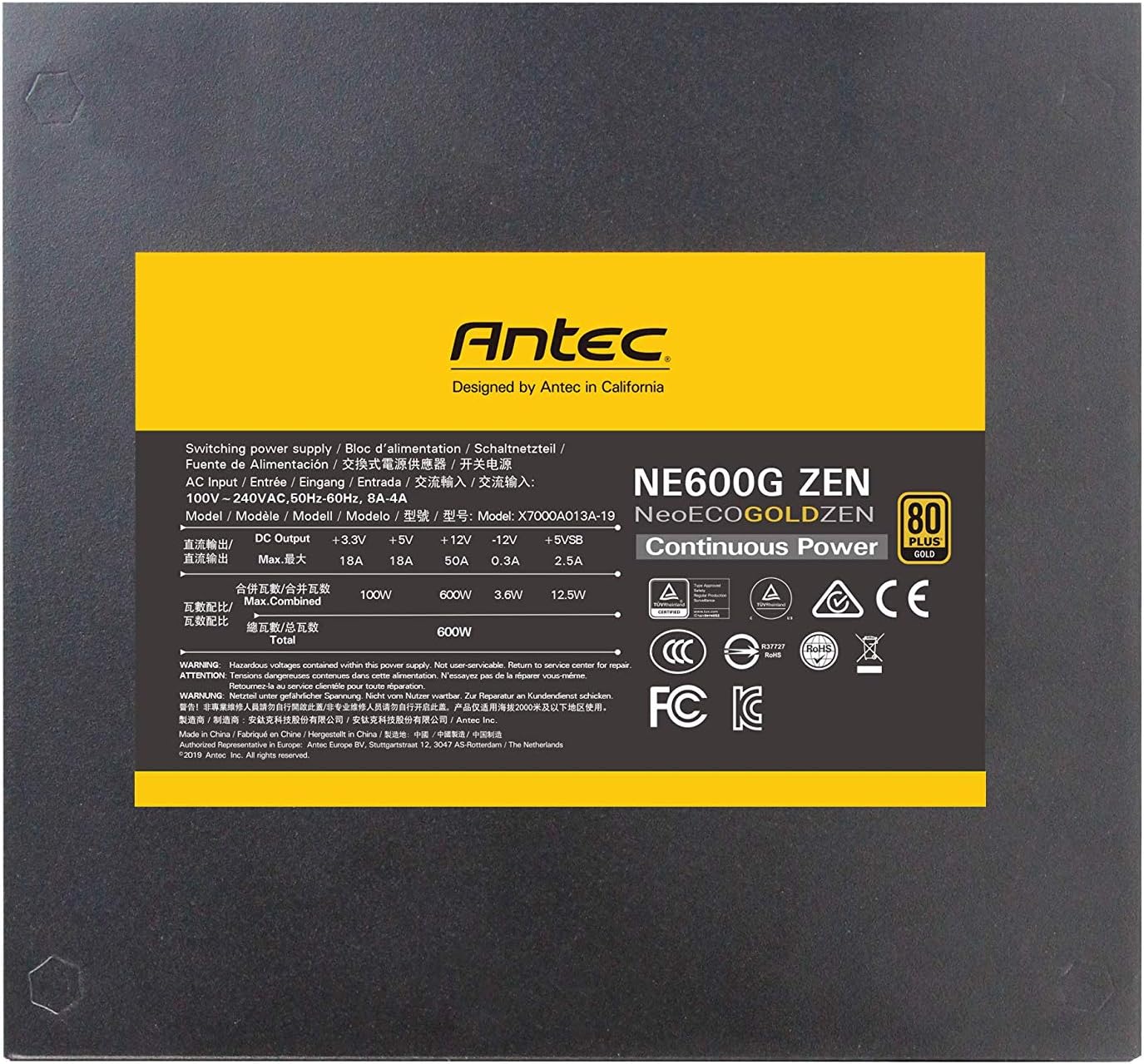

Figure 5.1: Electrical specifications label on the Antec NeoECO Gold Zen NE600G Zen 600W Power Supply, detailing voltage og strømudgange.

6. Installationsvejledning

Follow these steps to install your Antec NeoECO Gold Zen NE600G Zen 600W Power Supply into your computer system:

1. Forberedelse: Sørg for, at din computer er helt slukket og taget stikket ud af stikkontakten. Åbn computerens kabinet.
2. Fjern den gamle strømforsyning (hvis relevant): Disconnect all cables from your old power supply and remove it from the case.
3. Monter den nye strømforsyning: Carefully place the Antec NE600G Zen into the power supply bay of your computer case. Align the screw holes and secure the PSU with the provided mounting screws.
4. Tilslut hovedstrøm: Connect the 24-pin ATX connector to the corresponding port on your motherboard. Ensure it clicks into place.
5. Tilslut CPU-strøm: Connect the 8-pin (4+4) CPU/EPS connector to the CPU power port on your motherboard.
6. Tilslut grafikkortstrøm: Connect the 8-pin (6+2) PCI-E connectors to your graphics card(s) if required. Use both 6-pin and 2-pin sections as needed.
7. Tilslut ydre enheder: Connect the SATA power connectors to your storage drives (HDDs, SSDs) and optical drives. Use Molex connectors for other compatible peripherals if necessary.
8. Kabelstyring: Route the cables neatly to improve airflow and aesthetics within your case.
9. Close Case and Connect AC: Close your computer case, then connect the AC power cord to the power supply and plug it into a wall outlet.

Figure 6.1: The Antec NeoECO Gold Zen NE600G Zen 600W Power Supply with its non-modular cables, ready for installation.

Figur 6.2: Bagside view of the power supply, indicating the AC power inlet and the main power switch.

7. Betjening

After successful installation, operating your Antec NeoECO Gold Zen NE600G Zen 600W Power Supply is straightforward:

• Tænd: Ensure the power switch on the back of the PSU (Figure 6.2) is in the 'I' (On) position. Then, press the power button on your computer case.
• Stille drift: The 120mm fan is designed for quiet operation. Under normal loads, the fan noise should be minimal.
• Sluk: To turn off your computer, use the operating system's shutdown function. For complete power disconnection, switch the PSU's power switch to 'O' (Off) and unplug the AC power cord.

8. Vedligeholdelse

Korrekt vedligeholdelse sikrer strømforsyningens levetid og optimale ydeevne:

• Støvrensning: Periodically clean dust from the power supply's fan grill and interior of your computer case. Use compressed air to gently blow out dust, ensuring the fan does not spin rapidly during cleaning. Always disconnect power before cleaning.
• Luftstrøm: Ensure that the computer case has adequate airflow and that the power supply's ventilation is not obstructed.
• Kabelstyring: Maintain tidy cable management to prevent obstruction of airflow within the case.

9. Fejlfinding

If you encounter issues with your Antec NeoECO Gold Zen NE600G Zen 600W Power Supply, refer to the following common troubleshooting steps:

• Ingen strøm:
  • Kontroller, om netledningen er korrekt tilsluttet både stikkontakten og strømforsyningen.
  • Ensure the power switch on the back of the PSU is in the 'I' (On) position.
  • Verify that the 24-pin ATX and 8-pin CPU power connectors are firmly seated on the motherboard.
  • Test stikkontakten med en anden enhed for at bekræfte, at den har strøm.
• Systemustabilitet/Tilfældige nedlukninger:
  • Ensure all power connectors (motherboard, CPU, GPU, drives) are securely connected.
  • Check for proper ventilation and ensure the PSU fan is spinning. Overheating can cause instability.
  • If you have recently added new components, ensure your total system wattage does not exceed the PSU's capacity.
• Usædvanlige lyde:
  • If you hear grinding or rattling, it might indicate a fan issue. Disconnect power and inspect the fan for obstructions. Do not attempt to repair the fan yourself.

If these steps do not resolve your issue, please contact Antec customer support for further assistance.

10. Garanti og support

Your Antec NeoECO Gold Zen NE600G Zen 600W Power Supply is backed by a 5-year Antec Quality Warranty fra købsdatoen. Denne garanti dækker fejl i materialer og udførelse ved normal brug.

For warranty claims or technical support, please visit the official Antec website or contact their customer service department. You may be required to provide proof of purchase.

• Online support: Refer to the official Antec webwebsted med ofte stillede spørgsmål, fejlfindingsvejledninger og kontaktoplysninger til support.
• Kontaktoplysninger: Specific contact details for Antec support can typically be found on their webwebstedet eller i din produktemballage.
