De'Longhi 360° Pedestal Cooling Fan DEAPF40WH Instruction Manual

Indledning

Thank you for choosing the De'Longhi 360° Pedestal Cooling Fan, model DEAPF40WH. This manual provides important information for the safe and efficient operation, maintenance, and troubleshooting of your fan. Please read these instructions carefully before using the appliance and keep them for future reference.

Vigtige sikkerhedsinstruktioner

ADVARSEL: For at mindske risikoen for brand, elektrisk stød eller personskade skal du overholde følgende:

• Tag altid stikket ud af ventilatoren, inden du rengør eller udfører vedligeholdelse.
• Brug ikke ventilatoren med en beskadiget ledning eller stik. Hvis ledningen er beskadiget, skal den udskiftes af producenten, dennes servicerepræsentant eller lignende kvalificerede personer for at undgå fare.
• Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de har fået opsyn eller instruktion i brugen af ​​apparatet af en person, der er ansvarlig for deres sikkerhed.
• Børn skal være under opsyn for at sikre, at de ikke leger med apparatet.
• Do not insert fingers or foreign objects into the grille or any openings.
• Brug ikke ventilatoren i nærheden af ​​vand eller i damp steder.
• Sørg for, at ventilatoren er placeret på en stabil, plan overflade for at forhindre, at den vælter.
• Dæk ikke ventilatoren til under drift.

Produkt overview

Familiarize yourself with the components of your De'Longhi Pedestal Cooling Fan.

Billede: Front view of the De'Longhi 360° Pedestal Cooling Fan DEAPF40WH, showing the fan grille, central De'Longhi logo, and the control panel on the pedestal.

Hovedkomponenter:

• Ventilatorhoved: Contains the blades and protective grille.
• Kontrolpanel: LED display and buttons for operation.
• Piedestal: Adjustable height stand.
• Grundlag: Giver stabilitet.
• Fjernbetjening: For bekvem betjening på afstand.

Opsætning og montering

The fan requires some assembly before first use. Please follow these steps carefully.

1. Udpak komponenter: Carefully remove all parts from the packaging. Ensure all components are present: fan head, front grille, rear grille, fan blade, motor shaft, pedestal pole, base, and remote control.
2. Saml basen: Attach the pedestal pole to the base. Secure it firmly using the provided screws or locking mechanism.
3. Install Rear Grille: Place the rear grille onto the motor shaft, ensuring it aligns with the positioning pins. Secure it with the provided nut.
4. Fastgør ventilatorblad: Slide the fan blade onto the motor shaft. Ensure it is seated correctly and secure it with the spinner cap, turning it counter-clockwise to tighten.
5. Installer frontgitter: Align the front grille with the rear grille and secure them together using the clips or screws provided around the circumference.
6. Tilslut strøm: Sæt netledningen i en passende stikkontakt.

Note: Assembly may vary slightly. Refer to the diagrams in your physical manual for precise steps.

Betjeningsvejledning

Your De'Longhi fan can be operated using the control panel on the unit or the remote control.

Billede: Close-up of the control panel on the De'Longhi 360° Pedestal Cooling Fan DEAPF40WH, showing the LED display and various function buttons.

Kontrolpanel og fjernbetjeningsfunktioner:

• Tænd/sluk-knap (tænd/sluk): Tryk for at tænde eller slukke for ventilatoren.
• Hastighedsknap: Press to cycle through 3 fan speeds: Low (1), Medium (2), High (3).
• Mode knap: Press to select wind modes: Normal, Nature, Sleep.
  • Normal: Giver en konstant luftstrøm ved den valgte hastighed.
  • Natur: Simulerer en naturlig brise ved at variere ventilatorhastigheden.
  • Sove: Gradually reduces fan speed over time for quieter operation during sleep.
• Oscillationsknap: Press to activate or deactivate the 360° automatic horizontal oscillation.

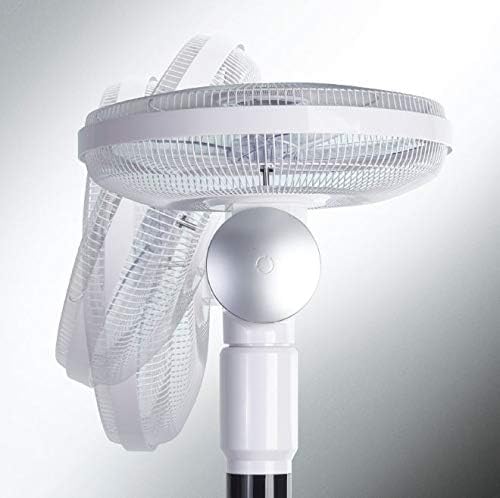

  Billede: Side view of the De'Longhi 360° Pedestal Cooling Fan DEAPF40WH, illustrating the manual vertical tilt capability of the fan head.

  The fan also features 90° manual vertical oscillation. Adjust the fan head manually to direct airflow up or down as desired.

• Timer knap: Press to set the auto-off timer for 1, 2, 4, or 8 hours. The fan will automatically turn off after the selected duration.

Fjernbetjening:

The remote control provides access to all functions available on the main control panel for convenient operation. Ensure batteries are correctly inserted into the remote control.

Pleje og vedligeholdelse

Regular cleaning and proper maintenance will ensure the longevity and efficient operation of your fan.

• Rengøring af ydersiden: Tag altid stikket ud af ventilatoren før rengøring. Brug en blød, tør klud.amp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or solvents, as these may damage the finish.
• Rengøring af grill og knive: Periodically, dust may accumulate on the grilles and fan blades. To clean, carefully remove the front grille (refer to assembly instructions in reverse). Wipe the blades and grilles with a soft, dry or slightly damp Sørg for, at alle dele er helt tørre, før du samler og bruger ventilatoren igen.
• Opbevaring: If the fan will not be used for an extended period, unplug it and store it in a cool, dry place, preferably in its original packaging, to protect it from dust.
• Ingen smøring nødvendig: Ventilatormotoren er permanent smurt og kræver ingen yderligere smøring.

Fejlfinding

Før du kontakter kundeservice, bedes du læse følgende almindelige problemer og løsninger.

Specifikationer

Garanti og support

De'Longhi-produkter er fremstillet efter de højeste kvalitetsstandarder. For detaljerede garantioplysninger henvises til garantikortet, der følger med dit produkt, eller besøg den officielle De'Longhi webwebsted.

If you experience any issues or have questions not covered in this manual, please contact De'Longhi customer support for assistance. Have your model number (DEAPF40WH) and purchase details ready when contacting support.

Online support: www.delonghi.com
