Rosieres RDIN4S622PS-47 Built-in Dishwasher User Manual

1. Introduktion

This manual provides essential information for the safe and efficient use of your Rosieres RDIN4S622PS-47 fully integrated dishwasher. Please read these instructions carefully before installation, operation, or maintenance to ensure optimal performance and to prevent damage or injury. Keep this manual for future reference.

2. Sikkerhedsoplysninger

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury to persons. This appliance is intended for household use only.

• Elektrisk sikkerhed: Ensure the appliance is properly grounded. Do not use extension cords or adapters. Disconnect the appliance from the power supply before any cleaning or maintenance.
• Vandsikkerhed: Ensure water connections are secure to prevent leaks. Do not operate the dishwasher if there are visible signs of damage to the water inlet hose or electrical cable.
• Børnesikkerhed: Hold børn væk fra opvaskemaskinen, især når den er i brug. Vaskemidler er ætsende; opbevar dem utilgængeligt for børn.
• Læssesikkerhed: Placer skarpe genstande (knive, gafler) med håndtagene opad for at forhindre skader. Overfyld ikke opvaskemaskinen.
• Brandfarlige materialer: Do not wash items that have been in contact with gasoline, paint, or other flammable substances.

3. Opsætning og installation

The Rosieres RDIN4S622PS-47 is a fully integrated built-in dishwasher. It requires a custom door panel, which is not included with the appliance, to match your kitchen cabinetry.

3.1 Installationsdimensioner

Careful measurement is crucial for proper integration. Refer to the diagram below for detailed installation dimensions.

Billedbeskrivelse: A technical drawing illustrating the required dimensions for installing the Rosieres RDIN4S622PS-47 dishwasher. Key measurements include a minimum cabinet depth of 550mm, a width of 598mm, and adjustable height from 818mm to 898mm for the appliance, with a total cabinet height range of 820mm to 900mm. The diagram also shows clearances for the plinth (95-170mm) and door panel thickness.

• Produktmål (H x B x D): 81.8-89.8 cm x 59.8 cm x 55 cm
• Built-in Dimensions (H x W x D): 82-90 cm x 60 cm x 55 cm
• Ensure adequate space for water inlet, drain hose, and electrical connections.
• Level the appliance using the adjustable feet to ensure stable operation and proper door alignment.

4. Betjeningsvejledning

4.1 Kontrolpanel

The dishwasher features a Smooth Touch LCD programmer for easy selection of programs and settings. The LCD display provides information on the selected cycle and remaining time.

4.2 Fyldning af opvaskemaskinen

Proper loading ensures optimal cleaning results and efficient use of water and energy. The Rosieres RDIN4S622PS-47 can accommodate up to 16 place settings.

Billedbeskrivelse: En åben view of the Rosieres RDIN4S622PS-47 dishwasher interior, showing the upper and lower baskets fully loaded with various dishes, glasses, and cutlery. The third basket for cutlery is visible at the very top. The image highlights the capacity and flexible loading options.

• Øverste kurv: Ideal for glasses, cups, small plates, and bowls. Features an Easy-Click adjustable system for height customization.
• Nederste kurv: Suitable for larger plates, pots, pans, and serving dishes. Includes foldable tines for flexible loading.
• Third Basket: Dedicated for cutlery, ensuring thorough cleaning and organization.
• Sørg for, at servicet ikke blokerer spulearmene.

4.3 Tilsætning af vaskemiddel og skyllemiddel

Open the detergent dispenser and fill it according to the manufacturer's instructions and the soil level of your dishes. Fill the rinse aid dispenser as needed; the dishwasher has a dedicated rinse aid dispenser.

4.4 Programvalg

The dishwasher offers 12 programs and 7 temperature settings, along with a sensor function to optimize washing. Select the appropriate program based on the type and soil level of your dishes:

• Eco 45 °C
• Hurtig 29 min
• Skylle
• Steam 75 °C
• Glass 45 °C
• Hygiene + 75 °C
• Daily 45 °C - 55 °C
• Universal 50 °C - 60 °C
• Hurtig 39 min
• Total Care 50 °C
• Universal Plus 65 °C - 75 °C
• Eco Plus 55 °C

4.5 Start af en cyklus

Close the dishwasher door firmly. Select your desired program using the touch controls. You can also utilize the delayed start function if you wish to postpone the cycle start.

4.6 Slut på cyklus

At the end of the washing cycle, the dishwasher features an automatic door opening function to facilitate quick drying and improve energy efficiency. The LCD display will indicate the cycle completion.

4.7 Særlige funktioner

• Ekstra tør: Provides enhanced drying performance.
• Quick-Drying Door Opening: Automatically opens the door at the end of the cycle for improved drying.
• Night Program (38 dB): Operates at a reduced noise level for quiet overnight washing.
• Forbindelse: Equipped with Wi-Fi for smart control and monitoring.

5. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din opvaskemaskines levetid og effektivitet.

• Rengøring af filtre: The dishwasher is equipped with a triple self-cleaning filter system. Regularly check and clean the filters to remove food particles and prevent blockages. Refer to the detailed instructions in the full user manual for filter removal and cleaning.
• Rengøring af sprøjtearmene: Kontrollér jævnligt spulearmenes dyser for blokeringer, og rengør dem om nødvendigt.
• Rengøring af interiøret: Tør de indvendige overflader af med adamp cloth. For stubborn stains or odors, use a dishwasher cleaner.
• Rengøring af ydersiden: Tør de udvendige overflader af med en blød, damp klæde. Undgå slibende rengøringsmidler.
• Saltpåfyldning: If your water is hard, ensure the salt reservoir is filled to prevent limescale buildup.

6. Fejlfinding

Før du kontakter kundeservice, bedes du gennemgå følgende almindelige problemer og løsningerne på dem:

• Opvaskemaskinen starter ikke: Check if the power cord is plugged in, the door is fully closed, and the circuit breaker has not tripped.
• Tallerkenerne er ikke rene: Ensure spray arms are not blocked, filters are clean, and detergent dispenser is not obstructed. Check water temperature and program selection.
• Vand løber ikke ud: Check the drain hose for kinks or blockages, and ensure the filter system is clean.
• Overdreven støj: Ensure dishes are loaded correctly and not interfering with spray arms. Check for foreign objects in the pump area.
• Lækager: Check door seal for damage or debris. Ensure water connections are tight.

For persistent issues, contact qualified service personnel.

7. Specifikationer

Below are the technical specifications for the Rosieres RDIN4S622PS-47 dishwasher:

7.1 Energimærke

The energy label provides information on the energy efficiency and performance of the appliance.

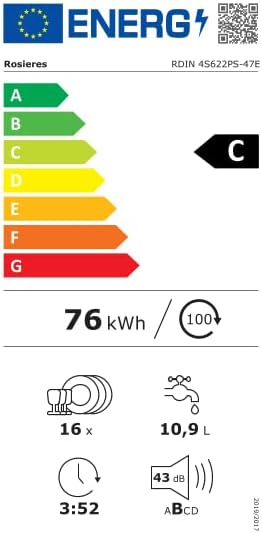

Billedbeskrivelse: The EU energy label for the Rosieres RDIN4S622PS-47 dishwasher. It displays an energy efficiency class of C, an energy consumption of 76 kWh per 100 cycles, a capacity of 16 place settings, water consumption of 10.9 liters per cycle, a program duration of 3:52, and a noise level of 43 dB (Class B).

8. Garanti og support

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For technical support or service, please contact the Rosieres customer service department or your authorized service provider. Ensure you have your model number (RDIN4S622PS-47) and purchase details available when seeking assistance.
