Philips BVP154 LED50/830 PSU 50W VWB CE LED Floodlight User Manual

1. Introduktion

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Philips BVP154 LED50/830 PSU 50W VWB CE LED Floodlight. This high-quality LED floodlight is designed for both indoor and outdoor applications, offering high luminous efficiency and durability.

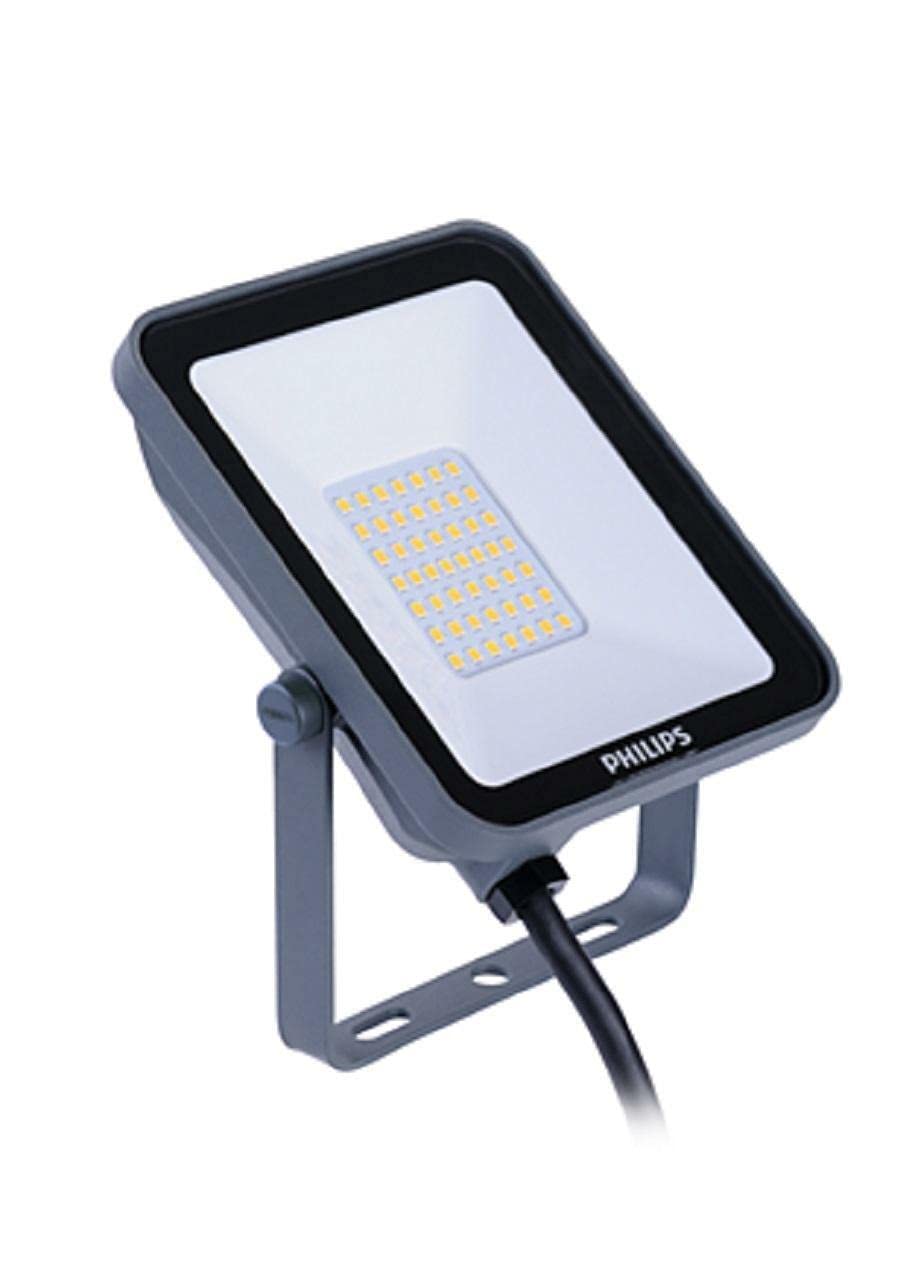

Figure 1: Philips BVP154 LED Floodlight. This image shows the Philips BVP154 LED Floodlight, highlighting its compact design and the wide beam angle suitable for various lighting applications.

The Philips BVP154 LED Floodlight features a 50W LED module, delivering 5000 lumens of warm white light (3000 Kelvin) with a wide 100° beam angle. Its robust construction, rated IP65, ensures reliability and resistance to dust and water, making it suitable for challenging environments.

2. Installation og opsætning

Before beginning installation, ensure the power supply is disconnected to prevent electrical shock. Installation should be performed by a qualified electrician in accordance with local electrical codes and regulations.

• Montering: Securely mount the floodlight to a stable surface using appropriate hardware. The integrated power supply unit simplifies installation.
• Ledningsføring: Connect the floodlight to a 240 Volt AC power source. Ensure all connections are tight and properly insulated.
• Placering: Adjust the floodlight's angle to achieve the desired illumination area. The wide 100° beam angle provides broad coverage.
• Miljøhensyn: The IP65 rating ensures protection against dust ingress and low-pressure water jets, making it suitable for outdoor and humid environments.

3. Betjening

The Philips BVP154 LED Floodlight is designed for straightforward operation. Once properly installed and connected to the power supply, it will illuminate when power is supplied to the circuit. There are no complex controls or settings for basic operation.

• Tænd/sluk: Control the floodlight using an external switch connected to its power circuit.
• Lysoutput: The 50W LED provides a high and constant luminosity of 5000 lumens with a warm white color temperature of 3000 Kelvin.

4. Vedligeholdelse

The Philips BVP154 LED Floodlight requires minimal maintenance due to its durable design and LED technology. Regular cleaning and inspection will help ensure optimal performance and longevity.

• Rensning: Periodically clean the exterior of the floodlight, especially the lens, with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish or lens. Ensure the power is off before cleaning.
• Inspektion: Regularly check for any signs of damage to the housing, wiring, or mounting brackets. Ensure all connections remain secure.
• IP65-klassificering: The floodlight's IP65 rating means it is sealed against dust and water. Do not attempt to open the sealed unit for internal cleaning or repair, as this will void the warranty and compromise its weather resistance.

5. Fejlfinding

If you encounter issues with your Philips BVP154 LED Floodlight, refer to the following common troubleshooting steps:

• Lyset tænder ikke:
  • Check the power supply to the circuit.
  • Sørg for, at alle elektriske forbindelser er sikre og korrekte.
  • Verify that the external switch is in the 'ON' position.
• Lyset er svagt eller flimrer:
  • Confirm the floodlight is receiving the correct voltage (240V).
  • Tjek for løse ledningsforbindelser.
  • Sørg for, at linsen er ren og fri for blokeringer.
• Water or Moisture Inside the Unit:
  • If the unit is damaged or improperly installed, its IP65 rating may be compromised. Disconnect power immediately and contact customer support. Do not attempt to repair a sealed unit.

For issues not resolved by these steps, please contact Philips customer support.

6. Tekniske specifikationer

7. Garanti og support

This Philips product is manufactured to high-quality standards and is designed for reliable performance. For specific warranty information, please refer to the documentation provided with your purchase or visit the official Philips webwebsted.

For technical support, service, or inquiries regarding your Philips BVP154 LED Floodlight, please contact Philips customer service through their official channels. Ensure you have your product model number and purchase details available when contacting support.

The CE marking on this product indicates compliance with European Union directives applicable to the product.
