Continental EDISON Multifunction Pastry Robot 1000W - User Manual

1. Vigtige sikkerhedsinstruktioner

Læs venligst alle instruktioner omhyggeligt, inden apparatet tages i brug, og gem dem til senere brug. Forkert betjening kan forårsage skade på apparatet og personskade hos brugeren.

• Sørg altid for, at apparatet er taget ud af stikkontakten før montering, adskillelse eller rengøring.
• Motorenheden må ikke nedsænkes i vand eller andre væsker. Rengør medamp kun klud.
• Hold hænder, hår, tøj og redskaber væk fra bevægelige dele under drift for at forhindre skader.
• Never operate the appliance with a damaged cord or plug, or if it has malfunctioned or been dropped or damaged in any way. Contact customer support for repair.
• Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de er blevet under opsyn eller instruktion i brugen af ​​apparatet af en person, der er ansvarlig for deres sikkerhed. .
• Børn skal være under opsyn for at sikre, at de ikke leger med apparatet.
• Brug ikke tilbehør, der ikke er anbefalet eller solgt af producenten, da dette kan forårsage brand, elektrisk stød eller personskade.
• Brug ikke apparatet udendørs.
• Undgå kontakt med bevægelige dele.
• Lad ikke ledningen hænge ud over kanten af ​​et bord eller bord, eller rør ved varme overflader.
• Always operate the appliance on a flat, stable, and dry surface.

2. Produktet er slutview og komponenter

The Continental EDISON Multifunction Pastry Robot is a versatile kitchen appliance designed for mixing, blending, and meat grinding tasks. Familiarize yourself with its components before use.

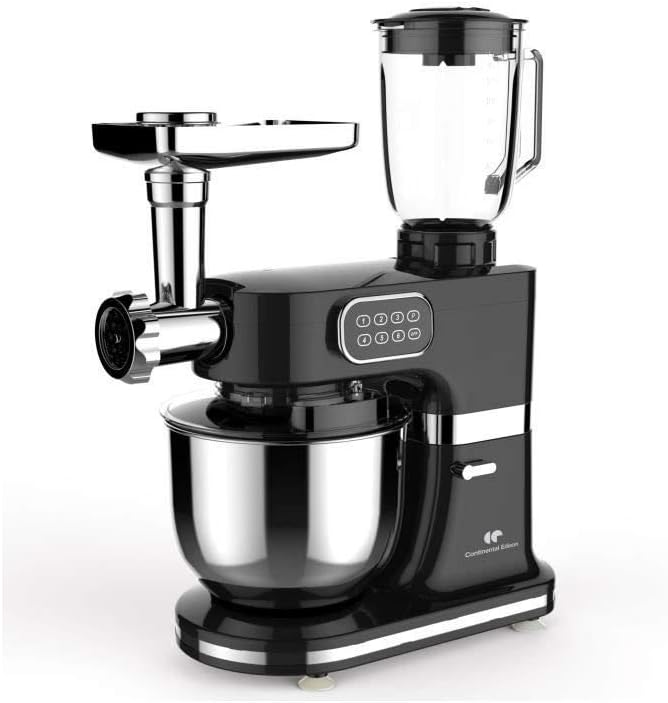

Figur 2.1: Main unit of the Continental EDISON Multifunction Pastry Robot. This image shows the stand mixer base with the stainless steel bowl, the blender attachment mounted on top, and the meat grinder attachment on the side. The control panel with speed settings is visible on the side of the motor unit.

Hovedkomponenter:

• Motorenhed: The main body housing the motor and control panel.
• Blandet skål: 5-liter stainless steel bowl for mixing ingredients.
• Splash Guard: Prevents ingredients from splashing out of the mixing bowl during operation.
• Blender: 1.5-liter glass blender with lid for liquids and smoothies.
• Kødhakkertilbehør: For grinding meat and making sausages.

Tilbehør inkluderet:

Figur 2.2: The Continental EDISON Multifunction Pastry Robot displayed with all its included accessories. This includes the mixing bowl, blender, meat grinder, dough hook, whisk, beater, various grinding plates, sausage stuffer attachments, and cookie accessory.

• Dejkrog: Til æltning af tunge deje som brød- eller pizzadej.
• Piskeris: Til piskefløde, æggehvider og lette deje.
Beater (Mixing Paddle): Til blanding af kager, småkager og almindelige deje.
• Meat Grinder Dies: Various sizes for fine, medium, and coarse grinding.
• Sausage Stuffer Accessories: Til fremstilling af hjemmelavede pølser.
• Cookie Accessory: Til at forme småkager.

3. Opsætning og montering

Before first use, clean all parts that will come into contact with food as described in the 'Cleaning and Maintenance' section.

3.1 Stand Mixer Assembly:

1. Placer motorenheden på en ren, stabil og tør overflade.
2. Lift the head of the mixer by pressing the release button.
3. Placer blandeskålen i rustfrit stål i bunden, og drej den med uret, indtil den låser sikkert på plads.
4. Attach the desired accessory (dough hook, whisk, or beater) by pushing it upwards into the accessory shaft and turning it slightly until it clicks into place.
5. Lower the mixer head until it locks into position.
6. Placer stænkbeskyttelsen over blandeskålen.

3.2 Blender Assembly:

1. Ensure the blender base is securely attached to the glass jug.
2. Remove the cover from the blender drive on top of the motor unit.
3. Place the assembled blender jug onto the blender drive, ensuring it is firmly seated.
4. Fastgør blenderlåget.

3.3 Meat Grinder Assembly:

1. Remove the cover from the front attachment port of the motor unit.
2. Insert the meat grinder attachment into the port, aligning the notch with the groove, and turn clockwise to secure.
3. Assemble the meat grinder components: screw, blade, desired grinding plate, and locking ring.
4. Attach the feeding tray on top of the grinder.
5. For sausage making, attach the sausage stuffer accessory after the grinding plate.

4. Betjeningsvejledning

Always ensure the appliance is correctly assembled and plugged into a suitable power outlet (230V, 50Hz) before operation.

4.1 Generel drift:

1. Sæt apparatet i en stikkontakt.
2. Turn the speed control knob to the desired setting (1-6). Start with a lower speed and gradually increase as needed.
3. To stop the appliance, turn the speed control knob to '0' (off) and unplug.

4.2 Using the Stand Mixer:

• Ensure the mixing bowl and desired attachment are correctly installed.
• Add ingredients to the mixing bowl. Do not overfill.
• Sænk mixerhovedet, og sørg for, at det er låst.
• Select a suitable speed. For dough, start slow (speed 1-2) and increase. For whipping, use higher speeds (speed 4-6).
• Use the splash guard to prevent splattering.

4.3 Using the Blender:

• Ensure the blender is correctly assembled and attached to the motor unit.
• Add liquids and ingredients to the blender jug. Do not exceed the maximum fill line (1.5L).
• Fastgør låget.
• Select a suitable speed (typically higher speeds for blending).
• Do not operate the blender continuously for more than 1 minute. Allow it to cool down between uses.

4.4 Using the Meat Grinder:

• Ensure the meat grinder is correctly assembled and attached.
• Cut meat into small pieces that fit into the feeding tray. Remove bones, gristle, and tough sinews.
• Turn on the appliance to a medium speed (speed 3-4).
• Feed the meat into the grinder using the food pusher. Never use your fingers or other utensils.
• For sausage making, ensure the sausage stuffer is attached and feed the ground meat into the casing.

5. Rengøring og vedligeholdelse

Korrekt rengøring og vedligeholdelse vil sikre dit apparats levetid og optimale ydeevne.

5.1 Before Cleaning:

• Tag altid stikket ud af stikkontakten.
• Disassemble all removable parts (mixing bowl, attachments, blender jug, meat grinder components).

5.2 Rengøringsinstruktioner:

• Motorenhed: Tør motorenhedens yderside af med enamp cloth. Do not use abrasive cleaners. Never immerse the motor unit in water.
• Mixing Bowl, Attachments (Dough Hook, Whisk, Beater), Splash Guard, Blender Jug, Meat Grinder Components: Wash these parts in warm, soapy water. Rinse thoroughly and dry immediately. Note: The product is not suitable for dishwashers. Hand washing is recommended for all parts to preserve their finish and functionality.
• Sørg for, at alle dele er helt tørre, før de monteres igen eller opbevares.

5.3 Opbevaring:

Store the appliance and its accessories in a dry, clean place, out of reach of children.

6. Fejlfinding

Hvis du støder på problemer med dit apparat, bedes du se følgende almindelige problemer og løsninger:

Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.

7. Specifikationer

• Model: 3612406289391
• Magt: 1000 W
• Voltage: 230 V
• Frekvens: 50 Hz
• Antal hastigheder: 6
• Blandeskålens kapacitet: 5 liter
• Blenderkapacitet: 1.5 liter
• Kabellængde: 1 meter
• Materialer: Rustfrit stål, plastik, glas
• Tåler opvaskemaskine: Nej (Håndvask anbefales)

8. Garanti og support

Your Continental EDISON Multifunction Pastry Robot comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.

For technical assistance, spare parts, or any questions not covered in this manual, please contact Continental EDISON customer support. Contact information can typically be found on the product packaging or the official Continental EDISON webwebsted.
