GALAX PRO 1200W 185mm Circular Saw Instruction Manual

1. Vigtige sikkerhedsinstruktioner

Always follow basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury. Read all instructions before operating this circular saw.

• Sikkerhed på arbejdsområdet: Hold arbejdsområdet rent og godt oplyst. Rodede eller mørke områder indbyder til ulykker. Brug ikke elværktøj i eksplosive atmosfærer, f.eks. i nærheden af ​​brandfarlige væsker, gasser eller støv.
• Elektrisk sikkerhed: Stik på elværktøj skal passe til stikkontakten. Modificer aldrig stikket på nogen måde. Undgå kropskontakt med jordforbundne overflader, såsom rør, radiatorer, komfurer og køleskabe.
• Personlig sikkerhed: Always wear eye protection. Use hearing protection when operating for extended periods. Wear a dust mask if operations create dust. Dress properly; avoid loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts.
• Brug og vedligeholdelse af elværktøj: Tving ikke elværktøjet. Brug det korrekte elværktøj til din anvendelse. Tag stikket ud af strømkilden, før du foretager justeringer, skifter tilbehør eller opbevarer elværktøj.
• Specifik sikkerhed for rundsav Keep hands away from the cutting area and the blade. Do not reach underneath the workpiece. Adjust the cutting depth to the thickness of the workpiece. Never hold the workpiece in your hands or across your leg while cutting.

2. Produktet er slutview

The GALAX PRO 1200W 185mm Circular Saw is designed for cutting wood, plastic, and similar materials. It features a powerful motor, adjustable cutting depth, and a bevel angle adjustment for versatile applications.

Image: The GALAX PRO 1200W 185mm Circular Saw, showing the main unit, two saw blades, and a parallel guide.

Nøglekomponenter:

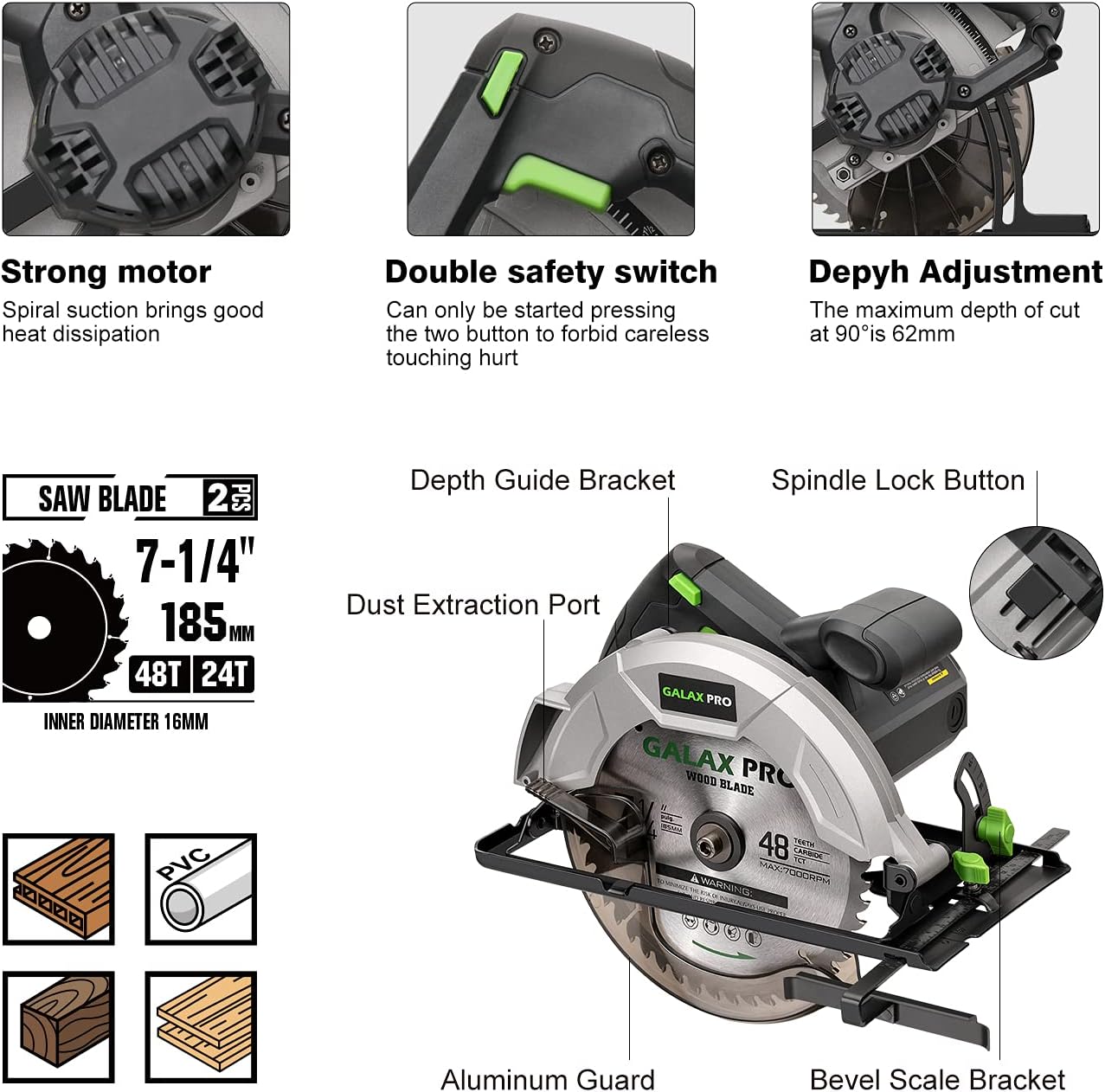

Billede: En detaljeret view of the circular saw with key components labeled, including the strong motor, double safety switch, depth guide bracket, spindle lock button, dust extraction port, aluminum guard, and bevel scale bracket.

• Stærk motor: Provides efficient heat dissipation for prolonged use.
• Dobbelt sikkerhedsafbryder: Requires pressing two buttons simultaneously to start, preventing accidental activation.
• Depth Guide Bracket: For precise control over cutting depth.
• Spindellåseknap: Secures the spindle for safe blade changes.
• Støvudsugningsport: Tilsluttes en støvsuger for et renere arbejdsmiljø.
• Aluminum Guard: Protects the blade during operation.
• Bevel Scale Bracket: Allows for angle adjustments.

3. Opsætning

Montering af knive:

Ensure the saw is unplugged from the power source before installing or changing the blade.

1. Tryk og hold spindellåseknappen nede.
2. Use the provided hex wrench to loosen the blade retaining bolt by turning it counter-clockwise.
3. Fjern den ydre flange og det gamle blad.
4. Place the new blade onto the spindle, ensuring the teeth are pointing in the direction of rotation indicated by the arrow on the saw guard.
5. Replace the outer flange and tighten the blade retaining bolt clockwise with the hex wrench while holding the spindle lock button.

Justering af skæredybde:

The cutting depth can be adjusted to match the thickness of your workpiece. This ensures a clean cut and reduces kickback risk.

1. Loosen the depth adjustment lever located at the front of the saw.
2. Raise or lower the saw base to achieve the desired cutting depth. The depth scale will assist in setting the precise measurement.
3. Spænd dybdejusteringshåndtaget godt fast.

Image: Illustration showing the depth adjustment mechanism, indicating a maximum cutting depth of 62mm at 90 degrees.

Justering af skråvinkel:

For angled cuts, the saw base can be tilted from 0 to 45 degrees.

1. Loosen the bevel adjustment knob, usually located at the front or side of the saw.
2. Tilt the saw base to the desired angle, using the angle scale for accuracy.
3. Tighten the bevel adjustment knob firmly to secure the angle.

Image: Illustration showing the bevel angle adjustment mechanism, indicating a range from 0 to 45 degrees and a maximum cutting depth of 42mm at 45 degrees.

4. Betjeningsvejledning

Laver et snit:

Sørg altid for, at emnet er sikkert fastgjortamped before cutting. Wear appropriate safety gear.

1. Set the desired cutting depth and bevel angle as described in the Setup section.
2. Position the saw on the workpiece, aligning the blade with your cut line. Ensure the blade is not touching the workpiece before starting the saw.
3. Engage the double safety switch and press the trigger to start the saw. Allow the blade to reach full speed before beginning the cut.
4. Guide the saw smoothly and steadily through the workpiece. Do not force the saw; let the blade do the work.
5. Når snittet er færdigt, slippes aftrækkeren og klingen stopper helt, før saven løftes fra emnet.

Image: A user demonstrating a straight cut on a wooden plank with the circular saw, showing the saw in action with sawdust.

Image: A user demonstrating a bevel cut on a wooden plank, highlighting the saw's ability to cut at an angle.

Materials for Cutting:

This circular saw is suitable for cutting various materials, including:

• Træ
• PVC
• Gipsplader
• Bambus

Image: The circular saw displayed alongside examples of materials it can cut, such as wood, PVC, plasterboard, and bamboo.

5. Vedligeholdelse

Regular maintenance ensures the longevity and safe operation of your circular saw. Always unplug the tool before performing any maintenance.

• Rensning: Keep the tool's ventilation openings clean to prevent overheating. Use a soft brush or compressed air to remove dust and debris from the motor housing and blade guard.
• Klingepleje: Inspect the saw blade regularly for sharpness and damage. A dull or damaged blade can cause kickback and poor cut quality. Replace worn blades promptly.
• Ledningsinspektion: Kontrollér netledningen for tegn på skader, snit eller flosning. Udskift beskadigede ledninger med det samme for at forhindre elektriske farer.
• Smøring: This tool is generally designed for maintenance-free operation. Do not lubricate internal components unless specified by the manufacturer.

6. Fejlfinding

If you encounter issues with your circular saw, refer to the following common troubleshooting steps:

Hvis problemet fortsætter efter at have forsøgt disse løsninger, skal du kontakte kundesupport eller en kvalificeret servicetekniker.

7. Specifikationer

Technical specifications for the GALAX PRO 1200W 185mm Circular Saw:

8. Garanti og support

For information regarding product warranty, technical support, or service, please refer to the documentation included with your product packaging or visit the official GALAX PRO webSpecifikke garantivilkår kan variere afhængigt af region og forhandler.
