GALAX PRO 135W Rotary Tool Kit Instruction Manual

1. Introduktion

Thank you for choosing the GALAX PRO 135W Rotary Tool Kit. This versatile tool is designed for a wide range of applications, including cutting, sanding, grinding, carving, polishing, and engraving. Its variable speed control and comprehensive set of accessories make it suitable for various DIY projects and craft work. Please read this manual carefully before operating the tool to ensure safe and efficient use.

2. Vigtige sikkerhedsoplysninger

Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger elektrisk værktøj, for at reducere risikoen for brand, elektrisk stød og personskade. Gem denne manual til senere brug.

• Bær øjenbeskyttelse: Brug altid sikkerhedsbriller eller sikkerhedsbriller med sideskjold, når du bruger værktøjet.
• Hold arbejdsområdet rent: Rodede arbejdsområder og bænke indbyder til ulykker.
• Sikkert arbejdsemne: Altid clamp eller på anden måde fastgør emnet for at forhindre bevægelse under drift.
• Afbryd strømmen: Always disconnect the tool from the power source before changing accessories, making adjustments, or performing maintenance.
• Undgå utilsigtet start: Sørg for, at kontakten er i OFF-positionen, før du tilslutter værktøjet.
• Brug korrekt tilbehør: Only use accessories designed for this tool and ensure they are properly installed.
• Bevar et godt greb: Hold the tool firmly with both hands, especially when performing tasks that may cause kickback.
• Hold børn væk: Do not let children or untrained persons operate this tool.

3. Pakkens indhold

Your GALAX PRO 135W Rotary Tool Kit includes the following items:

• 1 x GALAX PRO 135W Rotary Tool
• 1 x Flexible Shaft Attachment
• 1 x Extendable Stand
• 1 x Fixed Frame
• 40 x Assorted Accessories (e.g., felt wheels, sanding bands, grinding wheels, cut-off wheels, diamond wheel points, drill bits, wrench)
• 1 x unbrakonøgle
• 1 x bæretaske
• 1 x brugermanual

Billede: Overview of the GALAX PRO 135W Rotary Tool Kit, including the main tool, flexible shaft, and various accessories neatly organized in its carrying case.

Billede: En detaljeret view of the various accessories included, categorized for cutting, sanding, grinding, sharpening, carving, and engraving tasks.

4. Produktfunktioner

• Variabel hastighedskontrol: The tool features a thumb wheel speed switch allowing adjustment between 8,000 and 32,500 RPM. This enables precise control for different materials and tasks, from delicate engraving to aggressive grinding.


Image: A close-up of the rotary tool highlighting its copper core for durability and the 6-level adjustable speed thumbwheel for precise control.

• Quick Accessory Change: A built-in collet lock button facilitates easy and quick attachment changes, minimizing downtime between tasks.
• Comfortable Grip and Lightweight Design: The ergonomic soft grip reduces vibration, providing optimal handling and control. Its lightweight design helps prevent fatigue during extended use.
• Fleksibel akselfastgørelse: For enhanced precision and access to intricate areas, the flexible shaft allows for pen-like handling, ideal for detailed work.

Image: A user demonstrating the flexible shaft attachment, connected to the main rotary tool, for precise carving on a small wooden object.
• Alsidige applikationer: This 135W rotary tool is capable of performing a wide array of tasks including cutting, sanding, grinding, carving, polishing, engraving, sharpening, drilling, and smoothing.

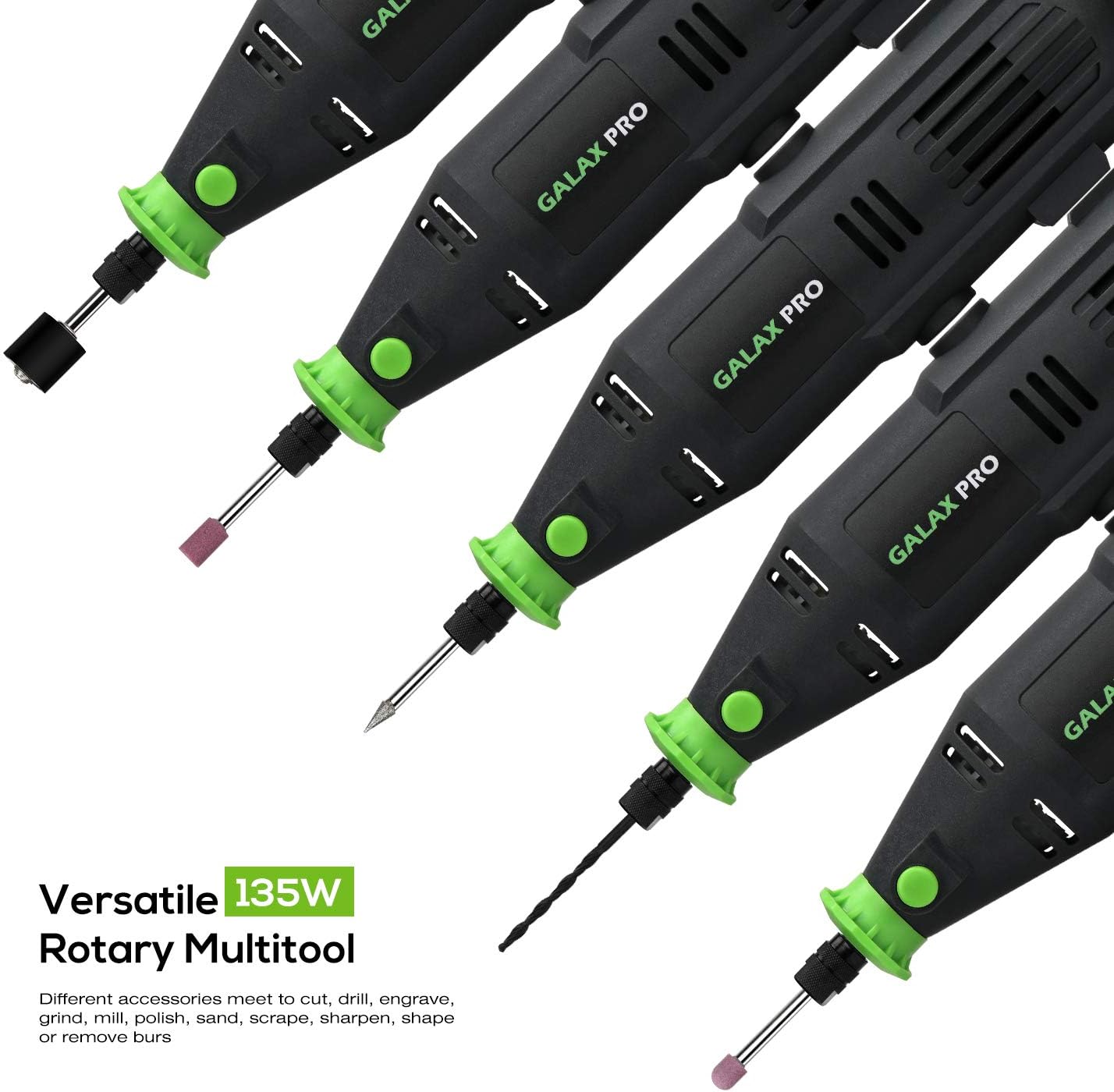

Image: Several views of the GALAX PRO rotary tool, each fitted with a different accessory, illustrating its versatility for various applications.

5. Opsætningsvejledning

5.1 Attaching Accessories to the Rotary Tool

1. Sørg for, at værktøjet er frakoblet strømkilden.
2. Press and hold the collet lock button located on the front of the tool.
3. Skru spændemøtrikken af.
4. Sæt det ønskede tilbehørsskaft i spændetangen. Sørg for, at skaftet sidder helt fast.
5. Tighten the collet nut securely while still holding the collet lock button. Release the button once tightened.

Image: A diagram illustrating key components of the rotary tool, including the collet button for accessory changes, the main switch, and the carbon brush access.

5.2 Montering af den fleksible aksel

1. Sørg for, at rotationsværktøjet er frakoblet.
2. Remove the collet nut and collet from the main rotary tool.
3. Insert the flexible shaft's inner drive cable into the rotary tool's shaft.
4. Screw the flexible shaft's coupling nut onto the rotary tool's threaded collar until secure.
5. To attach an accessory to the flexible shaft handpiece, use the provided Allen key to loosen the collet nut on the handpiece, insert the accessory, and then tighten the nut.

6. Betjeningsvejledning

6.1 Tænd/sluk

To turn the tool ON, slide the power switch to the 'I' position. To turn it OFF, slide the switch to the 'O' position.

6.2 Justering af hastighed

Use the variable speed thumb wheel to select the desired RPM. Start with a lower speed for delicate tasks or softer materials and increase the speed for harder materials or more aggressive removal.

6.3 Generelle brugstips

• Apply light pressure; let the tool and accessory do the work. Excessive pressure can cause the tool to overheat or stall.
• Move the tool continuously to avoid creating grooves or burning the workpiece.
• Always test on a scrap piece of material first to determine the optimal speed and accessory for your task.

Image: A user operating the GALAX PRO rotary tool to sand a wooden workpiece, demonstrating its use for finishing tasks.

Image: The rotary tool being used to grind a metal chisel, illustrating its capability for sharpening and material removal on hard surfaces.

Image: A composite image showing the rotary tool performing multiple tasks, including polishing a seashell and cutting a metal object, highlighting its diverse applications.

7. Vedligeholdelse

7.1 Rengøring

Efter hver brug skal værktøjet tages ud af stikkontakten og rengøres med en blød klud.amp cloth. Remove any dust or debris from the ventilation slots to ensure proper cooling. Do not use harsh chemicals or abrasive cleaners.

7.2 Udskiftning af kulbørste

The carbon brushes in your rotary tool are wear items. If the tool experiences reduced power or intermittent operation, the carbon brushes may need replacement. Refer to the diagram in Section 5.1 for the location of the carbon brush access. Consult a qualified service technician if you are unsure how to replace them.

7.3 Opbevaring

Store the tool and all accessories in the provided carrying case in a dry, secure location, out of reach of children.

8. Fejlfinding

Hvis du støder på problemer med dit roterende værktøj, skal du se følgende almindelige fejlfindingstrin:

• Værktøjet starter ikke: Check if the power cord is securely plugged into a working outlet. Ensure the power switch is in the 'ON' position.
• Strømtab/Intermitterende drift: This could indicate worn carbon brushes (see Section 7.2) or an issue with the power supply.
• Overdreven vibration: Ensure the accessory is properly inserted and tightened in the collet. Check if the accessory is damaged or bent; replace if necessary.
• Overophedning: Ensure ventilation slots are clear of debris. Avoid applying excessive pressure during operation.

Hvis disse trin ikke løser problemet, bedes du kontakte kundesupport.

9. Specifikationer

10. Garanti og support

For warranty information or technical support, please refer to the warranty card included with your product or contact GALAX PRO customer service. Keep your purchase receipt as proof of purchase.

For further assistance, visit the official GALAX PRO webwebstedet eller kontakt deres supportteam direkte.
