Walfront MESTEK SL620 Sound Level Meter User Manual

1.Overview

The Walfront MESTEK SL620 is a digital sound level meter designed for measuring noise levels in various environments. It features a wide measurement range, a clear LCD backlight display, and functions for data retention, minimum/maximum value tracking, and automatic shutdown. This device is suitable for quality control in factories, offices, homes, schools, and construction sites.

Nøglefunktioner omfatter:

• Measurement range of 35 to 135 dB.
• LCD display with backlight for clear readings.
• Data hold, MIN/MAX value tracking.
• Automatic and manual power-off options.

2. Sikkerhedsoplysninger

Læs og forstå alle sikkerhedsinstruktioner, før du bruger enheden. Manglende overholdelse af disse instruktioner kan medføre personskade eller beskadigelse af enheden.

• Forsøg ikke at åbne eller ændre enheden. Der er ingen dele indeni, som kan repareres af brugeren.
• Hold enheden væk fra vand, fugt og ekstreme temperaturer.
• Use only the specified battery type (3 x 1.5V AAA). Ensure correct polarity during installation.
• Fjern batterierne, hvis enheden ikke skal bruges i længere tid, for at forhindre lækage.
• Undgå at tabe enheden eller udsætte den for kraftige stød.
• Rengør enheden med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.

3. Product Components and Layout

Familiarize yourself with the different parts of your sound level meter:

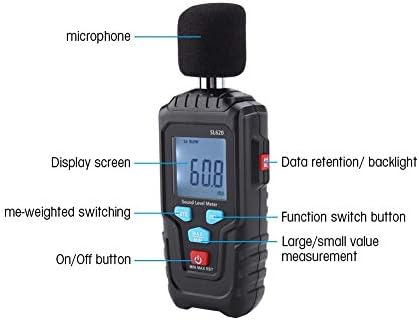

Figure 3.1: Labeled diagram of the MESTEK SL620 Sound Level Meter, showing the microphone, display screen, data retention/backlight button, function switch button, time-weighted switching button, and on/off button.

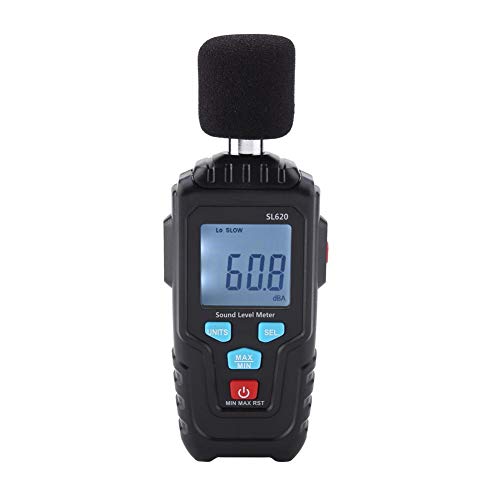

Figure 3.2: The MESTEK SL620 Sound Level Meter with its approximate dimensions: 150mm length, 55mm width, and 30mm height.

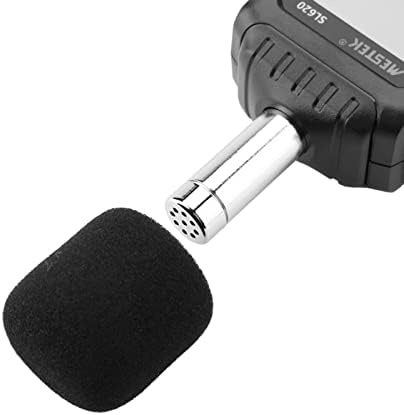

Figure 3.3: Close-up of the device's microphone, protected by a foam windscreen.

4. Opsætning

4.1 Batteriinstallation

1. Find batteridækslet på bagsiden af ​​enheden.
2. Skub eller afklips dækslet for at åbne rummet.
3. Insert three (3) 1.5V AAA batteries, ensuring correct polarity (+/-) as indicated inside the compartment.
4. Sæt batterirummets dæksel på igen.

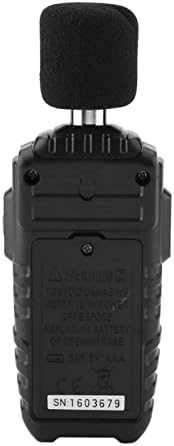

Figur 4.1: Bagside view of the sound level meter, showing the battery compartment where three AAA batteries are installed.

5. Betjeningsvejledning

5.1 Tænd/sluk

• For at tænde enheden skal du trykke på Til/Fra knap.
• For at slukke for enheden skal du trykke på og holde nede Til/Fra button for a few seconds. The device also features an automatic shutdown function to conserve battery power.

5.2 Tage en måling

1. Turn on the device. The current sound level will be displayed on the LCD screen.
2. Position the microphone towards the sound source you wish to measure.
3. Read the decibel (dB) value displayed on the screen.

Figure 5.1: The sound level meter held in hand, showing a reading of 60.8 dBA on its LCD screen.

5.3 Funktionsknapper

• UNITS Button: Press to switch between different measurement units or modes if available (e.g., dBA, dBC). For this model, it primarily controls time weighting.
• SEL -knap: This button is used for selecting functions or confirming settings.
• MIN/MAX-knap: Press this button to cycle through current, minimum, and maximum recorded sound levels.
• Datahold / Baggrundsbelysningsknap: A dedicated button (often on the side or labeled 'H/BL') allows you to hold the current reading on the display. Pressing it again may release the hold. Long-pressing this button typically activates or deactivates the display backlight.

5.4 Time Weighting (FAST/SLOW)

The device supports two time weighting modes:

• FAST (125 ms): Used for measuring rapidly changing noise levels. This is the default setting.
• SLOW (1 second): Used for measuring average noise levels where the sound value changes significantly.

To switch between FAST and SLOW modes, use the designated button (often labeled 'F/S' or integrated with 'UNITS').

5.5 Frequency Weighting (A-Weighting)

The MESTEK SL620 uses A-weighting (A characteristic) for its measurements. A-weighting is commonly used for environmental noise measurements and is designed to approximate the human ear's response to sound.

6. Vedligeholdelse

6.1 Rengøring

Wipe the device with a soft, dry cloth. Do not use liquid cleaners, solvents, or abrasive materials, as these can damage the casing eller interne komponenter.

6.2 Opbevaring

When not in use for extended periods, store the device in a cool, dry place, away from direct sunlight and extreme temperatures. Remove the batteries before storage to prevent potential leakage and damage.

6.3 Udskiftning af batteri

When the battery indicator appears on the display, replace all three AAA batteries promptly to ensure accurate measurements and proper device function. Refer to Section 4.1 for battery installation instructions.

7. Fejlfinding

If you encounter issues with your MESTEK SL620 Sound Level Meter, refer to the following common problems and solutions:

• Enheden tændes ikke:
  • Kontroller, om batterierne er installeret korrekt med den rigtige polaritet.
  • Replace with new batteries if current ones are depleted.
• Unøjagtige aflæsninger:
  • Ensure the microphone is clean and unobstructed.
  • Verify that the device is not exposed to strong electromagnetic fields.
  • Kontroller batteriniveauet; lave batterier kan påvirke nøjagtigheden.
• Skærmen er svag eller virker ikke:
  • Kontroller batteriniveauet og udskift det om nødvendigt.
  • Ensure the backlight function is activated if operating in low light conditions.

Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.

8. Specifikationer

9. Garanti og support

Specific warranty information for the Walfront MESTEK SL620 Sound Level Meter is not provided in this manual. Please refer to the product packaging or the retailer's webwebsted for garantioplysninger.

For technical support or inquiries, please contact your point of purchase or the Walfront customer service department.
